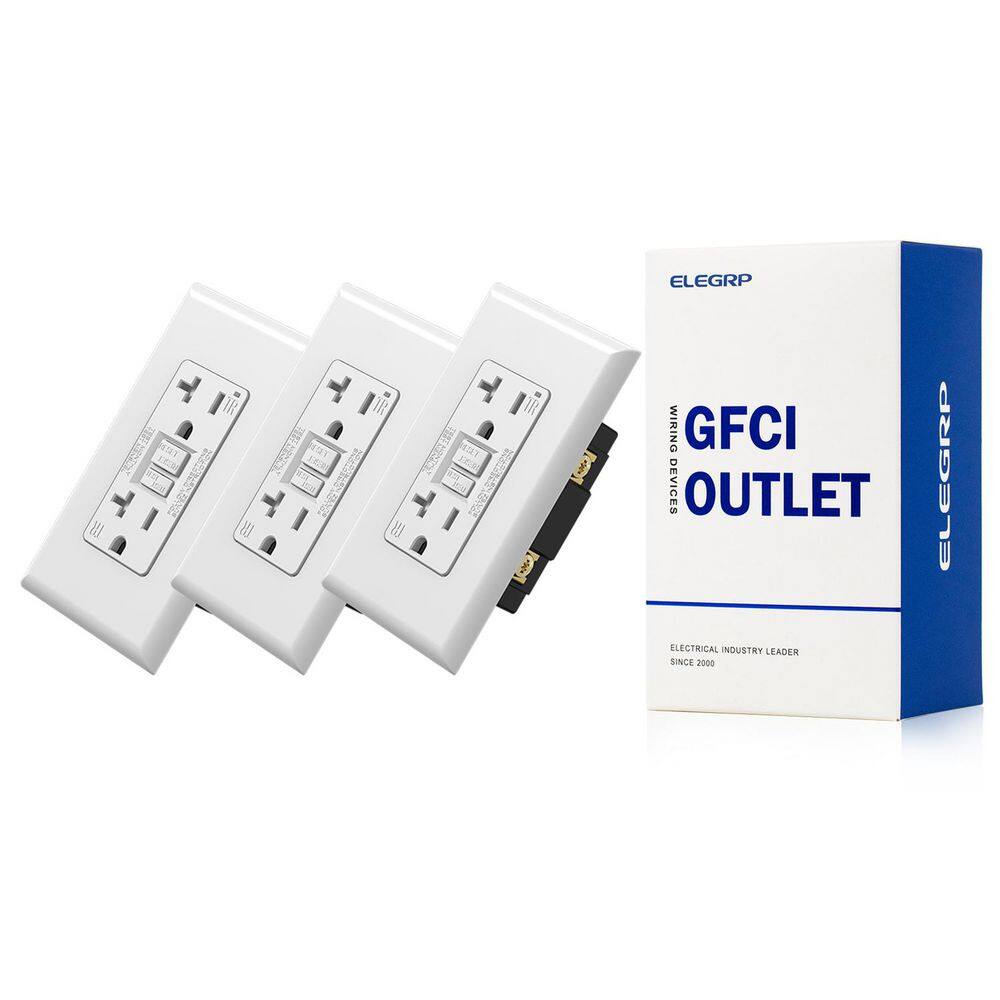

ELEGRP EG19S20T-0103 GFCI Outlet Self-Test, 20 Amp 125V Tamper Resistant Duplex wall outlet, Wall Plate included, UL Listed, Matte White 3PC
Original price was: $40.99.$36.89Current price is: $36.89.
- GFCI outlet with self-test function
- Ultra compact design for easy installation in electrical boxes.
- Includes standard brass Self Grounding Clip
ELEGRP EG19S20T-0103 GFCI Outlet Self-Test, 20 Amp 125V Tamper Resistant Duplex wall outlet, Wall Plate included, UL Listed, Matte White 3PC
ELEGRP’s ground fault circuit interrupter (GFCI) outlet provides continuous protection from ground faults during its whole life period. The GFCI receptacles conduct an auto-monitor function self-test every five seconds exceeding UL 943 requirementsfor a frequency of 8 hours. Ultra-compact design leaves more space for other wiring devices for easier and quicker installation in electrical boxes. Miswire protection interrupts power in an event that the GFCI receptacle is miswired by interposing line and load branch circuit supply wiring. The GFCI receptacle will deny power to receptacle face and downstream. Automatic shutter system prevents young children from inserting unwanted objects into the outlets. Our products are UL and CUL Listed, which meets UL standards.
- Self-test function : automatically conducts a self-test every 5 seconds, ensuring it is always ready to provide protection, which exceeds the UL requirement
- Innovative dual protection system:twin solenoid and double silicon controlled rectifier (SCR) ensure an always-on GFCI protection to ground fault

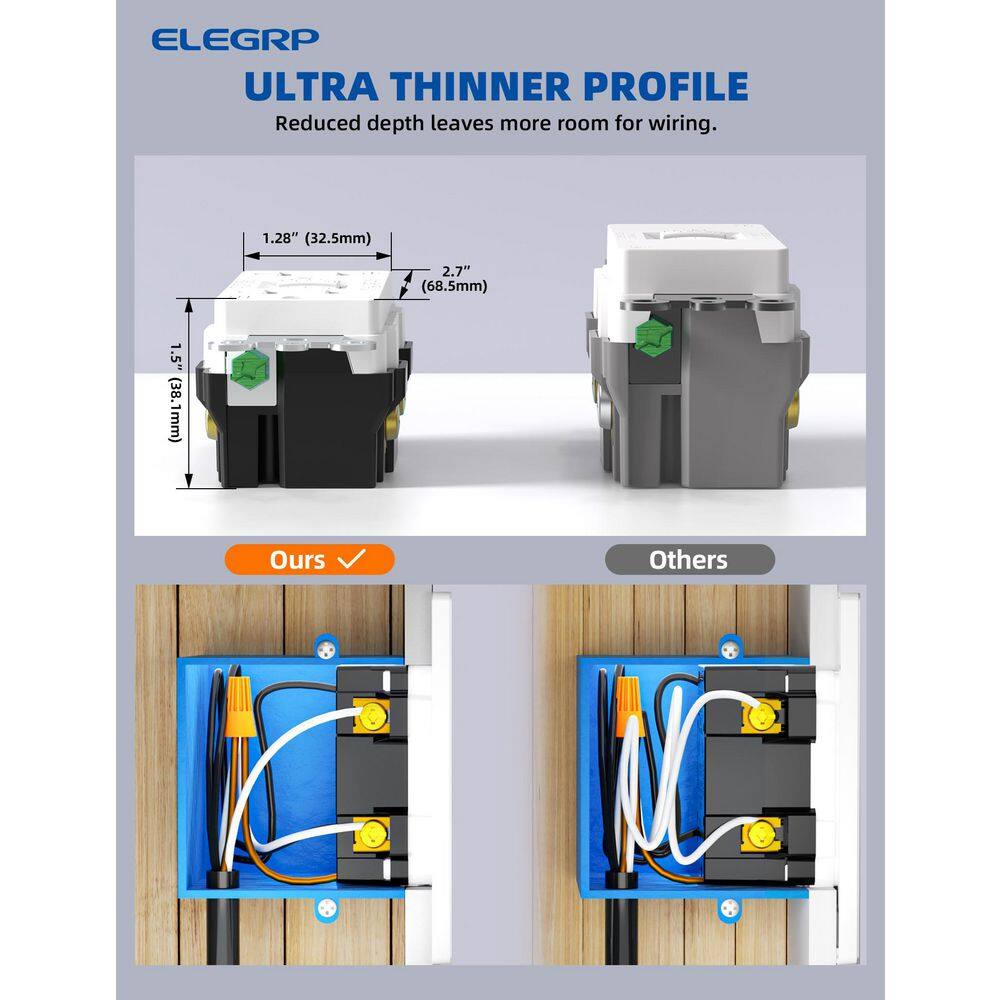

- Ultra-compact design: slim design leaves more room for wiring in an electric box
- Tamper-resistant: automatic shutter system prevents young children frominserting unwanted objects into the outlets
- Self-grounding slip: standard brass self-grounding clip included, providing for automatic grounding in the junction box

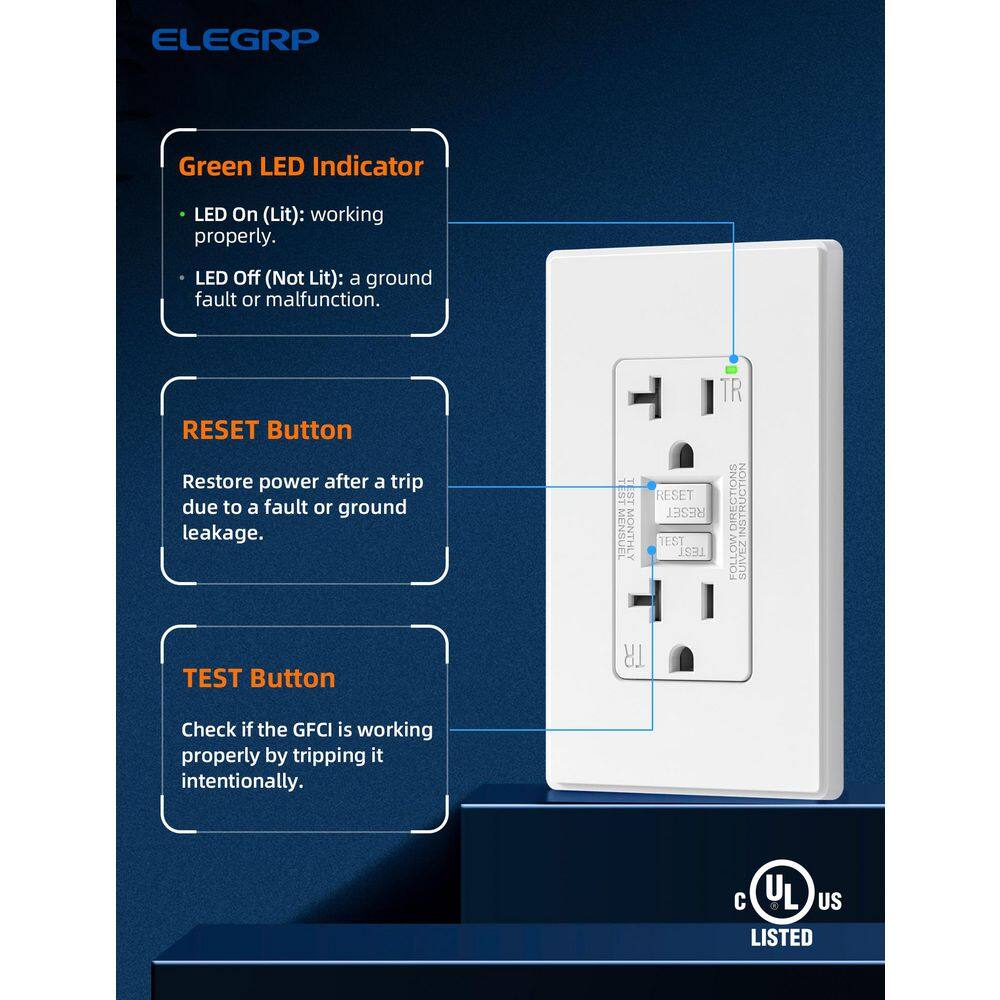

- Green LED indicator: easily see that power is available with “power on” indicator light
- Durable and long service life : withstands higher voltage surge than UL943 requirements

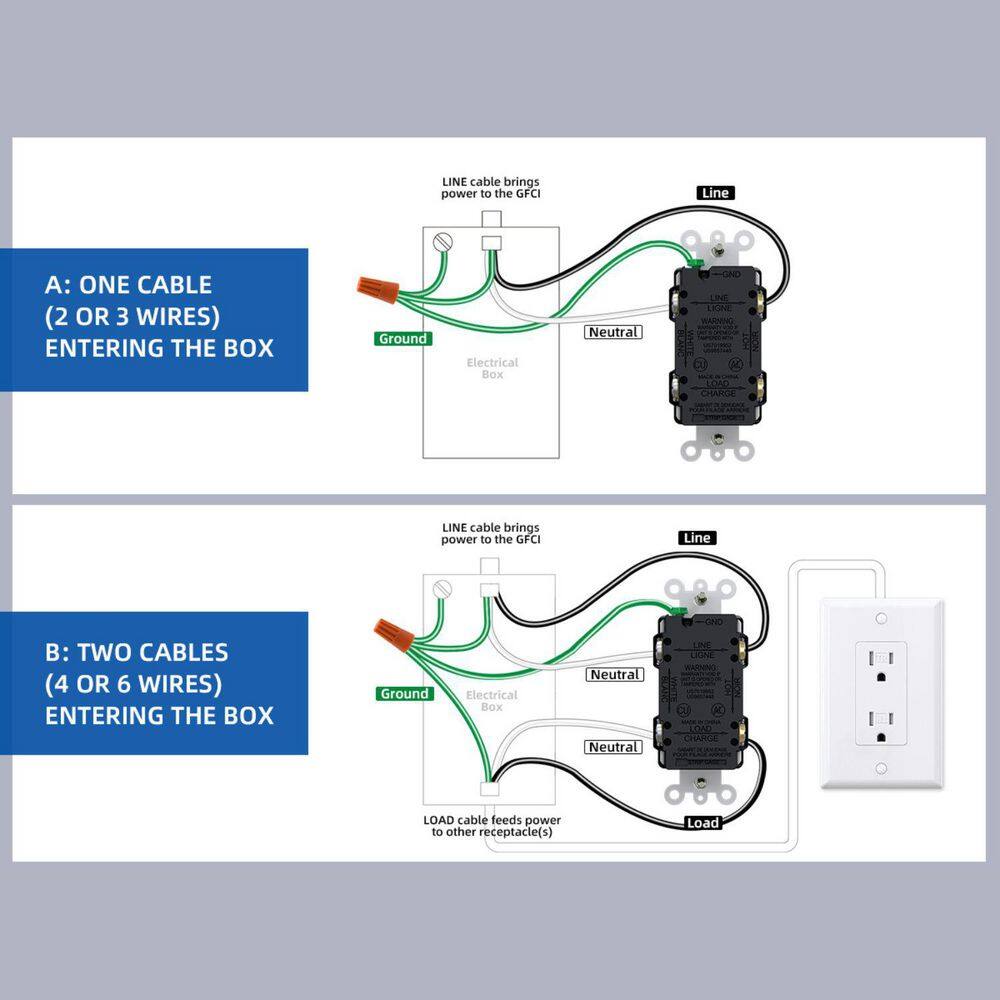

- Easy to install : support back wiring and side wiring
Dimensions
| Outlet Depth (in.) | 1.5 | Outlet Height (in.) | 2.7 |
|---|---|---|---|
| Outlet Width (in.) | 1.28 | Wall Plate Depth (in.) | 0.24 |
| Wall Plate Height (in.) | 4.53 | Wall Plate Width (in.) | 2.76 |
Details
| Amperage (A) | 20 A | Color Family | White |
|---|---|---|---|
| Color/Finish | White/Matte | Commercial/Residential | Residential |
| Configuration | Standard | Device Style Type | Outlet w/ Wall Plate |
| Durability | Tamper Resistant, Weather Resistant | Electrical Features | Indicator Light |
| Grounding | Grounded | Included | Wall Plate |
| Indoor/Outdoor | Indoor | Maximum Amperage (A) | 20 A |
| Mounting Type | Wall Mounted | NEMA Configuration | NEMA 5-20 |
| Number of Poles | 2 | Number of Receptacles | 2 |
| Outlet Configuration | Duplex | Outlet Location | Wall |
| Outlet Material | Polycarbonate | Outlet Type | GFCI |
| Package Quantity | 3 | Plug Configuration | 5-20 |
| Rating | Tamper Resistant, Weather Resistant | Receptacle Configuration | 5-20 |
| Voltage | 125 volt | ||
| Voltage (V) | 125 V | Wall Plate Material | Polycarbonate |
| Wire Connection Location | Back | Wire Connection Type | Screw Terminal |
