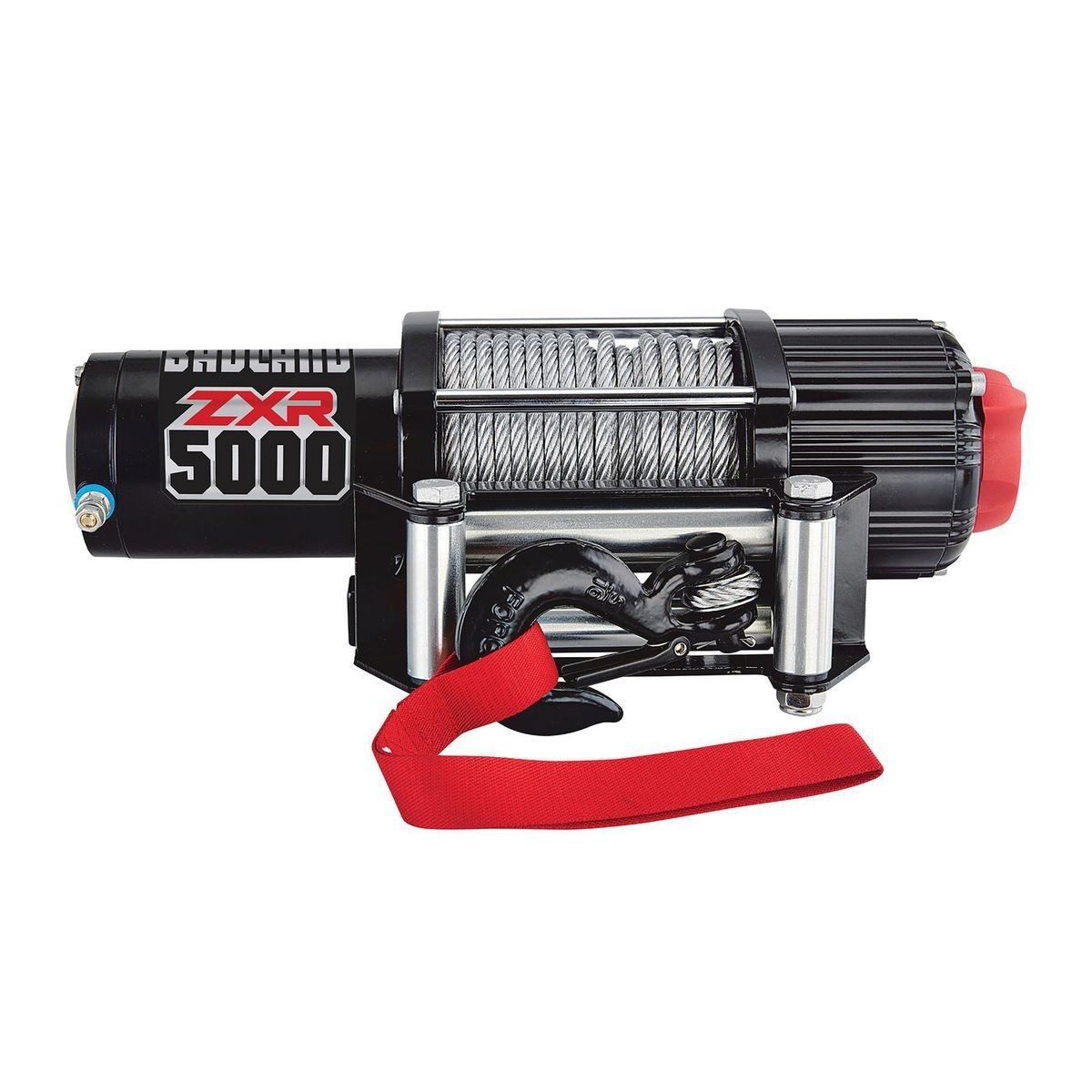

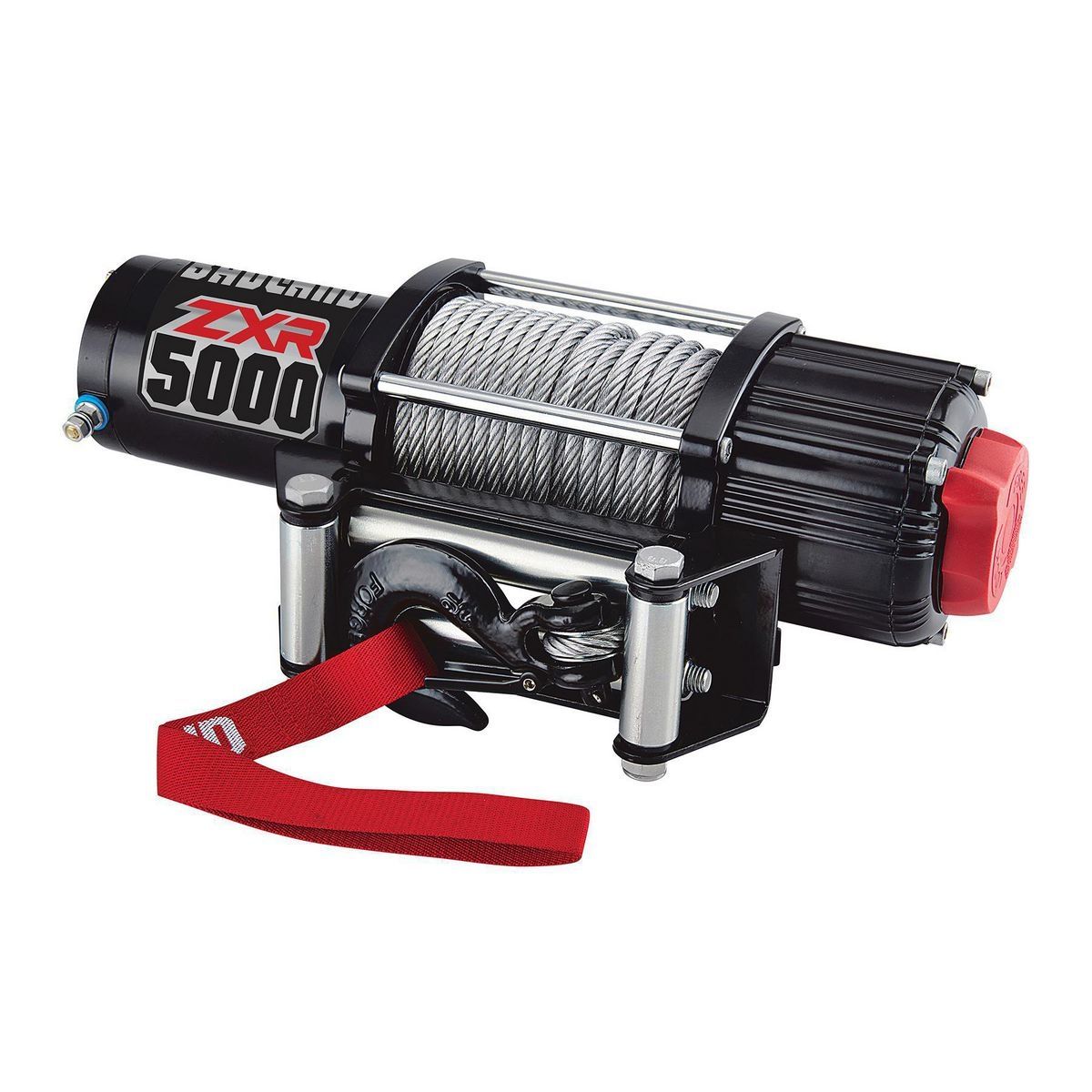

Use this BADLAND ZXR™ UTV/Powersport Winch with Automatic Load-Holding Brake to quickly recover UTVs, boats, and other power sport vehicles weighing as much as 5000 lb..

• Permanent magnet motor draws less current
• 3-stage planetary gear system for fast line speed
• Free spooling for fast line-out
• Automatic load-holding brake for increased safety
• High-strength, corrosion-resistant, aircraft-grade steel rope for plenty of pulling power

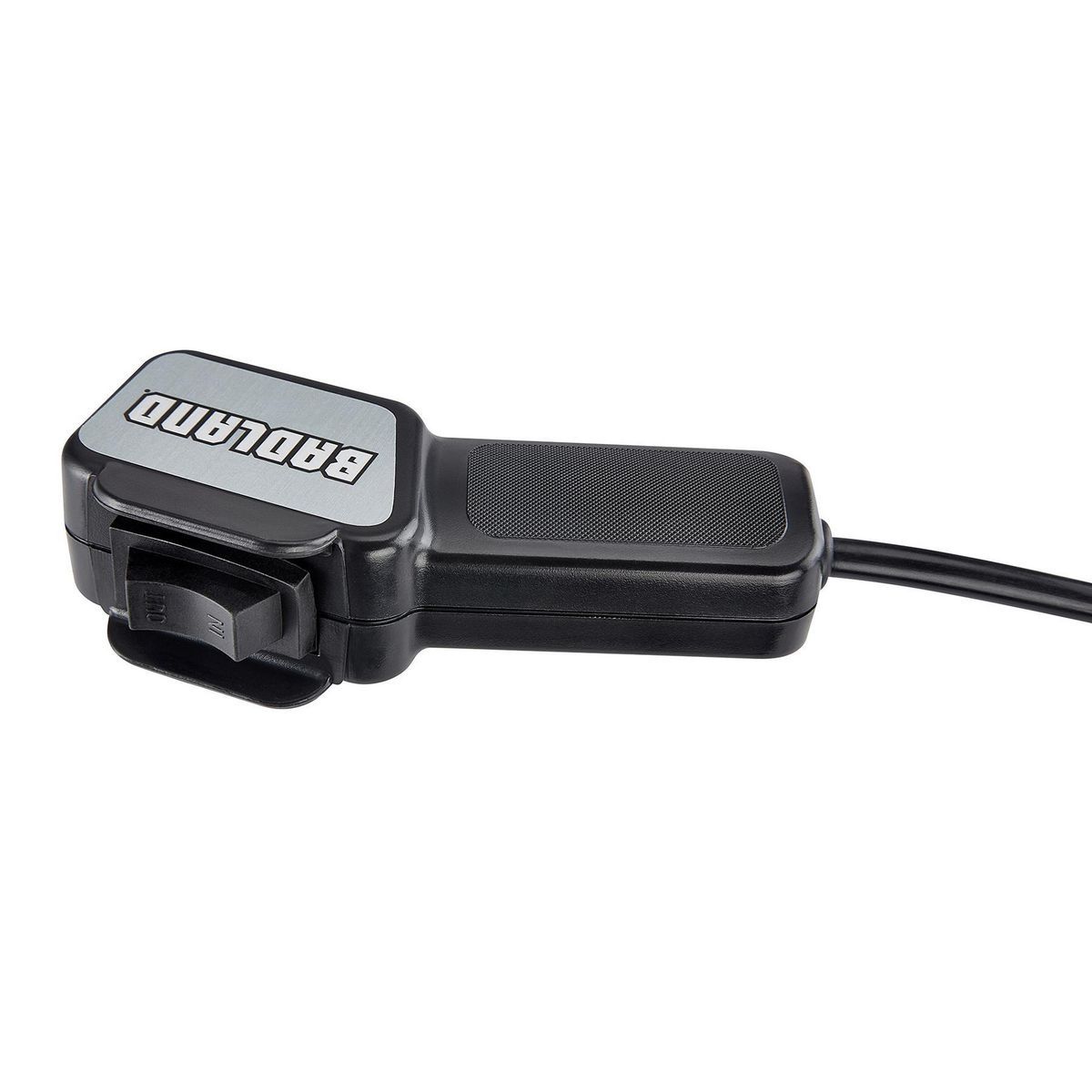

• Dash-mounted switch and ergonomic wired remote control for clear line-of-sight
• Roller fairlead with nylon bushing

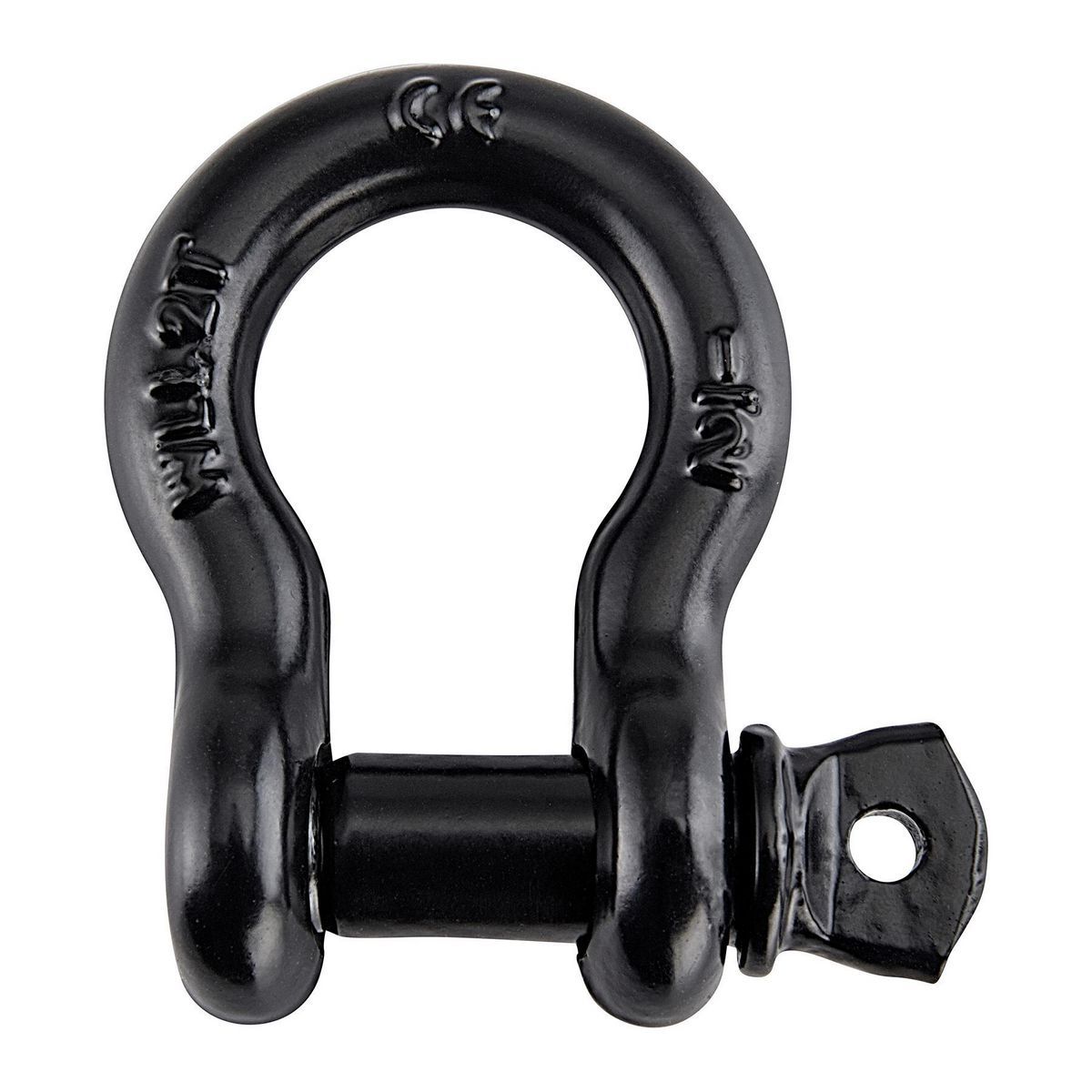

• Includes 1/2 in. diameter shackle
• IP67 rating is dust-proof and water resistant for all-weather protection

Specifications

• SKU(s): 56326, 56530
• Brand: BADLAND ZXR
• Line Pull Capacity: 5000 lb.
• Wireless Remote: No
• Accessories Included: Cable / strap, remote control, dash switch, 1/2 in. shackle
• Brake Type: Auto Load-Holding
• Cable Gauge: 1/4 in.
• Cable Length: 50 ft.
• Cable Material: Aircraft grade steel
• Certification: IP67
• Gear Ratio: 136:1
• Motor Type: Permanent magnet
• Product Height: 4-7/10 in.
• Product Length: 15-4/5 in.
• Product Weight: 33.00 lb.
• Product Width: 4-3/5 in.
• Shipping Weight: 37.05 lb.
