Uponor F4340750R AquaPEX 3/4 in. x 100 ft. White with Blue Print PEX-A Expansion Pipe
Original price was: $99.99.$89.99Current price is: $89.99.
- Trusted, reliable PEX-a with decades of service in North America
- Blue print to signify cold potable plumbing lines
- 25-year warranty when used with Uponor ProPEX® rings and fittings
Uponor F4340750R AquaPEX 3/4 in. x 100 ft. White with Blue Print PEX-A Expansion Pipe
Uponor AquaPEX White with Blue Print is a PEX-a pipe designed for use in residential and commercial domestic cold water plumbing systems. The pipe resists corrosion, pitting, and scale buildup, has the highest chlorine resistance rating of 5, and offers one month of UV resistance. The PEX-a manufacturing method provides exceptional flexibility, strength, and durability, allowing a bend radius of 6X the pipe diameter to help eliminate unnecessary connections with each change in direction. Also, the pipe elasticity allows it to expand up to 3X its diameter and then shrink back down. This provides exceptional resiliency in freeze/thaw conditions. Note that no piping system is completely freeze proof, but PEX-a provides greater resiliency compared to rigid piping systems. Uponor PEX-a pipe is designed for use with Uponor ProPEX fittings, which require the use of a ProPEX expansion tool and ProPEX rings (sold separately). When used as a system, Uponor PEX-a pipe, ProPEX rings, and ProPEX fittings are covered by a 25-year transferable limited warranty. Note that Uponor AquaPEX White with Blue Print pipe is not approved for use in AquaSAFE residential fire sprinkler systems.
- PEX-a manufacturing for superior flexibility, strength, and durability

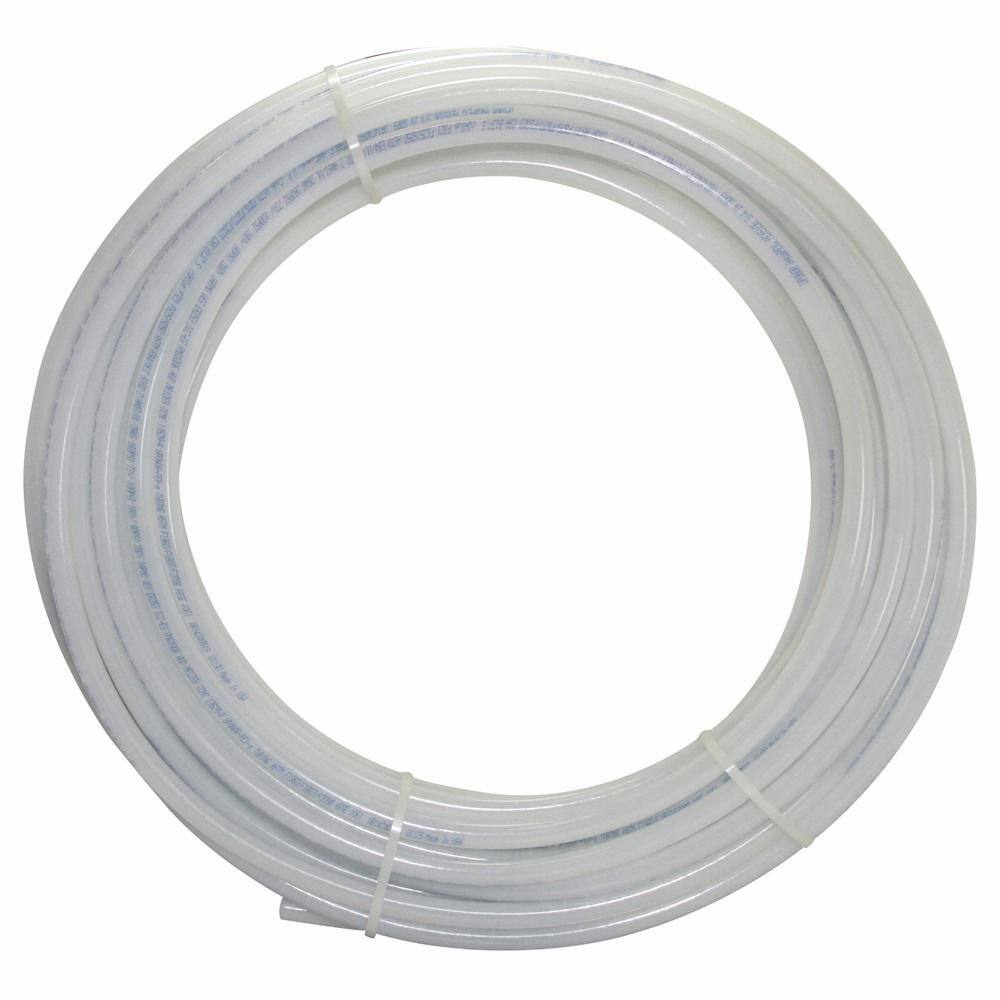

- 100 ft. length coil to help eliminate unnecessary connections
- Designed for use with F1960 expansion connections that allow higher flow and maximum system performance
- Thermal elasticity allows pipe to expand up to 3X the diameter for greater resilience in freezing conditions
- Most flexible with a bend radius of 6X the pipe diameter
- Kink repairable with a simple shot of heat from a heat gun
- Resists corrosion, pitting, and scale buildup
- Manufactured and listed to ASTM F876 and F877 and certified to NSF standards 14 and 61
- Hydrostatic ratings of 200°F at 80 pieces, 180°F at 100 pieces, and 73.4°F at 160 pieces; operating conditions for domestic hot water (DHW) and DHW recirc should not exceed 140°F at 80 pieces
- Compatible with PEX expansion, compression, clamp, crimp, press, and push-to-connect fitting systems

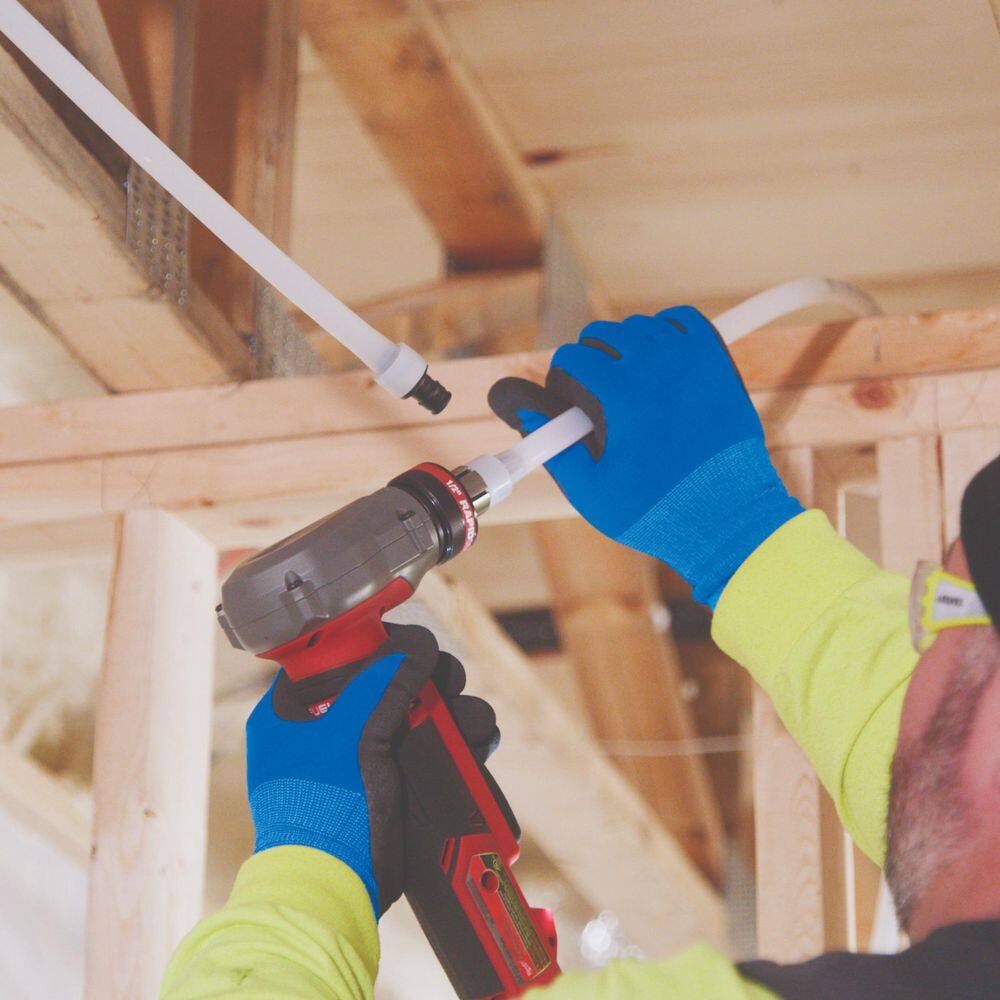

- ProPEX expansion connections require use of ProPEX expansion tool and ProPEX rings (sold separately)
- Backed by a 25-year transferable limited warranty when used with Uponor ProPEX rings and fittings
Dimensions
| Actual inside diameter (in.) | 0.671 | Actual outside diameter (in.) | 0.875 |
|---|---|---|---|
| Nominal Inside Pipe Diameter (In.) | 3/4″ | Pipe Wall Thickness (In.) | 0.097 |
| Product Length (ft.) | 100 ft |
Details
| Application | Potable Water, Water Supply | Color Family | White |
|---|---|---|---|
| Color/Finish | White with Blue Print | Connectivity | Barb |
| Material | Cross-Linked Polyethylene (PEX) | Maximum Flow Rate (gallons per minute) | 11.02 |
| Maximum working pressure (psi) | 160 | Maximum Working Temperature (F) | 200 |
| Minimum working temperature (F) | 33 | Pack Size | 1 |
| PEX Type | A | Pipe Features | Flexible, UV Resistant, Underground Rated, Underground Use |
| Pipe or Fitting Product Type | Pipe & Tubing | Product Weight (lb.) | 10.5 lb |
