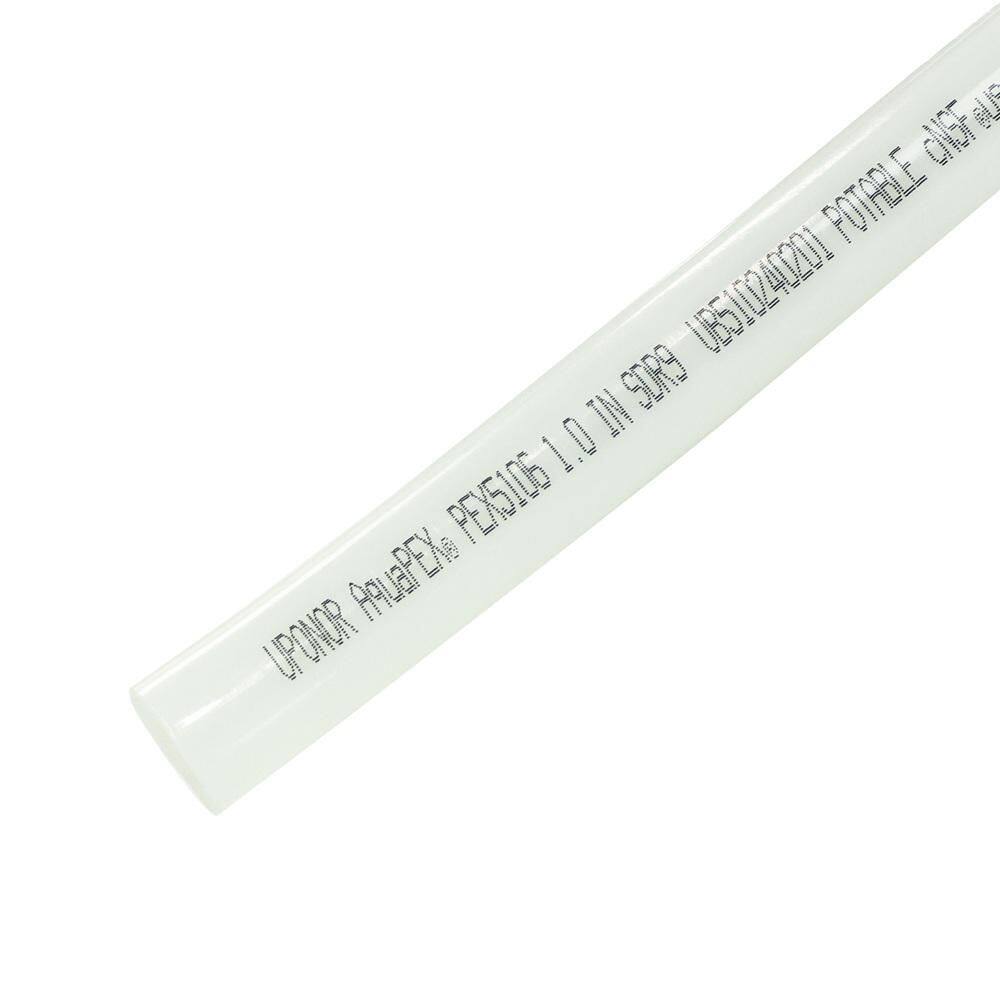

Uponor F1041000R AquaPEX 1 in. x 100 ft. White PEX-A Expansion Pipe
Original price was: $199.99.$179.99Current price is: $179.99.
- Trusted, reliable PEX-a with decades of service in North America
- For use in residential or commercial plumbing systems
- 25-year warranty when used with Uponor ProPEX rings and fittings
Uponor F1041000R AquaPEX 1 in. x 100 ft. White PEX-A Expansion Pipe
Uponor AquaPEX white is a PEX-a pipe designed for use in hot, cold, and hot-water recirculation potable-water distribution systems. The pipe has the highest chlorine resistance rating of 5 and offers one month of UV resistance. It can also be used in hydronic or radiant heating and cooling applications, however, because the pipe does not have an oxygen-diffusion barrier, it is only appropriate in systems that contain no ferrous corrodible components or where any ferrous components are isolated from the pipe. The PEX-a manufacturing method provides exceptional flexibility, strength, and durability, allowing a bend radius of 6X the pipe diameter to help eliminate unnecessary connections with each change in direction. Also, the pipe elasticity allows it to expand up to 3X its diameter and then shrink back down. This provides exceptional resiliency in freeze/thaw conditions. Note that no piping system is completely freeze proof, but PEX-a provides greater resiliency compared to rigid piping systems. Uponor PEX-a pipe is designed for use with Uponor ProPEX fittings, which require the use of a ProPEX expansion tool and ProPEX rings (sold separately).
- PEX-a manufacturing for superior flexibility, strength, and durability

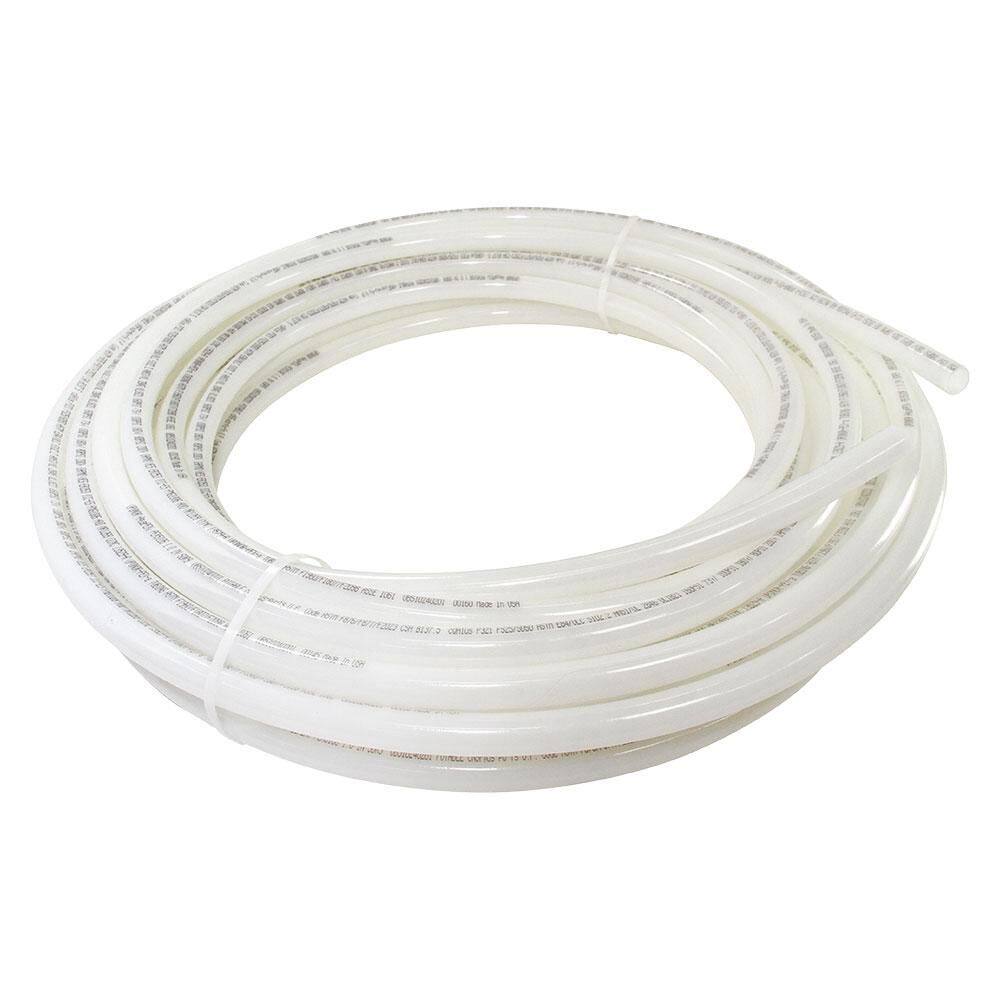

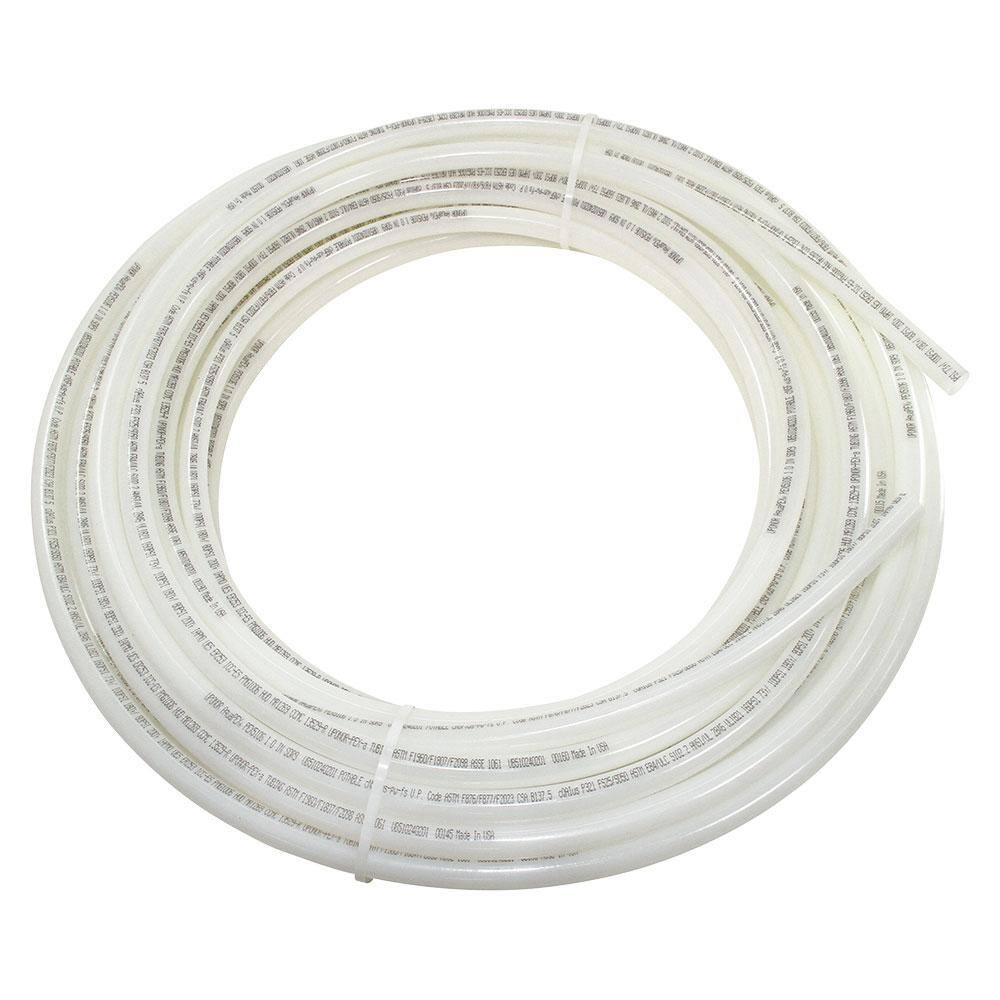

- 100 ft. length coil to help eliminate unnecessary connections
- Designed for use with F1960 expansion connections that allow higher flow and maximum system performance
- Greater resiliency in freezing conditions compared to rigid piping systems
- Kink repairable with a simple shot of heat from a heat gun
- No oxygen barrier on pipe so ferrous components in hydronic or radiant heating and cooling systems must be isolated
- Primarily designed for use in hot and cold potable-water distribution systems
- Pipe in sizes from 3/4 in. to 1 1/4 in. approved for use in Uponor AquaSAFE multipurpose plumbing and fire sprinkler systems
- Compatible with PEX compression, clamp, crimp, press, expansion, and push-to-connect fitting systems
- Manufactured and listed to ASTM F876 and F877 and certified to NSF Standards 14 and 61
- Rated and listed at 200°F at 80 pieces, 180°F at 100 pieces, and 73.4°F at 160 pieces

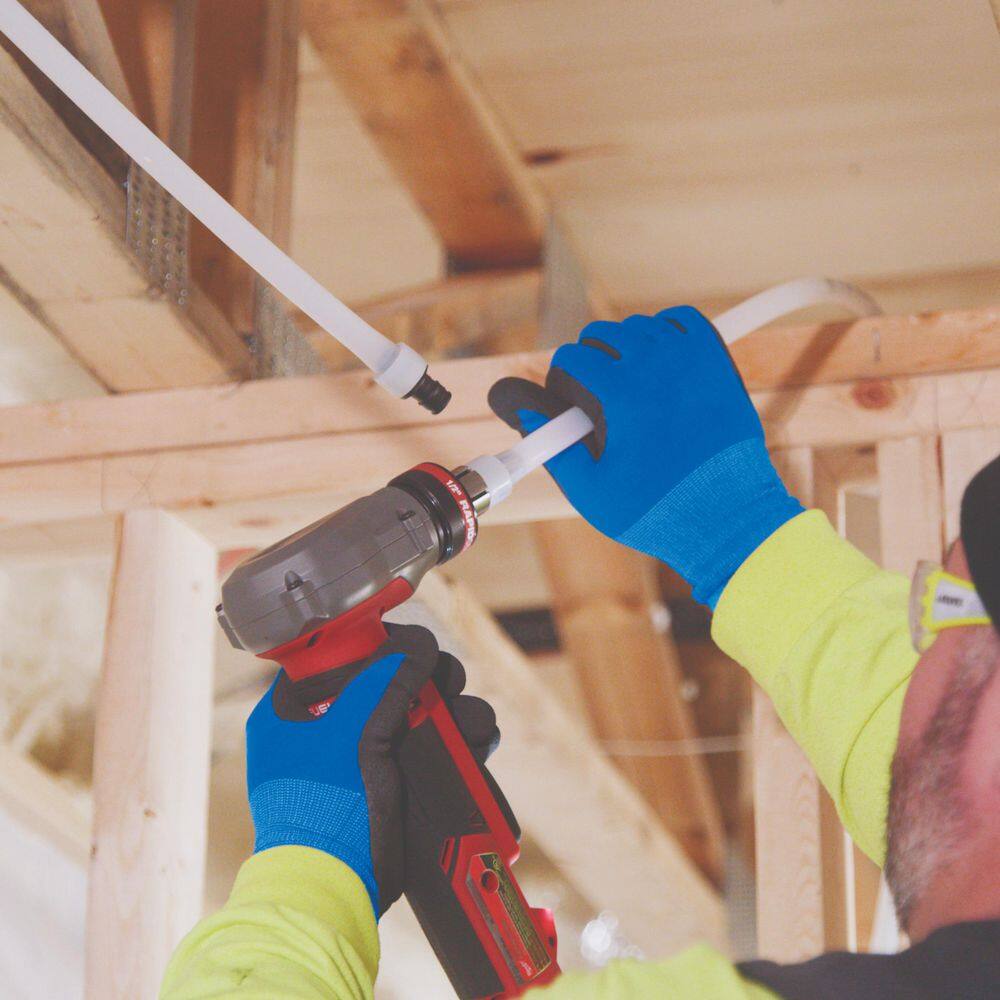

- ProPEX expansion connections require use of ProPEX expansion tool and ProPEX rings (sold separately)
Dimensions
| Actual inside diameter (in.) | 0.862 | Actual outside diameter (in.) | 1.125 |
|---|---|---|---|
| Nominal Inside Pipe Diameter (In.) | 1″ | Pipe Wall Thickness (In.) | 0.125 |
| Product Length (ft.) | 100 ft |
Details
| Application | Potable Water, Water Supply | Color Family | White |
|---|---|---|---|
| Color/Finish | White | Connectivity | Barb |
| Material | Cross-Linked Polyethylene (PEX) | Maximum Flow Rate (gallons per minute) | 18.19 |
| Maximum working pressure (psi) | 160 | Maximum Working Temperature (F) | 200 |
| Minimum working temperature (F) | 33 | Pack Size | 1 |
| PEX Type | A | Pipe Features | Flexible, UV Resistant, Underground Rated, Underground Use |
| Pipe or Fitting Product Type | Pipe & Tubing | Product Weight (lb.) | 21 lb |
