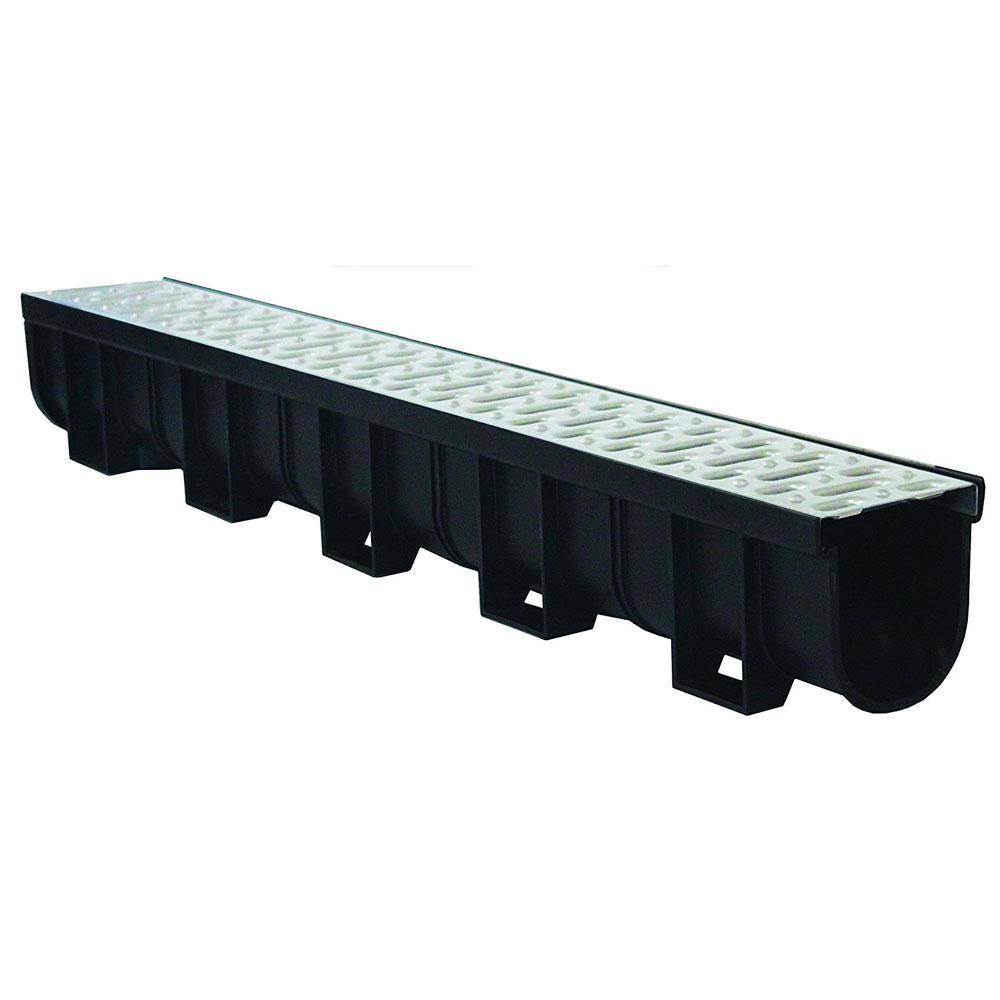

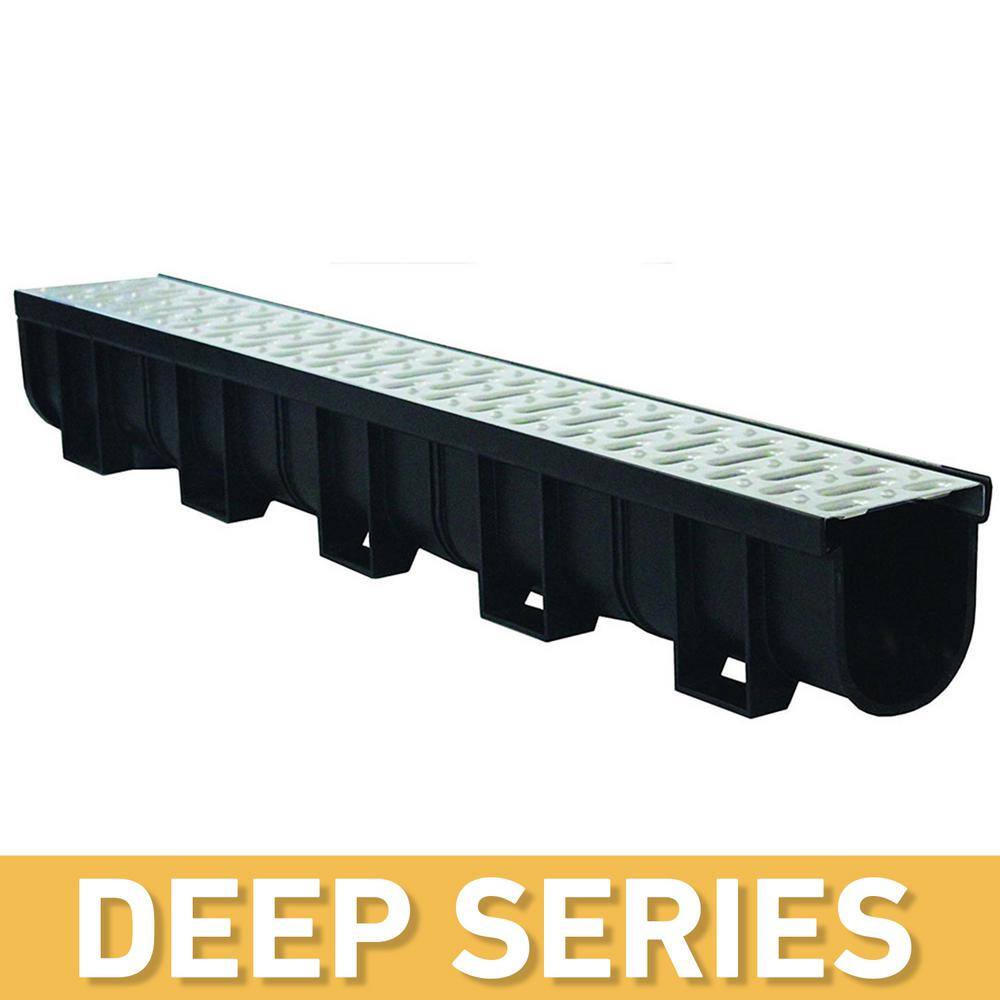

U.S. TRENCH DRAIN 83303 Deep Series 5.4 in. W x 5.4 in. D x 39.4 in. L Trench and Channel Drain Kit w/Stainless Steel Grate
Original price was: $87.91.$79.12Current price is: $79.12.

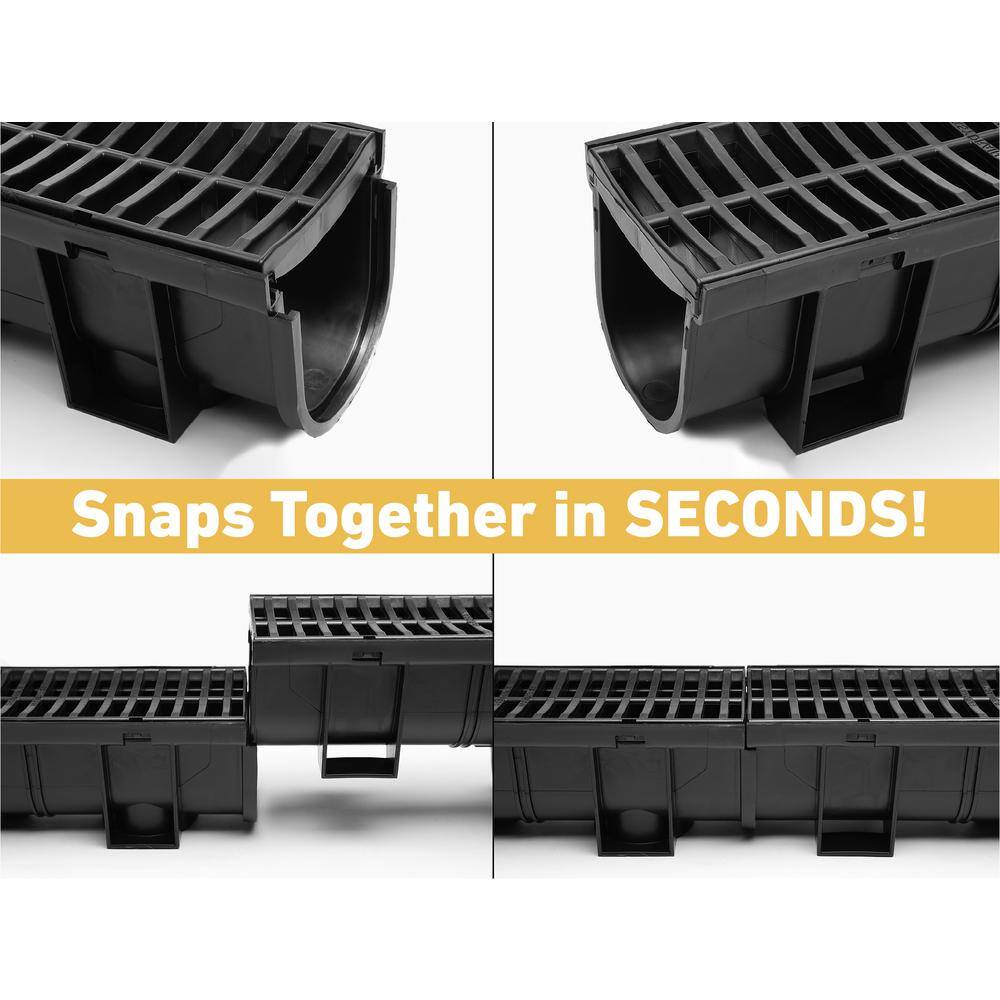

- Channel drain snaps together in seconds
- Anti-float design eliminates the need for rebar anchoring

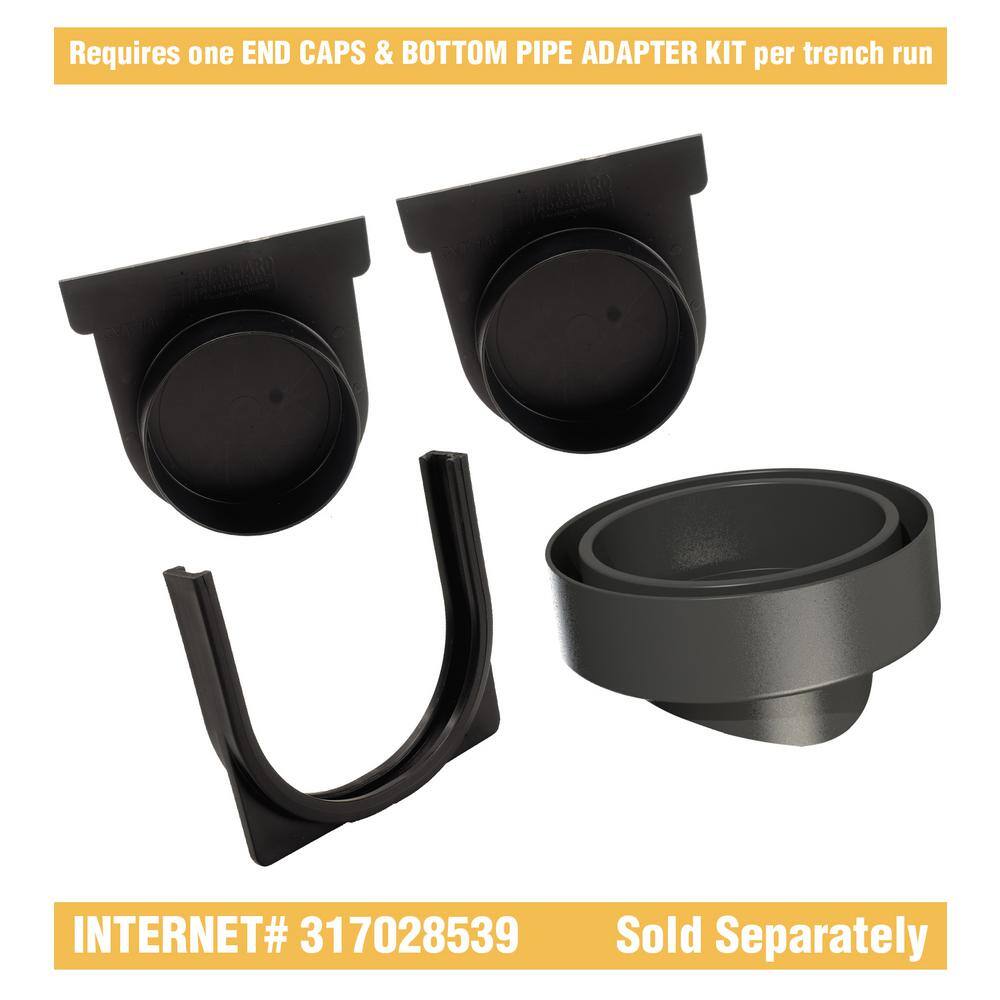

- Only (1) adapter kit (internet# 317028539) needed per run
U.S. TRENCH DRAIN 83303 Deep Series 5.4 in. W x 5.4 in. D x 39.4 in. L Trench and Channel Drain Kit w/Stainless Steel Grate

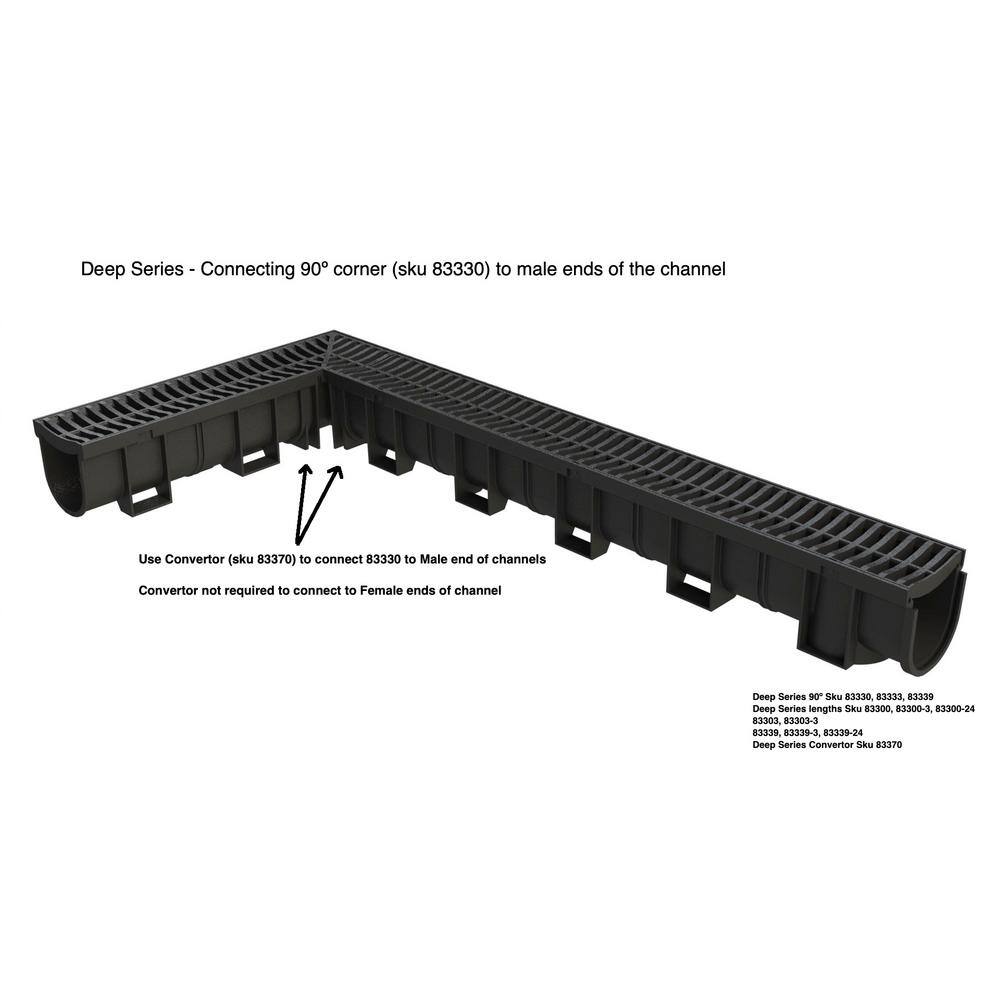

Because of their high-profile design, the Deep Series Trench Drains are perfect for high water flow areas in landscape water drainage projects. Optimal for deviating rainfall water and flowing or stagnant water on property where lots of water collects and pools. Adjacent to homes or at the bottom of sloped areas; Trench Drains provide flexible drainage solutions. Residential uses include yard water drainage for small-grassed suburban properties or large acres of land and farm areas. Easily collect and disperse water from patio areas or pool sides. Commercial water drainage systems allow safe and efficient drainage for office buildings, property, or factory interiors. The flat grates are ideally designed to distribute weight to the drain edges and the larger slats increase water flow while still providing protection from debris or traffic. The Trench Drain is visually appealing due to its sleek, yet sturdy, construction and adds an aesthetic touch it its surroundings. Available accessories include end caps, adaptor pieces, convertor pieces, leaf domes, 90 degree corner pieces, tee pieces, catch basins, slim pits, storm water pits, and alternative grates.

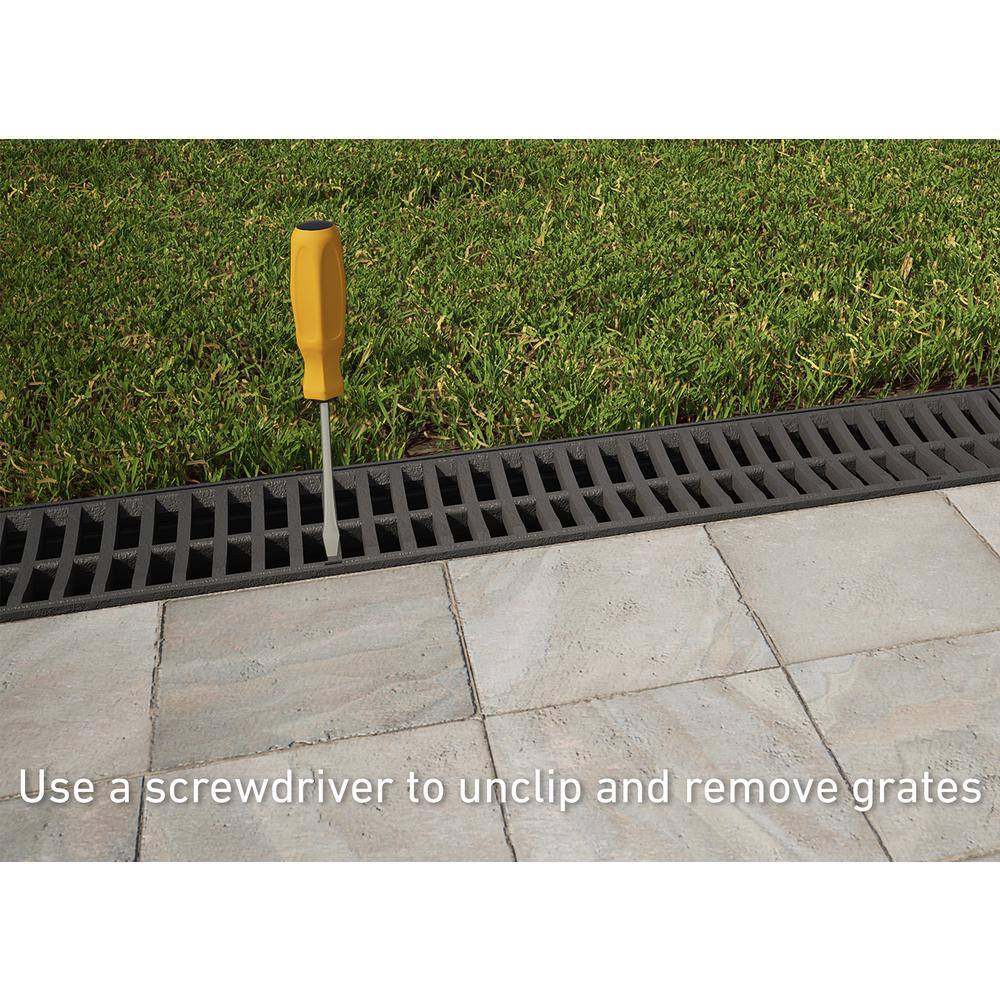

- Easily removable steel grate that allows for easy cleaning
- Anti-flotation design doesn’t require staking when setting in concrete
- Easy clip-together design

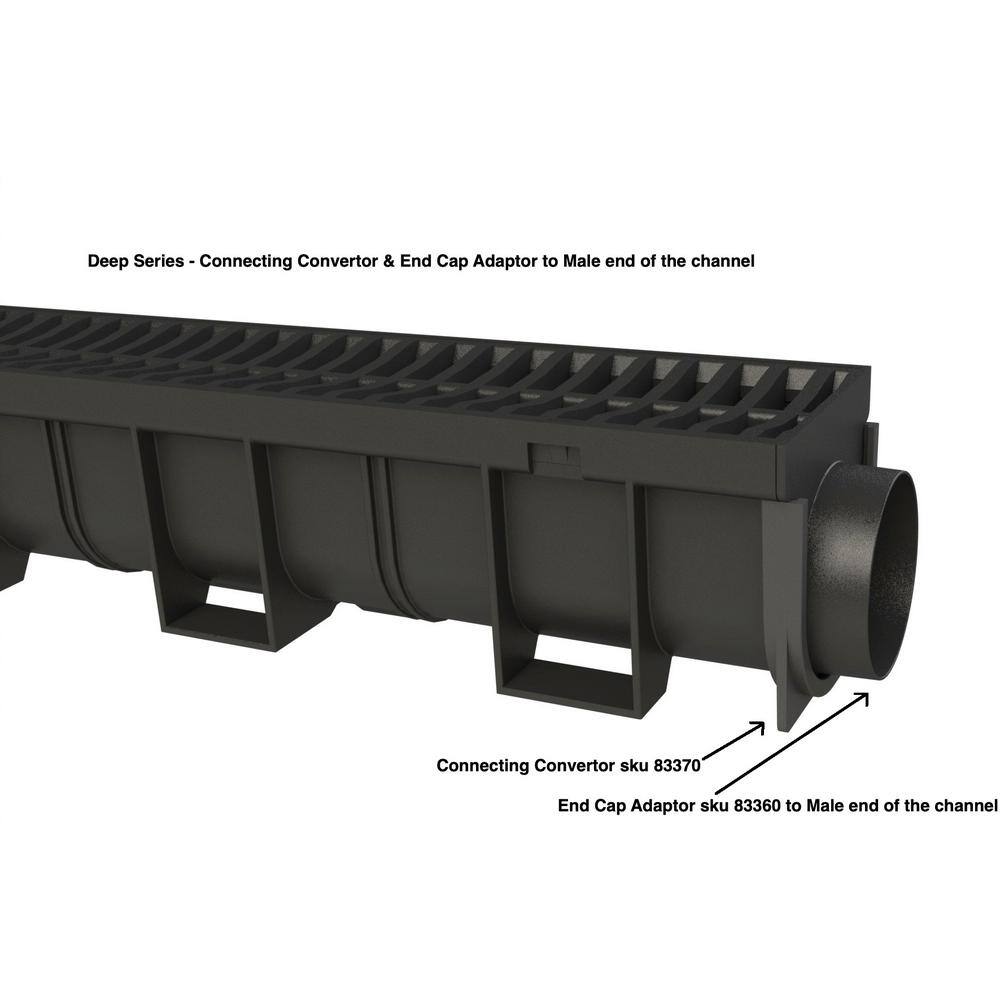

- Easy-cut sections every 8 in.; join sections using our convertors to efficiently fit any layout

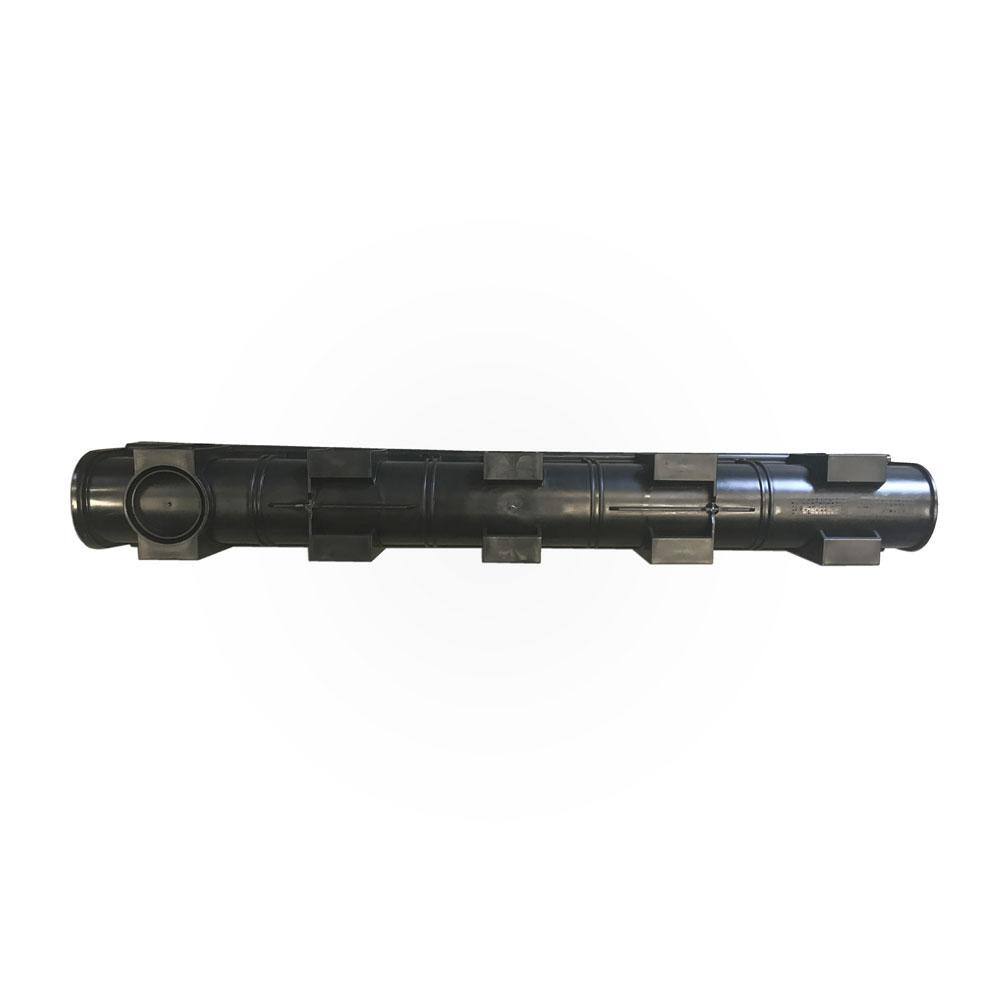

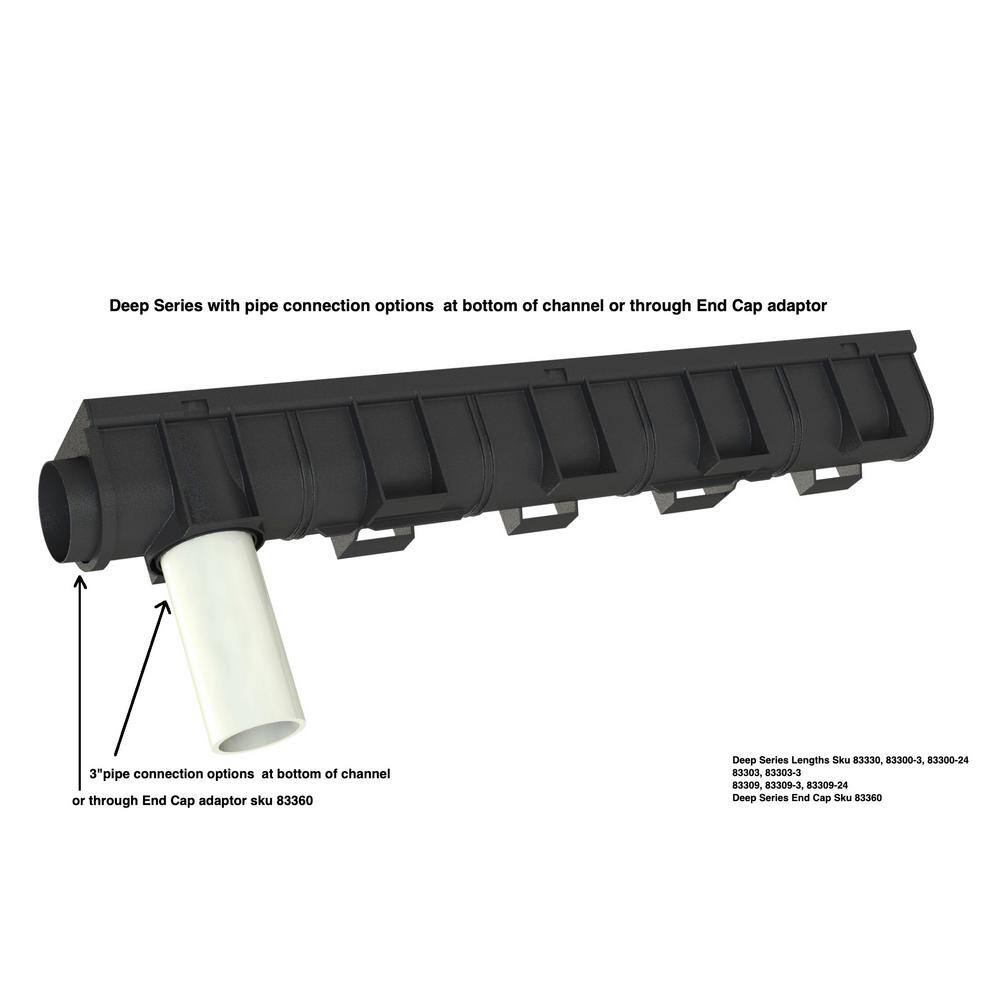

- Built-in bottom outlets at one end of the trench drain to easily connect 3 in. sewer and drain pipes

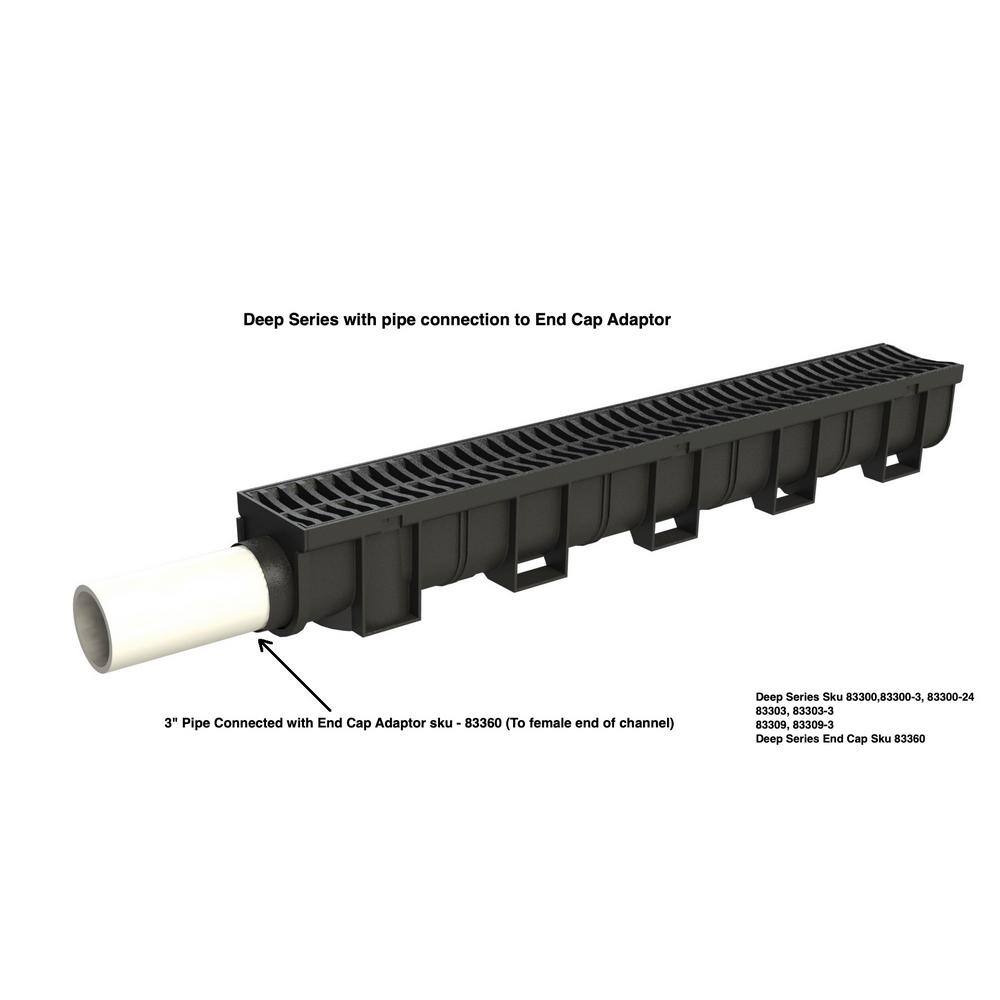

- Install an end cap adaptor in reverse and drill out the internal section to connect to 3 in. pipes
- 4-ton vehicle rating when set in concrete
- Meets ADA requirements
- Manufactured from lightweight, recycled UV stabilized poly propylene polymer

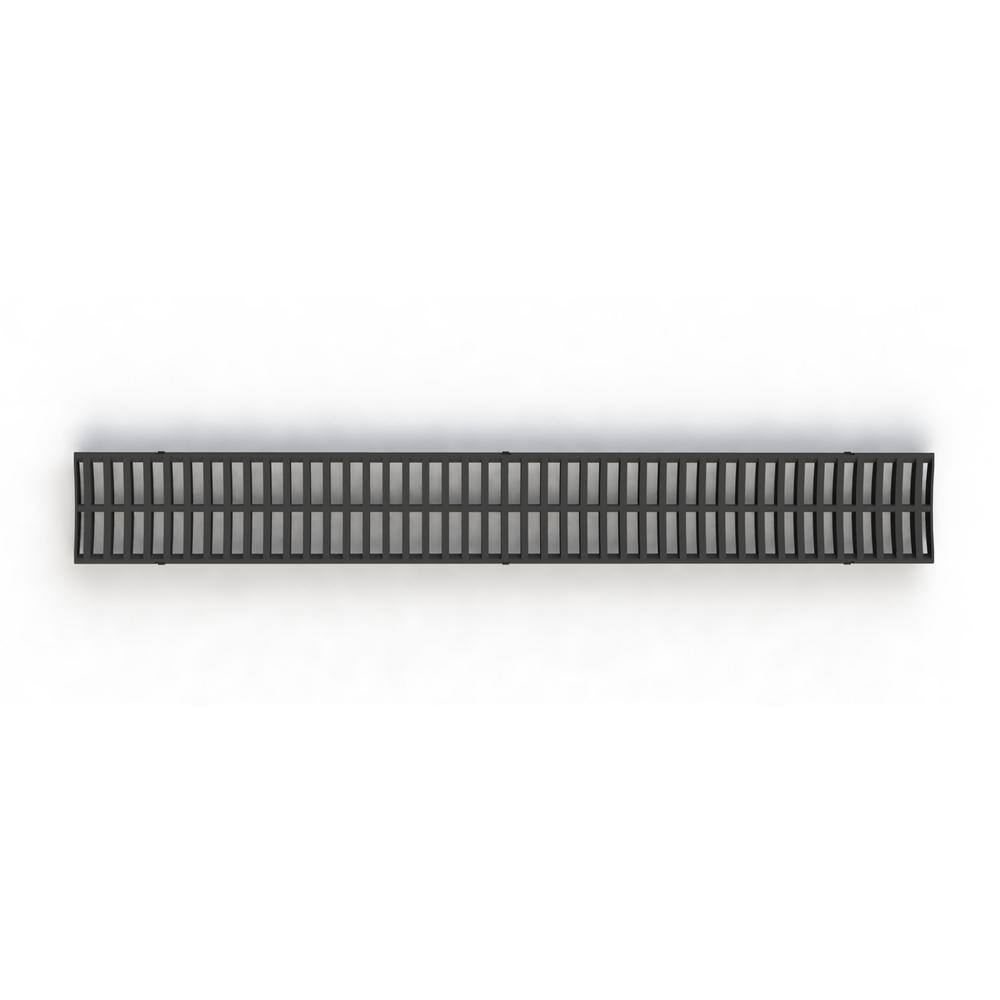

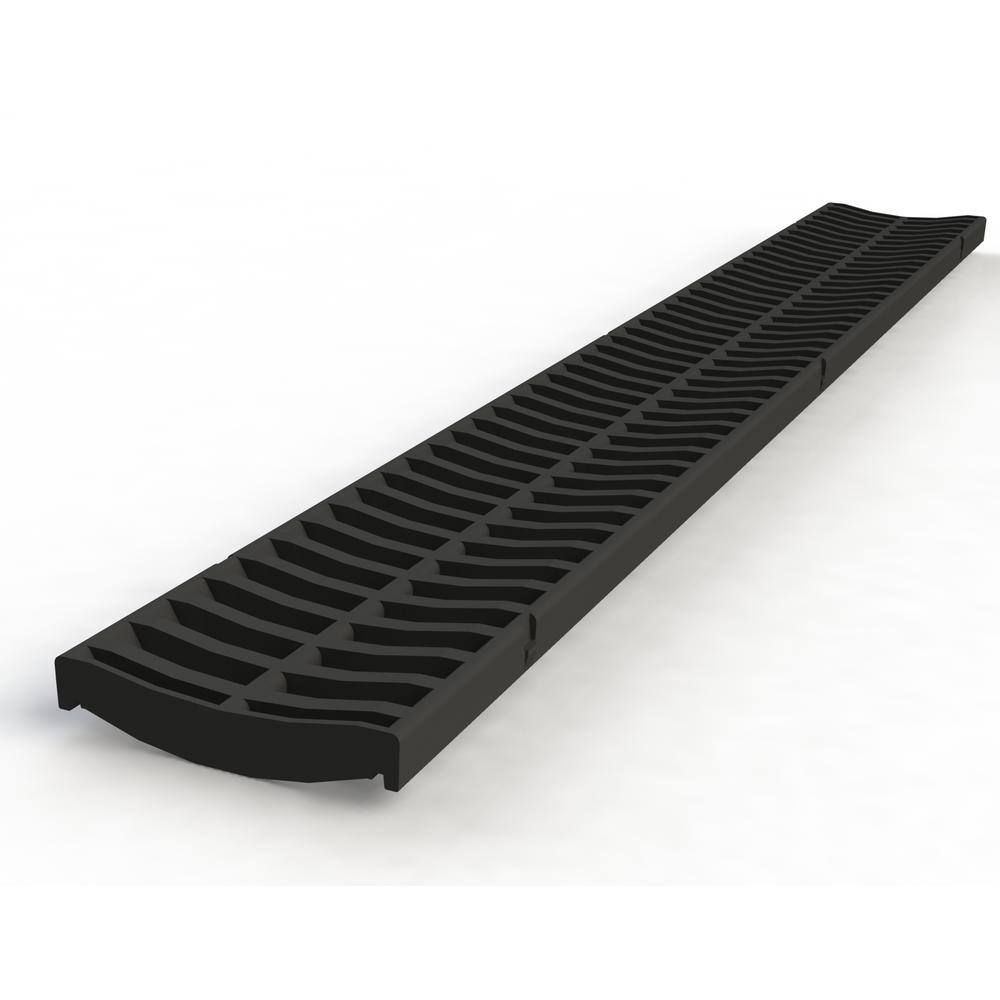

- Grate formed of pressed stainless-steel
- Individual section dimensions: 39.37 in. x 5.43 in. x 5.39 in.
- Includes 1-length of channel and grate
Dimensions
| Max. Compatible Pipe Size (In.) | 3″ | Min. Compatible Pipe Size (In.) | 3″ |
|---|---|---|---|
| Product Depth (in.) | 5.39 in | Product Length (in.) | 39.37 in |
| Product Width (in.) | 5.43 in |
Details
| Color Family | Black | Color/Finish | Black/Metallic |
|---|---|---|---|
| Compatible Area of Use | Downspout Runoff, Driveway, Neighbor Runoff, Patio, Planter Areas, Pool Deck, Walkways, Yard | Material | Plastic |
| Maximum Working Temperature (F) | 180 | Minimum working temperature (F) | -20 |
| Pack Size | 1 | Package Quantity | 1 |
| Pipe or Fitting Product Type | Accessory | Product Weight (lb.) | 6.6 lb |
