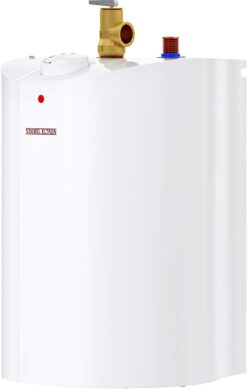

Stiebel Eltron 233219 2.5 gallon, 1300W, 120V SHC 2.5 Mini-Tank Electric Water Heater, White
- Plugs into standard 120 volt outlet
- T and P valve included
- Wall-mounted with included bracket
- Glass-lined tank and fast recovery
- 6-Year warranty on tank
Stiebel Eltron SHC series mini-tank electric water heater is ideal for office buildings, stores, malls, warehouses, food trucks, restaurants, gas stations, schools, hotels/motels, commercial, industrial and institutional. residential: bathroom sinks, kitchen sinks, rvs, cabins/cottages, low flow showers and laundry areas. An SHC mini-tank frees up precious space while providing plenty of hot water for hand washing or kitchen applications. Plumbed with cold water and used as a stand-alone supply of hot water, or plumbed with hot water from a remote tank to minimize delays, an SHC always delivers hot water when needed. By put – ting hot water right where it is used, pipe runs are minimized and water and energy use reduced. The smaller tank coupled with superb insulation reduces stand-by losses especially when compared with larger tank-type water heaters. With its flat back and included bracket an SHC easily mounts right under or near the sink. Once filled with water it simply plugs into a 120 V outlet. With only an 11 amp current draw, no special wiring is required. Lightweight and compact, the SHC saves space, quickly provides hot water right where it is needed. Certified to ANSI/UL Std. 174 Conforms to CAN/CSA Std. 22.2 No. 110. Tested and certified by WQA against NSF/ANSI 372 for lead free compliance. ISO 9001 certified. Technical Specification: Phase – 60/50 Hz: single; Voltage: 120 V; Wattage: 1300 W; Amperage: 11.3 A; Nominal water volume: 2.65 gal / 10 l; Weight empty: 15.9 lb / 7.2 kg; Height (includes PandT valve): 18-11/16″ / 475 mm; Width: 11″ / 280 mm; Depth: 10-5/8″ / 270 mm; Maximum operating pressure: 150 psi / 10 bar; Maximum adjustable temperature: 140 degrees F / 60 degrees C; Recovery time: 18 minutes; Standby energy loss @ 131°F / 55°C: 0.37 kWh / day; Water connections: black steel -1/2″ NPT.
Wattage
1300 watts
Bulb Voltage
110 volts
Product information
Technical Details
| Brand | ‎Stiebel Eltron |
|---|---|
| Product Dimensions | ‎11″W x 18.69″H |
| Special Feature | ‎Mount under or next to sink |
| Color | ‎White |
| Wattage | ‎1300 watts |
| Voltage | ‎110 Volts |
| Maximum Flow Rate | ‎2.5 Gallons Per Minute |
| Heat Output | ‎1300 Watts |
| Efficiency | ‎Average |
| Style | ‎SHC 2.5 (2.5 gal) |
| Maximum Operating Pressure | ‎150 Pound per Square Inch |
| Maximum Pressure | ‎1.5E+2 Pound per Square Inch |
| Mounting Type | ‎Wall |
| Is Electric | ‎Yes |
| Manufacturer | ‎Stiebel Eltron |
| Item Depth | ‎10-5/8 inches |
| UPC | ‎094922424235 696735307967 732454139394 094922424341 |
| Global Trade Identification Number | ‎04017212297285 |
| Part Number | ‎SHC 2.5 |
| Item Weight | ‎15.9 pounds |
| Item model number | ‎233219 |
| Is Discontinued By Manufacturer | ‎No |
| Size | ‎2.5 gallon |
| Item Package Quantity | ‎1 |
| Certification | ‎CSA, NSF, UL, ANSI |
| Special Features | ‎Mount under or next to sink |
| Batteries Included? | ‎No |
| Batteries Required? | ‎No |
| Warranty Description | ‎6 year warranty on tank |
