Square D SO1020VP 100 -Amp 10 -Spaces 20 -Circuit Outdoor Main breaker meter combo Load Center (Value Pack)

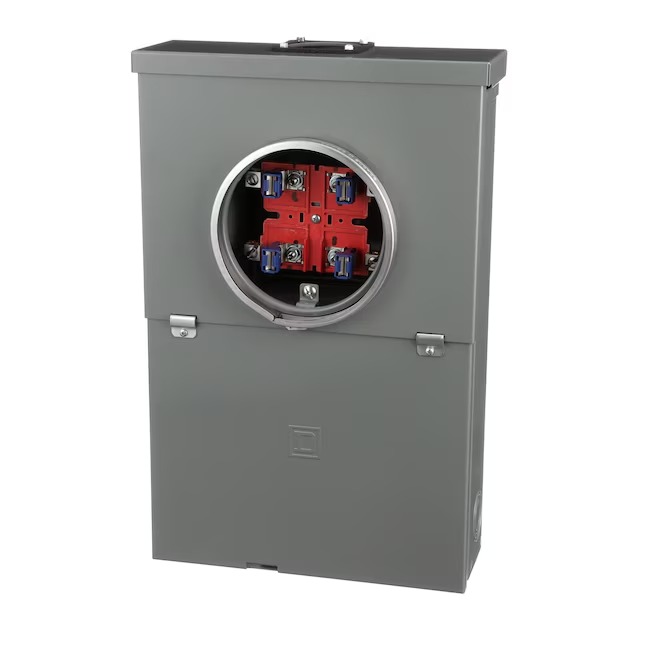

The Square D 100 Amp 10-Space 20-Circuit Outdoor Combination meter Socket and Main Breaker Load Center, Model SO1020M100S, is suitable for use as a combination service entrance device (CSED). This unit is ANSI certified and UL listed with a maximum 10,000 AIR. The combination service entrance device features a Ring-type meter cover with a single-phase, 4-jaw meter socket. It is suitable for only overhead service applications. Meets EUSERC Specifications. Surface mount. This CSED is built with a plated, aluminum bus bar that is tested and is compatible with Square D Homeline circuit breakers, except Plug-On Neutral breakers. Homeline CSEDs are designed for the value-minded contractors, remodelers, builders and homeowners. Square D Homeline CSEDs are engineered for fast installation and wire savings.
- Compatible with Square D Homeline breakers except plug on neutral
- 4-jaw meter socket and aluminum bus bar included
- Contact your local utility company to ensure requirements are met
- Square D Homeline 100 Amp 10-space 20-circuit ring-type surface mount main breaker CSED
- Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers and (1) HOMT2020CP Homeline 2-20 Amp single-pole tandem breaker
- Suitable for use as service entrance equipment
- Accommodates plug-on secondary surge arrestor and features a plug-in design for easy installation
- Ring-type design with no bypass
| General | |||
|---|---|---|---|
| Manufacturer Color/Finish | Gray | Type | Main breaker meter combo |
| Â Dimensions | |||
| Depth (Inches) | 21.9 | Width (Inches) | 13.8 |
| Height (Inches) | 5.4 | ||
| Â Features | |||
| Amperage | 100 | Orientation | Over/Under |
| Buss Bar Construction | Aluminum | Paintable | No |
| Circuits | 20 | Phase Type | Single phase (120/240) |
| Cover Included | Yes | Plug-On Neutral | No |
| Feed-Through Lugs | No | Usage | Service entrance |
| Ground Bar Installed | No | Use Location | Outdoor |
| Mounting Type | Surface | Value Pack | Yes |
| Number of Spaces | 10 | Value Pack Contents | 1 – SO1020M100S 100A 10 Space/20 Circuit Max All-In-One Overhead Service Feed and Integral Ring-Type Meter Socket, 3 – HOM120 Homeline 20A Single-Pole Circuit Breakers, 1 – HOMT2020 Homeline 20A Single-Pole Tandem Circuit Breaker |
| Â Compatibility | |||
| Brand/Model Compatibility | Square D Homeline Brand Only |
