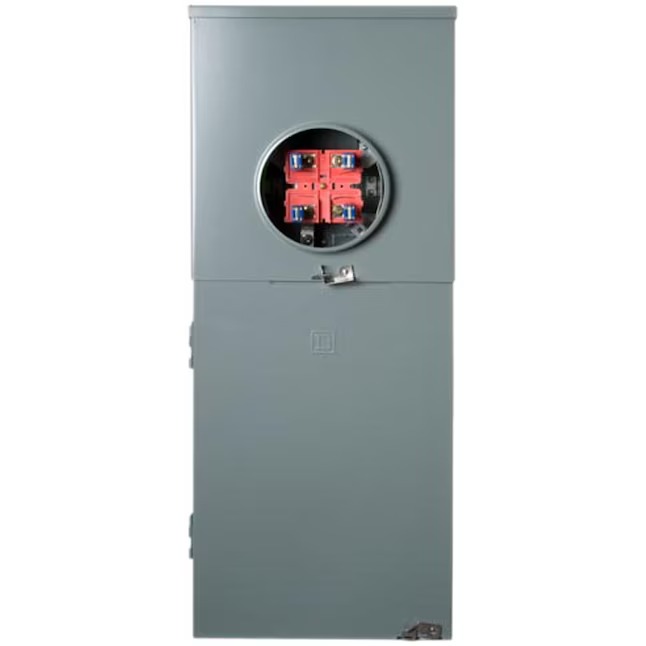

Square D RC816F200C 200 -Amp 8 -Spaces 16 -Circuit Outdoor Main breaker meter combo Load Center
Original price was: $317.00.$285.30Current price is: $285.30.
- The Square D 200 Amp 8-Space 16-Circuit Combination Meter Socket and Main Breaker Load Center is suitable for use as a combination service entrance device (CSED) and has feed-through lugs
- It is suitable for overhead or underground service applications
- Accommodates plug-on secondary surge arrestor, and features a plug-in design for easy installation
Square D RC816F200C 200 -Amp 8 -Spaces 16 -Circuit Outdoor Main breaker meter combo Load Center
- The Square D 200 Amp 8-Space 16-Circuit Combination Meter Socket and Main Breaker Load Center is suitable for use as a combination service entrance device (CSED) and has feed-through lugs
- It is suitable for overhead or underground service applications
- Accommodates plug-on secondary surge arrestor, and features a plug-in design for easy installation
- This CSED is built with a plated, aluminum bus bar that is tested and listed only for Homeline circuit breakers rated 120/240Vac
- 4 jaw meter socket
- NEMA type 3R enclosure
- Bypass Type-none
- Designed with straight-In mains to save expensive cable and time
- Distributed split branch neutral with terminal screws backed out offering with up to 50% more terminals than UL requires increases wiring flexibility saving installation time and simplifies wiring
| Â General | |||
|---|---|---|---|
| Manufacturer Color/Finish | Gray | Type | Main breaker meter combo |

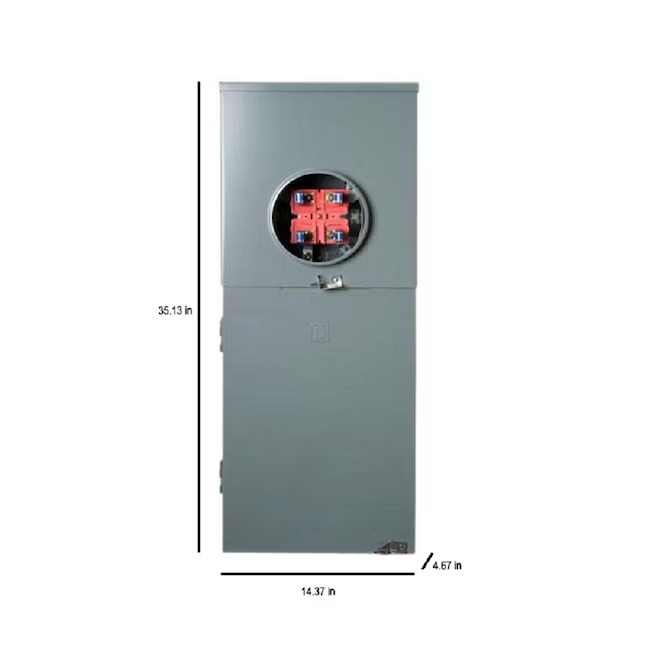

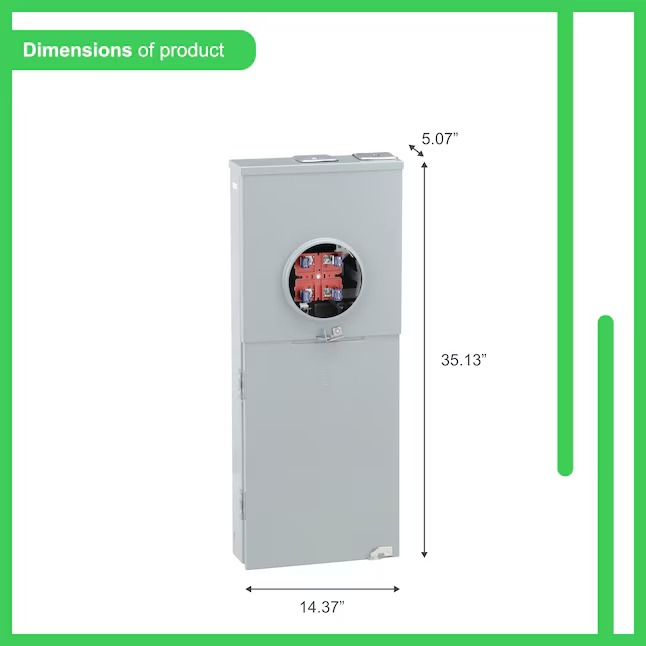

| Â Dimensions | |||
| Depth (Inches) | 36.5 | Width (Inches) | 14.9 |
| Height (Inches) | 5.8 | ||
| Â Features | |||
| Amperage | 200 | Orientation | Over/Under |
| Buss Bar Construction | Aluminum | Paintable | No |
| Circuits | 16 | Phase Type | Single phase (120/240) |
| Cover Included | Yes | Plug-On Neutral | No |
| Feed-Through Lugs | Yes | Usage | Service entrance |
| Ground Bar Installed | No | Use Location | Outdoor |
| Mounting Type | Combination | Value Pack | No |
| Number of Spaces | 8 | Voltage | 240 |
| Â Compatibility | |||
| Brand/Model Compatibility | Square D Homeline Brand Only |
