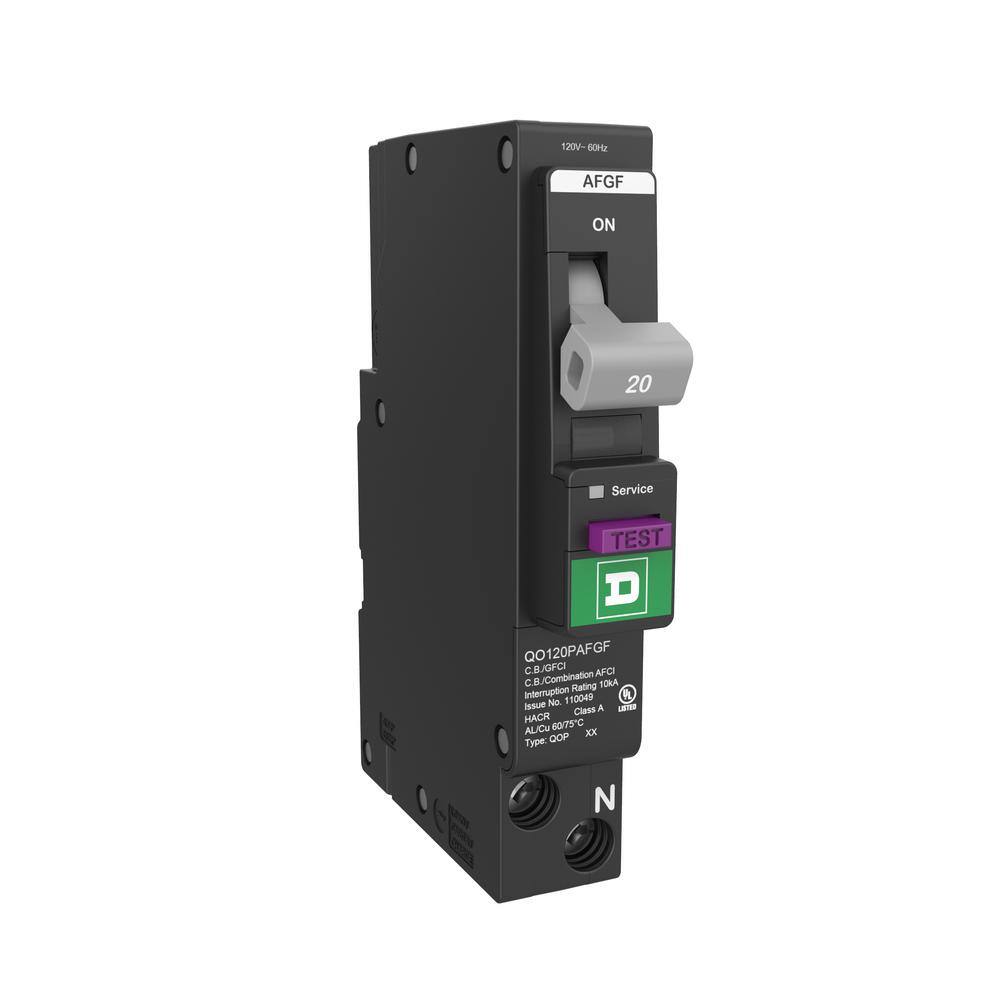

Square D QO120PAFGFC QO 20 Amp 120-Volt Single-Pole Plug-On Neutral Dual Function (CAFCI and GFCI) Circuit Breaker
Original price was: $68.98.$62.08Current price is: $62.08.
- Square D breaker provides dual protection from arc fault and GFCI
- Plug-on neutral design for less wiring and easy installation
- Compatible with QO plug-on neutral electrical panels only
Square D QO120PAFGFC QO 20 Amp 120-Volt Single-Pole Plug-On Neutral Dual Function (CAFCI and GFCI) Circuit Breaker
Square D by Schneider Electric QO 20 Amp 1-pole Plug-on Neutral Dual Function Circuit Breaker is a space and labor saving device, engineered to meet prevailing NEC requirements. This device combines 2 critical technologies, Combination Arc Fault protection and Ground Fault protection (class A), in a single, easy-to-install device. The NEC now requires both Combination Arc Fault and Ground Fault protection on all 1-Pole, 15 Amp and 20 Amp kitchen and laundry circuits. Prior to the release of this new device, a contractor or homeowner’s only choice would have been to use a Combination Arc Fault circuit breaker in conjunction with an expensive, bulky Ground Fault receptacle. The new Dual Function circuit breakers help reduce cost and eliminate the hassle of using 2 separate devices to provide this essential protection. It’s a win for contractors and homeowners alike. Designed for reliability, the Homeline Plug-on Neutral Dual Function Circuit Breaker connects directly to the neutral bar, providing a time and labor-saving installation. Several advantages from the Plug-on Neutral design are fewer connections which lead to faster installation and an innovative neutral clip eliminates pigtails which in turn frees gutter space. Like all Square D CAFI Circuit Breakers, it is integrated with time saver Diagnostics, a unique feature that provides additional circuit information and minimizes troubleshooting at the touch of a button.
- Innovative neutral connection design leads to fewer connections and faster installation, no pigtails which frees up gutter space
- Compatible with Square D QO plug-on neutral breaker boxes only, 1 space needed to install
- 120-Volt AC
- 10,000 air
- ANSI certified and UL Listed
- Limited lifetime warranty
Dimensions
| Product Depth (in.) | 2.9 in | Product Height (in.) | 4.8 in |
|---|---|---|---|
| Product Width (in.) | .75 in |
Details
| AIC Rating | 10000 | Breaker Type | Standard |
|---|---|---|---|
| Connection Type | Pigtail | Interruption Type | AFCI/GFCI |
| Maximum Amperage (A) | 20 A | Mounting Type | Plug-On |
| Number of Poles | Single | Number of Spaces | 1 |
| Pack Size | 1 | Power Distribution Features | No Additional Features |
| Product Weight (lb.) | 0.28 lb | ||
| Series Type | QO | Trip Unit | Electronic |
| Voltage (V) | 120/240 V |
