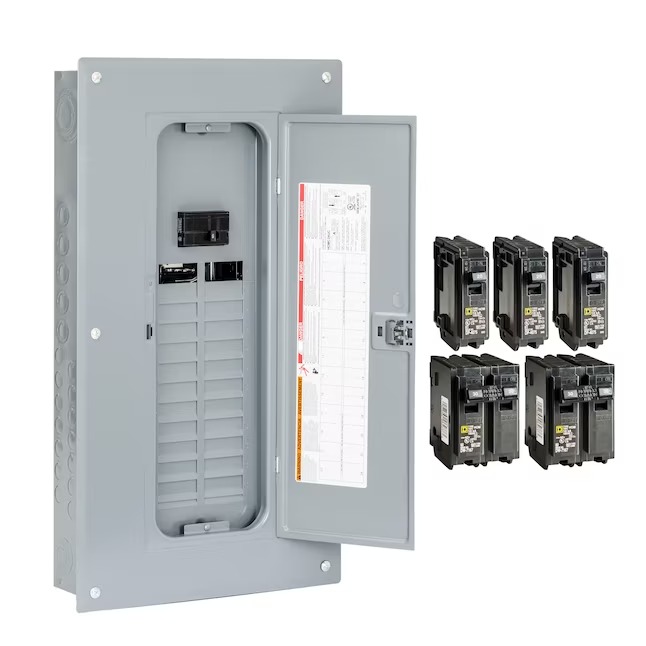

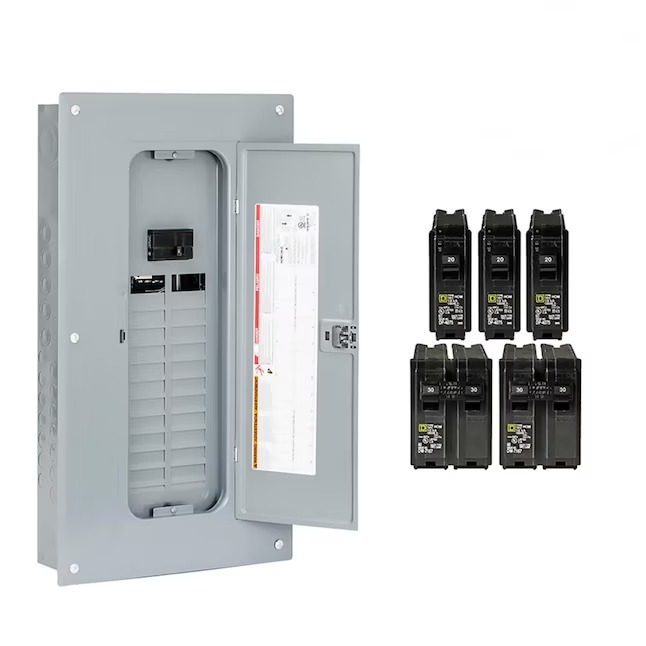

Square D HOM2448M100PCVP Homeline 100 -Amp 24 -Spaces 48 -Circuit Indoor Main breaker Plug-On Neutral Load Center (Value Pack)
Original price was: $119.00.$107.10Current price is: $107.10.

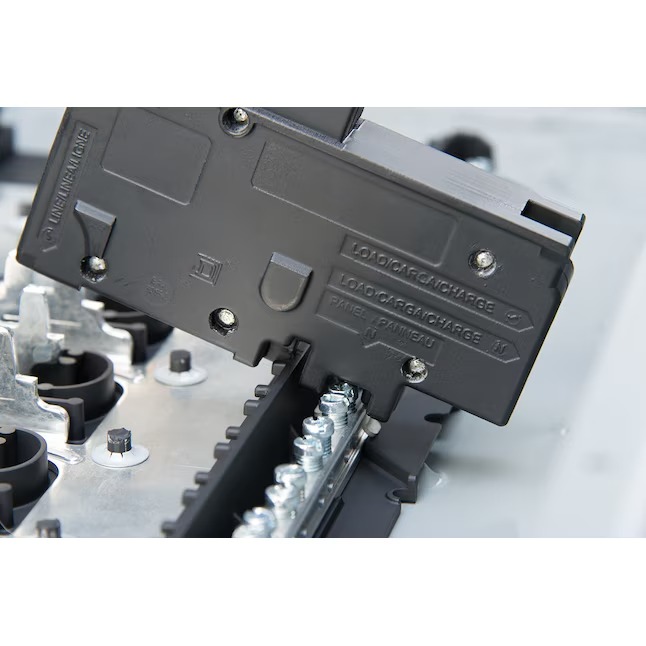

- Less wiring, clean gutter, fast installation with Plug-On Neutral
- Compatible with any Square D Homeline circuit breaker
- Includes Homeline breakers, panel cover, and aluminum bus bar
Square D HOM2448M100PCVP Homeline 100 -Amp 24 -Spaces 48 -Circuit Indoor Main breaker Plug-On Neutral Load Center (Value Pack)
- Less wiring, clean gutter, fast installation with Plug-On Neutral
- Compatible with any Square D Homeline circuit breaker
- Includes Homeline breakers, panel cover, and aluminum bus bar
- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
- Each pole space accepts full-size, tandem or quad breakers
- Rated 120/240 VAC and 22,000 AIR short circuit current rating
| Â General | |||
|---|---|---|---|
| Manufacturer Color/Finish | Gray | Type | Main breaker |
| Series Name | Homeline |

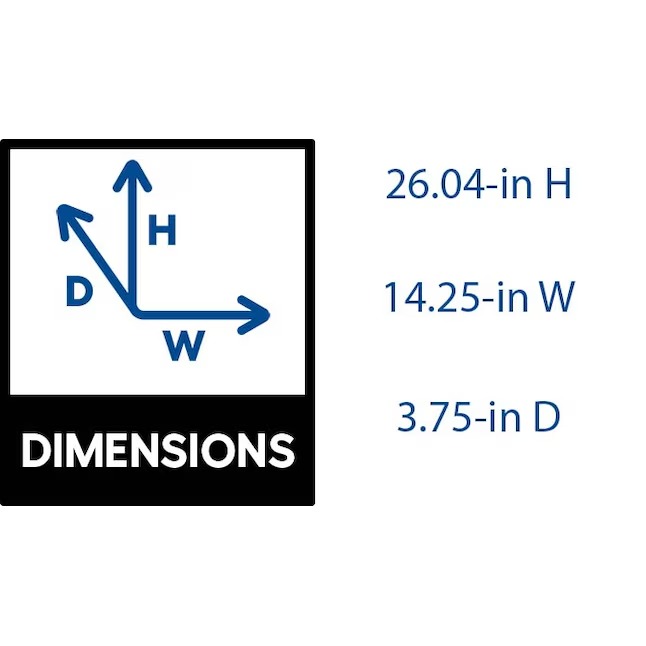

| Â Dimensions | |||
|---|---|---|---|
| Depth (Inches) | 3.75 | Width (Inches) | 14.25 |
| Height (Inches) | 26.04 |
| Â Features | |||
|---|---|---|---|
| Amperage | 100 | Orientation | Over/Under |
| Buss Bar Construction | Aluminum | Paintable | No |
| Circuits | 48 | Phase Type | Single phase (120/240) |
| Cover Included | Yes | Plug-On Neutral | Yes |
| Feed-Through Lugs | No | Usage | Service entrance |
| Ground Bar Installed | No | Use Location | Indoor |
| Mounting Type | Combination | Value Pack | Yes |
| Number of Spaces | 24 | Value Pack Contents | Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover |
| Â Compatibility | |
|---|---|
| Brand/Model Compatibility | Square D Homeline Brand Only |
