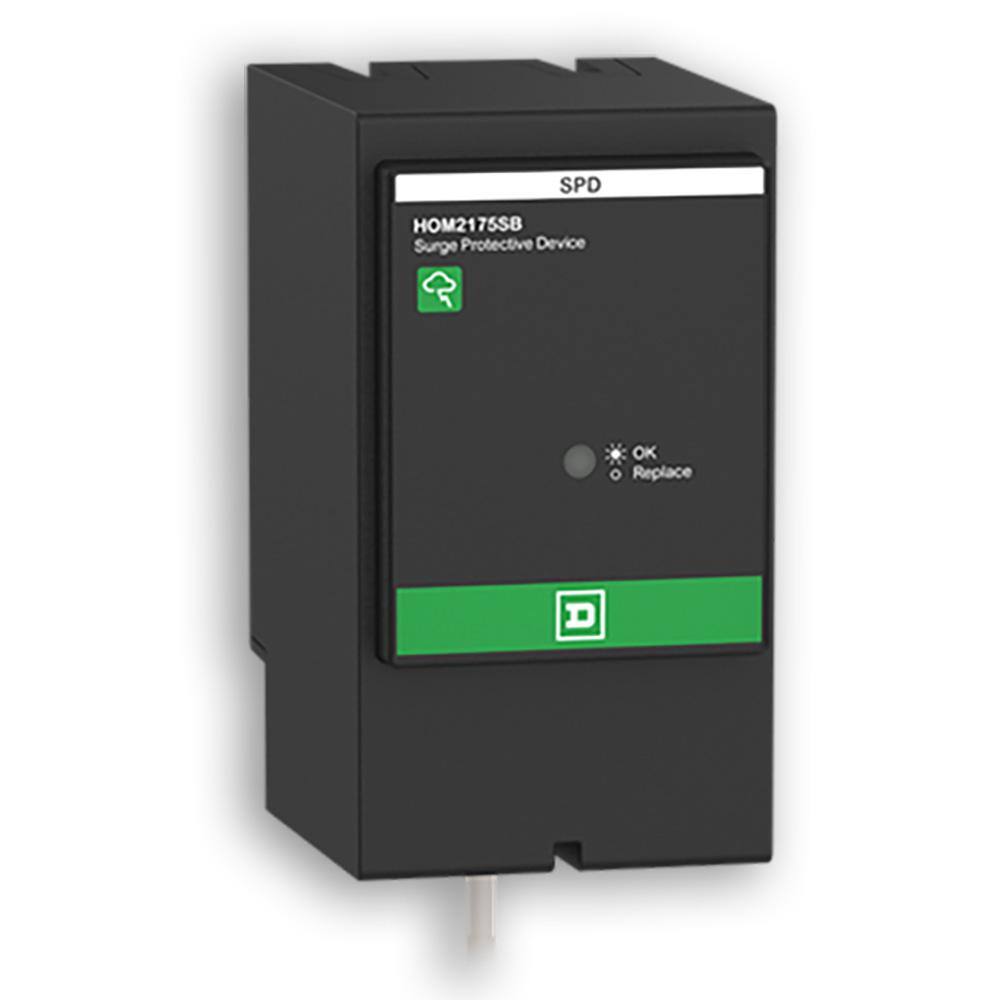

Square D HOM2175SB 25kA 2-Pole Whole Home Surge Protection Device for Square D Homeline Load Centers
Original price was: $87.65.$78.89Current price is: $78.89.
- 25 kA surge current capacity for HOM electrical panels
- 3 year/$10,000 connected equipment warranty
- Requires 2 spaces in Square D HOM electrical panels
Square D HOM2175SB 25kA 2-Pole Whole Home Surge Protection Device for Square D Homeline Load Centers
The Homeline Surge breaker Surge Protective Device is designed as a quick plug-on unit is compatible with Square D Homeline load centers and CSED devices. The SPD requires 2 pole spaces. This unit has 25,000 Amp Maximum Surge Capacity and has a 150 VAC line-to-ground maximum providing protection from electrical surges.
- Square D Homeline 25 kA 2-Pole SurgeBreaker Surge Protective Device
- Plug-on installation, requires 2 spaces
- Compatible with Square D service entrance locations, CSEDs and Square D Homeline breaker boxes with 2 spaces
- Equal protection to circuits and receptacles throughout home
- Includes an LED indicator
- ANSI certified and CSA and UL 1449 3rd edition listed
- For installation in 120/240-Volt AC systems
- Works with all residential panel amp ratings

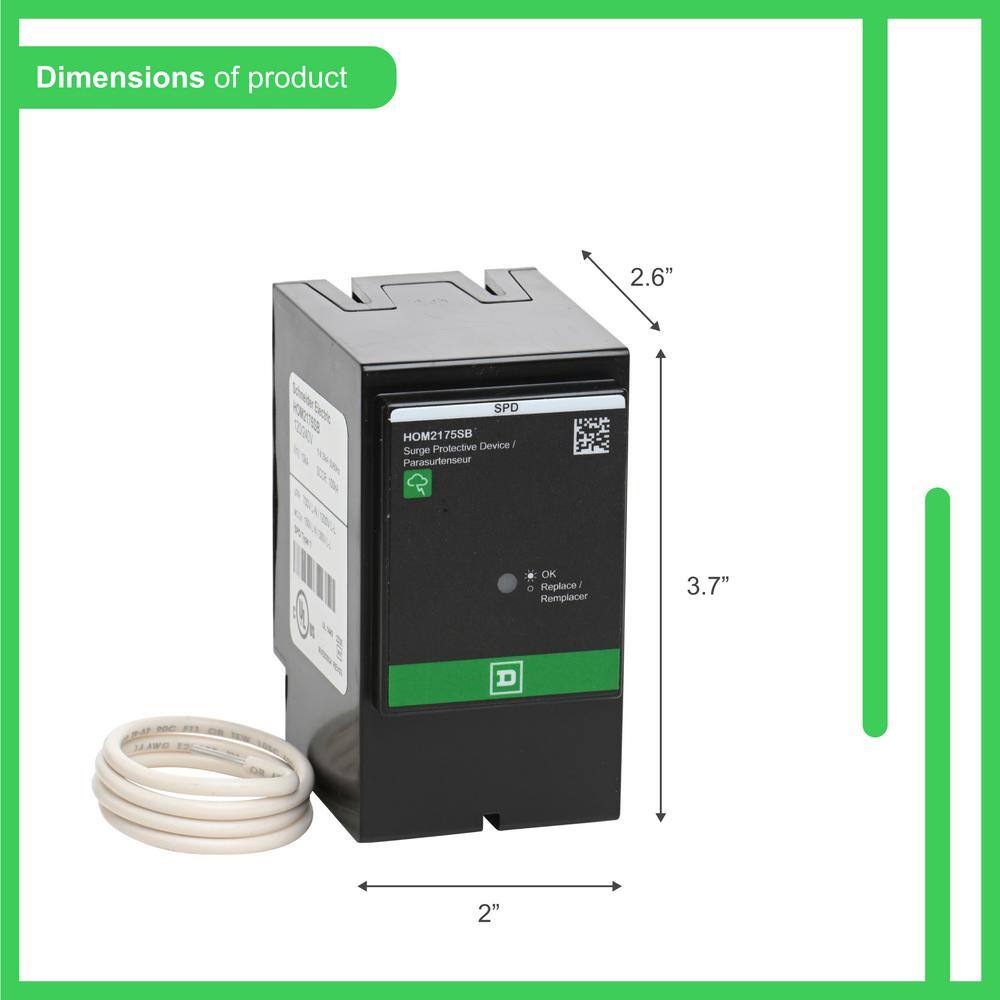

Dimensions
| Product Depth (in.) | 2.6 in | Product Height (in.) | 3.7 in |
|---|---|---|---|
| Product Width (in.) | 2 in |
Details
| Connection type | Breaker | Electrical Product Type | Whole House Surge Protectors |
|---|---|---|---|
| Joules | 930.0 | Maximum Amperage (A) | 25000 A |
| Product Weight (lb.) | .64 lb |
