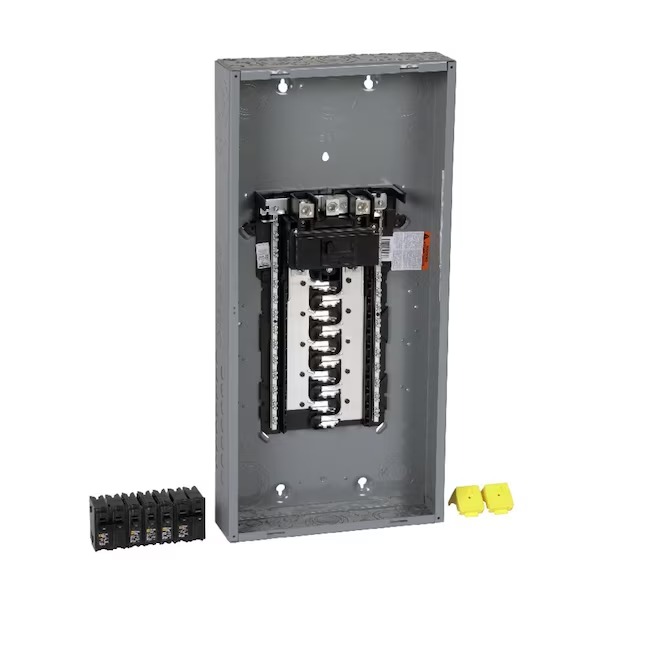

Square D HOM2040M200PCVP 200 -Amp 20 -Spaces 40 -Circuit Indoor Convertible main lug Plug-On Neutral Load Center (Value Pack)
- Less wiring, clean gutter, fast installation with Plug-On Neutral
- Compatible with any Square D Homeline circuit breaker
- Square D Homeline 100 Amp 30-Space 60-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Cover
- Square D Homeline 200 Amp 20-Space 40-Circuit Indoor Main Breaker Plug-On Neutral Load Center with Cover – Value Pack
- Includes a fully distributed neutral bar, allowing for the installation of Homeline plug-on neutral combination arc fault breakers on any space
- Overhead/underground feed simply by rotating the device before installing
- Rated 120/240 VAC and 22,000 AIR short circuit current rating
| General | |||
|---|---|---|---|
| Manufacturer Color/Finish | Gray | Type | Convertible main lug |

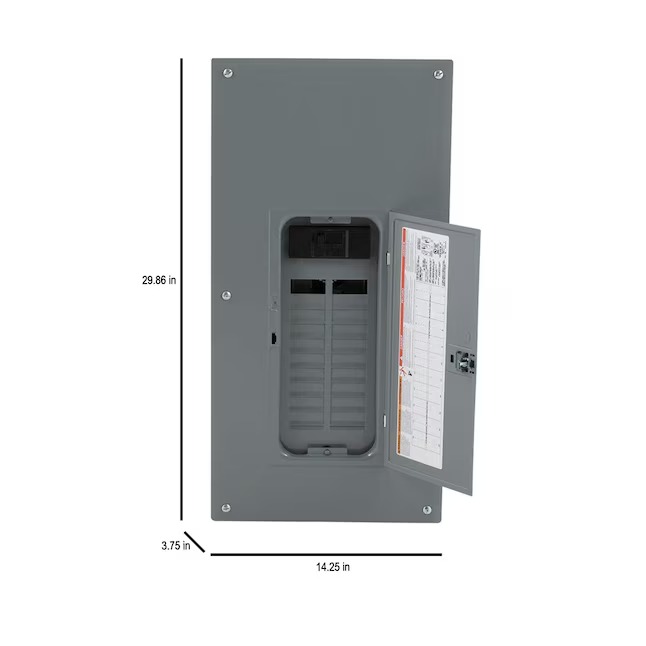

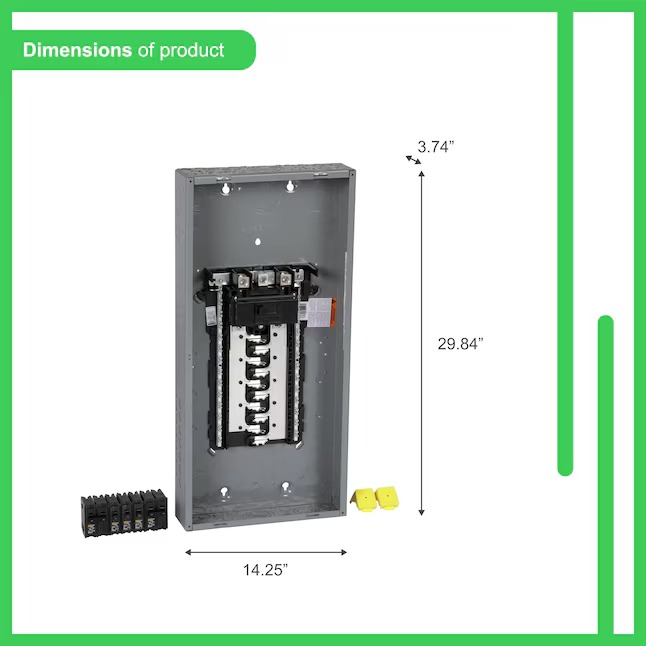

| Â Dimensions | |||
| Depth (Inches) | 3.75 | Width (Inches) | 14.25 |
| Height (Inches) | 29.86 | ||
| Â Features | |||
| Amperage | 200 | Orientation | Over/Under |
| Buss Bar Construction | Aluminum | Paintable | No |
| Circuits | 40 | Phase Type | Single phase (120/240) |
| Cover Included | Yes | Plug-On Neutral | Yes |
| Feed-Through Lugs | No | Usage | Service entrance |
| Ground Bar Installed | No | Use Location | Indoor |
| Mounting Type | Combination | Value Pack | Yes |

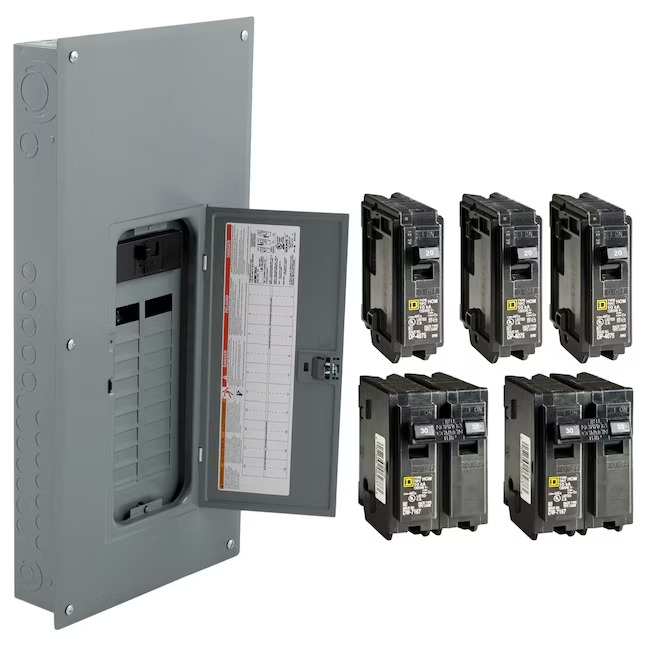

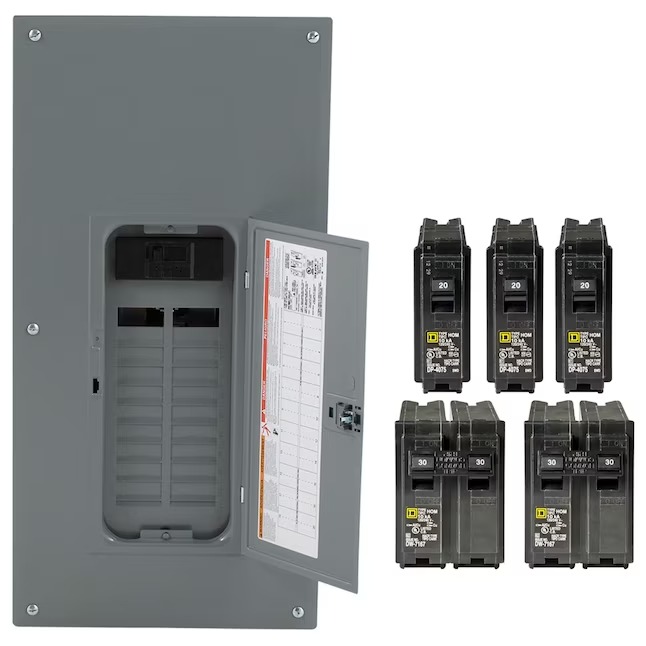

| Number of Spaces | 20 | Value Pack Contents | Includes (3) HOM120 Homeline 20 Amp single-pole circuit breakers, (2) HOM230 Homeline 30 Amp double-pole circuit breakers and a combination flush/surface cover |
| Â Compatibility | |||
| Brand/Model Compatibility | Square D Homeline Brand Only |
