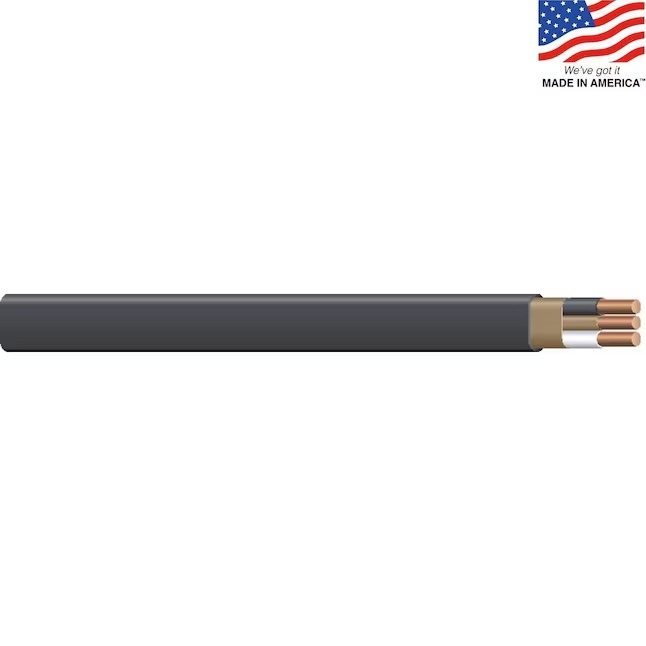

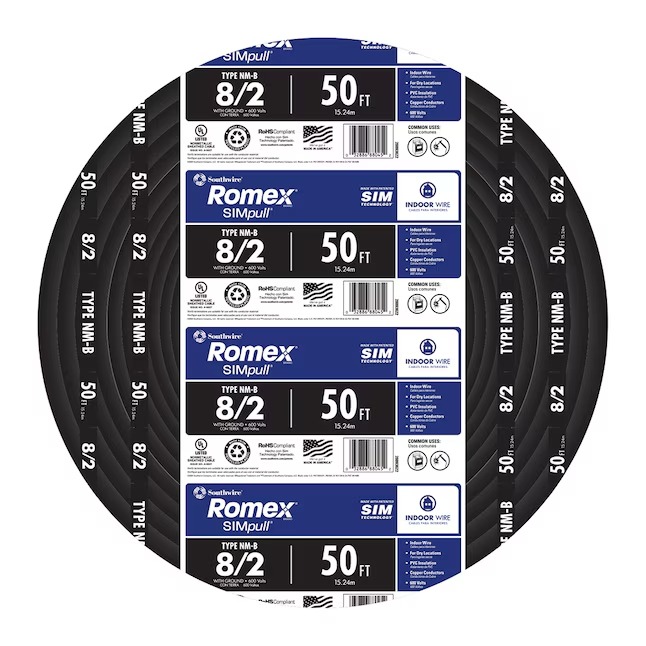

Southwire 28893622 50-Feet 8 / 2 / Romex SIMpull Stranded Indoor CU NM-B W/G Individual pack ( By-the-roll )

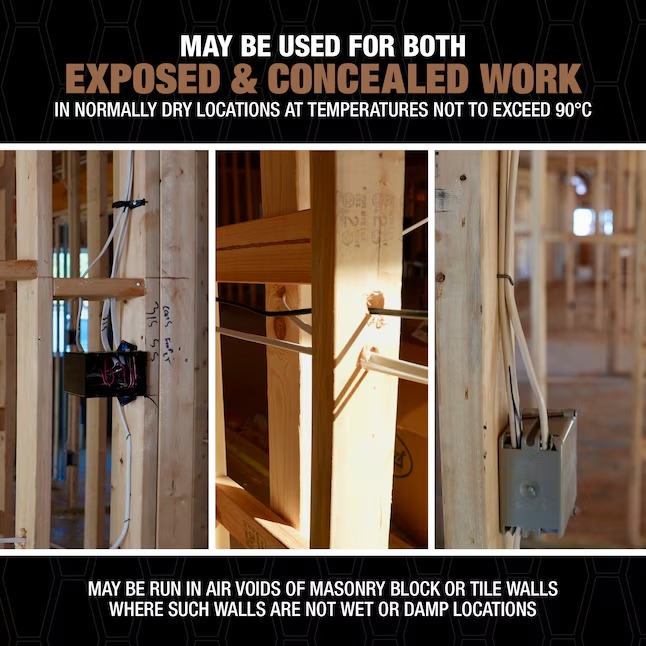

Southwire’s Romex® SIMpull® type NM-B may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C.
- Southwire’s Romex® SIMpull® type NM-B may be used for both exposed and concealed work in normally dry locations at temperatures not to exceed 90°C
- NM-B cable is primarily used in residential wiring as branch circuits for outlets, switches, and other loads
- NM-B cable may be run in air voids of masonry block or tile walls where such walls are not wet or damp locations
- Voltage rating for NM-B cable is 600 volts
- Copper conductors are annealed (soft) copper
- Southwire’s SIMpull® designed for easier pulling, resulting in easier installation
- UL listed
| General | |||
|---|---|---|---|
| Jacket Color | Black | Sub-Brand | N/A |
| Series Name | Romex SIMpull | ||
| Dimensions | |||
| Cable Length (Feet) | 50 | ||
| Features | |||
| Commercial/Residential | Commercial/Residential | Package Quantity | 1 |
| Direct Burial | No | Package Type | Individual pack |
| Fire Resistant | No | RoHs Compliant | Yes |
| Ground Wire | Yes | Shielded | No |
| Jacket Material | Polyvinyl chloride | Stranded or Solid | Stranded |
| Use Location | Indoor | ||
| Maximum Amperage | 40 | UV Resistant | No |
| Moisture Resistant | Yes | Voltage Rating | 600 |
| Number of Conductors | 2 | Wire Cut Type | By-the-roll |
| Number of Conductors (Wire 2) | 0 | Wire Gauge | 8 |
| Number of Pairs | 0 |
