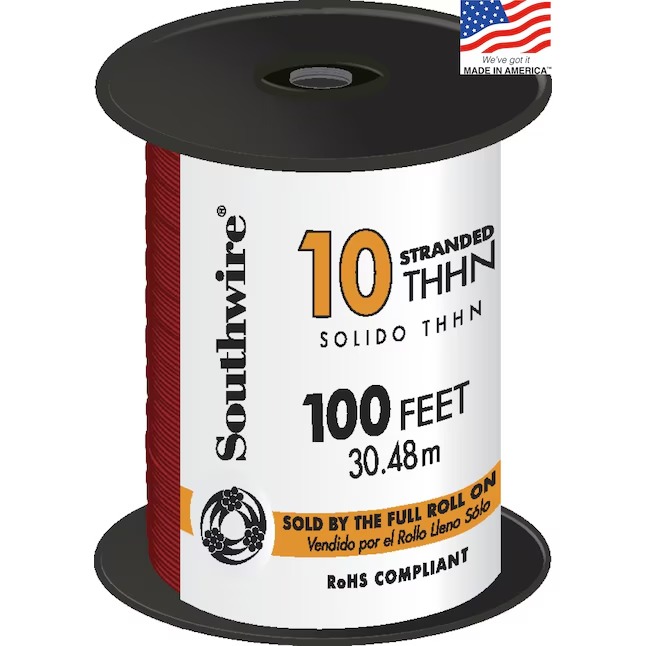

Southwire 22975784 100-Feet 10 -AWG Red Stranded Copper THHN wire ( By-the-roll )
Original price was: $75.00.$67.50Current price is: $67.50.
- Southwire type THHN or THWN-2 conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electric Code
- When used as a type THHN conductor it is suitable for use in dry locations that are not to exceed temperatures of 90ºC
- THHN copper conductors are annealed (soft) copper
Southwire 22975784 100-Feet 10 -AWG Red Stranded Copper THHN wire ( By-the-roll )
Southwire’s THHN and THWN is a multi-purpose building wire used in conduit and cable trays for service, feeders and branch circuits in commercial and industrial applications. It is also used as a conductor in NM-B, UF-B, SER, SEU and MC. Southwire’s THHN is rated for 600-Volt and has a heat capacity of up to 90°C.
- Southwire type THHN or THWN-2 conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electric Code
- When used as a type THHN conductor it is suitable for use in dry locations that are not to exceed temperatures of 90ºC
- THHN copper conductors are annealed (soft) copper
General |
|||
|---|---|---|---|
Jacket Color |
Red |
Type |
THHN wire |
Sub-Brand |
N/A |
|
|
Dimensions |
|||
|---|---|---|---|
Cable Length (Feet) |
100 |
|
|
Features |
|||
|---|---|---|---|
Commercial/Residential |
Commercial/Residential |
Number of Strands |
19 |
Conductor Material |
Copper |
RoHs Compliant |
Yes |
Direct Burial |
No |
Shielded |
No |
Fire Resistant |
No |
UV Resistant |
No |
Insulation Material |
PVC (polyvinyl chloride) |
Voltage Rating |
600 |
Jacket Material |
PVC (polyvinyl chloride), |
Wire Cut Type |
By-the-roll |
Maximum Amperage |
30 |
Wire Gauge |
10 |
Moisture Resistant |
Yes |
Wire Type |
Stranded |
