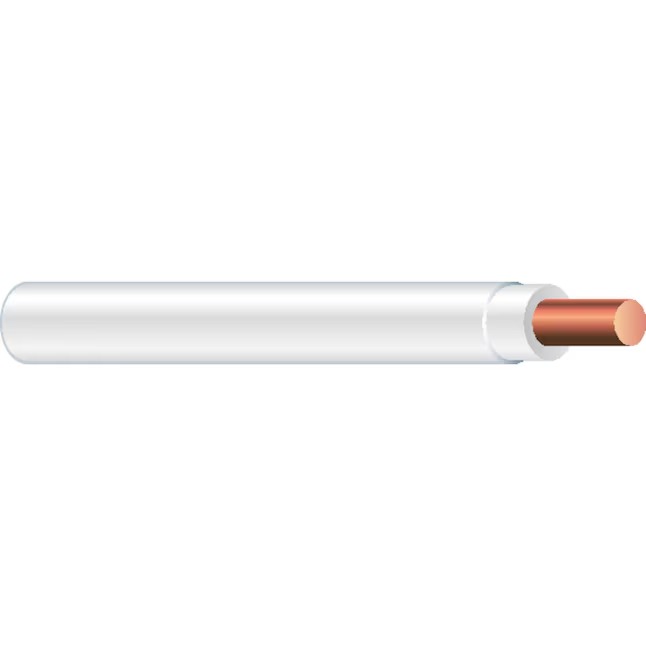

Southwire 22965884 100-Feet 12 -AWG White Stranded Copper THHN wire ( By-the-roll )
Original price was: $65.00.$58.50Current price is: $58.50.
- Southwire’s type THHN or THWN-2 conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electric Code
- When used as a type THHN conductor it is suitable for use in dry locations that are not to exceed temperatures of 90ºC
- THHN copper conductors are annealed (soft) copper
Southwire 22965884 100-Feet 12 -AWG White Stranded Copper THHN wire ( By-the-roll )
Southwire’s THHN and THWN is a multi-purpose building wire used in conduit and cable trays for service, feeders and branch circuits in commercial and industrial applications. It is also used as a conductor in NM-B, UF-B, SER, SEU and MC. Southwire’s THHN is rated for 600-Volt and has a heat capacity of up to 90°C.
- Southwire’s type THHN or THWN-2 conductors are primarily used in conduit and cable trays for services, feeders, and branch circuits in commercial or industrial applications as specified in the National Electric Code
- When used as a type THHN conductor it is suitable for use in dry locations that are not to exceed temperatures of 90ºC
- THHN copper conductors are annealed (soft) copper
| General | |||
|---|---|---|---|
| Jacket Color | White | Type | THHN wire |
| Sub-Brand | N/A |
| Dimensions | |||
|---|---|---|---|
| Cable Length (Feet) | 100 |
| Features | |||
|---|---|---|---|
| Commercial/Residential | Commercial/Residential | Number of Strands | 19 |
| Conductor Material | Copper | RoHs Compliant | Yes |
| Direct Burial | No | Shielded | No |
| Fire Resistant | No | UV Resistant | No |
| Insulation Material | PVC (polyvinyl chloride) | Voltage Rating | 600 |
| Jacket Material | PVC (polyvinyl chloride), | Wire Cut Type | By-the-roll |
| Maximum Amperage | 20 | Wire Gauge | 12 |
| Moisture Resistant | Yes | Wire Type | Stranded |
