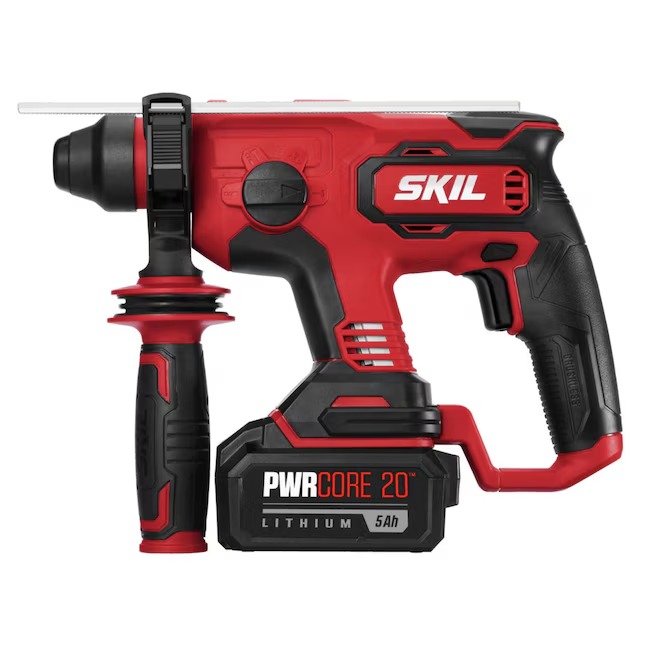

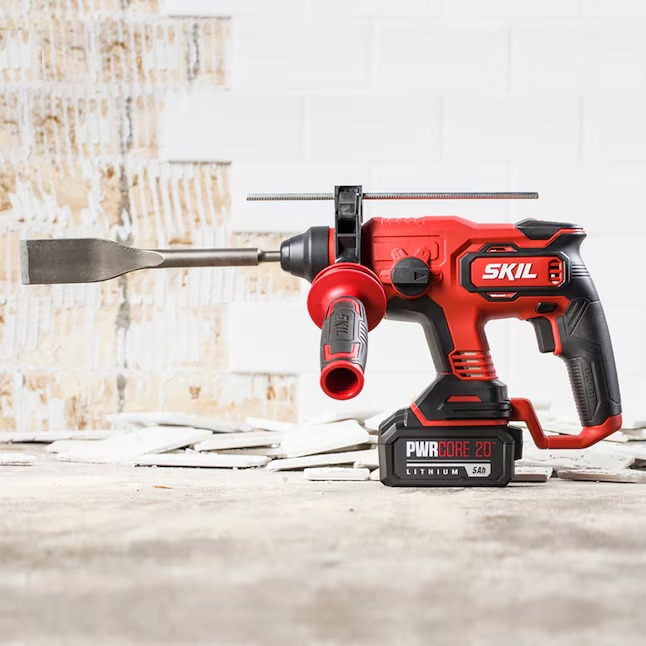

SKIL RH1704-1A PWR CORE 20-volt Sds-plus Variable Cordless Rotary Hammer Drill
4-Mode Rotary Hammer Drill. The digital, brushless motor provides the power needed to quickly hammer through tough materials like brick, stucco, and concrete with 0-1400 RPM and 0-4500 IPM. Seamless transitions between hammer drill, drill, chisel, and chisel alignment modes reduce time and increase efficiency, while the PWR CORE 20™ Lithium Battery and Automatic PWR JUMP™ Charger keep your SDS hammer drill powered up longer.

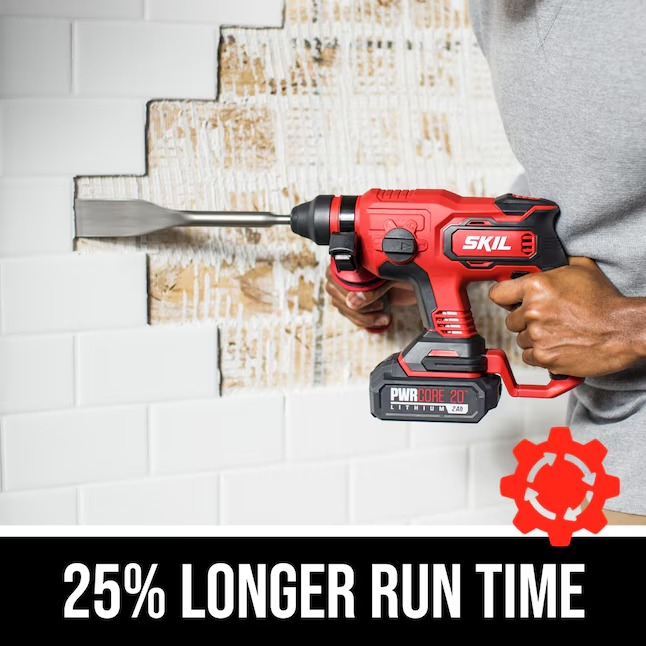

- LONGER RUN TIME AND BATTERY LIFE – Industry leading PWR CORE 12™ Lithium-ion battery technology wraps each cell with cooling material to keep the battery powering on for 25% longer run time and 2X battery life
- CHARGES IN 5 MINUTES – Automatic PWR JUMP™ charges the battery in just 5 minutes, or 100% battery in 60 minutes

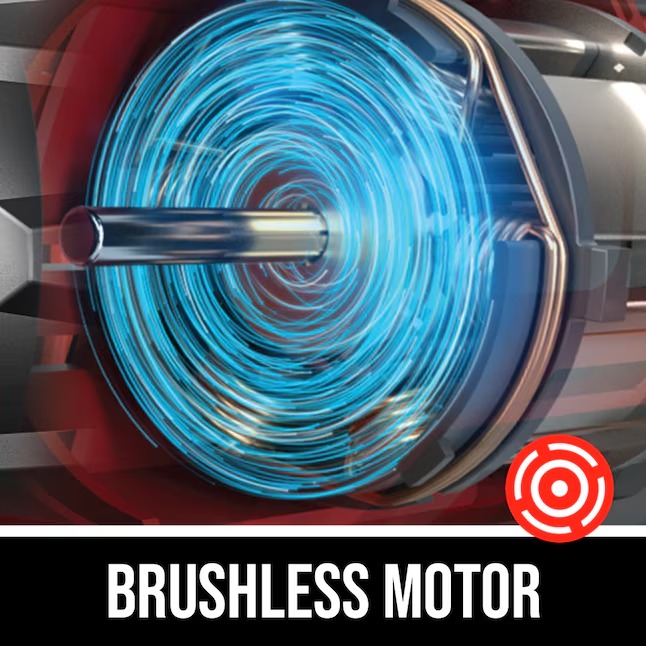

- DIGITAL BRUSHLESS MOTOR – Provides efficient, high-performance power when drilling through tough surfaces like brick, concrete, and other masonry

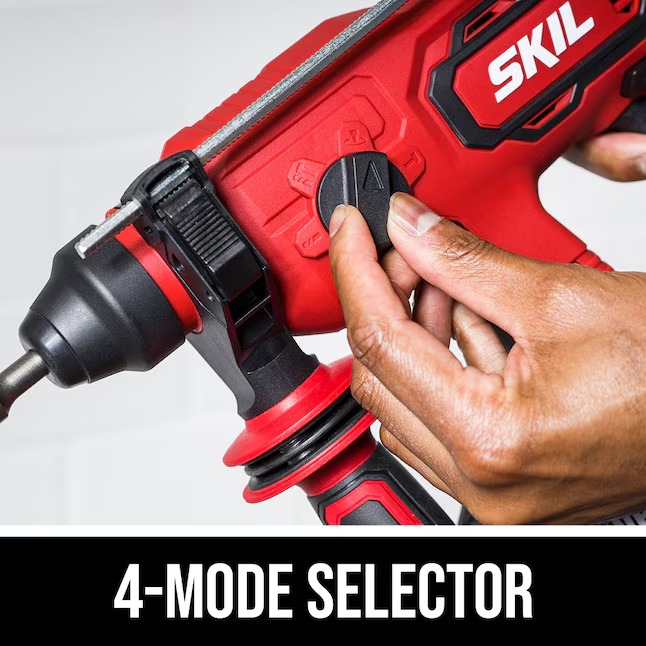

- 4-MODE SELECTOR – Transition between drill, hammer drill, chisel, and chisel alignment settings, reducing time and increasing efficiency

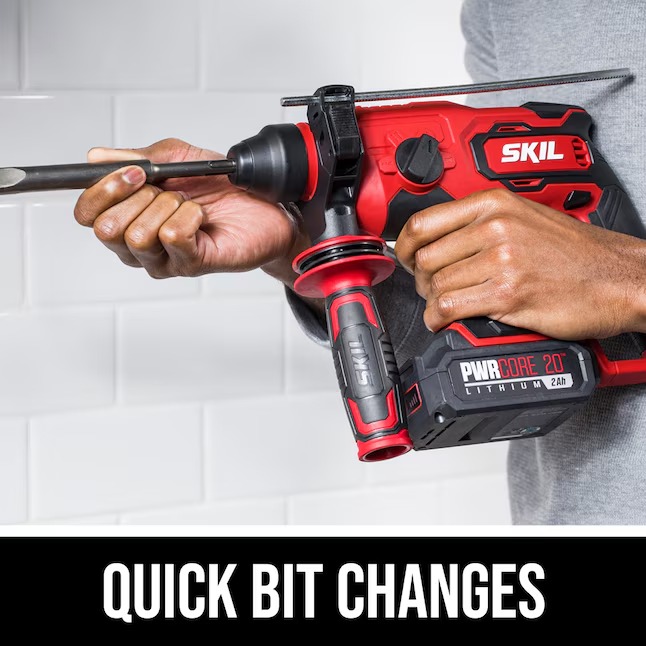

- QUICK BIT CHANGES—SDS Plus Chuck allows for easy and secure bit changes to keep your project going
| General | |||
|---|---|---|---|
| Battery Voltage | 20-volt | Sub-Brand | PWR CORE 20 |
| Color/Finish Family | Red |
| Dimensions | |||
|---|---|---|---|
| Maximum Capacity Concrete (Inches) | 0 | Tool Height (Inches) | 7.7813 |
| Maximum Capacity Steel (Inches) | 0 | Tool Length (Inches) | 11.1875 |
| Maximum Capacity Wood (Inches) | 0 | Tool Weight (lbs.) | 3.9 |
| Maximum Chuck Size | SDS-Plus | Tool Width (Inches) | 3.1563 |
| Features | |||
|---|---|---|---|
| Bare Tool | No | Keyed/Keyless | Keyless |
| Battery Amp Hours | 5 | Maximum BPM | 4500 |
| Battery Type | Lithium ion (Li-ion) | Maximum RPM | 1400 |
| Case Included | No | Number of Batteries Included | 1 |
| Charge Time (Minutes) | 60 | Operation Modes | Drilling; hammer drilling; chiseling |

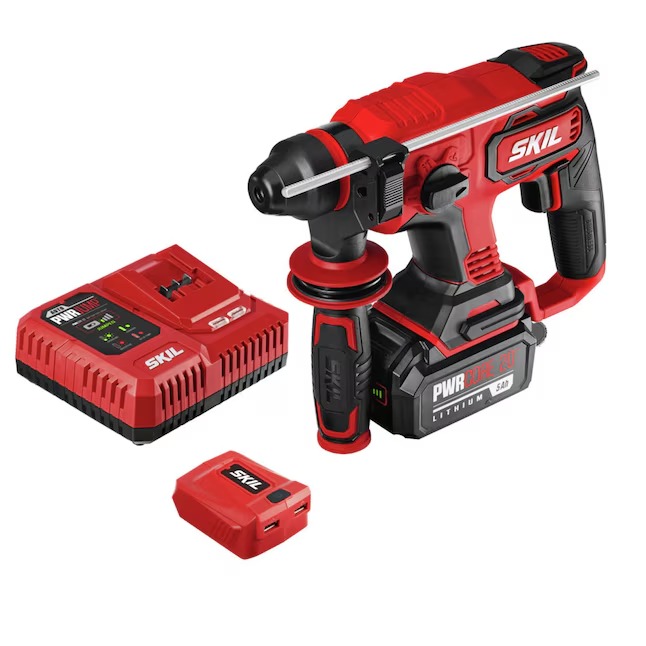

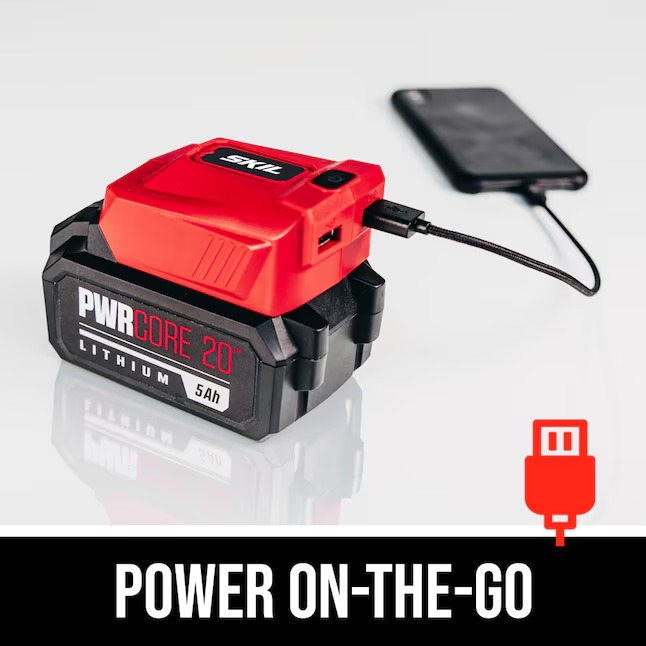

| Charger Included | Yes | Package Contents | Rotary hammer, PWR ASSIST USB adaptor, 5.0Ah battery, PWR JUMP charger, depth rod, side handle |
| Chuck Type | SDS-plus | Side Handle Included | Yes |
| Cordless | Yes | Tool Power Output | 800 in-lbs |
| Forward and Reverse Switch Included | Yes | Variable Speed | Yes |
| Impact Energy (Foot/lbs.) | 1.475 | Warranty | 5-year limited |
| Compatibility | |||
|---|---|---|---|
| App Compatibility | No | Works with Android | No |
| Bluetooth Compatibility | No | Works with iOS | No |
| Wi-Fi Compatibility | No |
| Warranty | |||
|---|---|---|---|
| Battery Warranty | 5-year | Tool Warranty | 5-year |
