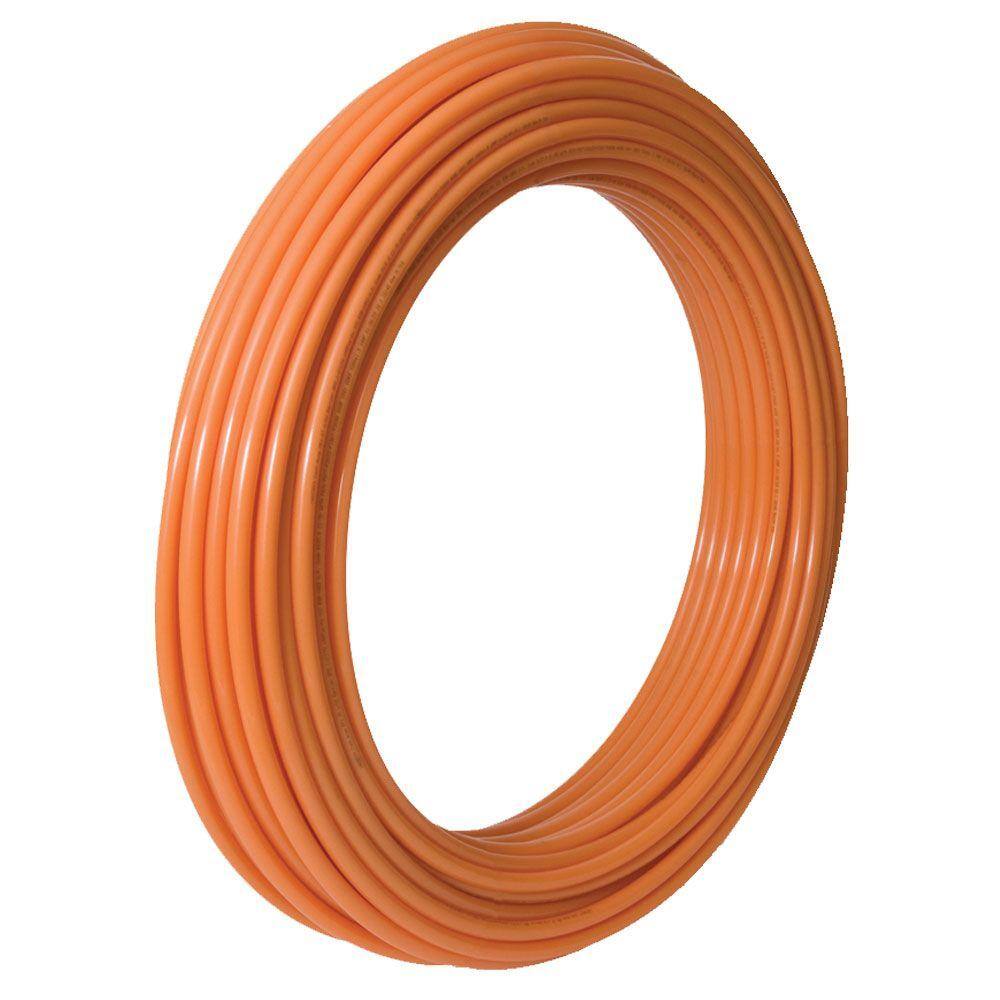

SharkBite U870O500 3/4 in. x 500 ft. PEX Oxygen Barrier Radiant Heating Pipe
SharkBite PEX tubing is a cross-linked polyethylene tubing for a wide range of residential and commercial plumbing applications. Manufactured with an oxygen barrier for radiant floor and hydronic heating applications (available in orange). The oxygen diffusion barrier applied to the exterior limits oxygen permeation through the tubing wall in hydronic heating applications which prevents corrosion of ferrous metal parts in the heating system. A repeating SharkBite imprint pattern provides a visual aid to determine if the tube has been inserted all the way into the SharkBite Push-Fit Fitting. This feature only works if the tubing is cut between the SharkBite imprint pattern.
- Strong, flexible, resilient pipe that provides superior temperature performance
- Oxygen barrier helps prevent the corrosion of ferrous metal parts in the heating system
- Flexibility reduces number of fittings needed to complete a job, reducing cost and leak points
- Can be installed wet or dry for immediate pressure testing
- SharkBite imprint pattern provides a visual aid to ensure pipe is fully inserted when using SharkBite push-to-connect fittings

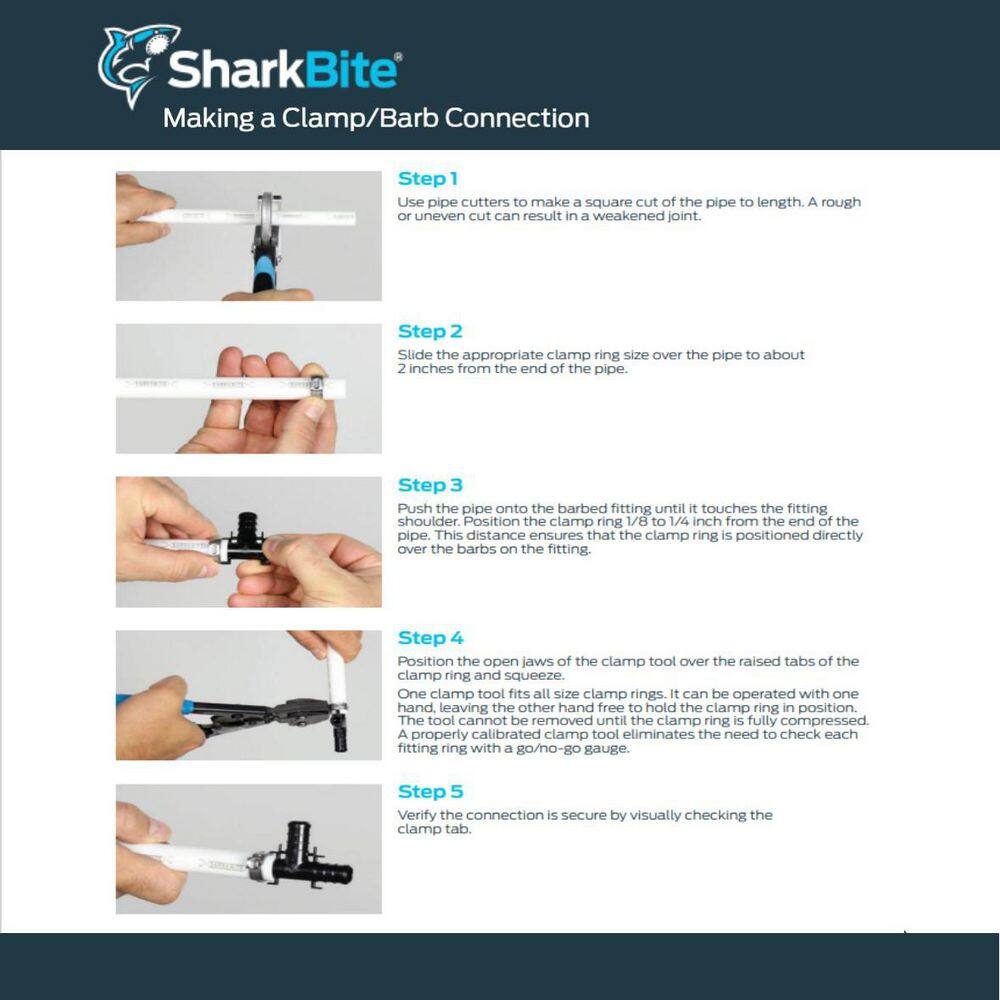

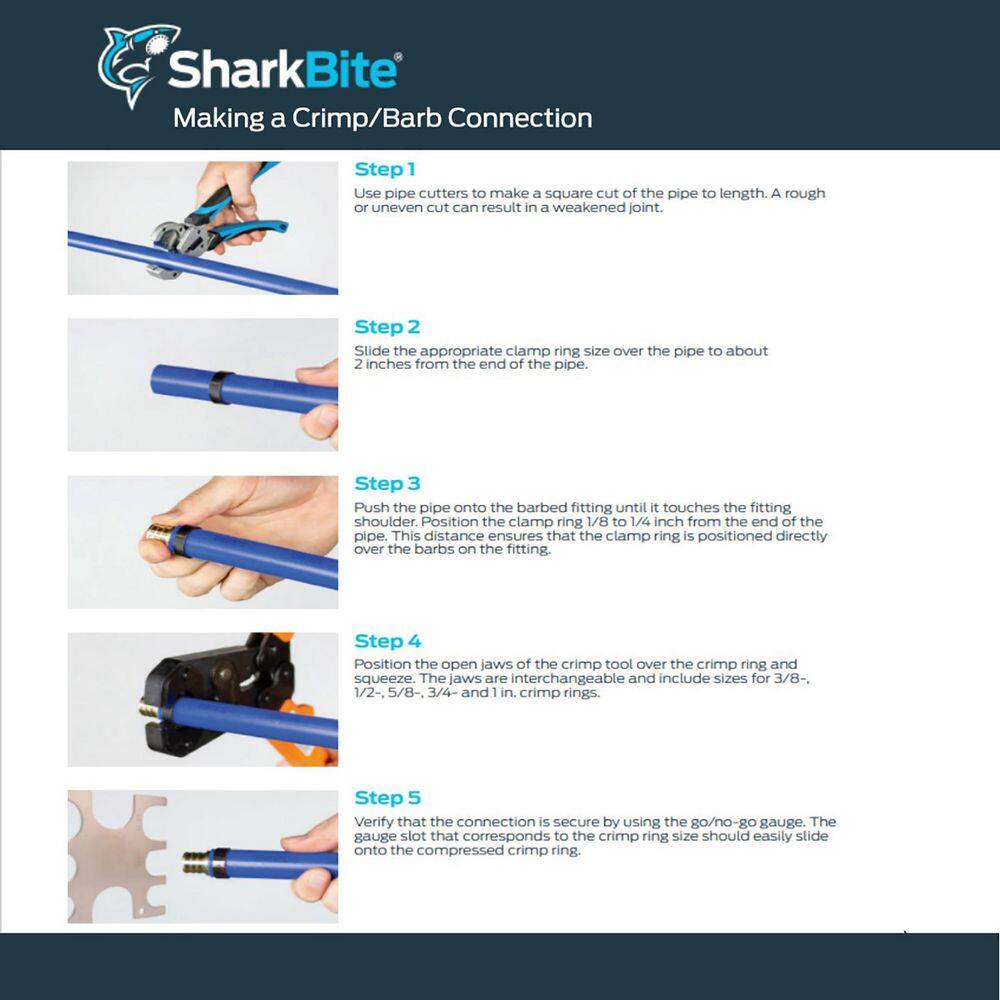

- SharkBite system provides a variety of connection options, SharkBite PEX can be connected with SharkBite push-to-connect fittings or barbed fittings
- Manufactured and tested to meet or exceed the requirements of the ASTM F-876/877/2023 and CSA B137.5
- SharkBite PEX Pipe Features and Fitting Compatiblity
Dimensions
| Actual inside diameter (in.) | .671 | Actual outside diameter (in.) | .875 |
|---|---|---|---|
| Nominal Inside Pipe Diameter (In.) | 3/4″ | Pipe Wall Thickness (In.) | .204 |
| Product Length (ft.) | 500 ft |
Details
| Application | Potable Water | Color Family | Orange |
|---|---|---|---|
| Color/Finish | Orange | Connectivity | Push Fit |
| Material | Cross-Linked Polyethylene (PEX) | Maximum Flow Rate (gallons per minute) | 8.8 |
| Maximum working pressure (psi) | 160 | Maximum Working Temperature (F) | 200 |
| Minimum working temperature (F) | 32 | Pack Size | 1 |

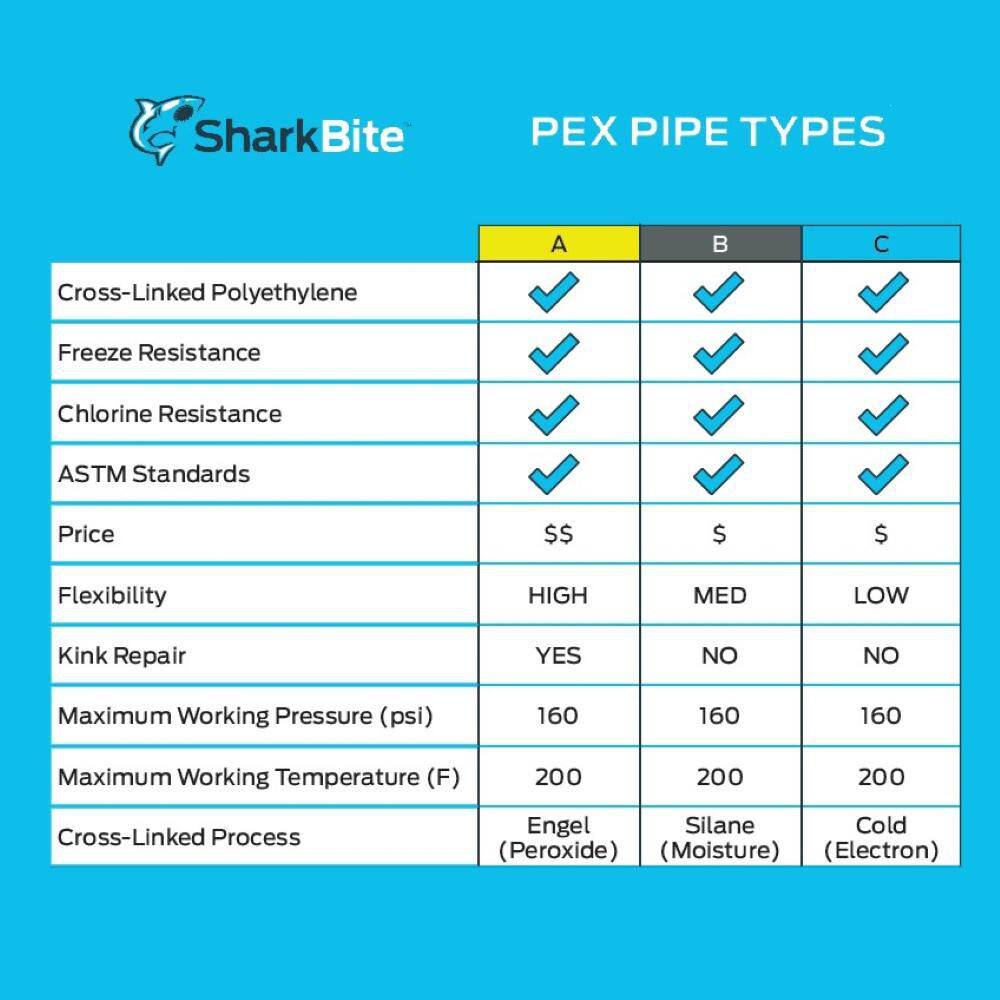

| PEX Type | B | Pipe Features | Flexible |
| Pipe or Fitting Product Type | Pipe & Tubing | Product Weight (lb.) | 83 lb |
