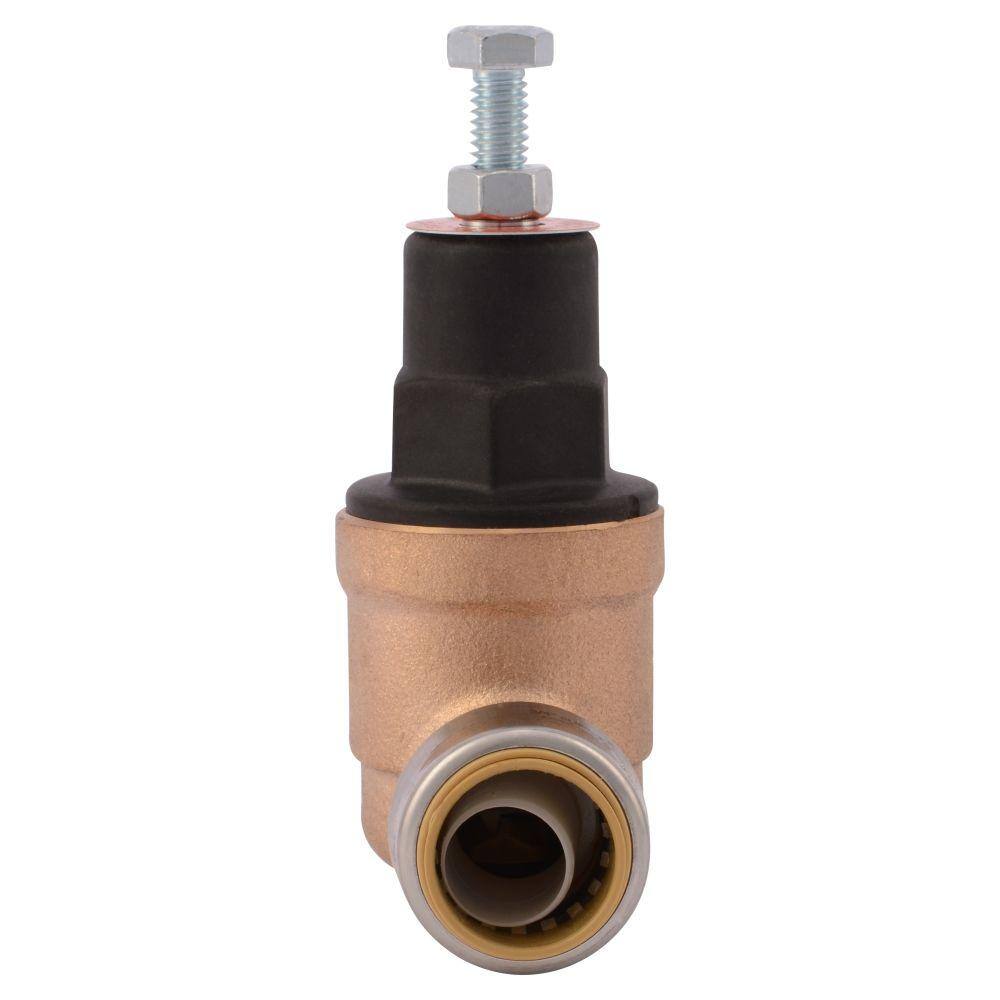

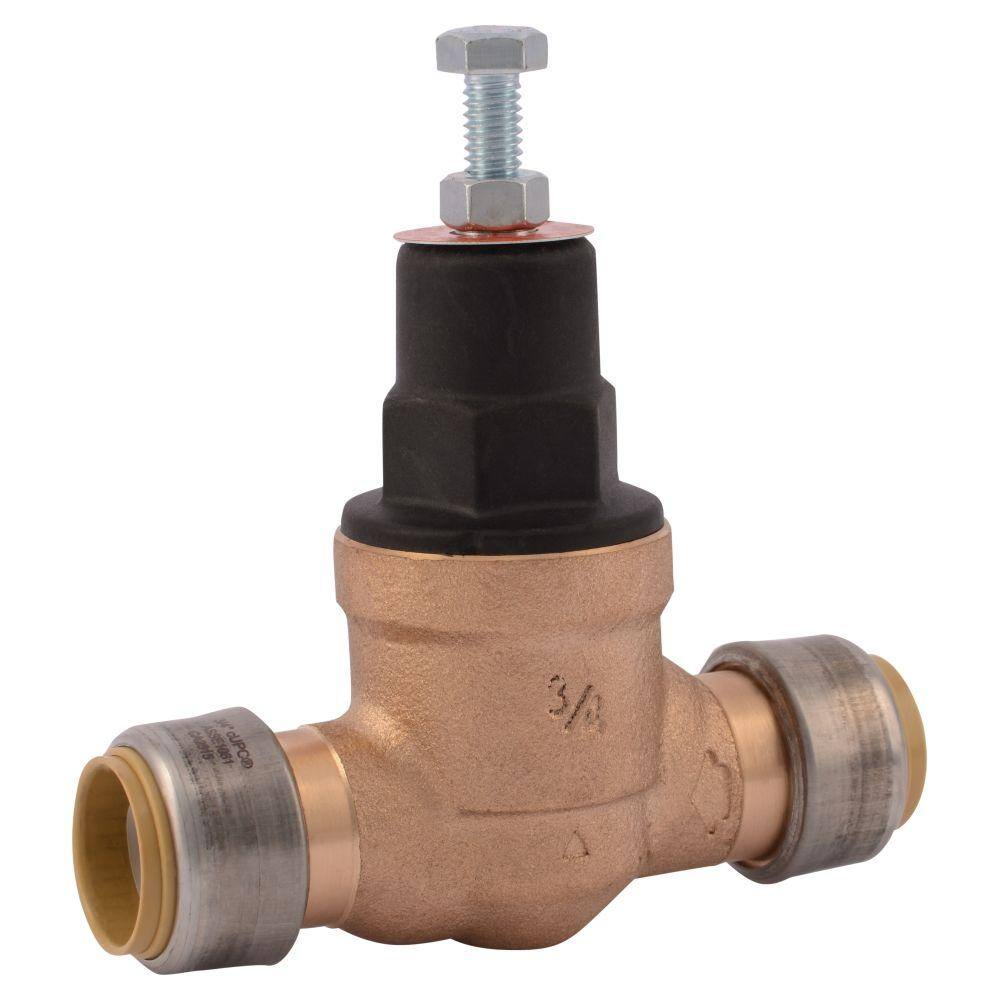

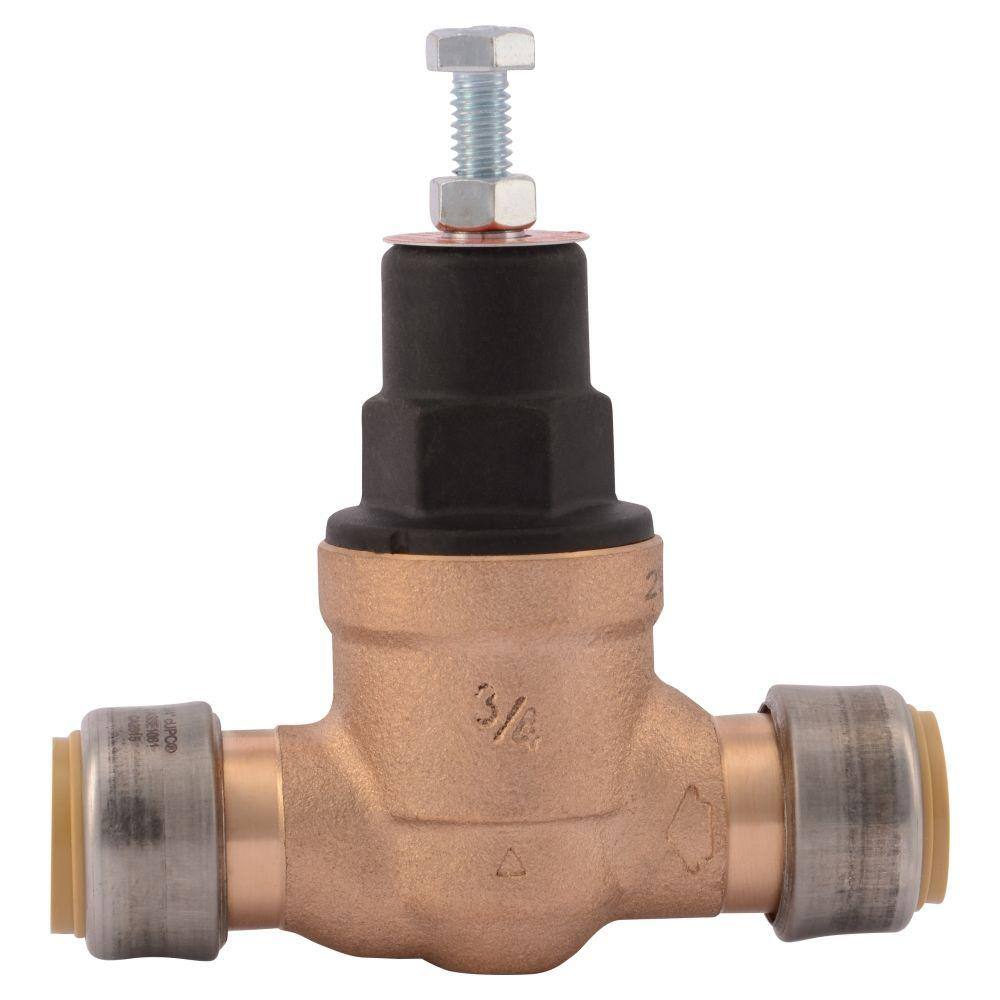

SharkBite 23858-0045 3/4 in. Push-to-Connect Bronze EB-45 Direct Pressure Regulator Valve

SharkBite 23858-0045 3/4 in. Push-to-Connect Bronze EB-45 Direct Pressure Regulator Valve

Cash Acme pressure regulating valves are designed to reduce incoming water pressure to a safe pressure to protect plumbing components. They also help to prevent pressure surges from entering the household from the main line. High pressure can cause damage to appliances and plumbing. A pressure regulator should be installed after the main line to help protect plumbing. The Cash Acme EB-45 is a half-cartridge based pressure reducing and regulating valve with a lead free bronze body. The valve resembles traditional regulators with a spring chamber and an adjusting screw but offers the high performance of a cartridge based valve. Fitted with the SharkBite Connection system the EB-45 can be installed using a push-to-connect connection that can be installed on any combination of Copper, CPVC, or PEX Pipe.

• Solid lead-free bronze construction
• Factory set to regulate flow to a safe 45 psi, adjustable from 10 to 70 psi
• Direct SharkBite connections allow for a push-fit connection on any combination of copper, CPVC, PEX
• Integrated internal by-pass mechanism
• Cartridge based design allows for quick and easy service
• Certified to ASSE 1003 and CSA B356 and listed by ASSE and IAPMO (cUPC)
• Meets UPC, IPC and cUPC requirements
• Designed for use where inlet pressure does not exceed 400 psi
• Suited for hot (up to 180) or cold water service

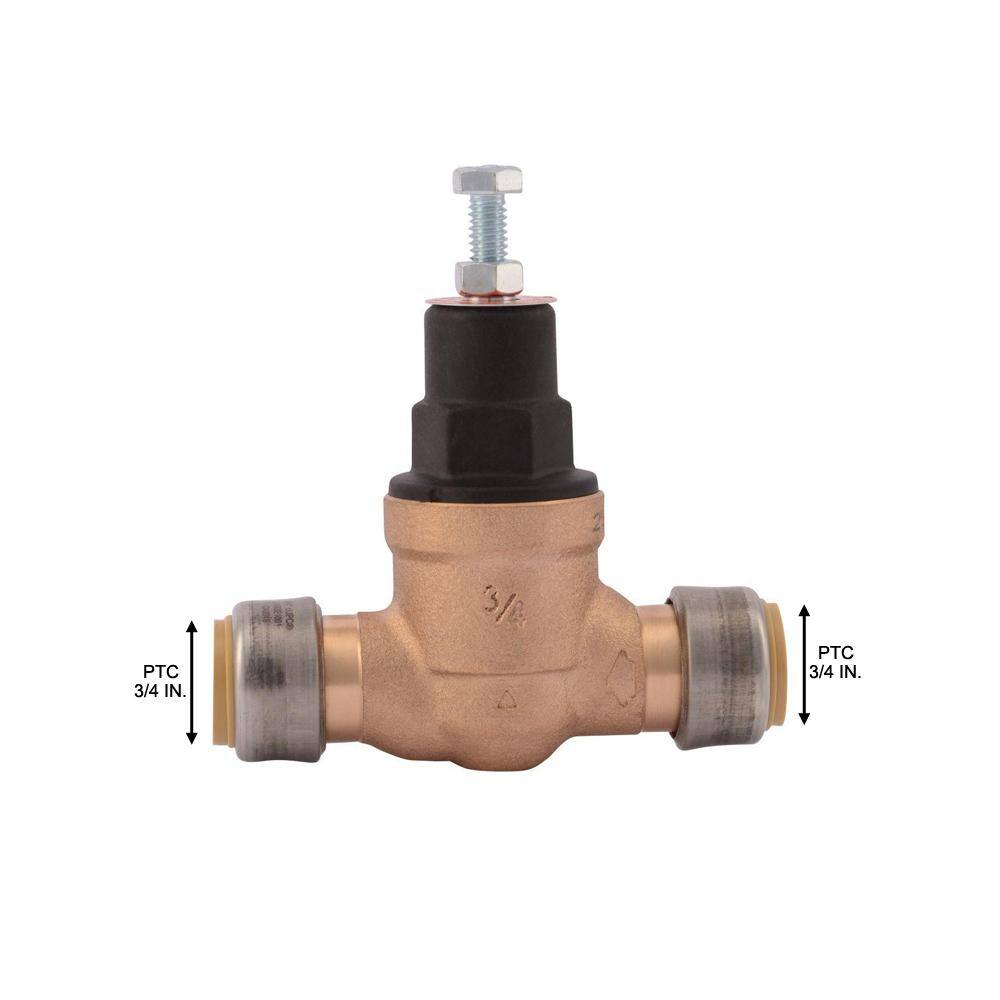

• 3/4 in. Pipe Insertion Depth = 1-1/8 in.
