RELN 003131 Storm Drain Deep Series 5 in. W x 5.25 in. D x 39.4 in. L Channel Drain Kit with Gray Grate (6-Pack)
Eliminate outdoor water runoff and pooling issues with the RELN Storm Drain channel drainage system. It is easy to install and allows maximum flexibility in solving your drainage requirements around the home or light commercial applications. Typical uses include driveways, pools and walkways wherever excess water and erosion are a problem. The systems design allows maximum flexibility in length of channels, corners and intersections. You can connect Storm Drain Channel to 4 in. sewer pipe with bottom or end outlet connection. The tough durable and lightweight UV stabilized plastic channel includes concave gray grate to suit domestic pedestrian and vehicle traffic.

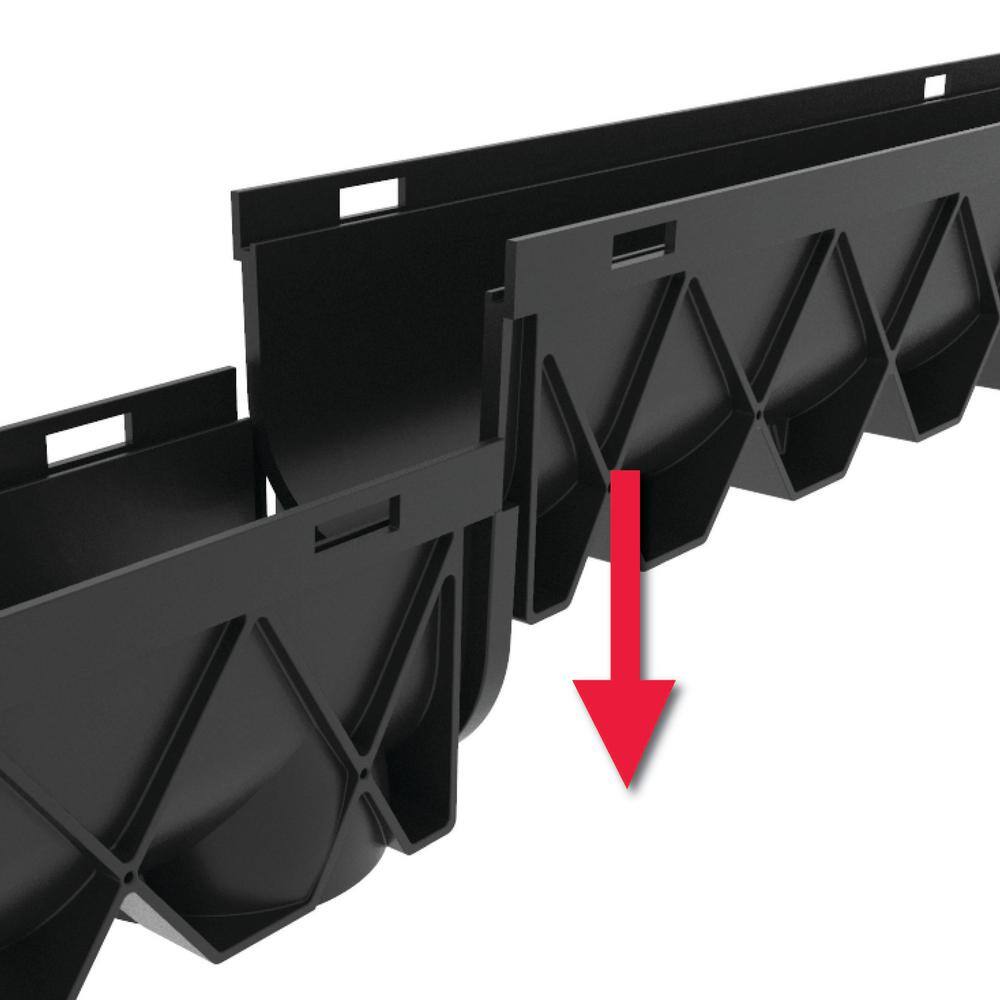

- Channel lengths are interlocking, no clips required and can be cut to desired length
- Recommended for medium duty pneumatic tire traffic, autos and light trucks at speeds less than 20-mph
- Manufactured from 100% recycled plastic (polypropylene)
- Anti-floatation channel feet prevent floating when encased in fill material
- U shaped channel, corners and tees are designed to prevent water pooling

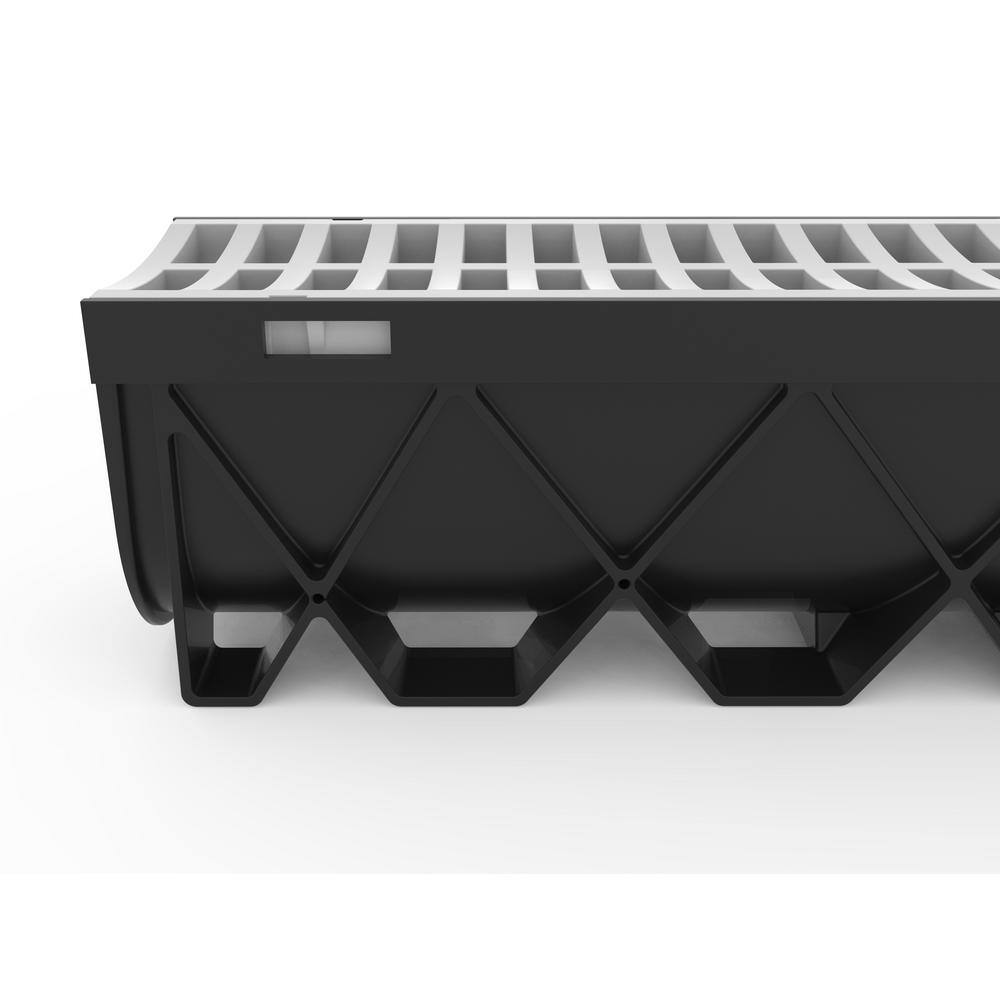

- Cross braced ribs are designed into the body for strength and rigidity

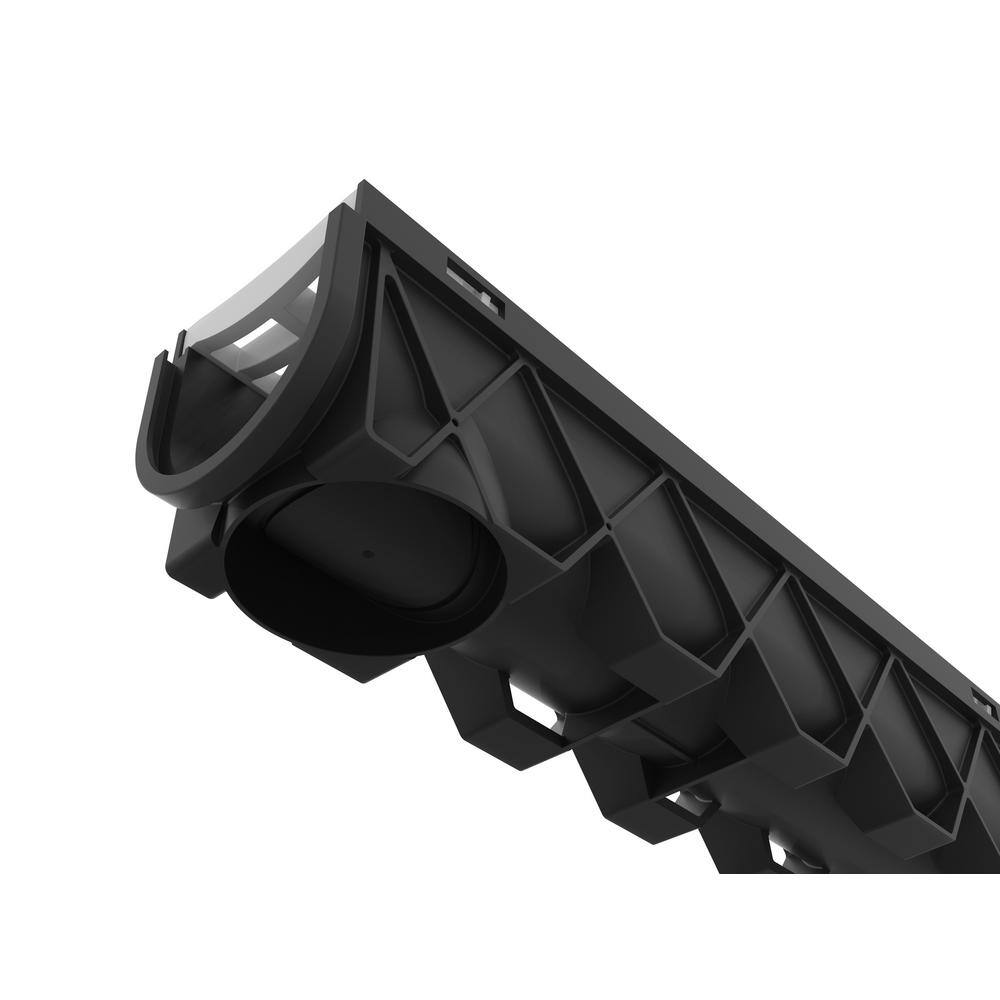

- End outlet accommodates 4 in. sewer pipe or 4 in. corrugated pipe and/or schedule 40 pipe with adaptor
- Grates clip in and out, no screws required

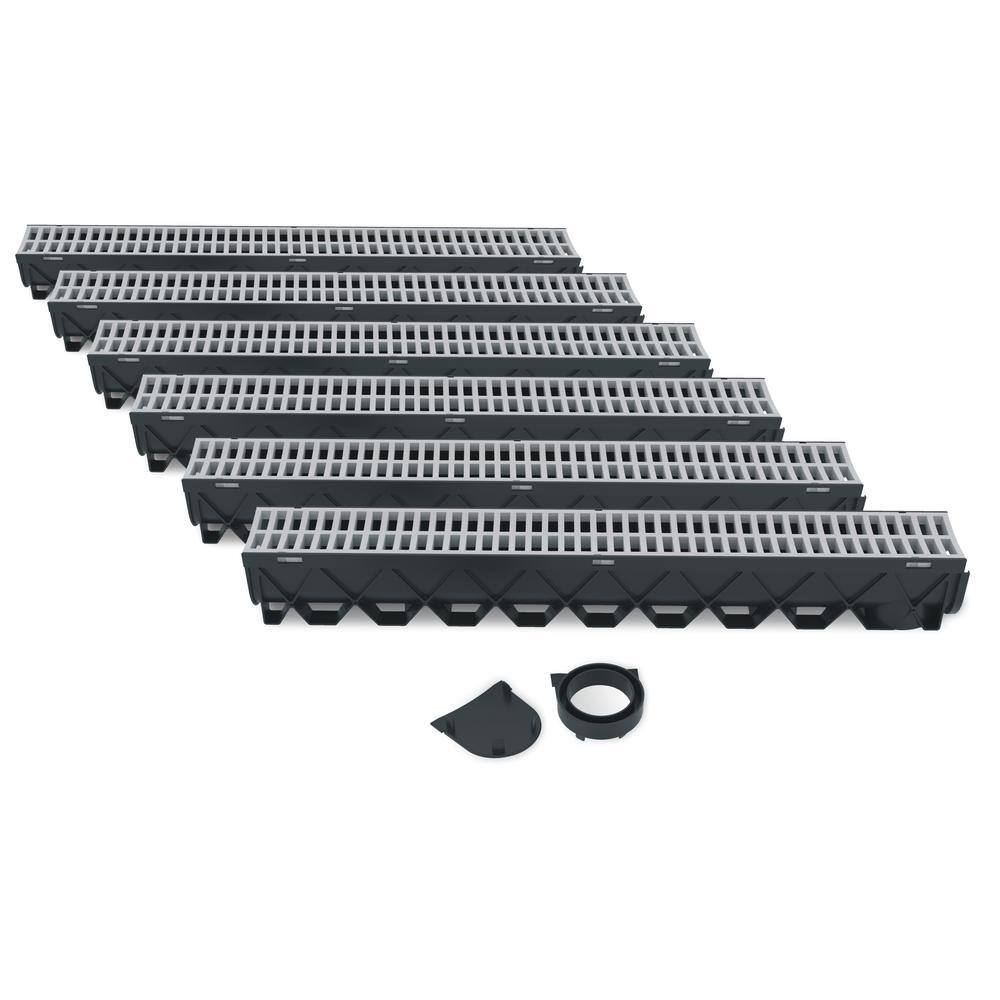

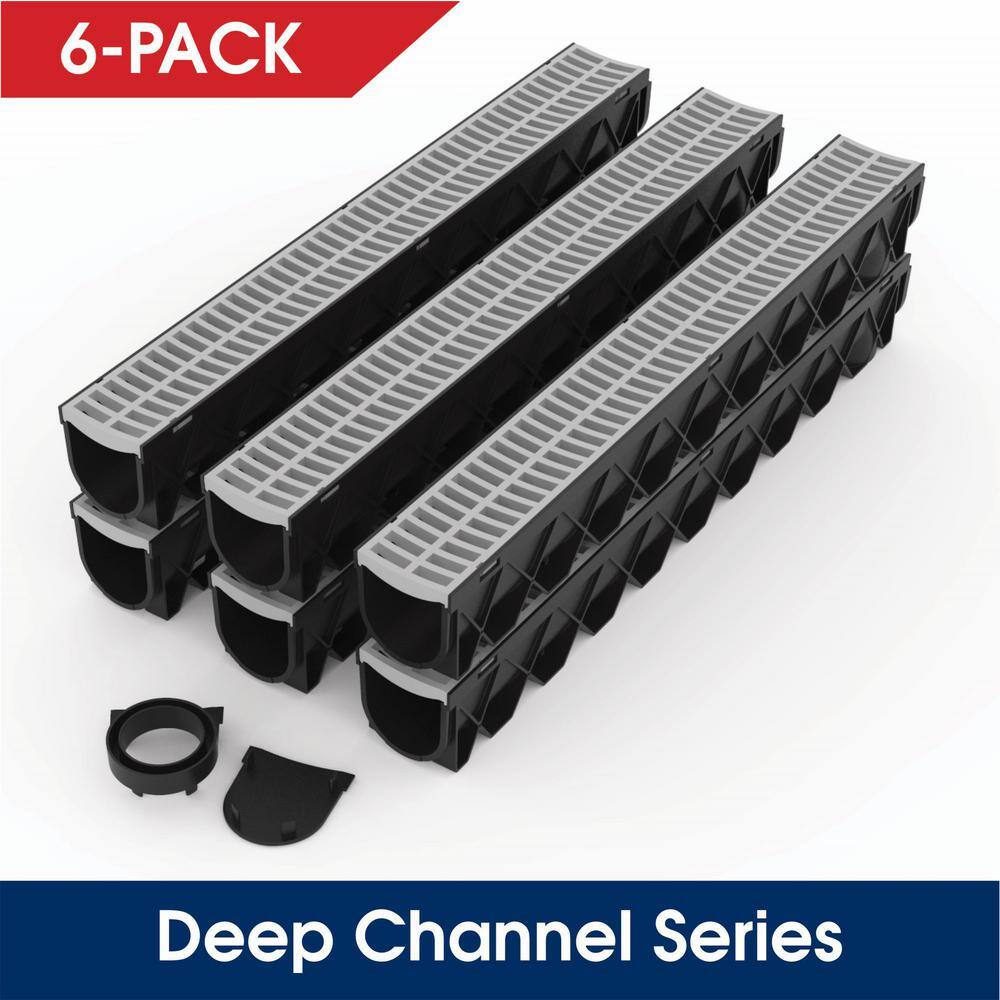

- Kit includes 6 x 40 in. channels, 1 x end cap and 1 x end outlet
- To create a water-tight connection, or to seal the storm drain end cap to channel drain length, purchase RELN Part 000309 – silicone 2.8 oz. black superior watertight drainage sealant
- For added stability during installation, the storm drain joiner 2-pack kit (part 003005) is sold separately and is designed to secure 2-channel lengths together
Dimensions
| Max. Compatible Pipe Size (In.) | 4″ | Min. Compatible Pipe Size (In.) | 4″ |
|---|---|---|---|
| Product Depth (in.) | 5.4 in | Product Length (in.) | 240 in |
| Product Width (in.) | 4.75 in |
Details
| Color Family | Gray | Color/Finish | Gray |
|---|---|---|---|
| Compatible Area of Use | Downspout Runoff, Driveway, Neighbor Runoff, Patio, Pool Deck, Walkways | Material | Polypropylene |
| Maximum Working Temperature (F) | 130 | Minimum working temperature (F) | 5 |
| Pack Size | 6 | Package Quantity | 1 |
| Pipe or Fitting Product Type | Accessory | Product Weight (lb.) | 34 lb |
