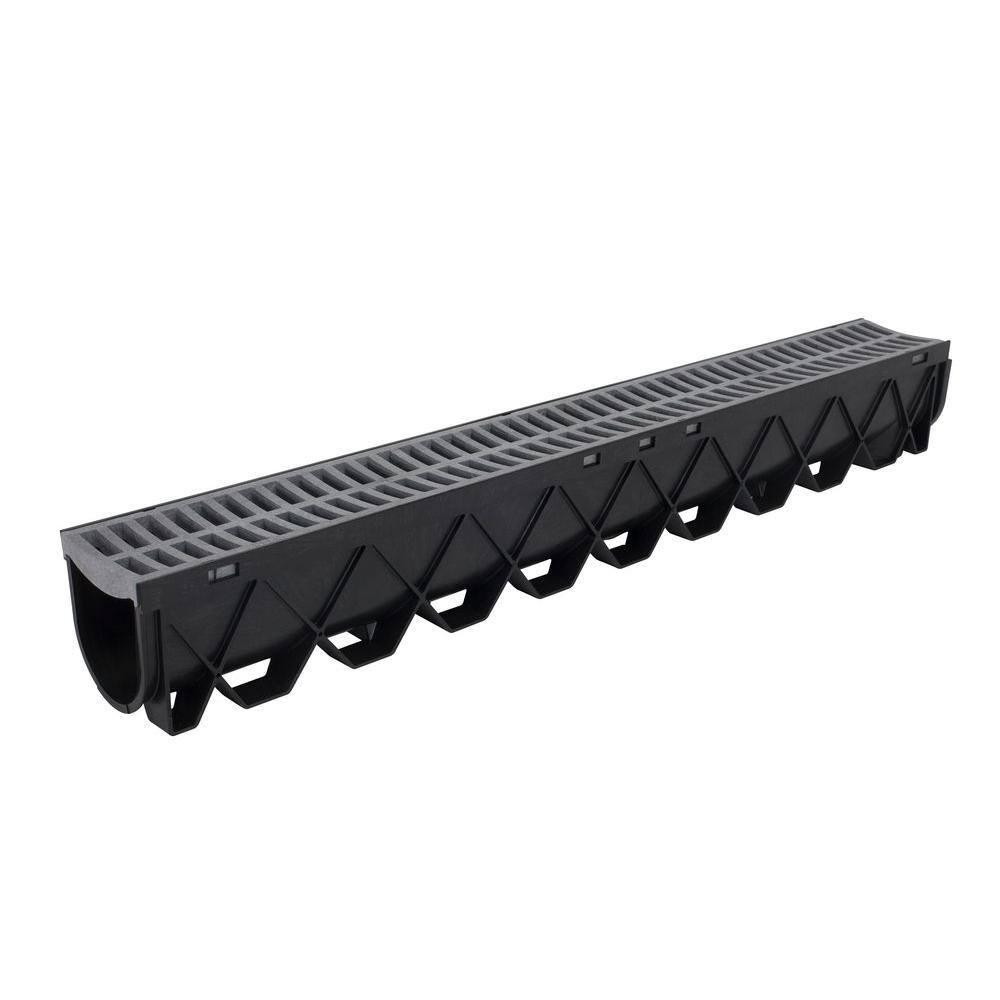

RELN 003102 Storm Drain 40 in. Channel Complete with Portland Grey Grate
Original price was: $54.98.$49.48Current price is: $49.48.

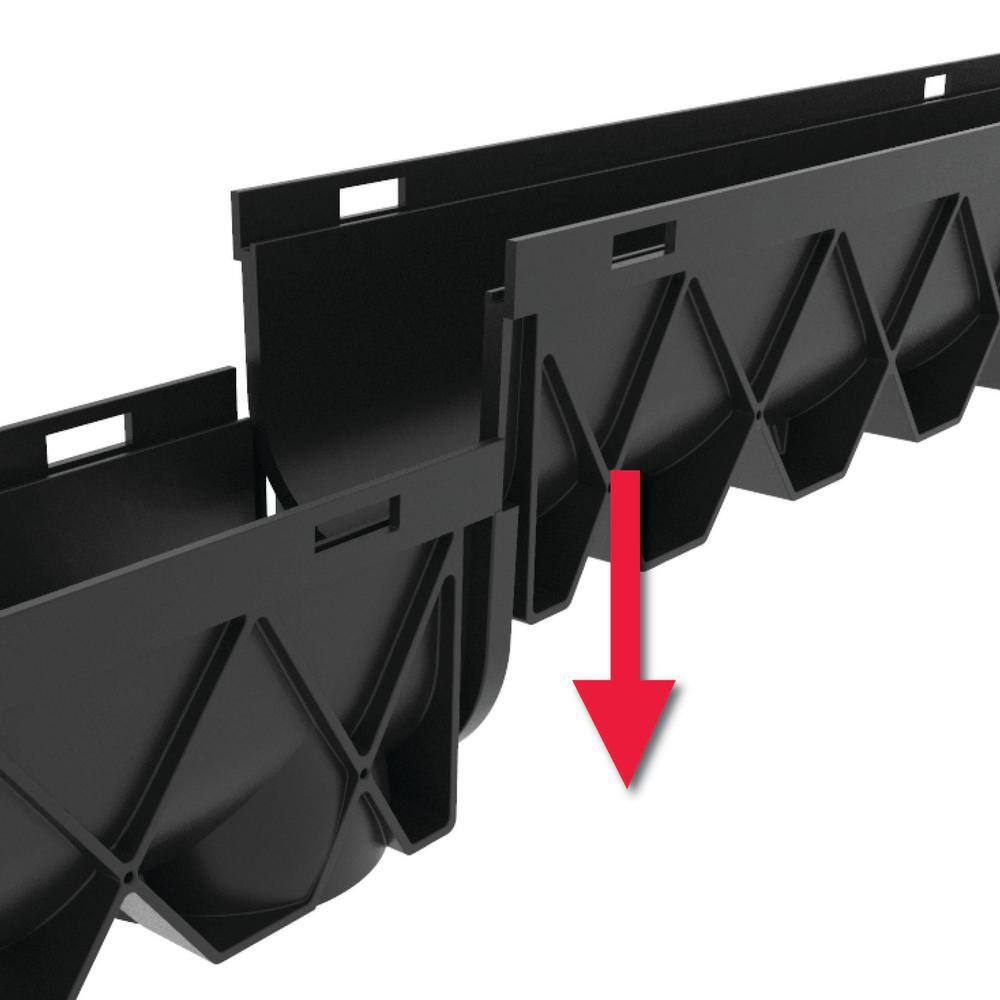

- Interlocking channel system – no need for couplings
- Clip in and out grate design – no screws required
- Deep “U” shaped channel profile, aids in self cleaning
RELN 003102 Storm Drain 40 in. Channel Complete with Portland Grey Grate

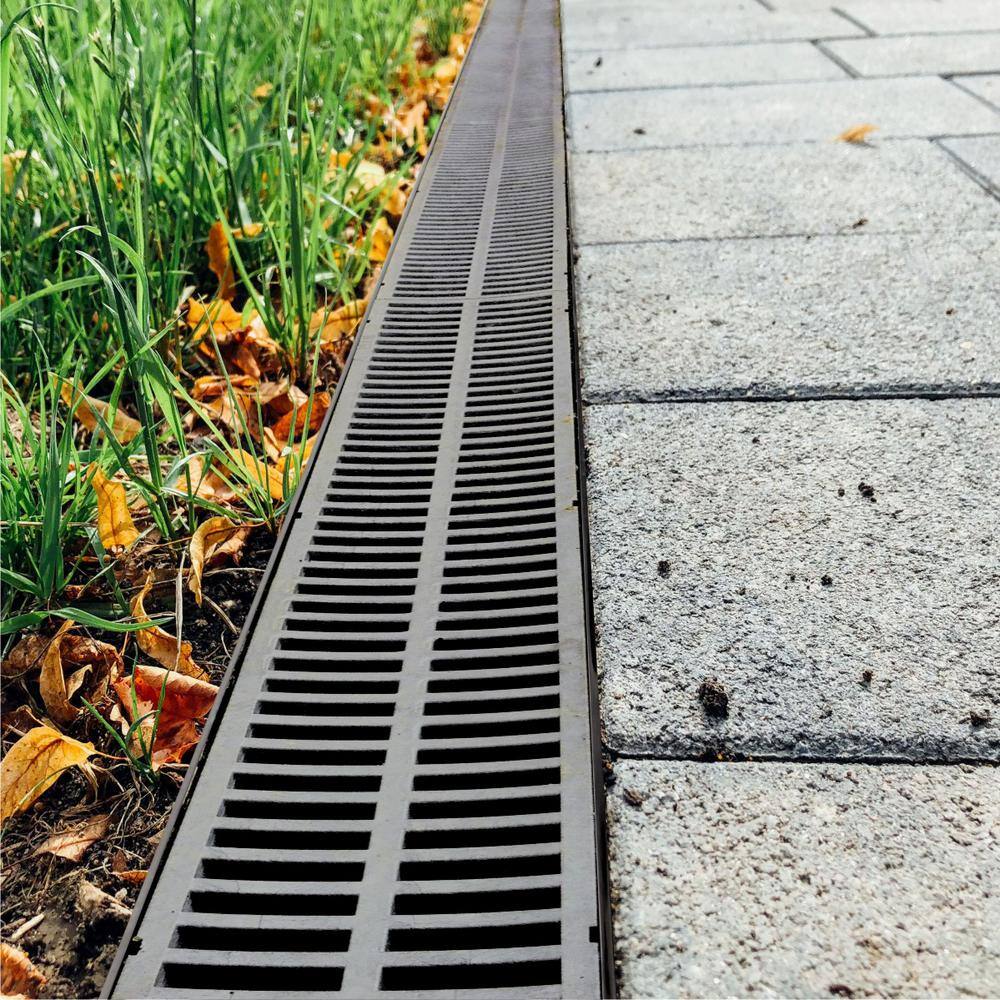

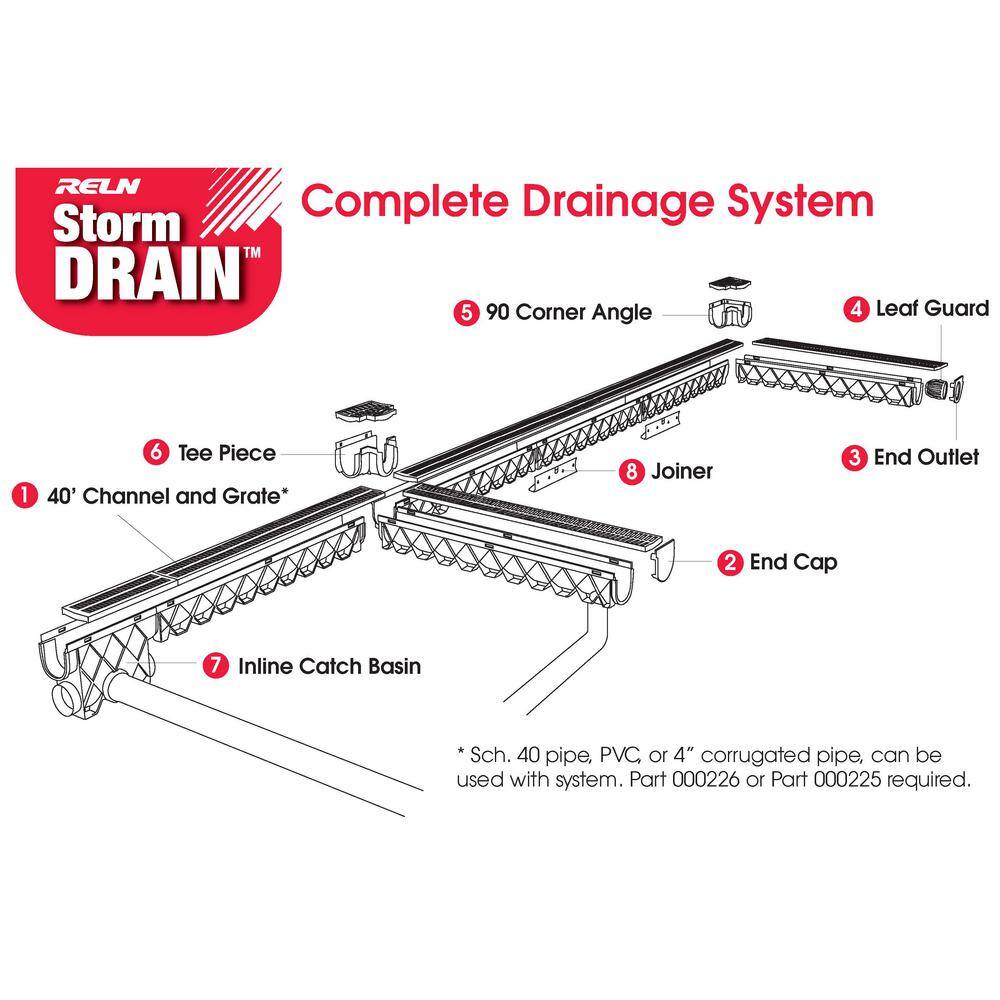

Eliminating outdoor runoff water which can cause flooding and pooling around a property is quick and easy with the RELN Storm Drain Channel system. Storm Drain Channels are available in 40 in. and 10 ft. lengths, with interlocking sections that snap-in together to create the desired length that suits your project. The systems design allows maximum flexibility with, corners and intersections. The “U” shaped channels aid in self-cleaning with a deep profile. You can connect Storm Drain to 4 in. sewer pipe with the end outlet, Inline pit and to prevent leaves or other debris clogging pipes or waterways with the Leaf Guard. The tough durable and lightweight UV stabilized plastic channel includes Portland Grey concave grate to suit domestic pedestrian and vehicle traffic.
- 4.75 in. W channel drain for all domestic drainage applications

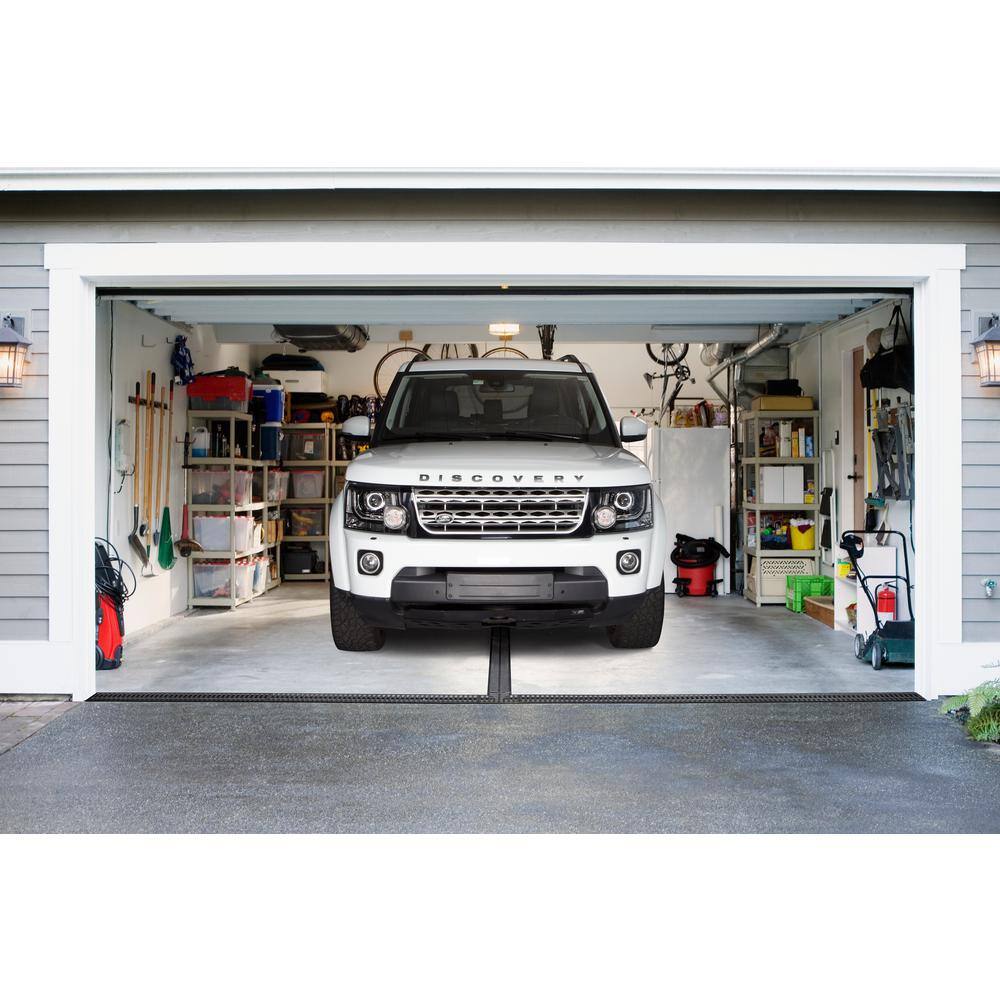

- Supports domestic passenger vehicles (with appropriate installation in concrete)

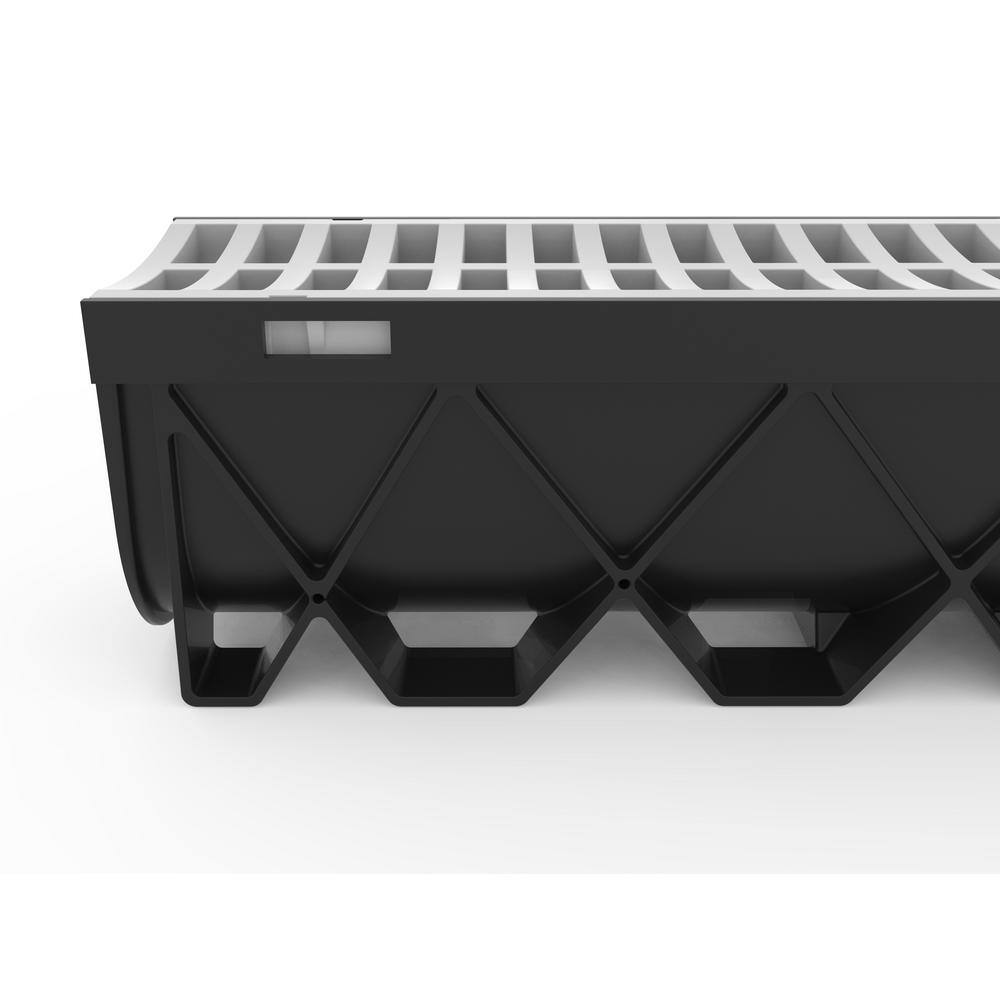

- Cross braced ribs are designed in the body for strength and rigidity
- Built in bottom outlet accommodates 4 in. sewer drain pipe, can be cut or drilled out
- Concave plastic grey grate
- Anti-floatation feet to prevent floating when encased in fill material
- Cross braced ribs are designed into the body for strength and rigidity

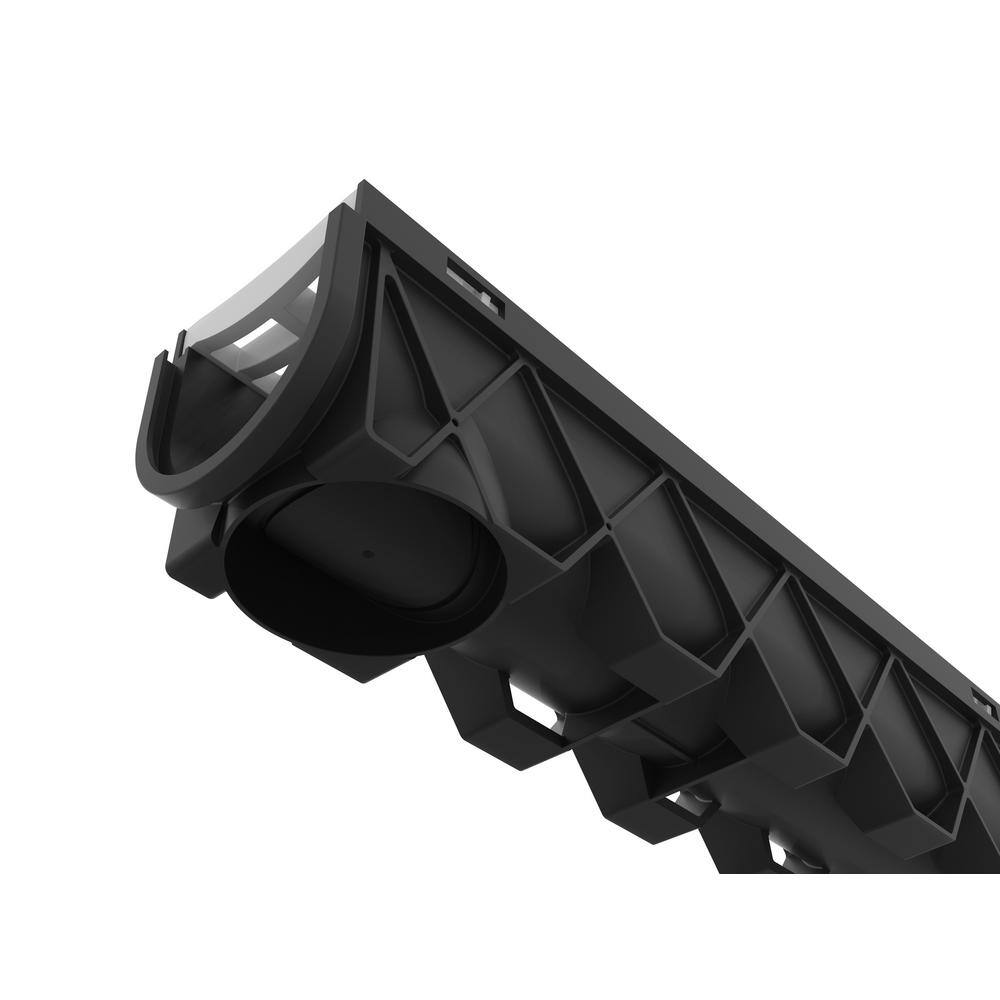

- End outlet accommodates 4 in. PVC sewer pipe (ABS to PVC transition glue required) or 4 in. corrugated pipe and/or Sch. 40 pipe with adaptor
- Grates clip in and out, no screws required

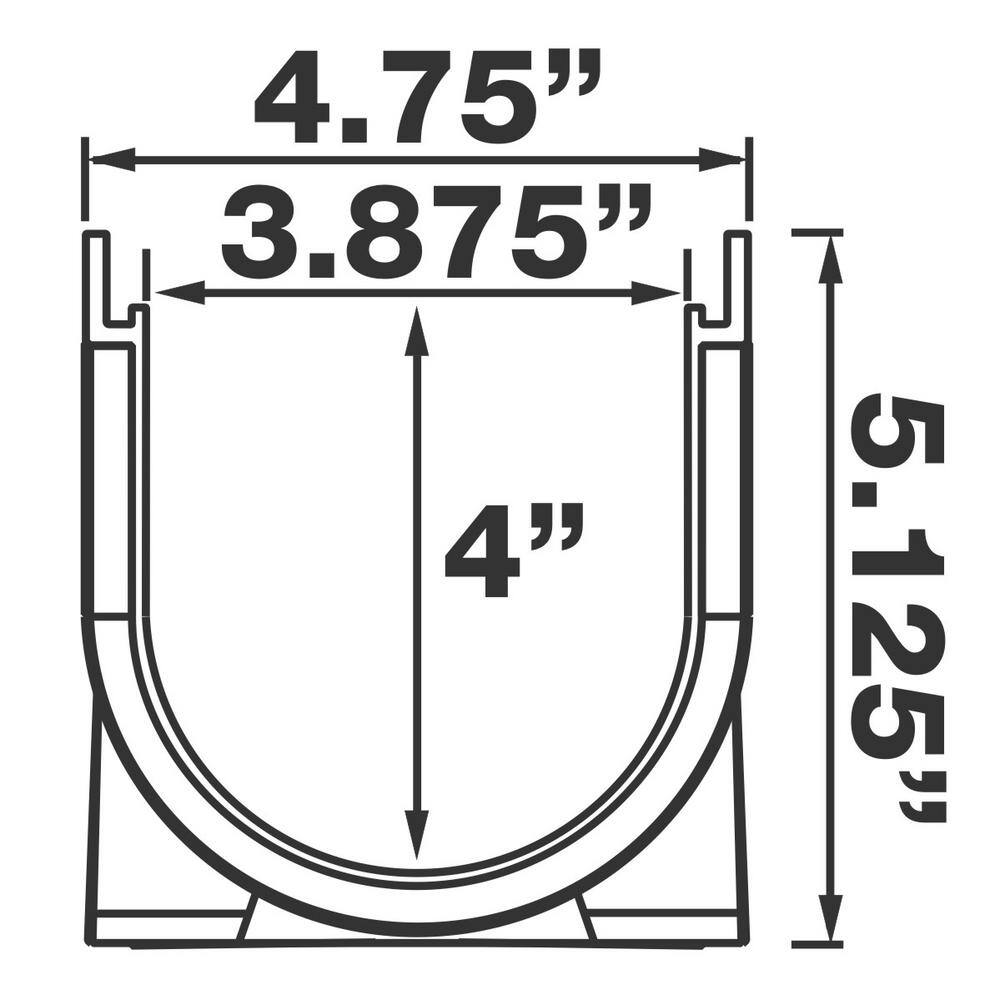

Dimensions
| Max. Compatible Pipe Size (In.) | 4″ | Min. Compatible Pipe Size (In.) | 4″ |
|---|---|---|---|
| Product Depth (in.) | 5 in | Product Length (in.) | 40 in |
| Product Width (in.) | 4.75 in |
Details
| Color Family | Gray | Color/Finish | Grey |
|---|---|---|---|
| Compatible Area of Use | Driveway, Neighbor Runoff, Patio, Pool Deck, Walkways | Material | Polypropylene |
| Maximum Working Temperature (F) | 125 | Minimum working temperature (F) | 1 |
| Pack Size | 1 | Package Quantity | 1 |
| Pipe or Fitting Product Type | Accessory | Product Weight (lb.) | 4 lb |
