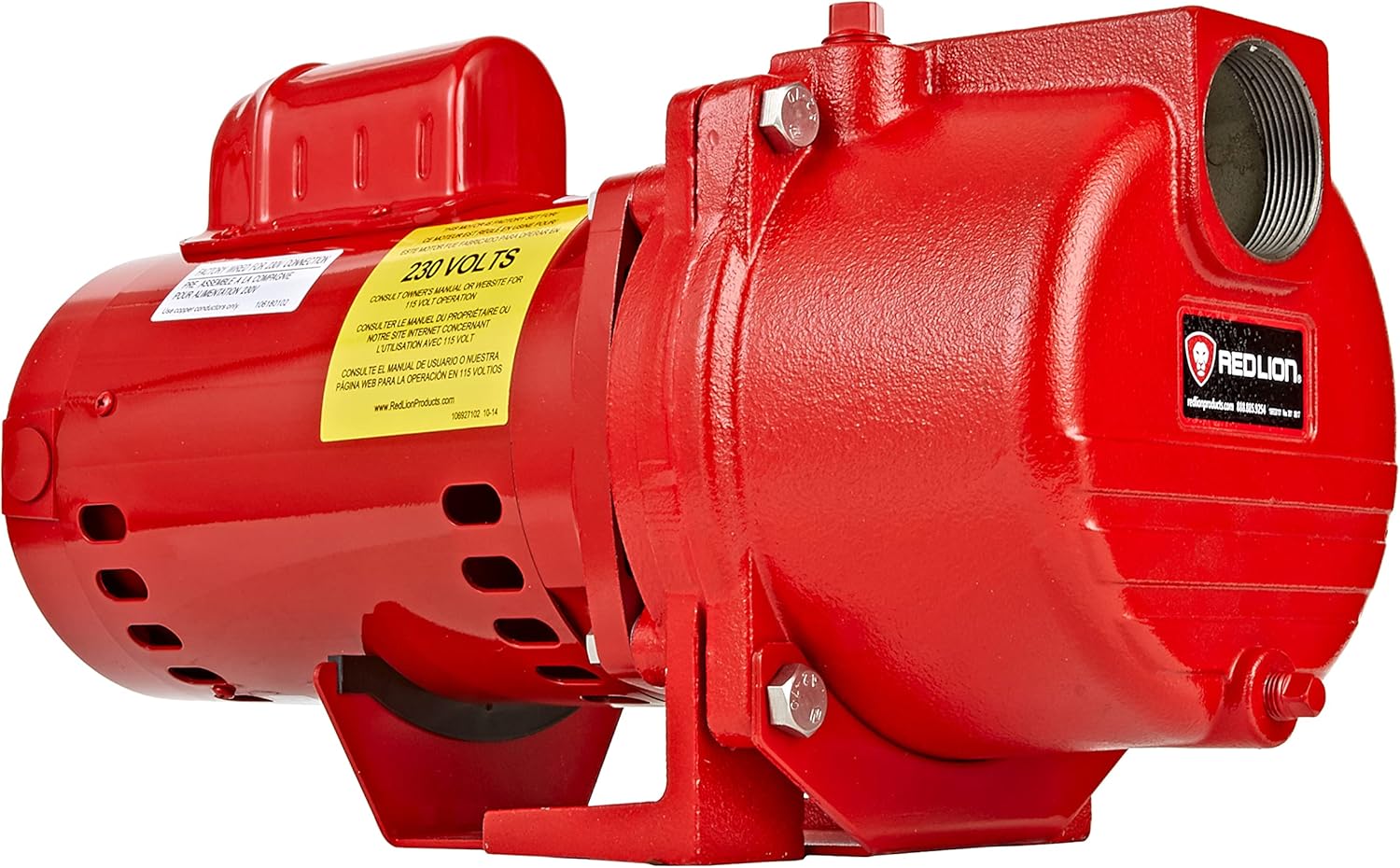

Red Lion RL-SPRK150 115/230 Volt, 1.5 HP, 71 GPM Cast Iron Sprinkler/Irrigation Pump with Thermoplastic Impeller, Red, 97101501

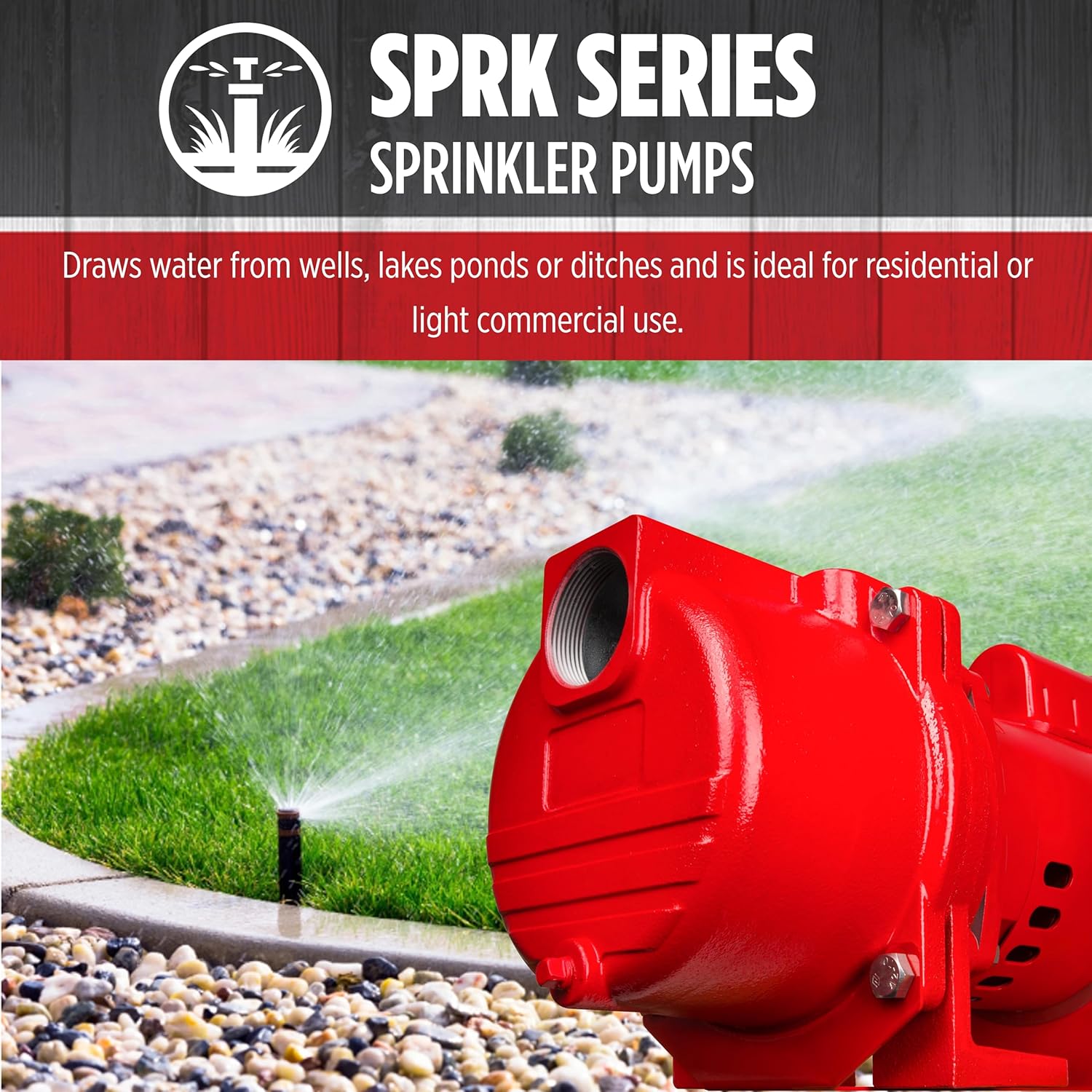

The Red Lion RL-SPRK150 115/230 Volt, 1.5 HP sprinkler irrigation pump is idea for both residential and commercial lawn and turn sprinkling systems. This pump features a rugged cast iron casing, high efficiency thermoplastic impeller and diffuser and is to easy to prime to 25-ft – no additional priming is required after the initial fill. This pump comes factory set for 230 Volts but can be easily switched to 115 Volts. Instructions are found in the manual. Pump voltage must be set to match source voltage or it will not perform to the specifications.

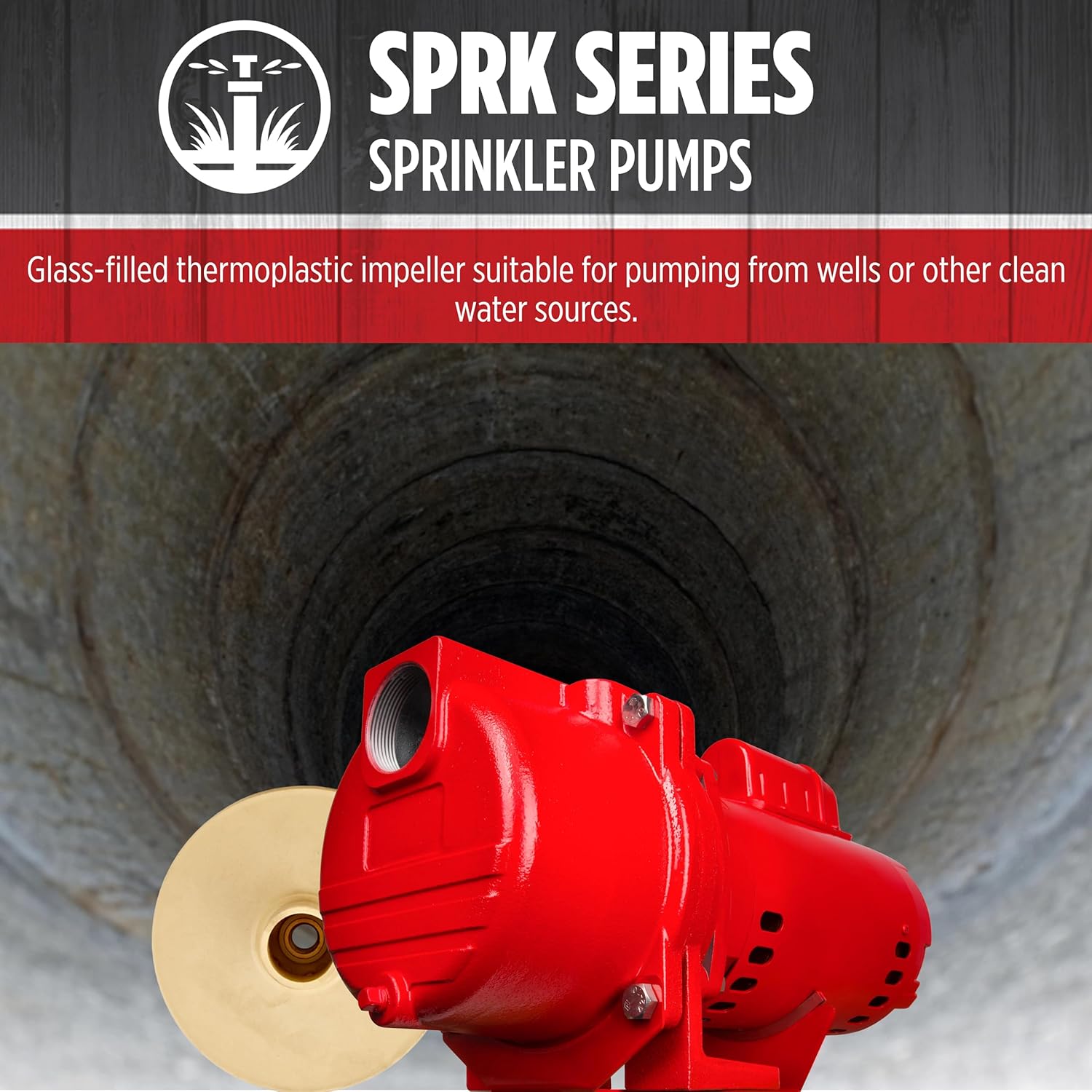

- BUILT TO LAST: Rugged cast iron pump housing and glass-filled thermoplastic impeller for well water and lake water

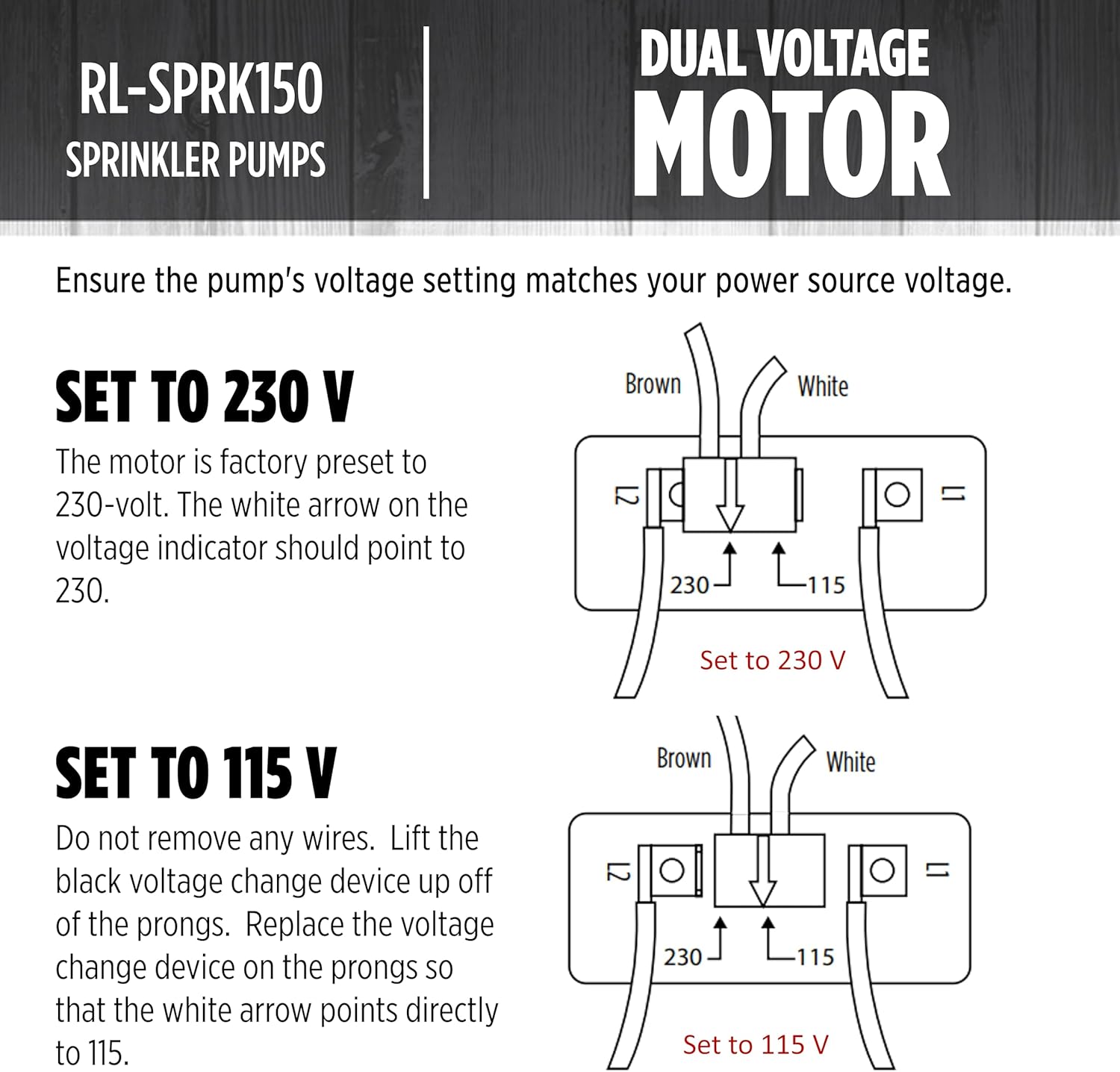

- DUAL VOLTAGE MOTOR: 115/230 Volts; pump is factory set at 230 Volts but can be easily switched to 115 Volts; always match the pump’s voltage to the source voltage

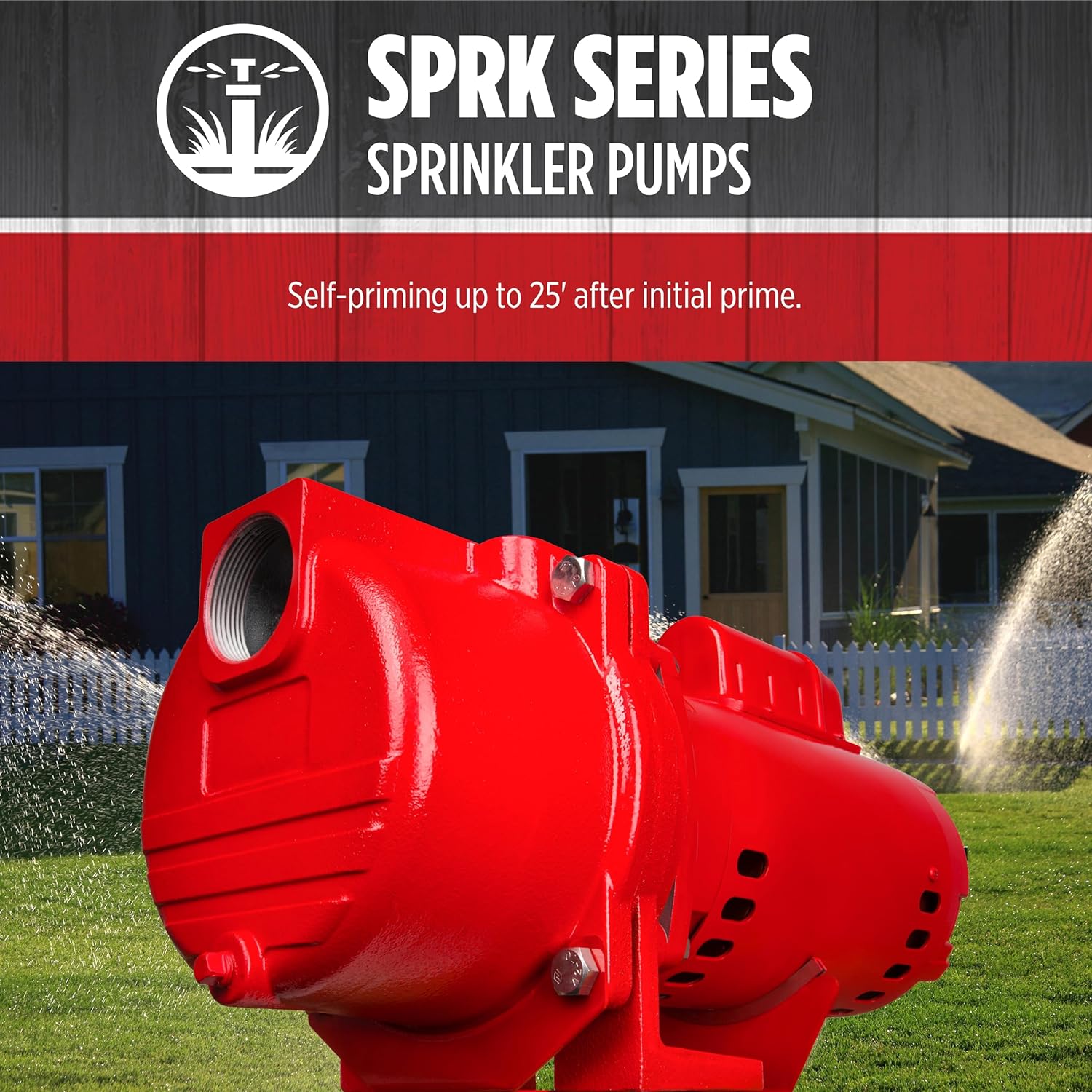

- ONE-TIME PRIMING: No additional priming is required after initial fill; follow the priming instructions in the owner’s manual

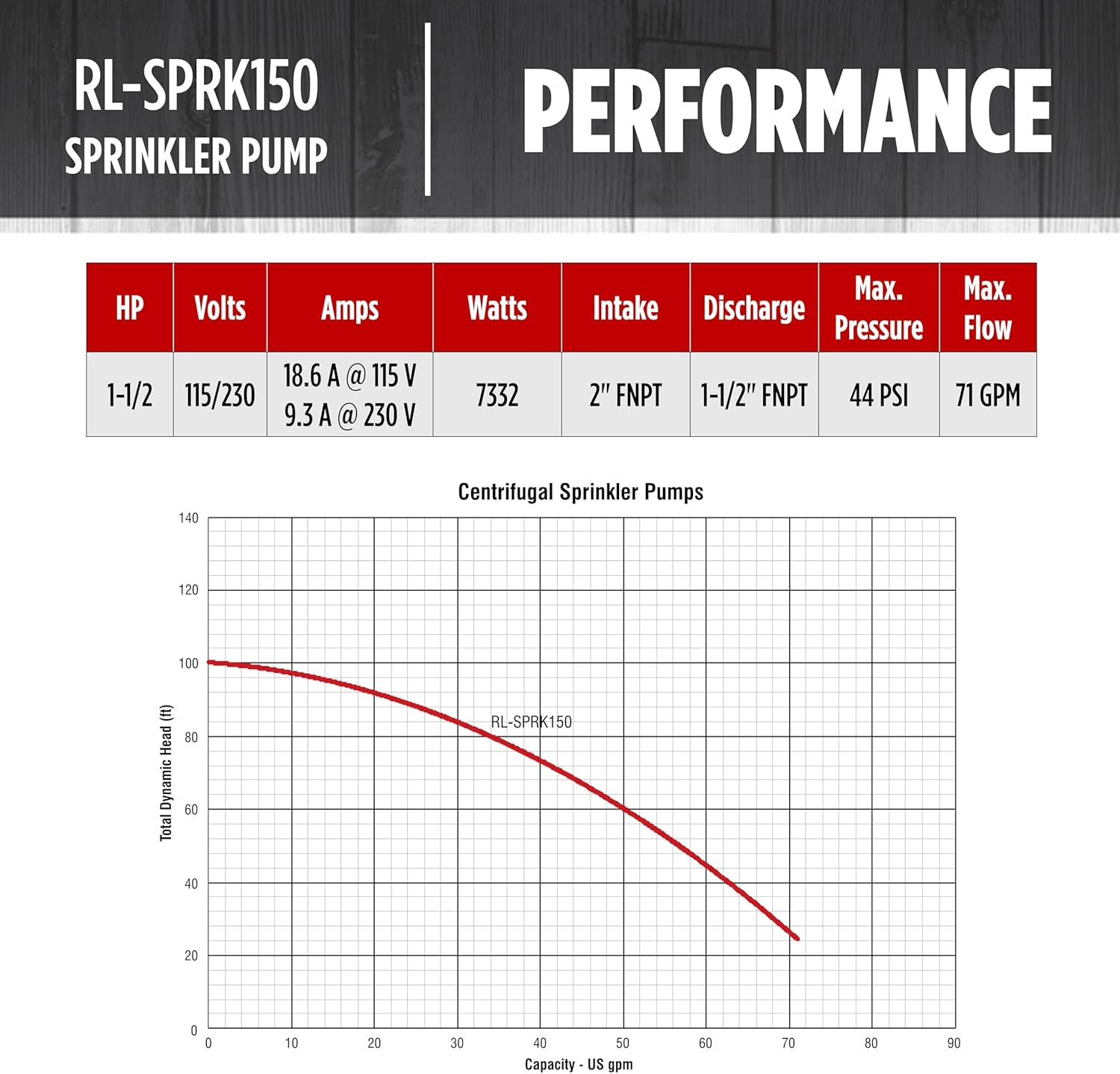

- UP TO 71 GPM at 10 PSI: 44 GPM at 30 PSI – can handle up to 14 sprinkler heads with 1/2-inch fittings or 7 sprinkler heads with 3/4-inch fittings in each zone

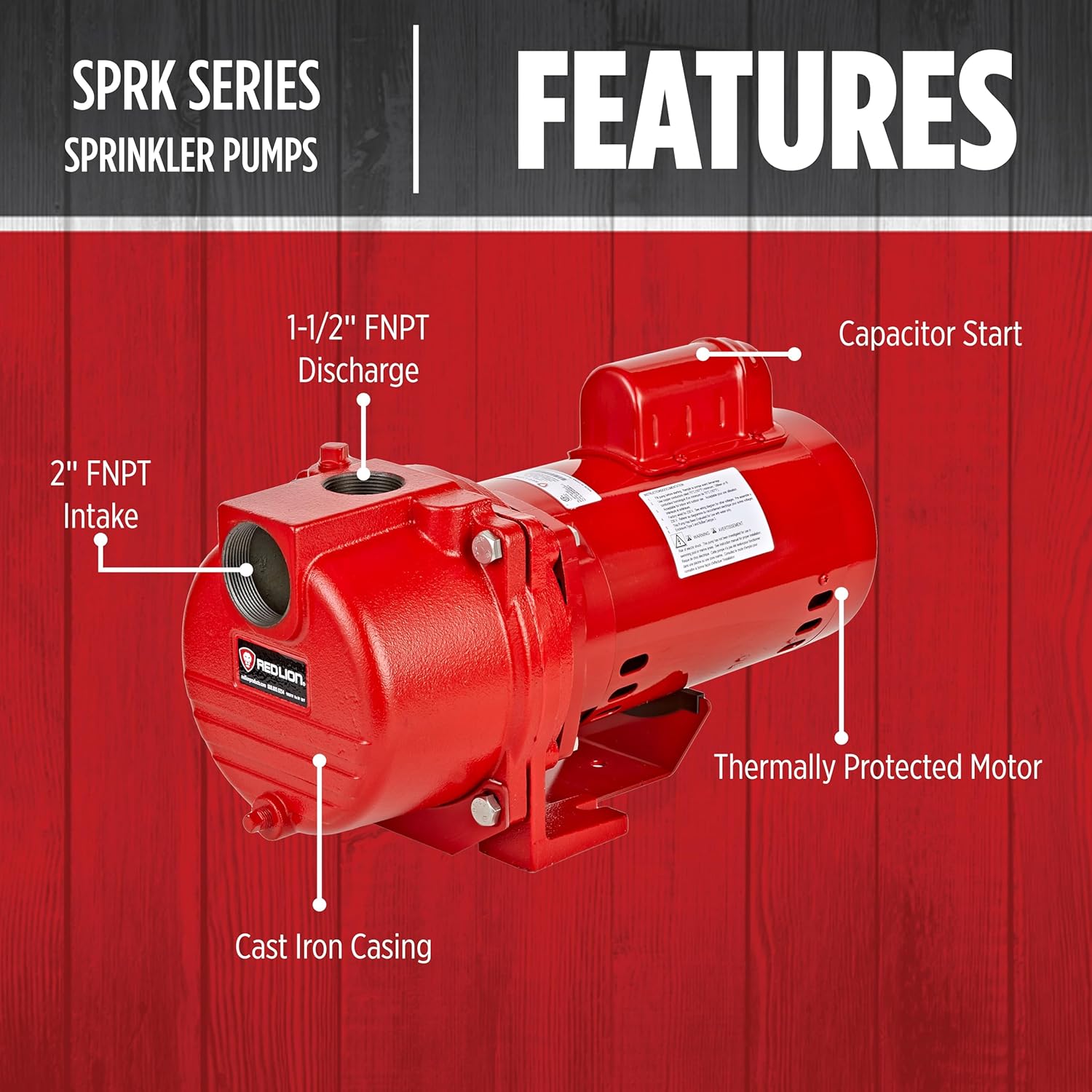

- SPECIFICATIONS: 1.5 HP, 115/230 Volts, 2-inch Female NPT threaded intake; 1.5-inch Female NPT threaded discharge, Max pressure 44 PSI
Product information
Technical Details
| Brand | Red Lion |
|---|---|
| Color | Red |
| Material | Cast Iron, Thermoplastic |
| Style | 1.5 HP, Thermoplastic Impeller, 115/230 Volt |

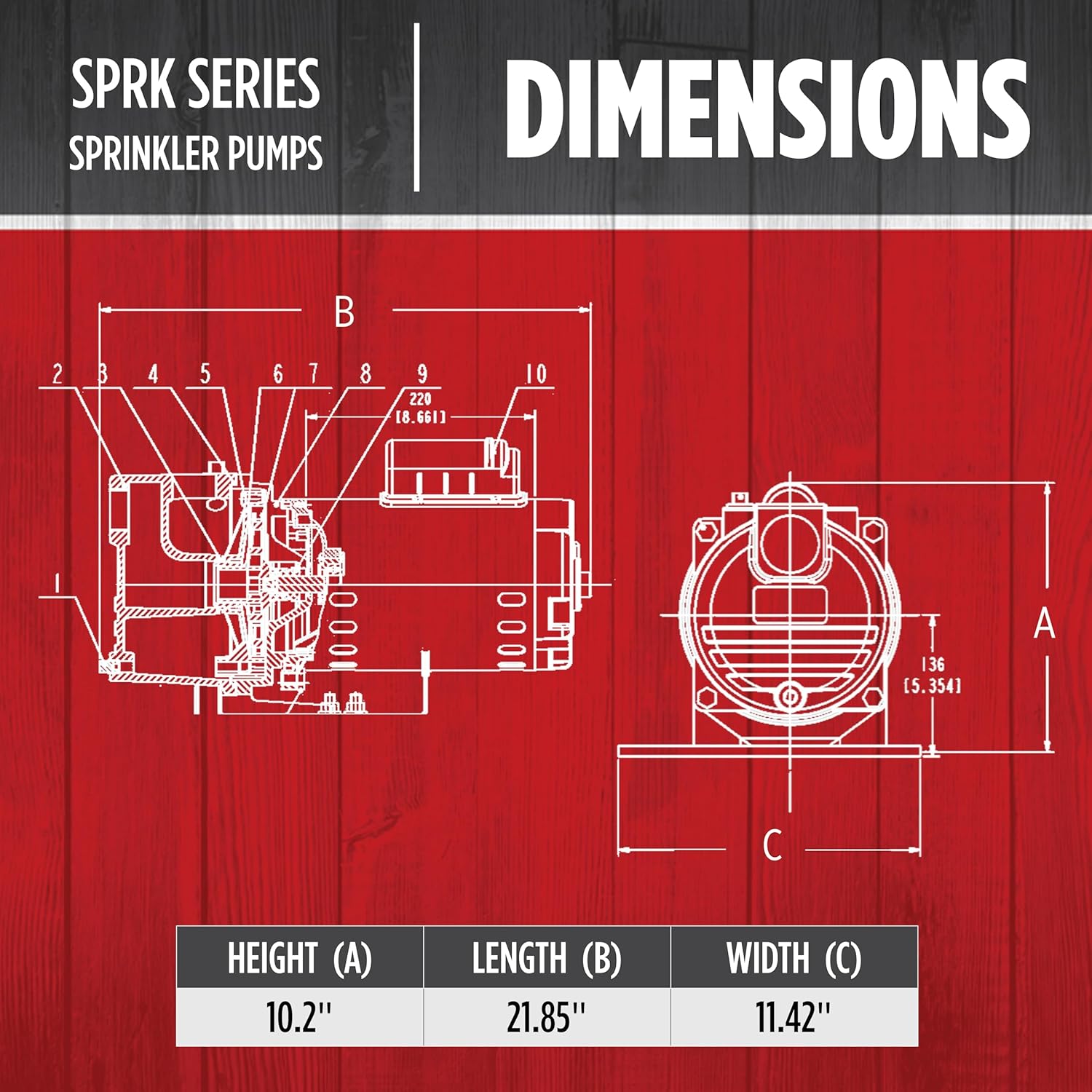

| Product Dimensions | 21.85″L x 11.42″W x 10.2″H |
| Power Source | Corded Electric |
| Item Weight | 63 Pounds |
| Maximum Flow Rate | 71 Gallons Per Minute |
| Maximum Lifting Height | 25 Feet |
| Voltage | 230 Volts |
| Global Trade Identification Number | 00010121001404 |
| Manufacturer | Franklin Electric Canada, Inc. |
| UPC | 010121001404 |
| Specific Uses For Product | Amateur, Professional |
| Part Number | 97101501 |
| Item Weight | 63 pounds |
| Country of Origin | China |
| Item model number | 97101501 |
| Is Discontinued By Manufacturer | No |
| Size | L |
| Pattern | Sprinkler Pump |
| Wattage | 7332 watts |
| Horsepower | 1.5 |
| Amperage Capacity | 18.6 Amps |
| Item Package Quantity | 1 |
| Measurement System | Imperial |
| Included Components | Pump with thermoplastic impeller, Installation manual |
| Batteries Included? | No |
| Batteries Required? | No |
| Warranty Description | 2 year manufacturer |
