NDS 900BKIT 9 in. x 9 in. Plastic Square Drainage Catch Basin in Black, 2 Opening Kit

NDS 900BKIT 9 in. x 9 in. Plastic Square Drainage Catch Basin in Black, 2 Opening Kit

Does your lawn or downspout areas around your home flood from rain? Soggy lawns and murky puddles aren’t just eyesores. Water that can’t properly drain can seep into your foundation, destroy turf, and erode the soil. Here’s how to fix it. Drain water where it doesn’t need to be with a catch basin-on lawns, landscaped areas, under downspouts, patios, walkways-even where runoff from neighboring property can pool up in your yard. Use the 9×9 catch basin as part of a complete drainage system to collect and direct heavy flows of water to drain pipe and take it away to a discharge point downstream such as a pop-up emitter or to percolate into the ground with dry well or infiltration trench. Kit includes a two-opening catch basin drain; 2 outlet adapters to connect to 3 in. & 4 in. drain pipes; 1 plug, and 9 in. catch basin grate to block debris from clogging your drain pipes. Basin made of polypropylene, grate made of polyethylene, treated with UV inhibitors. Grate has 39.5 sq. in. open surface area, 121 GPM flow rate. The stormwater catch basin with grate is rated for NDS Class B loads when properly installed and ADA compliant. Built-in sump is easy to access and clean. Find the right catch basin product for your project with the NDS Home Drainage Center tool at ndspro.com/home-drainage. NDS, founded in 1972, is the preferred choice of professionals and the leader in stormwater management solutions with proven products, tools, and support to help you get the job done right.

• Collect stormwater runoff and standing water on your property and direct to drain pipes before it causes costly property damage
• Manage moderate flows of water; ideal for lawns, landscaped areas, under downspouts, patios, walkways

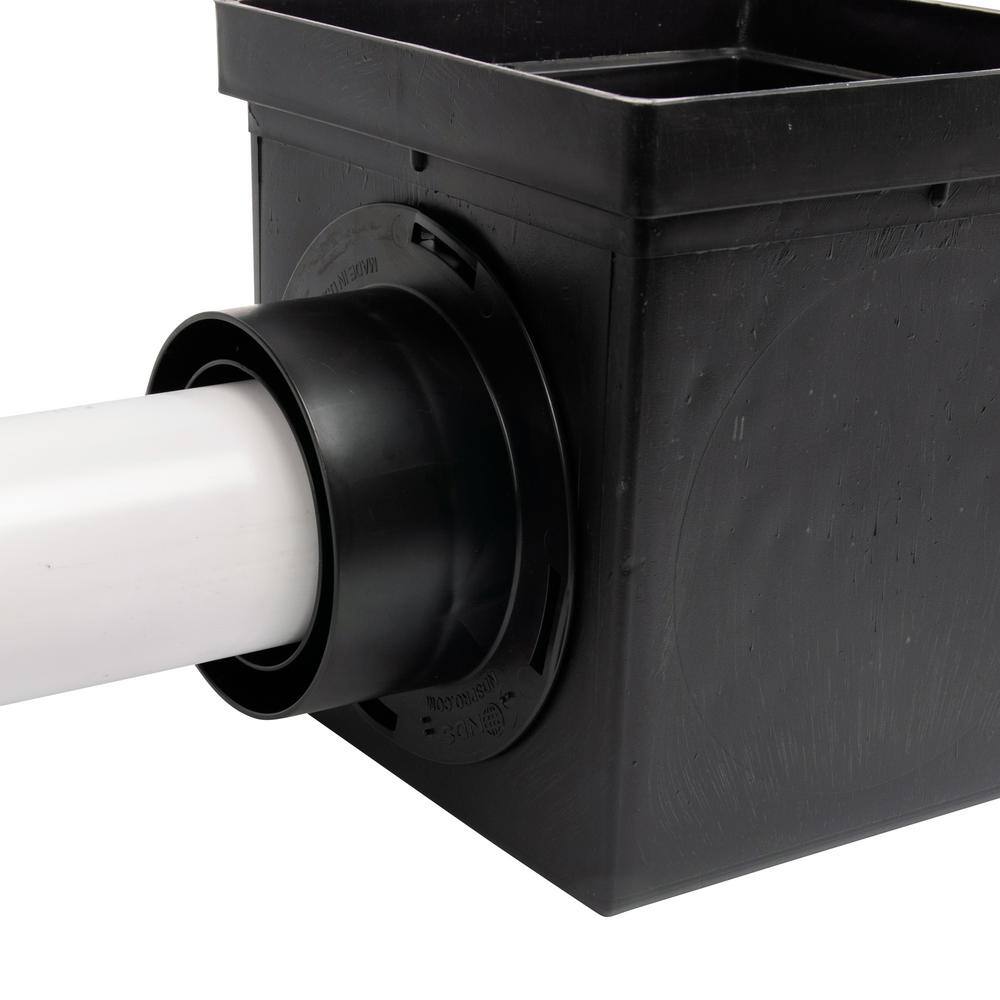

• Connect to 3 in. & 4 in. Sewer and Drain, Single-Wall Corrugated & Triple-Wall Pipes & 4 in. Sch. 40 Pipe using included outlet adapters; additional outlet adapters sold separately for connections to 6 in. and 8 in. Pipes
• 39.5 sq. in. open surface area for 9 in. square plastic grate . 121 GPM flow rate for 9 in. square grate
• Rated for NDS Class B loads (up to 175 psi) when properly installed with grate-recommended for medium-duty pneumatic tire traffic, autos, and light trucks at speeds less than 20 mph; ADA compliant

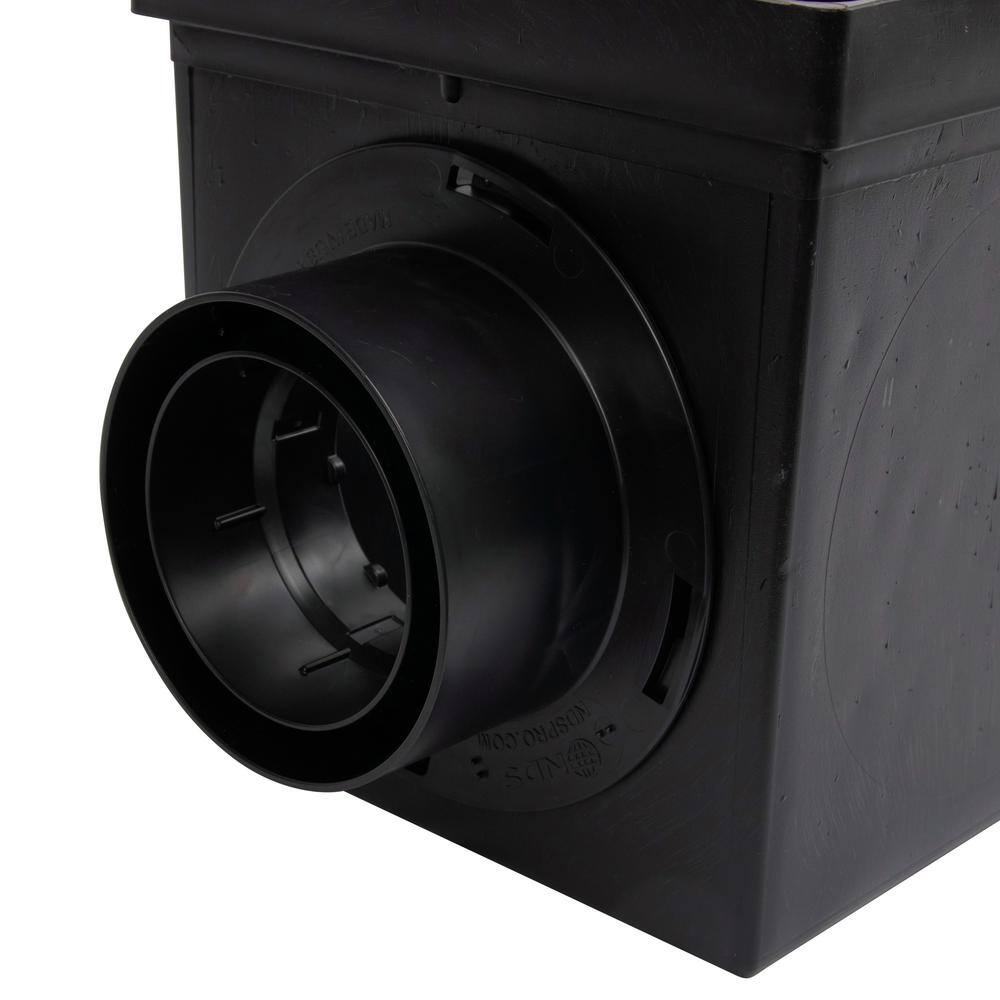

• Keyed openings on basin lock outlet adapters in place
• Soil-tight outlet adapters connect to pipe for a secure fit-no tape or glue required
• Included plug fits inside outlet adapter and seals opening to direct flow of water. Catch basin grate covers the catch basin to stop debris from clogging drain pipes

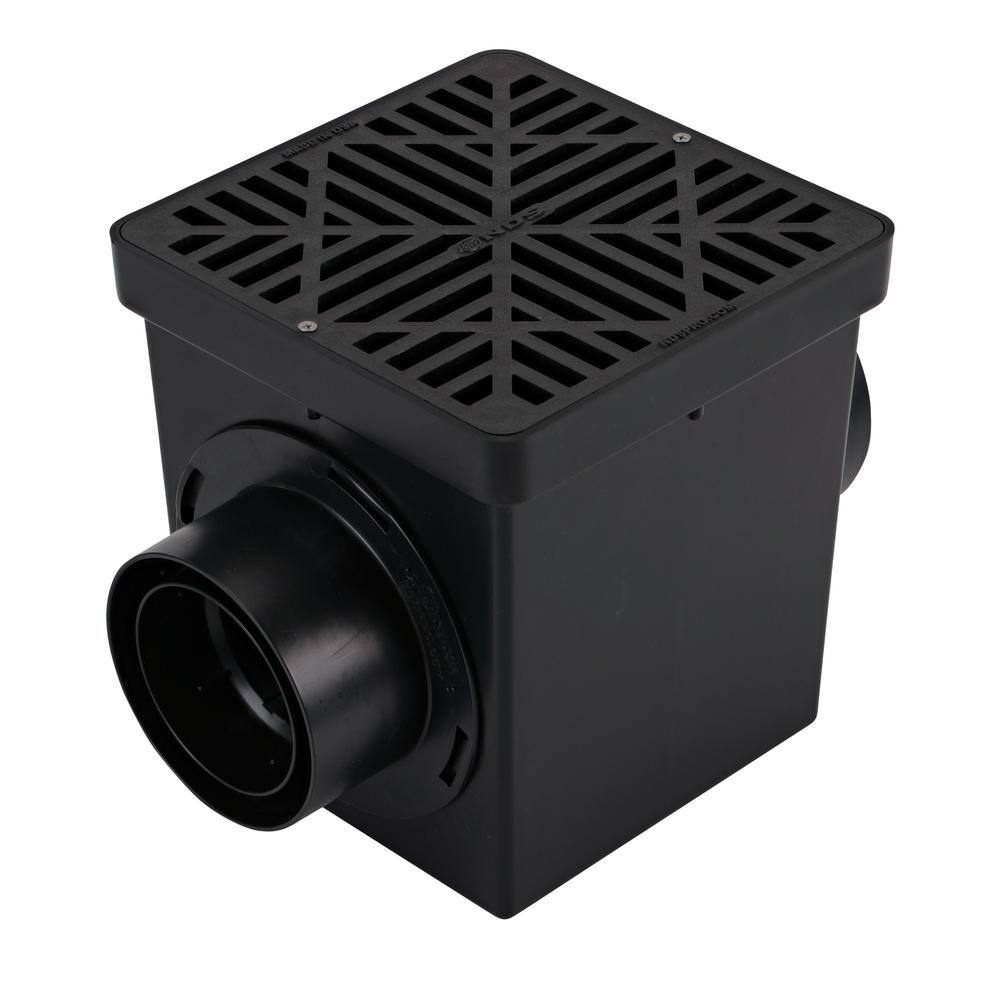

• Kit includes 2-Opening 9 in. Catch Basin Drain, 2 Outlet Adapters, 1 Plug, 9 in. Square Plastic Grate
• The catch basin and grate, as part of a complete drainage system, connect to drain pipes to capture surface water and direct it away for proper release downstream
• Lightweight and easy to install
• Built-in sump area collects particles before they can enter the pipeline; easy to access for cleaning
• Catch basin made of polypropylene (PP) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking. Grate made of high-density polyethylene (HDPE) using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking
• Use with a Pop-Up Drainage Emitter to discharge collected water at a point of release downstream
• Use with a Flo-Well Dry Well System and EZ Drain Gravel-Free French Drain System to detain excess water and slowly release it into the ground
• Onsite stormwater management protects the watershed downstream, and limits excess runoff which can lead to negative impacts such as erosion, pollution, and flooding
• NDS, founded in 1972, is the preferred choice of professionals and the leader in stormwater management with proven products, tools, and support to help you get the job done right

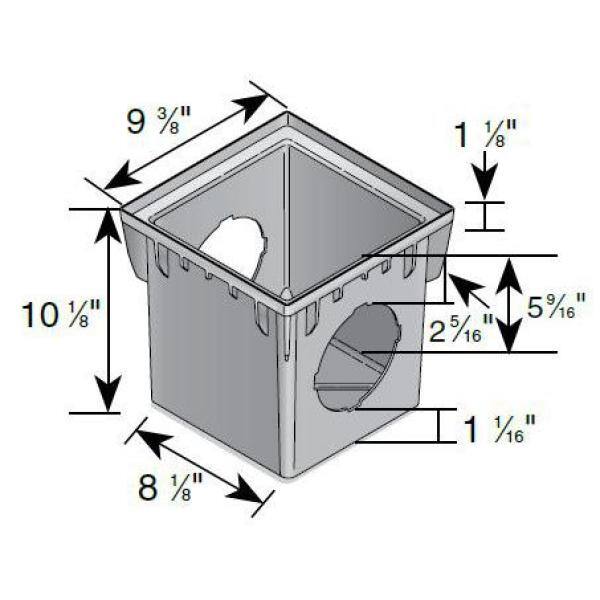

Dimensions

Details

Additional Resources
