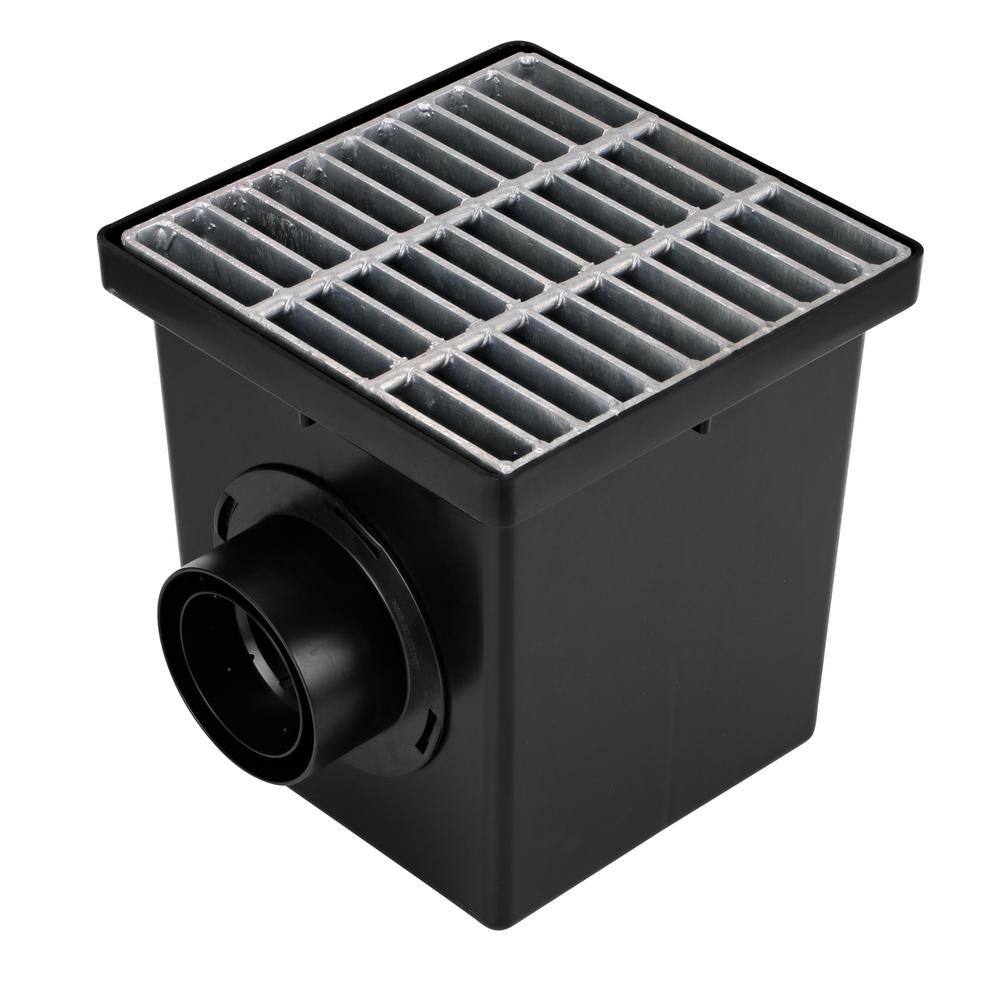

NDS 1200MTLKITRTL 12 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin Steel Grate 2-Outlet Adapters 1-Outlet Plug

NDS 1200MTLKITRTL 12 in. Square Catch Basin Drain Kit with 2-Opening Catch Basin Steel Grate 2-Outlet Adapters 1-Outlet Plug

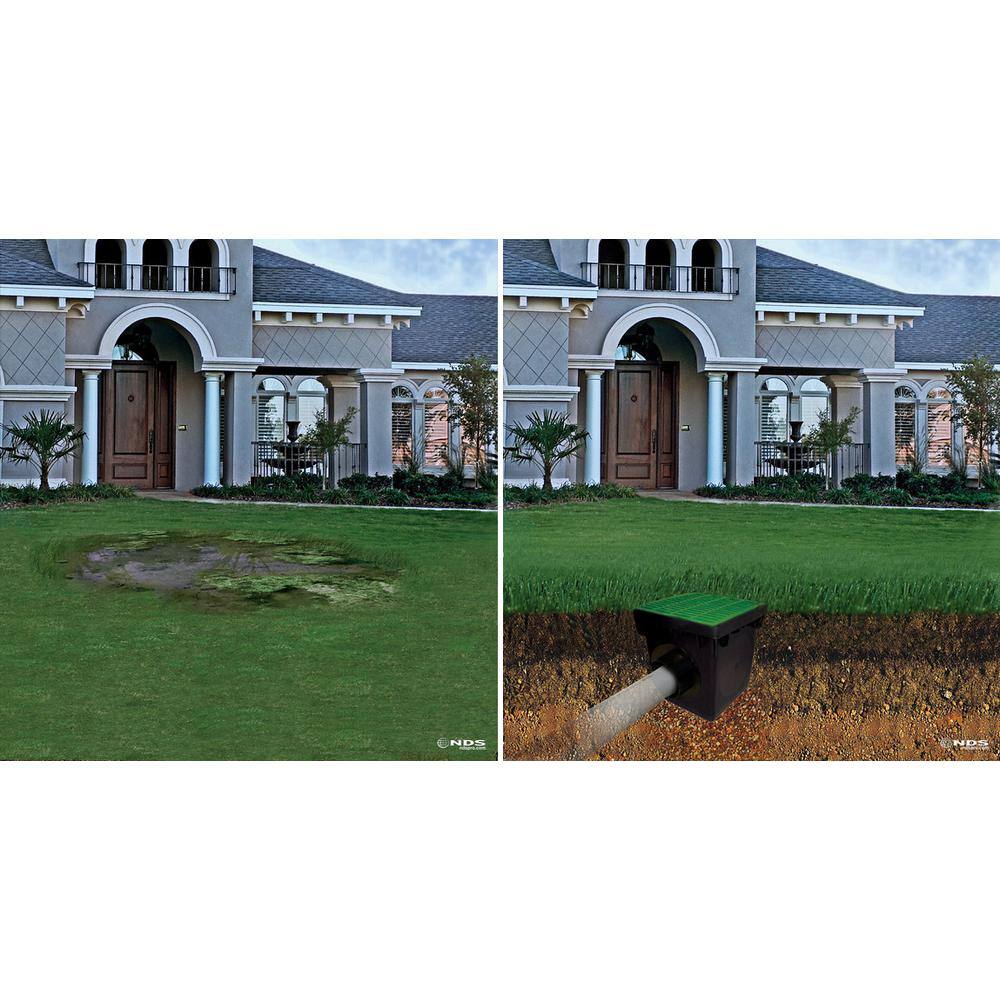

When your property is prone to stormwater flooding, you’ll need to drain the excess water before it creates slip hazards and costly property damage. The 12 in. Square Catch Basin Kit with galvanized steel grate is an easy home improvement project to install and captures heavy flows from driveways, parking lots and landscaped areas. The 12 in. Square Catch Basin Drain Kit has all the components you need to connect to drain pipe: a 12 in. catch basin with 2 openings, 2 outlet adapters which connect to 3 in. and 4 in. drain pipes, a galvanized steel grate and 1 plug. As part of a complete drainage system, the catch basin directs water to connected drain pipes which carry the water to a discharge point downstream such as a pop-up emitter or to percolate into the ground with a dry well or infiltration trench. The catch basin is made of polypropylene and the drain grate, also known as a drain cover, is made of galvanized steel.

• Collect stormwater runoff and standing water on your property and direct to drain pipes before it causes costly property damage
• Manage heavy flows of water from driveways, parking lots and landscaped areas
• Connect to 3 in. and 4 in. sewer and drain, single-wall corrugated and triple-wall pipes and 4 in. sch, 40 pipe using included outlet adapters

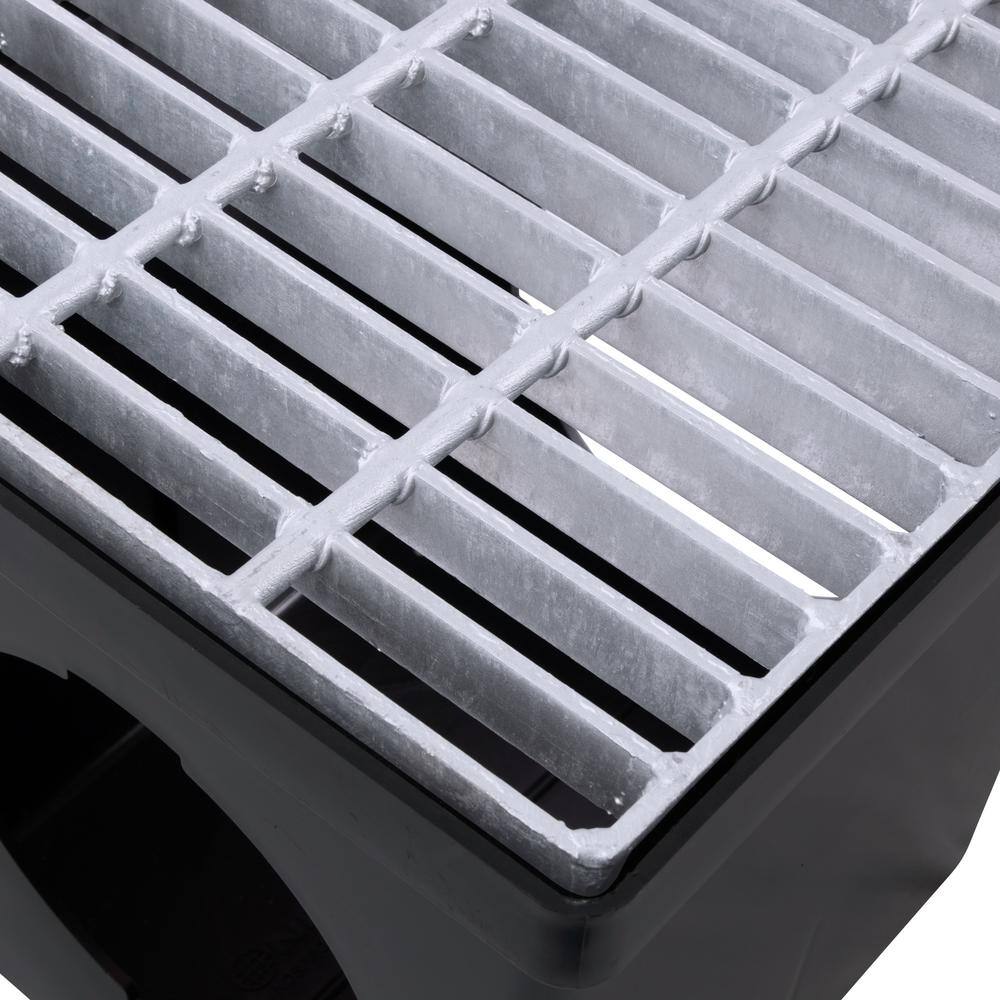

• 12 in. square grate has an open surface area of 348 GPM flow rate for 12 in. square galvanized steel grate
• Rated for NDS class B loads (up to 175 psi) when properly installed with grate-recommended for medium-duty pneumatic tire traffic, autos and light trucks at speeds less than 20 mph

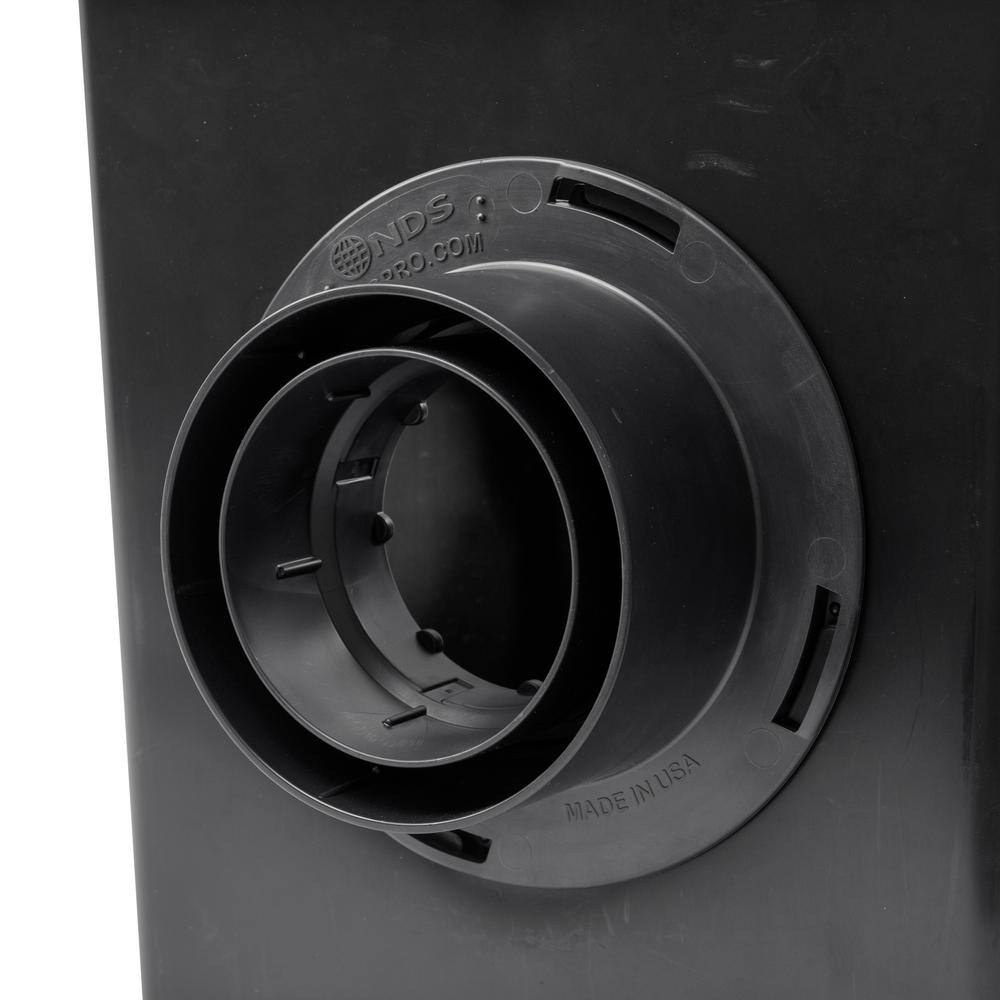

• Outlet adapters provide a secure, soil-tight fit to pipe-no tape or glue required
• Included plug fits inside outlet adapter and seals catch basin opening to direct flow of water

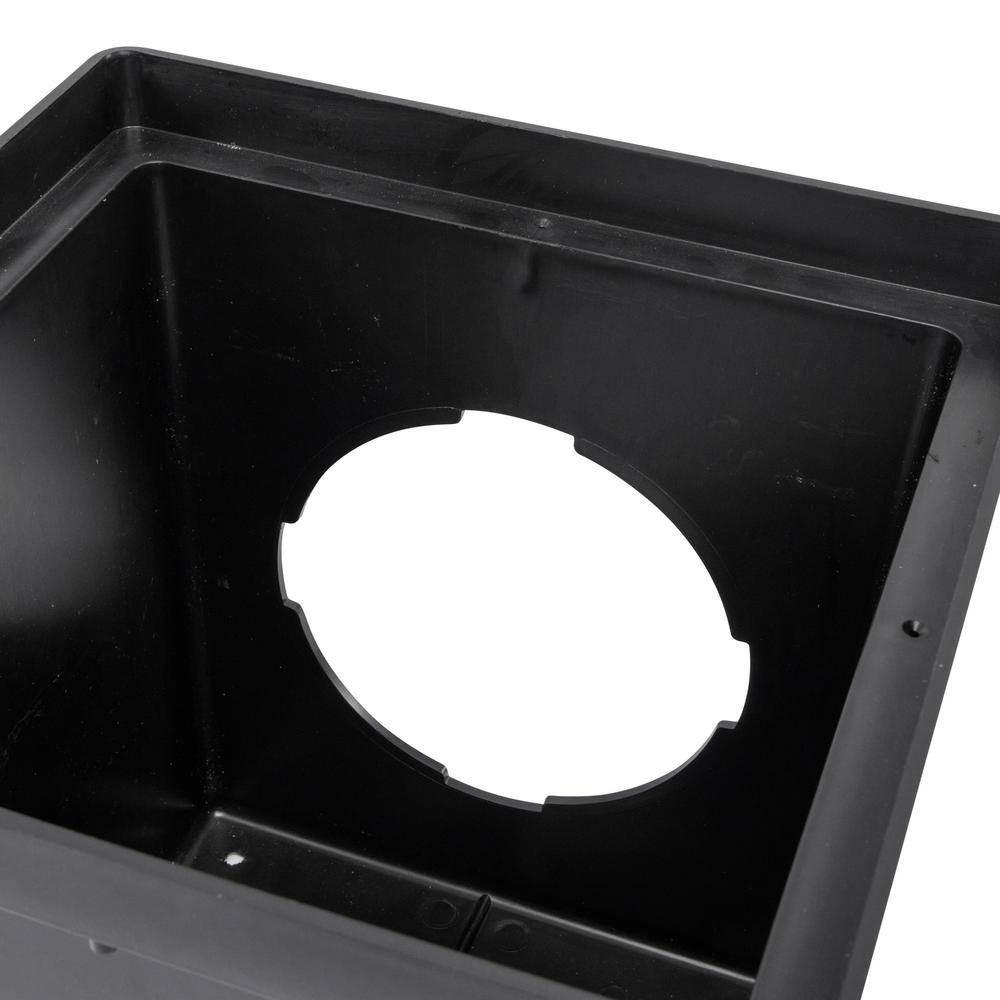

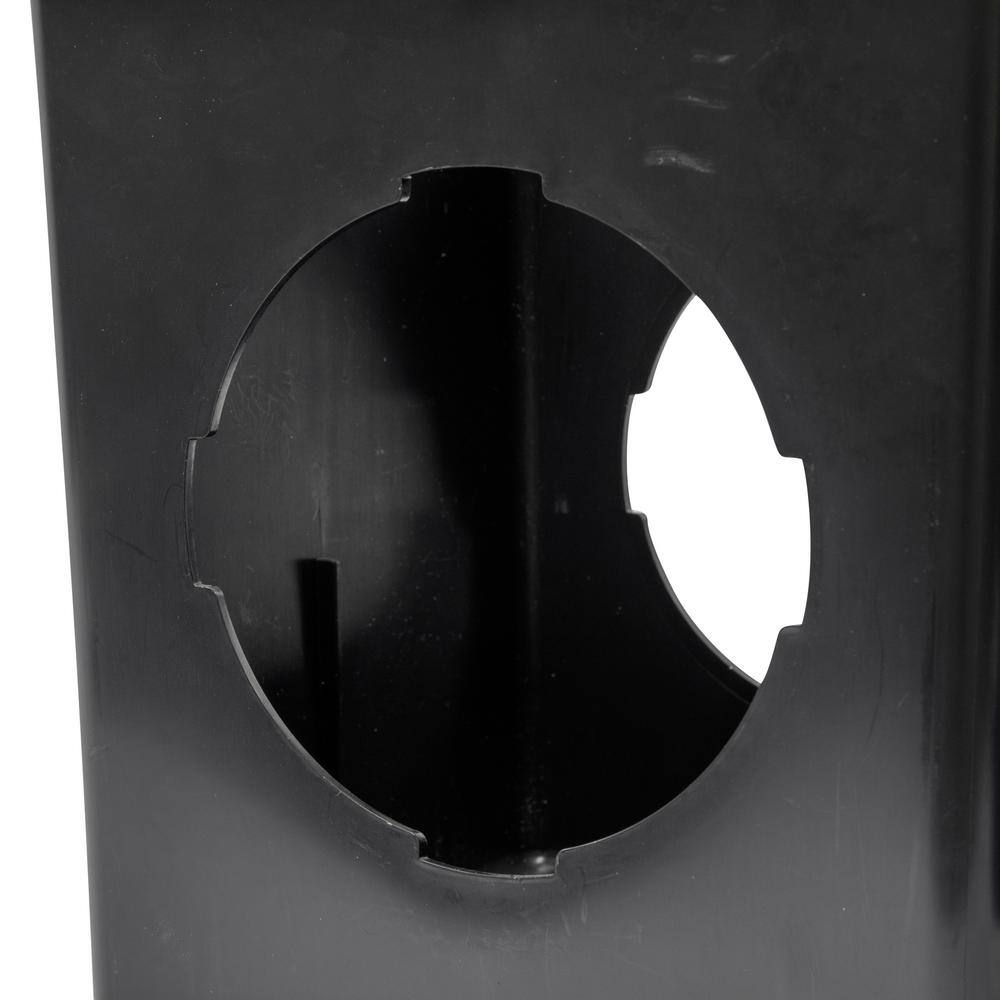

• Keyed openings on basin lock outlet adapters in place

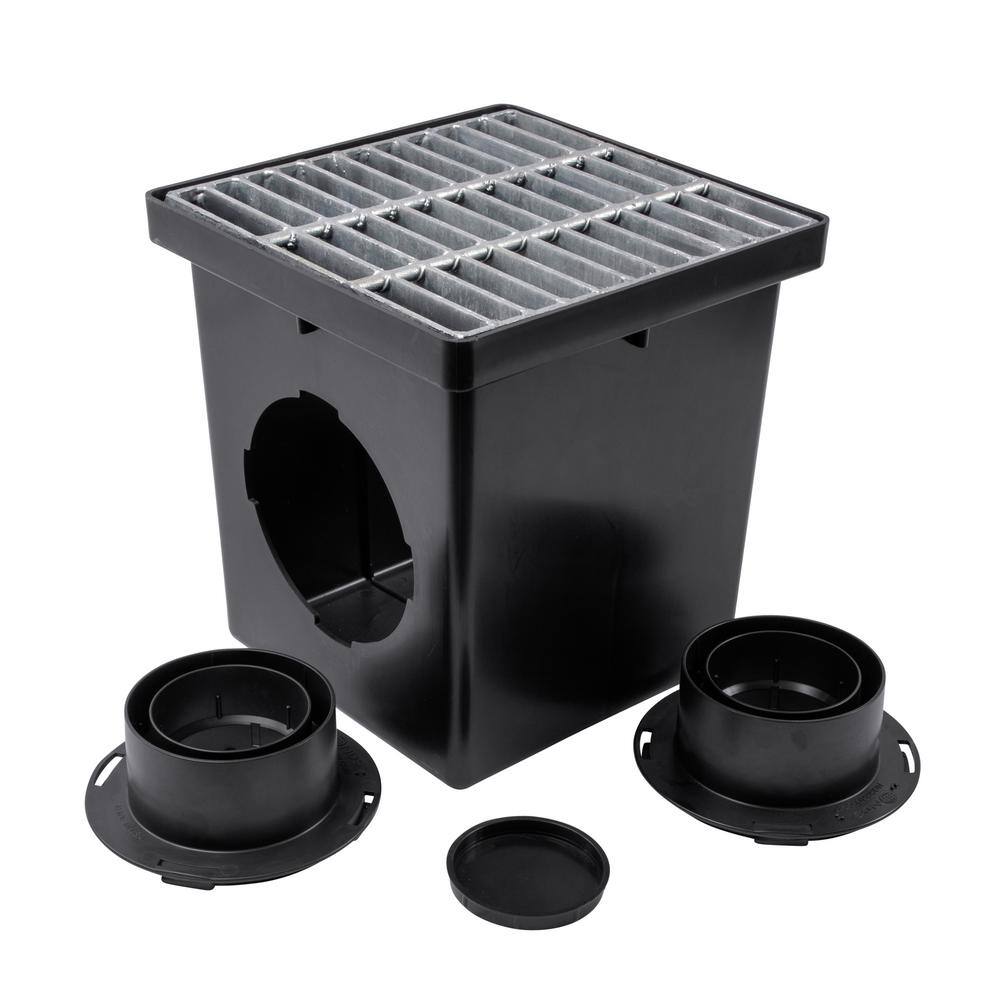

• Kit includes 2-opening 12 in. catch basin, 2 outlet adapters, 1 plug, galvanized steel drain

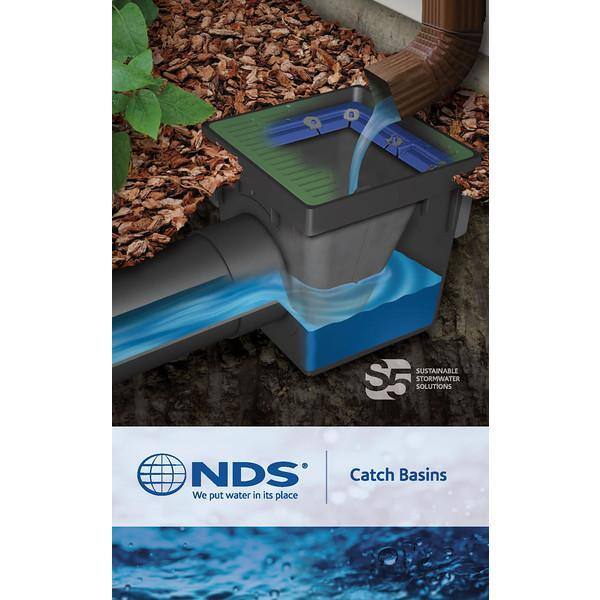

• Catch basin with grate, as part of a complete drainage system, connects to drain pipes to capture surface water and direct it away for proper release downstream
• Lightweight and easy to install

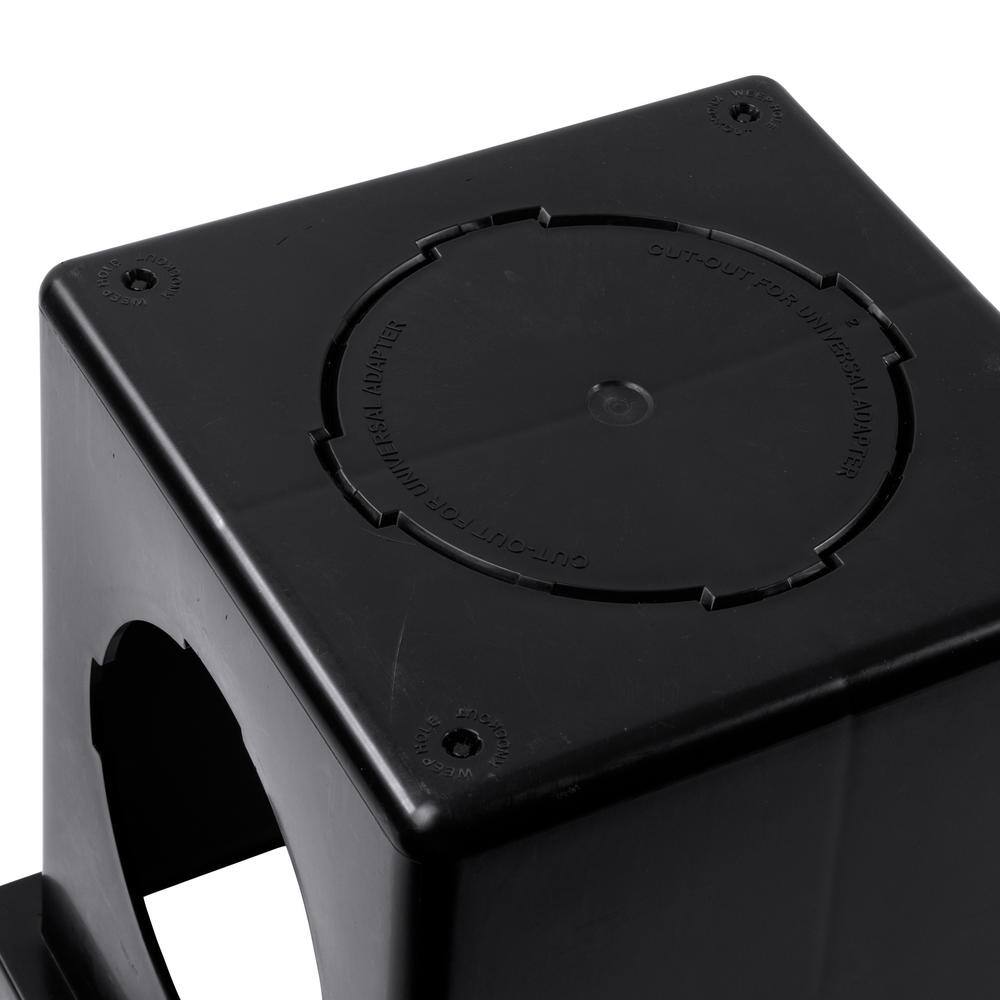

• Built-in sump area collects particles before they can enter the pipeline, easy to access for cleaning
• Catch basin made of polypropylene using a combination of virgin and recycled content treated with UV inhibitors to prevent fading and cracking
• Use with a pop-up drainage to discharge collected water at a point of release downstream
• Use with a well dry well system and EZ drain gravel-free French drain system to detain excess water and slowly release it into the ground
• Onsite stormwater management protects the watershed downstream and limits excess runoff which can lead to negative impacts such as erosion, pollution and flooding
• Preferred choice of professionals and the leader in stormwater management with proven products, tools and support to help you get the job done right
