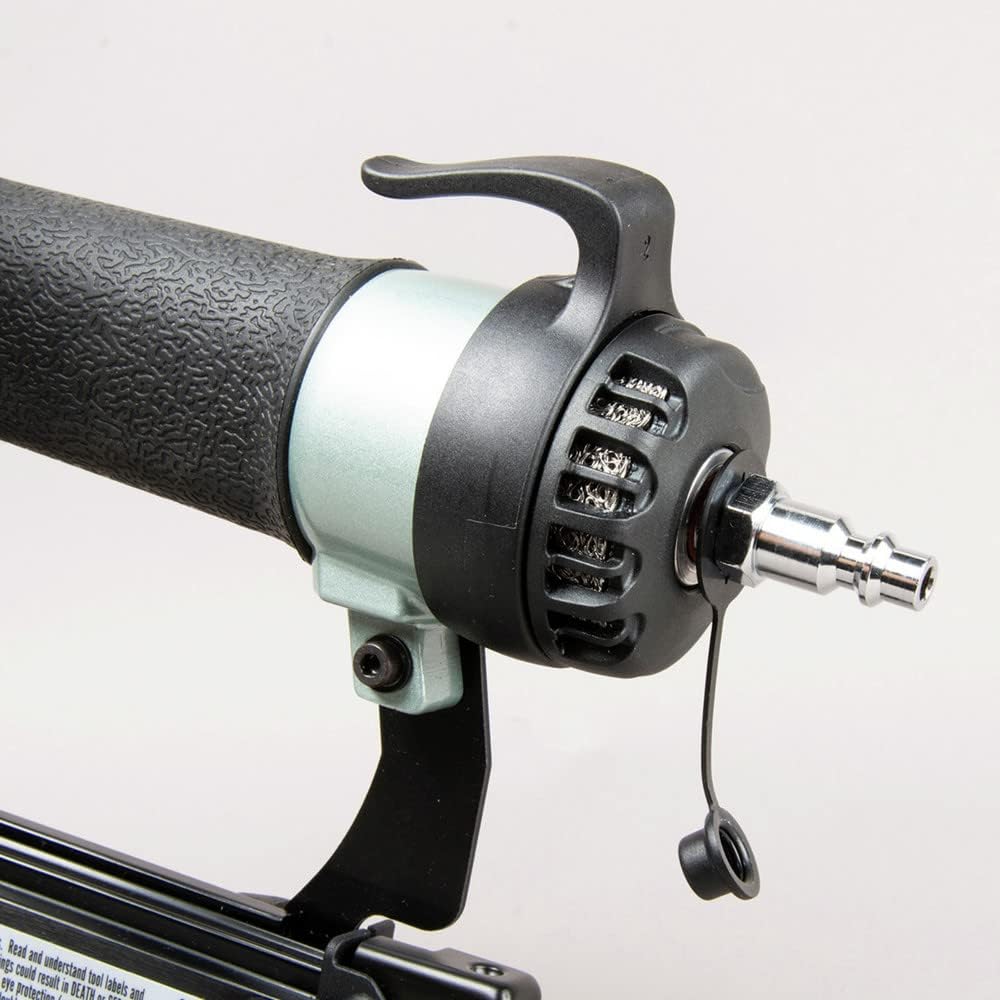

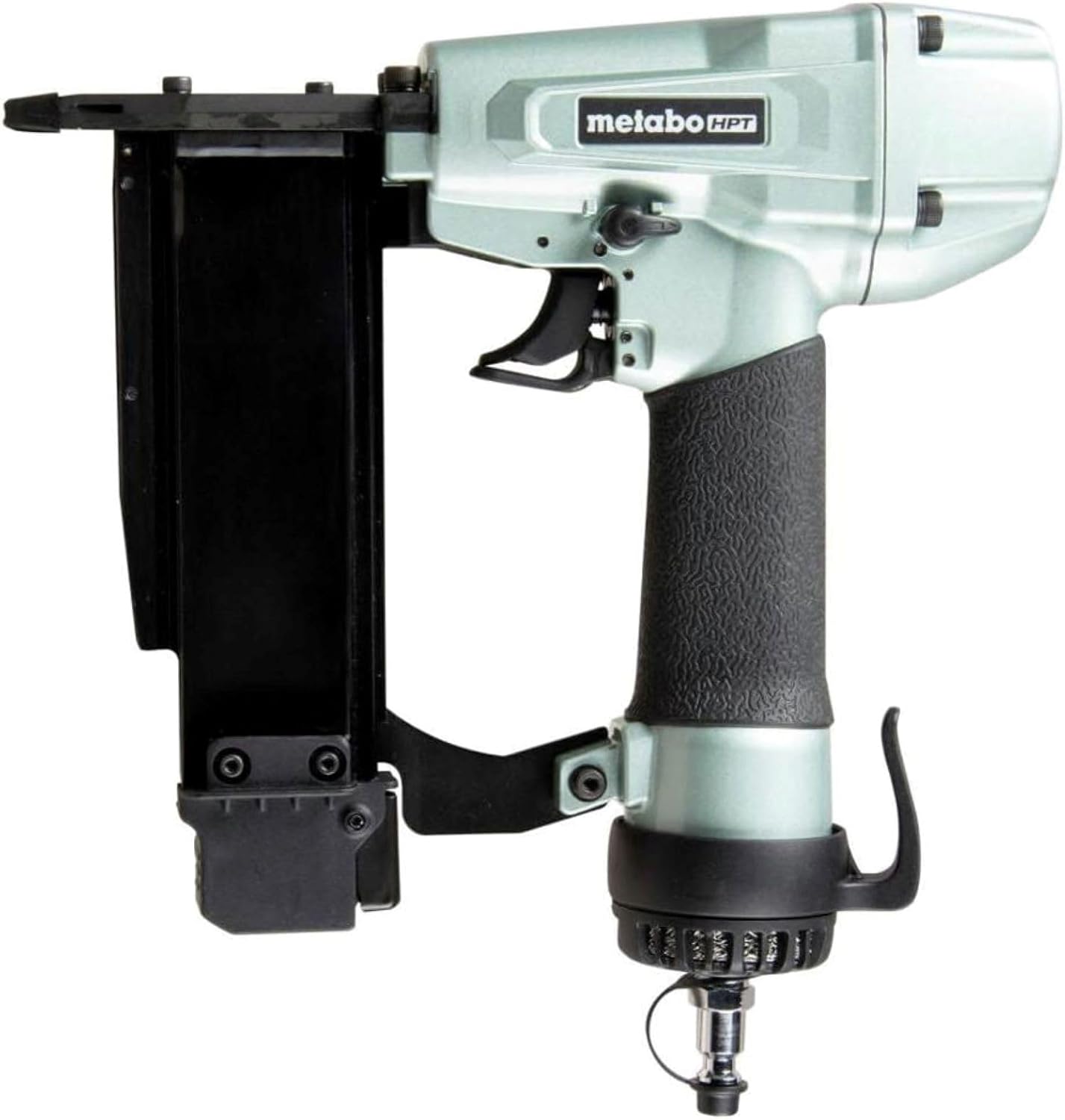

The 23-Gauge PRO Pin Nailer has been designed with the professional carpenter in mind. It can drive 23-Gauge pin nails ranging from 1/2″ to 2″ in length. The high-grade aluminum magazine not only provides exceptional durability but also prevents jams caused by fastener overlap. The 360 degree adjustable rear exhaust has a build-in silencer to reduce noise pollution and direct air exhaust away from the user or job site debris.The automatic dry-fire lockout protects your work piece by not allowing the tool to operate if there are six of less pins in the magazine. The 360 degree adjustable belt hook helps keep the tool by your side at all times. The 23-Gauge PRO Pin Nailer — for when only the best will do!

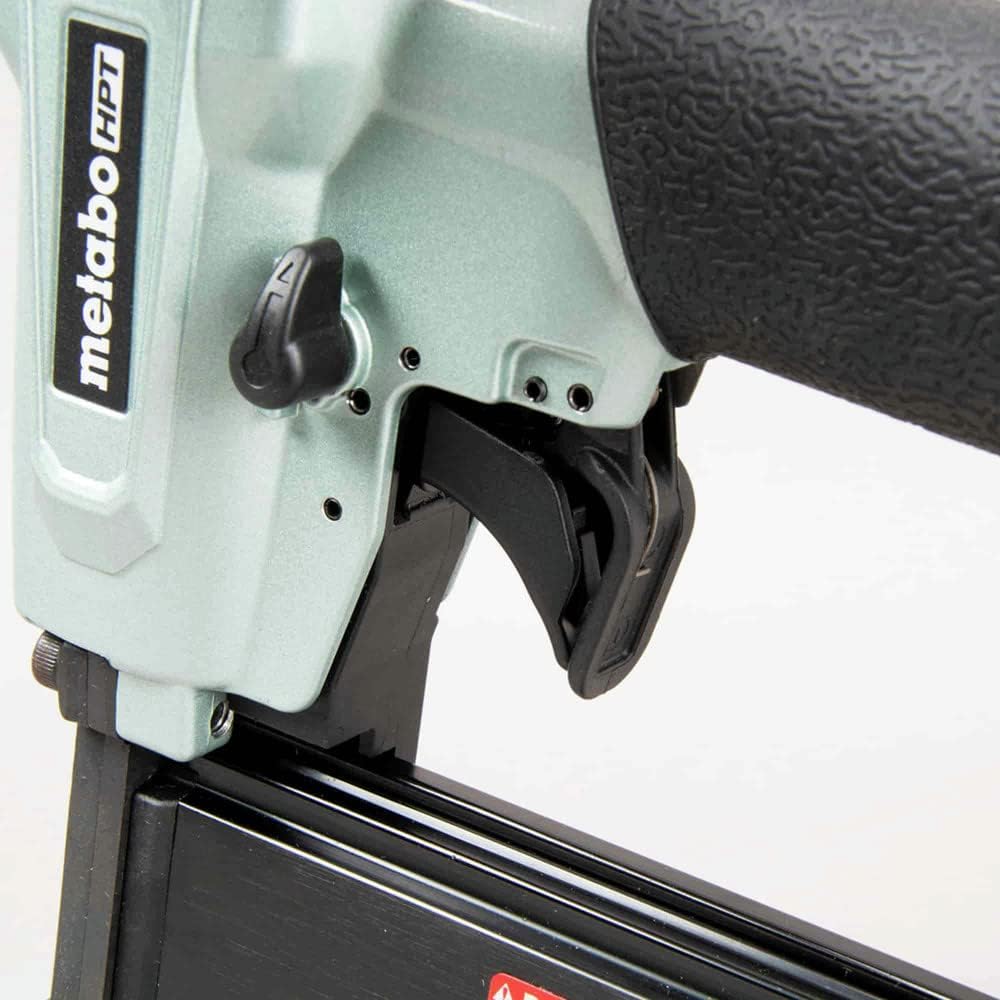

- TRIGGER: Trigger lock switch protects against unintentional use
- DEPTH ADJUSTMENT: Depth of drive adjustment to countersink or flush drive into a variety of materials
- SAFETY: Automatic dry-fire lock-out prevents the nailer from operating with 6 Nails or less in the magazine

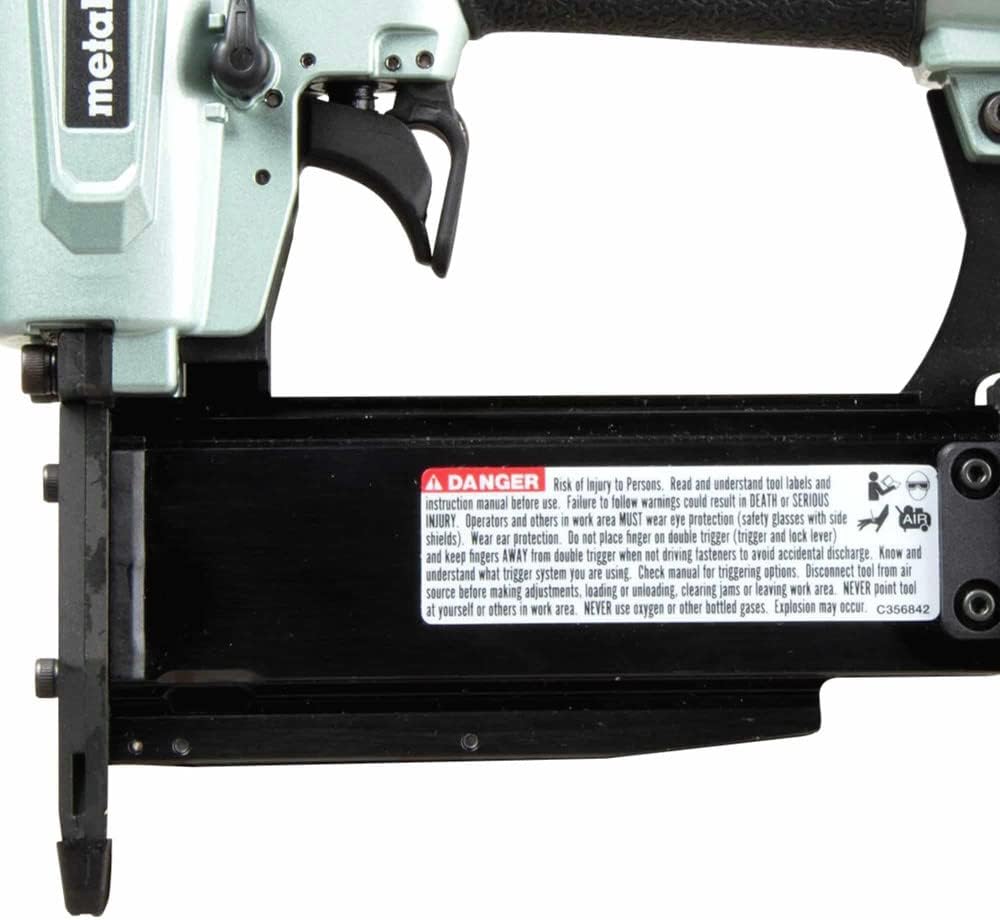

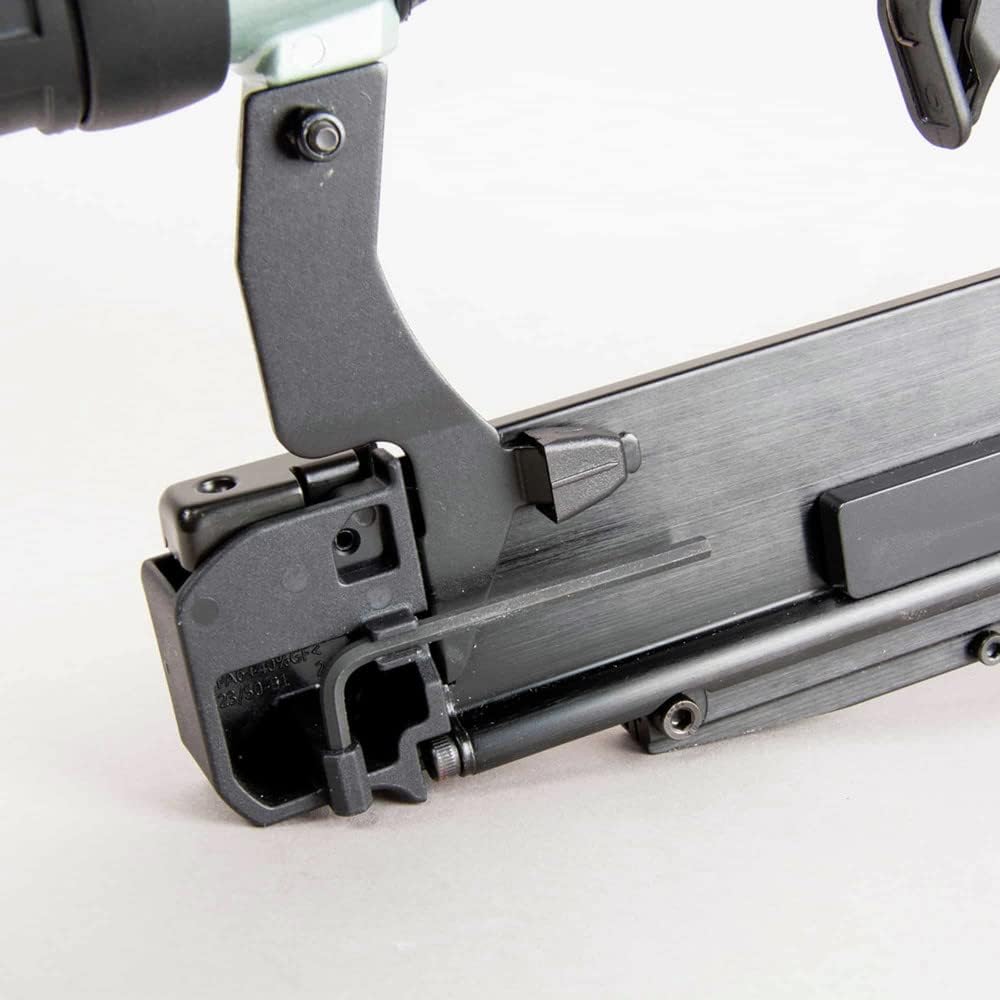

- MAGAZINE: High grade aluminum magazine provides exceptional durability and protects against jams
- FASTENERS: Drives 23-gauge pin nails ranging from 1/2-in To 2-in In length
- AWARDS: Ranked Pro Preferred for Pneumatics 7 Years Running (2014 -2021)
- APPLICATIONS: For paneling, small molding, and fine trim work
- COMPLIANT: Safety standards for pneumatic nailers in the United States
| Â General | |||
|---|---|---|---|
| Sub-Brand | N/A | Type | Finish |
| Â Dimensions | |||
|---|---|---|---|
| Depth Control | Tool free | Maximum Nail Length | 2-in |
| Inlet Size in Inches | 1/4-in | Minimum Nail Length | 1/2-in |
| Magazine Capacity | 100 | Weight (lbs.) | 3.3 |
| Maximum Nail Diameter | 2-in |
| Â Features | |||
|---|---|---|---|
| Case Type | Hard | Nail Gauge | 23 |
| Collation Type | Straight | Pneumatic | Yes |
| Cordless | No | Power Source | Pneumatic |
| Housing Material | Aluminum | Required Pressure (PSI) | 64 |
| Jam Clearing | Tool free | Strip or Coil | Strip |
| Maximum PSI | 100 | Warranty | 5-year |
| Â Warranty | |||
|---|---|---|---|
| Base Warranty Labor (Months) | 60 | Base Warranty Parts (Months) | 60 |
