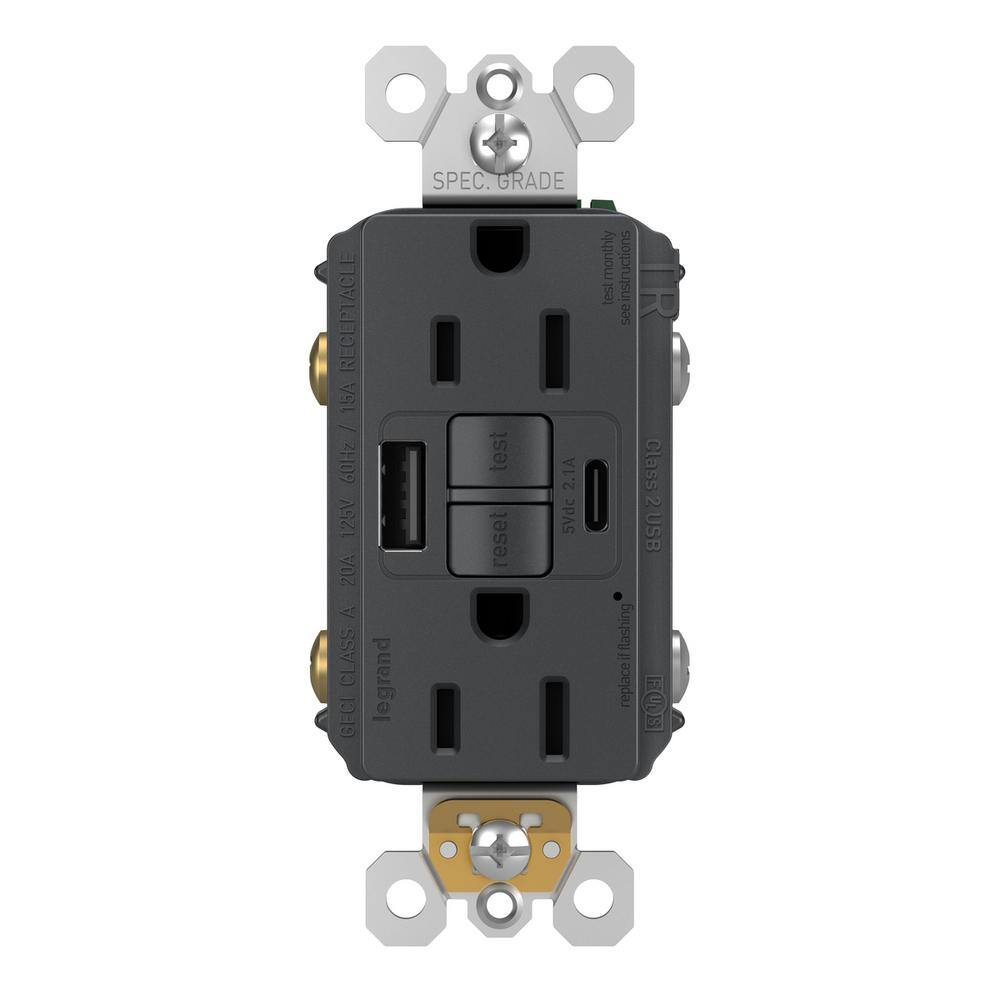

Legrand 1597TRUSBACGC4 radiant 15 Amp 125-Volt Tamper Resistant Self-Test GFCI Duplex Outlet with Type A/C USB, Graphite
Original price was: $58.94.$53.05Current price is: $53.05.
- Charge more devices without the need for bulky AC adapters
- GFCI self-tests every 3 seconds for added safety
- Tamper resistant shutters for added child safety
Legrand 1597TRUSBACGC4 radiant 15 Amp 125-Volt Tamper Resistant Self-Test GFCI Duplex Outlet with Type A/C USB, Graphite
The radiant collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today’s homes. GFCI protection meets modern convenience with this clever integration of 2 USB charging outlets, which provide 2.1 2.1 Amp of combined charging power right alongside GFCI outlets. The radiant USB charging solutions let you charge more of your devices without the need for bulky AC adapters.
- Charge 2 mobile phones or tablets simultaneously with 1 USB type A and 1 USB type C charging ports with tamper-resistant outlets

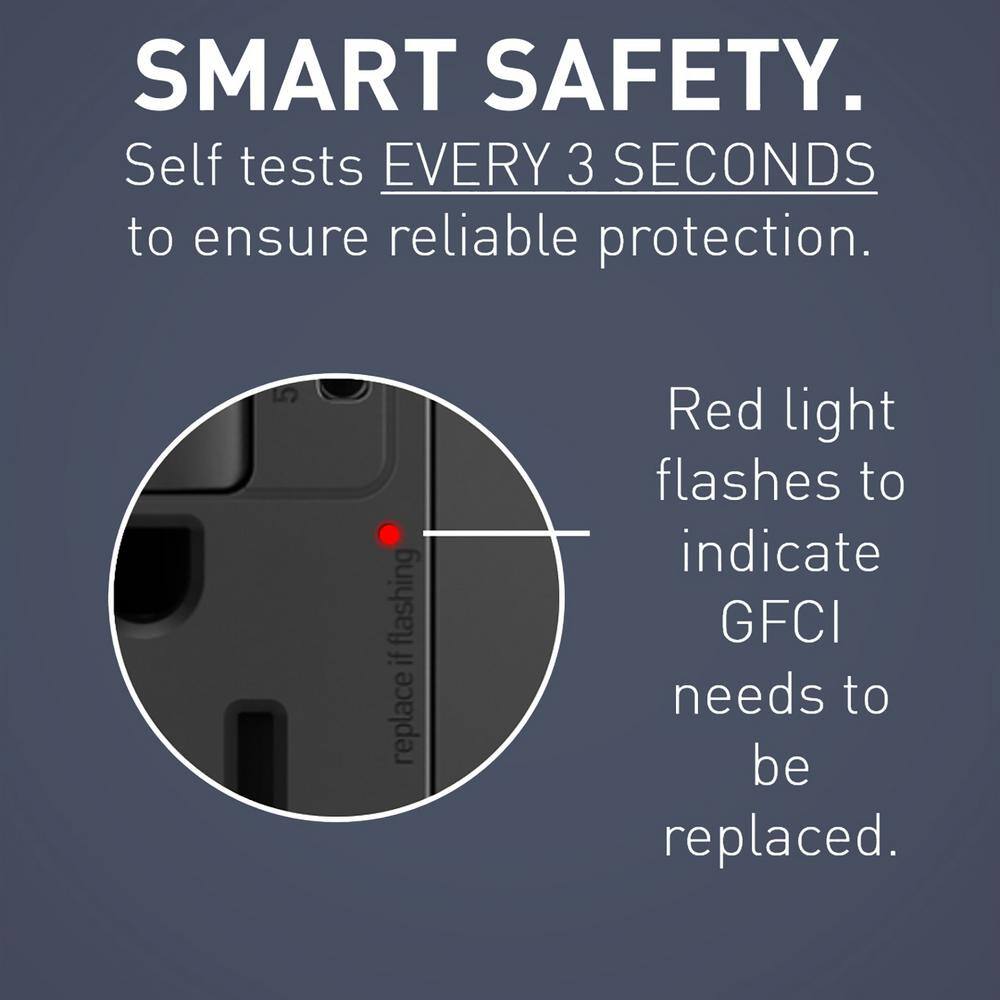

- Conducts an automatic test every 3-seconds, ensuring it’s always ready to protect – if the device fails the test, the trip indicator light (red LED) flashes to signal that the GFCI should be replaced

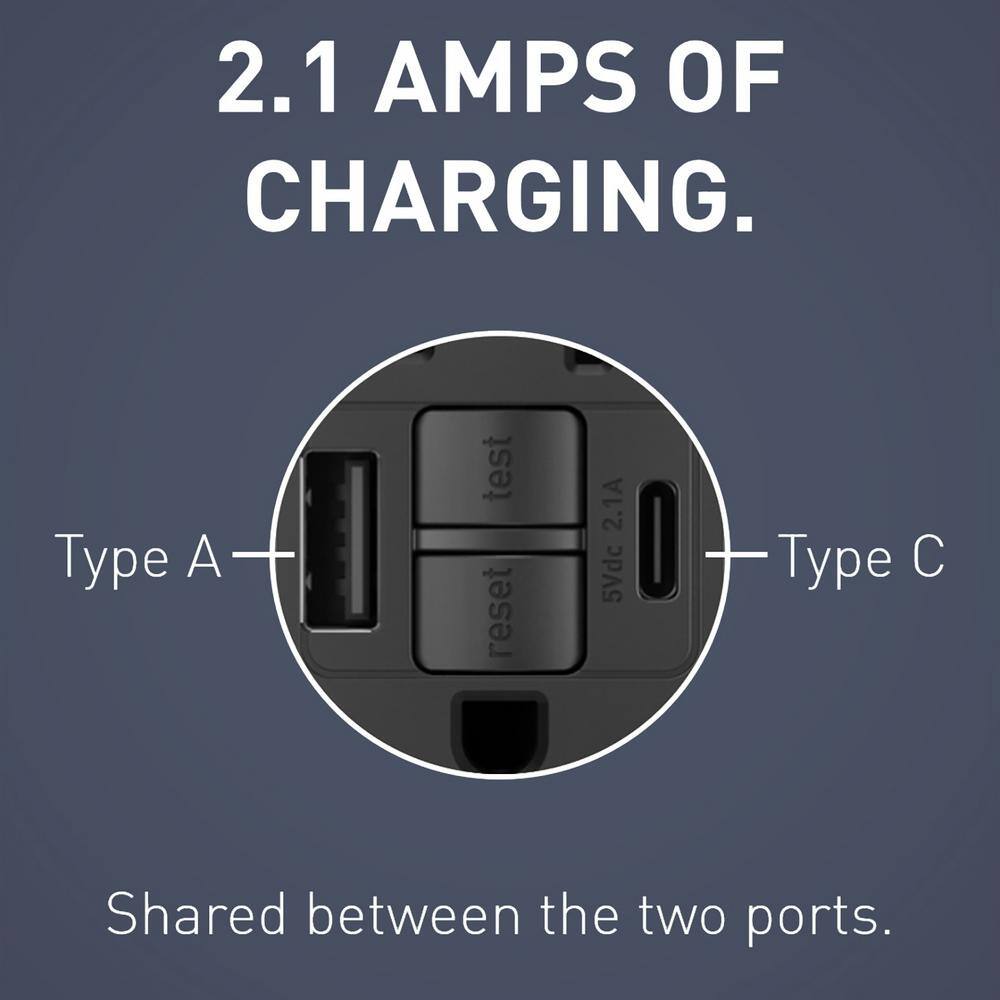

- Total charging capacity of 2.1 Amp, shared between stainless steel type A and type C USB ports rated at 10,000 insertion cycles

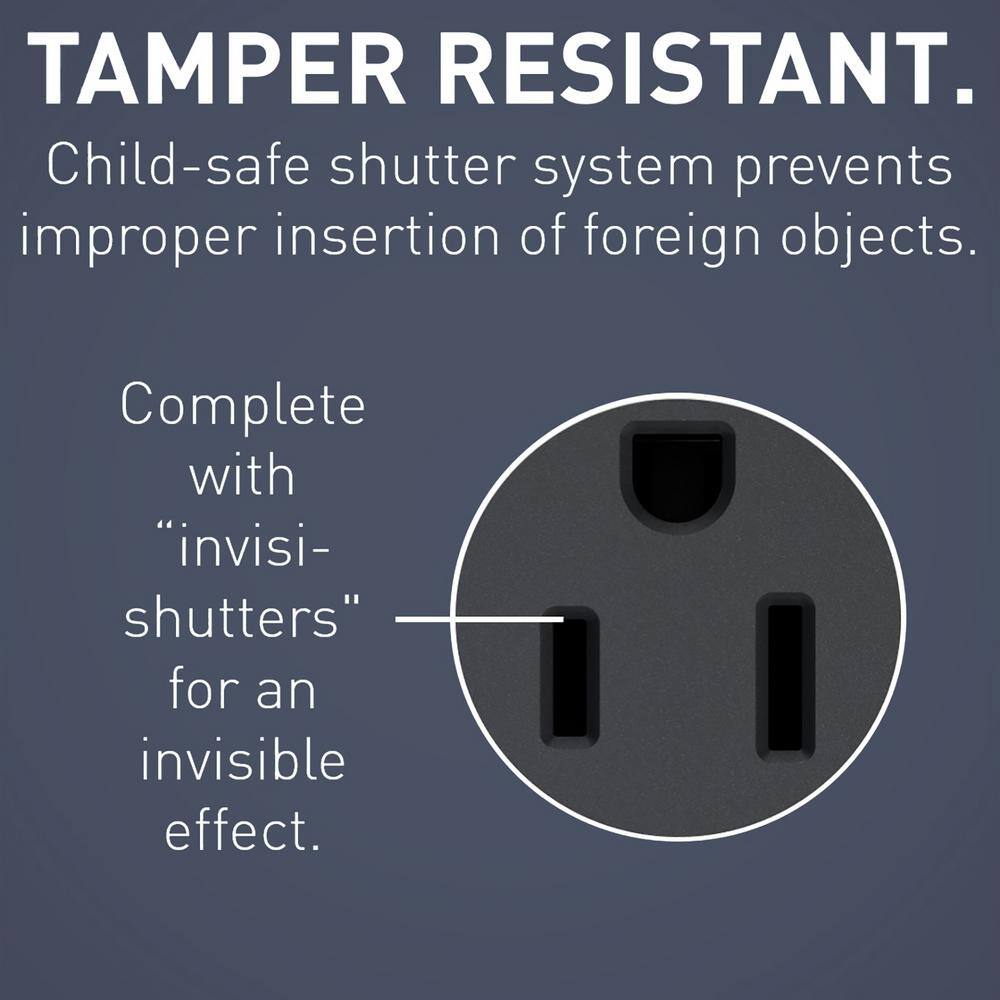

- Protects children: patented shutter system helps prevent improper insertion of foreign objects-now with black invisi-shutters for an invisible effect preferred by end users
- Replaces any standard outlet with ease – all you need is 15-minutes and a screwdriver
- Durable: withstands 100X the required UL surge test cycle

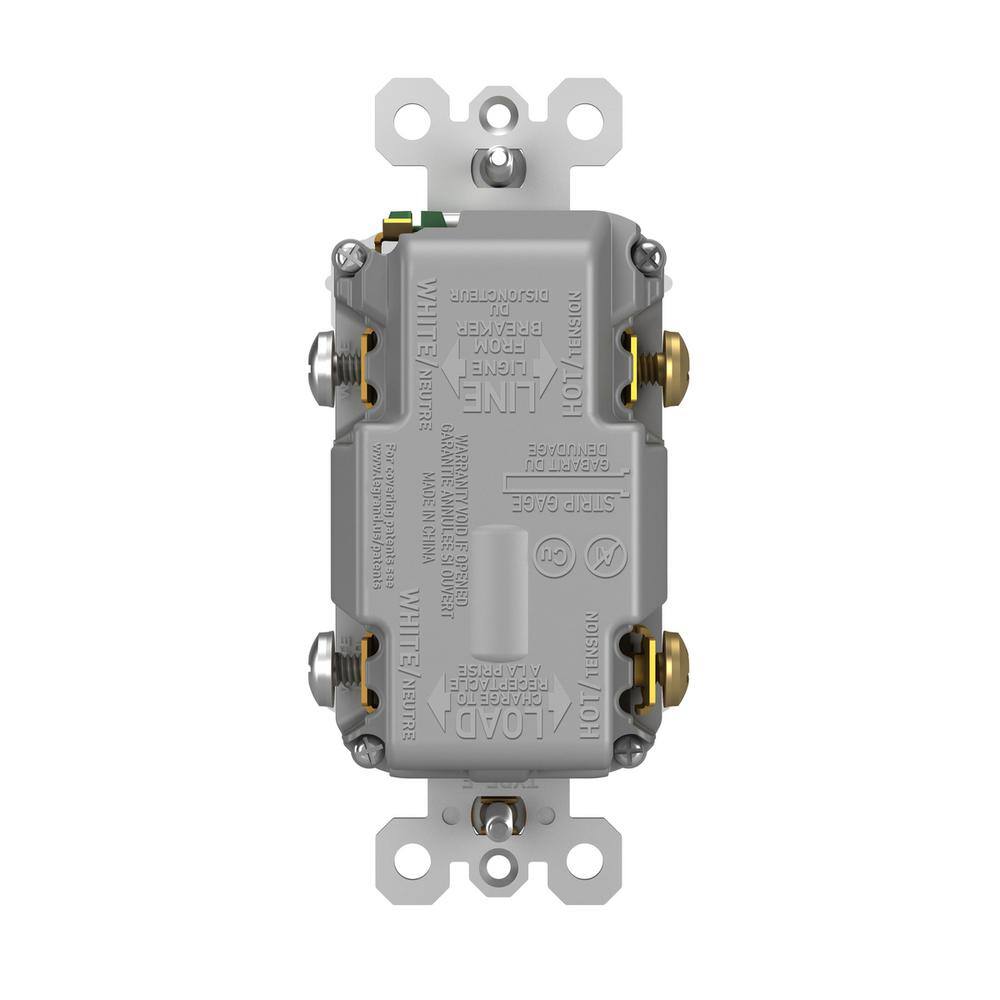

- Back and side wire terminals accommodate #14 AWG – #10 AWG stranded and solid copper wire for installation flexibility
- Prevents line-load reversal miswire: no power to the face or downstream receptacles if wired incorrectly
- Dual-direction test and reset button colors match the device face
- Captivated mounting screws offer hassle-free installation
Dimensions
| Outlet Depth (in.) | 2.15 | Outlet Height (in.) | 4.2 |
|---|---|---|---|
| Outlet Width (in.) | 1.25 |
Details
| Amperage (A) | 15 A | Color Family | Black |
|---|---|---|---|
| Color/Finish | Graphite | Commercial/Residential | Residential |
| Configuration | USB-A, USB-C | Device Style Type | Outlet w/o Wall Plate |
| Durability | Not Applicable | Electrical Features | No Additional Features |
| Grounding | Grounded | Included | Mounting Hardware |
| Indoor/Outdoor | Indoor | Maximum Amperage (A) | 15 A |
| Mounting Type | In-Wall | NEMA Configuration | NEMA 5 |
| Number of Poles | 3 | Number of Ports | 2 |
| Number of Receptacles | 2 | Outlet Configuration | Duplex |
| Outlet Location | Wall | Outlet Material | Nylon |
| Outlet Type | GFCI | Package Quantity | 1 |
| Plug Configuration | 5-15 | Rating | General Purpose, Tamper Resistant |
| Receptacle Configuration | 5-15 | ||
| Voltage | 125 volt | Voltage (V) | 125 V |
| Wire Connection Location | Back | Wire Connection Type | Screw Terminal |
