KOHLER K-8304-KS-NA Rite-Temp Pressure-Balancing Valve Body and Cartridge Kits with Service Stops
Original price was: $114.56.$103.10Current price is: $103.10.

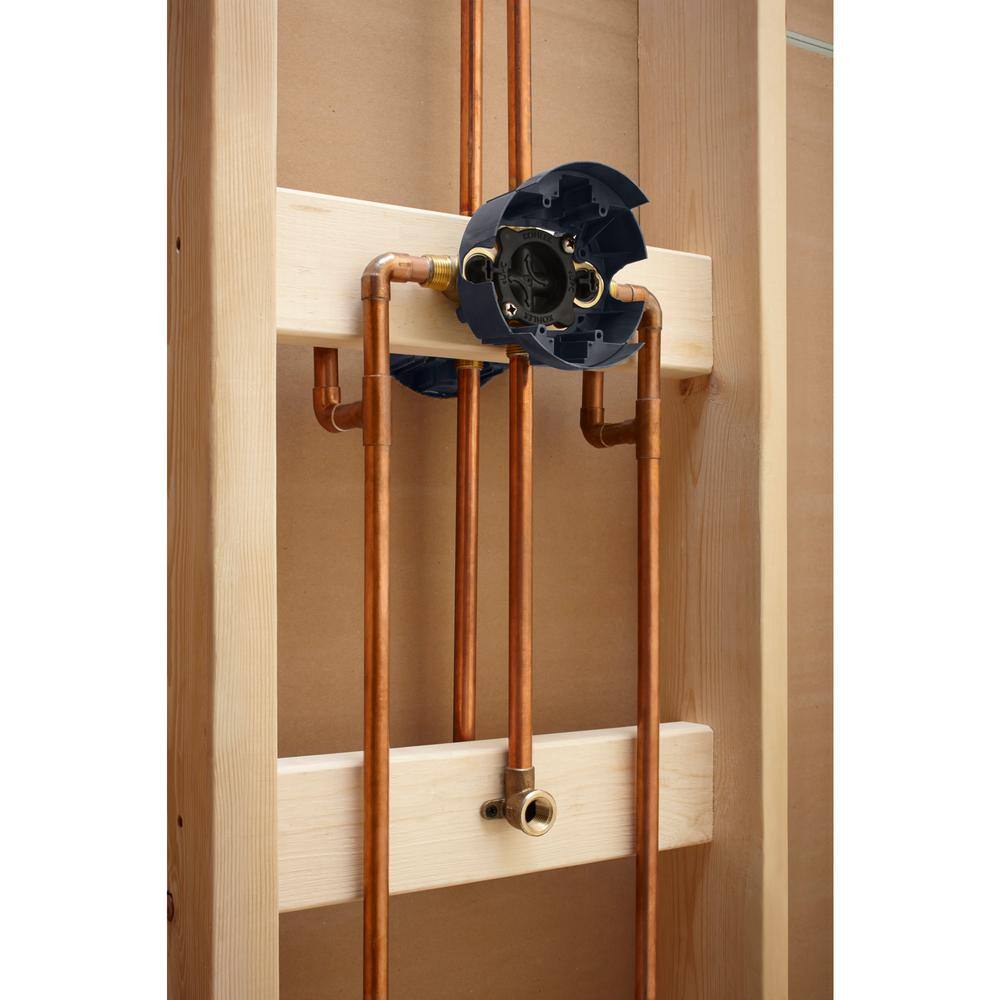

- 3 step install: first the valve body, then the cartridge and trim
- Includes valve body, cartridge, rough-in guide, and mud guard
- 5.0 gpm maximum flow rate at 45 psi
KOHLER K-8304-KS-NA Rite-Temp Pressure-Balancing Valve Body and Cartridge Kits with Service Stops

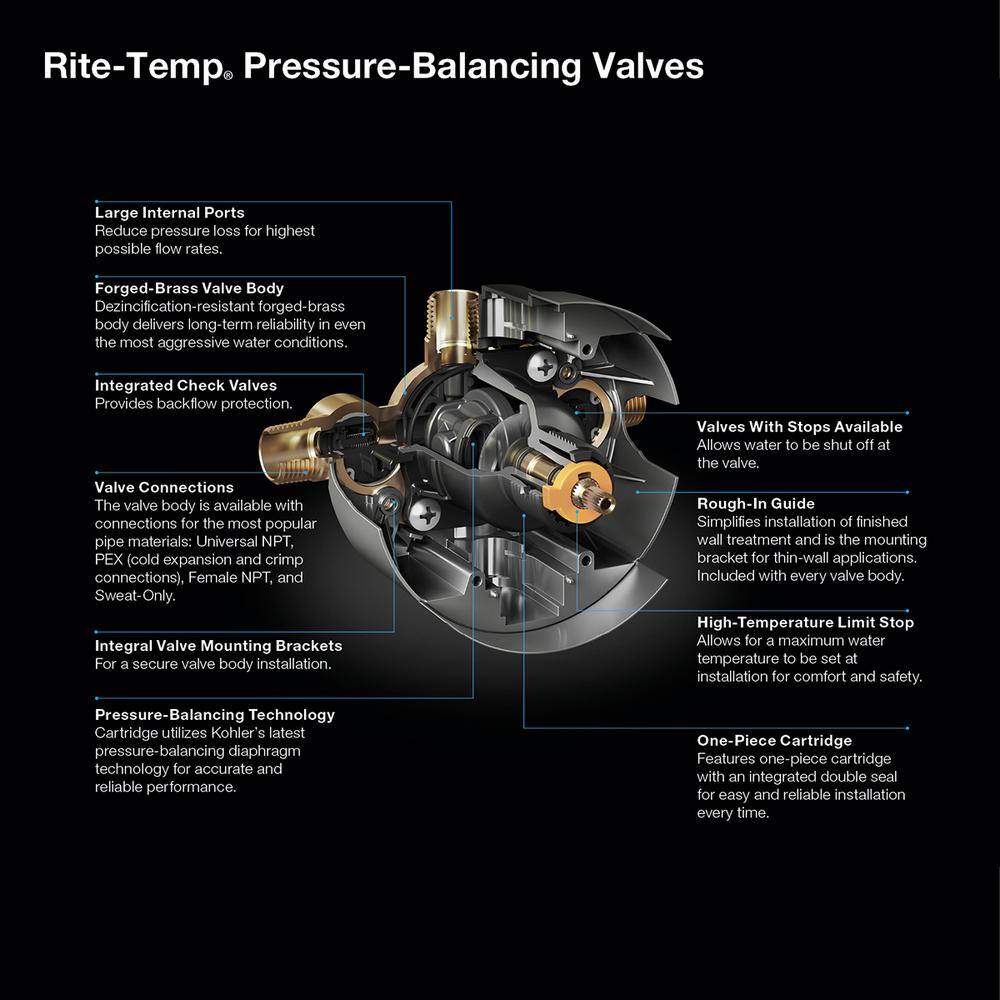

The new KOHLER Rite-Temp valve system sets new standards for ease of installation, application versatility, and long-term reliability, simplifying your plumbing project and providing maximum flexibility for future changes or upgrades. The Rite-Temp valve platform uses the latest pressure-balancing technology to provide anti-scald protection and temperature control for enhanced showering comfort. Once the valve is installed, select your finished trim and finish from KOHLER’s comprehensive design portfolio. Should you decide to remodel in the future, simply change out your trim for the latest design without the need to change the valve installation.

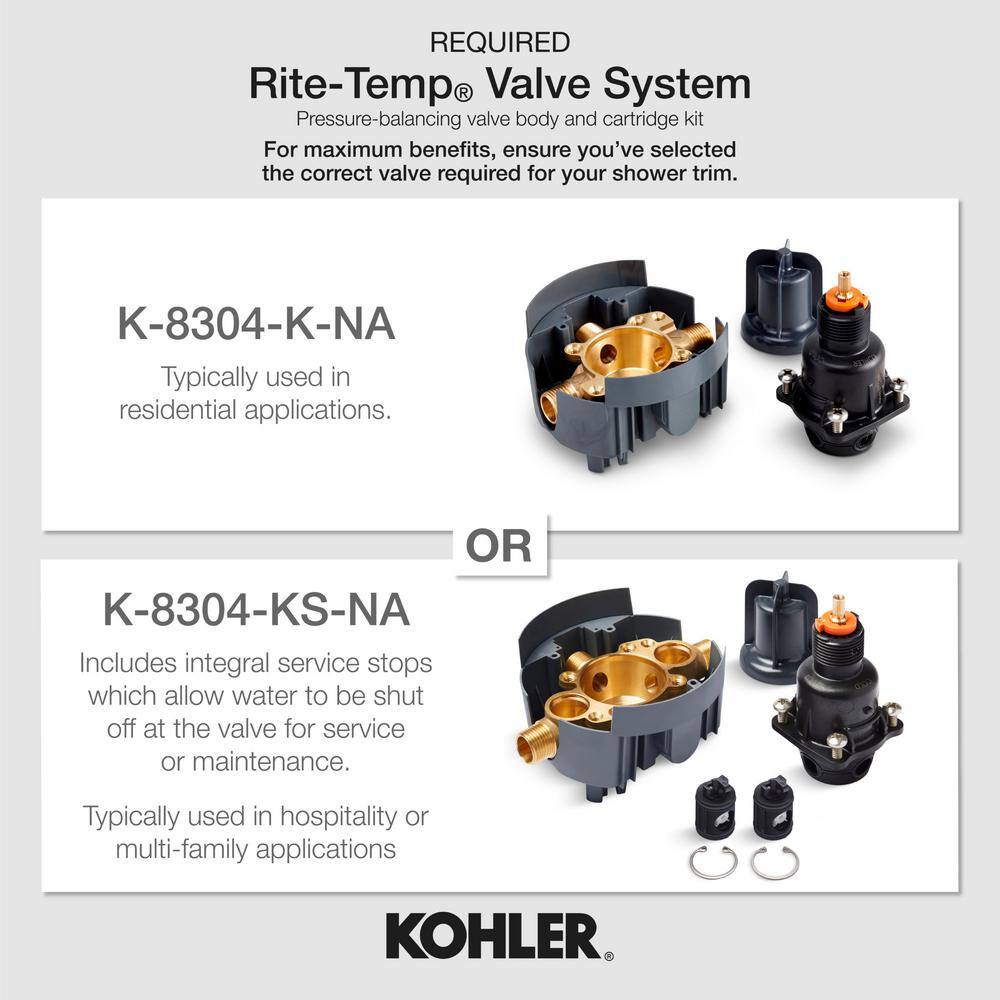

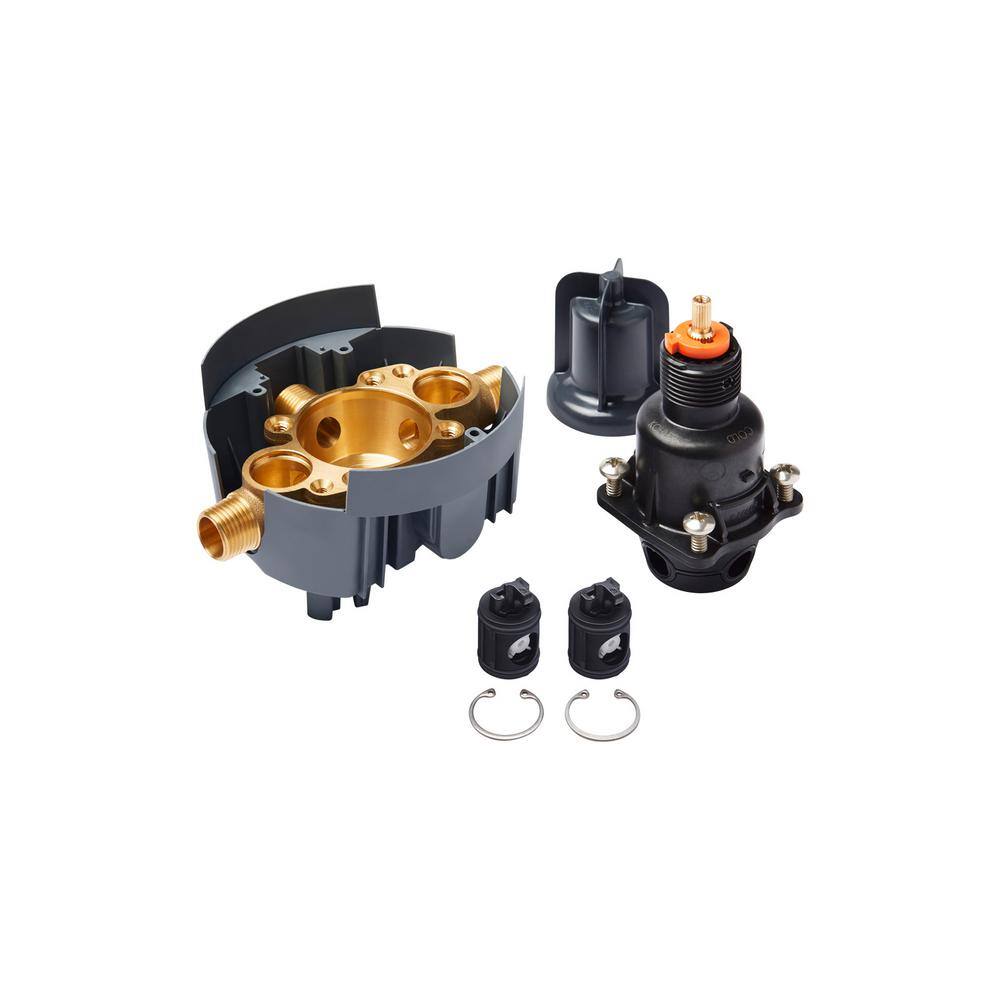

- Kit includes valve body, pressure-balance cartridge, rough-in guide, and mud guard

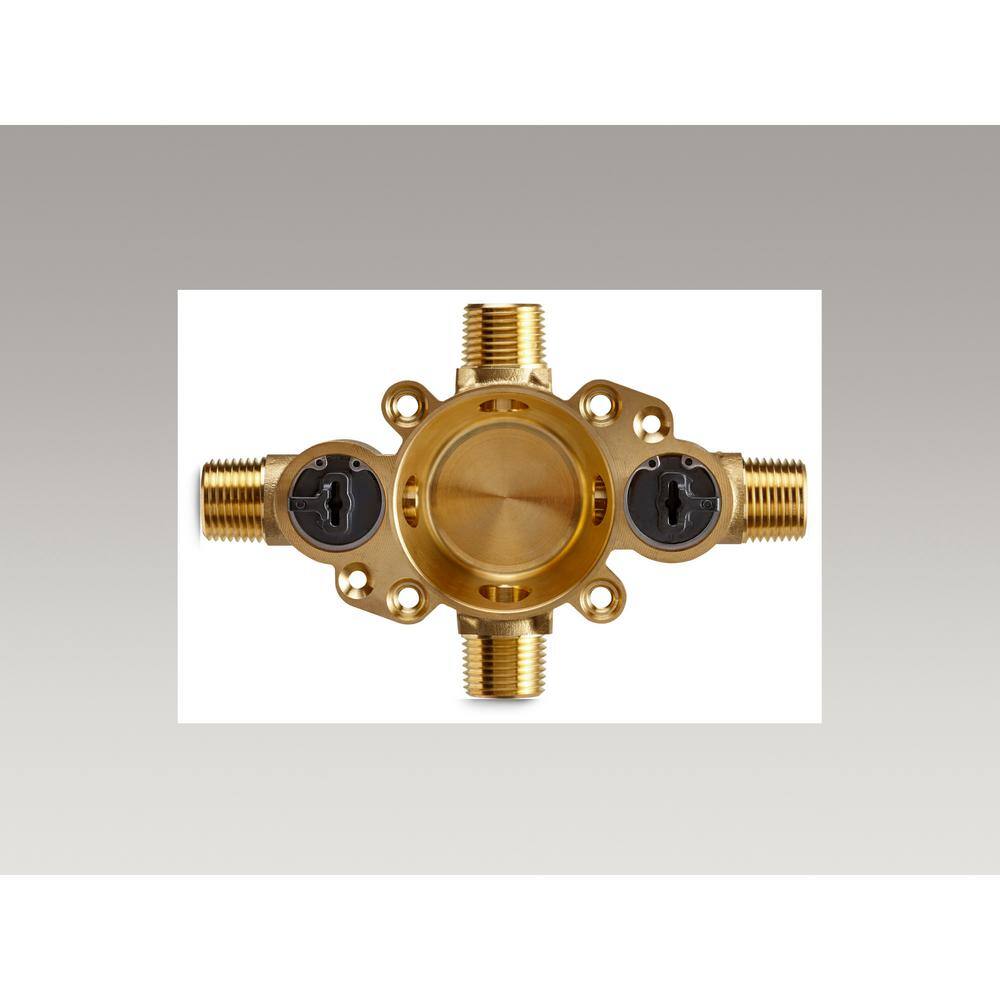

- 1/2 in. Universal NPT and direct sweat inlets and outlets, with stops
- Service stops include integral check valves
- 5.0 GPM (18.9 l/min) maximum flow rate at 45 psi
- Single lever design cycles from off through cold to hot
- Provides temperature regulation and automatic anti-scald protection.
- One-piece cartridge design simplifies installation and maintenance.
- Adjustable high-temperature limit stop to control maximum water temperature
- Requires valve trim to complete installation (sold separately).
Dimensions
| Inlet Diameter (In.) | 1/2 | Outlet Diameter (In.) | 1/2 |
|---|---|---|---|
| Product Depth (in.) | .375 in | Product Height (in.) | 5.875 in |
| Product Length (in.) | .375 in | Product Width (in.) | 5.875 in |
Details
| Application | Rough-In valve | Compatible Pipe Material | Brass |
|---|---|---|---|
| Connection | Sweat x Sweat | Features | Adjustable, Temperature limit adjustment |
| Indoor/Outdoor | Indoor | Material | Plastic |
| Maximum Pressure (PSI) | 45 | Maximum Working Temperature (F) | 300 |
| Pack Size | 1 | Product Weight (lb.) | 1.359 lb |
| Valve Type | Pressure Balance |
