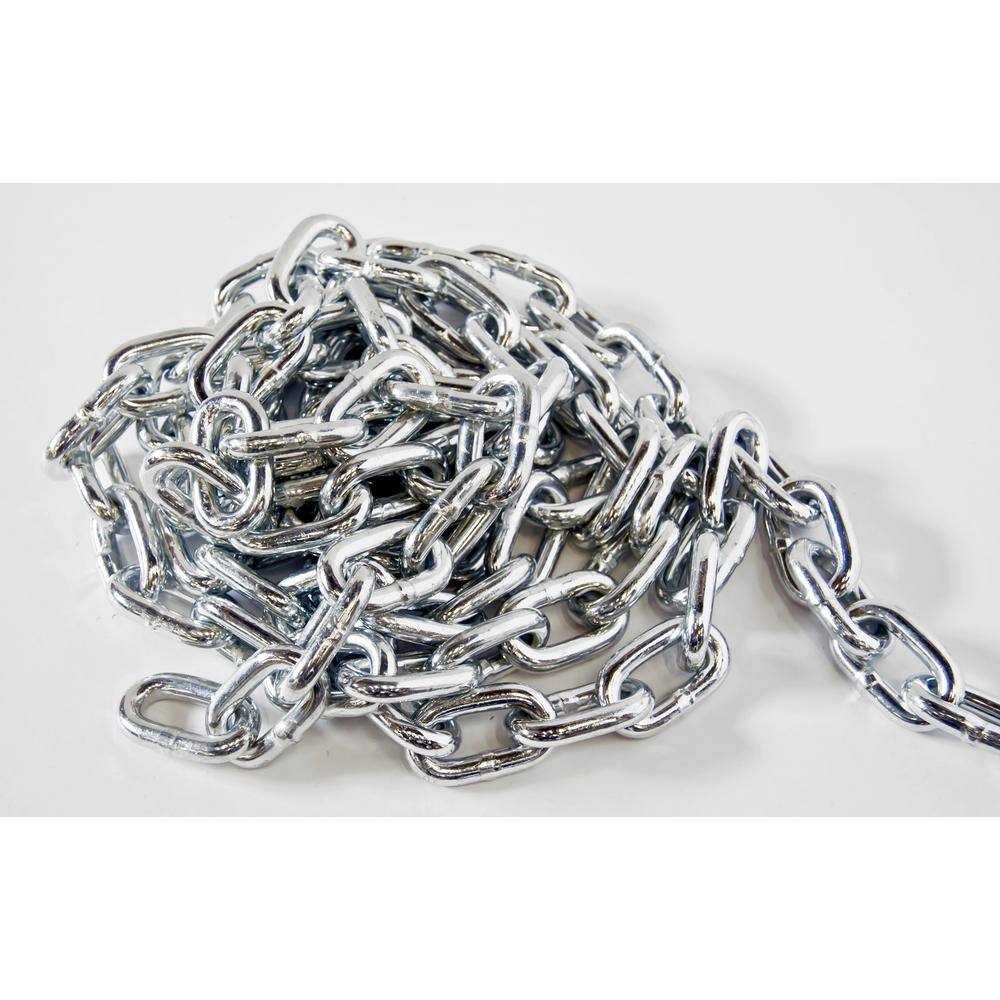

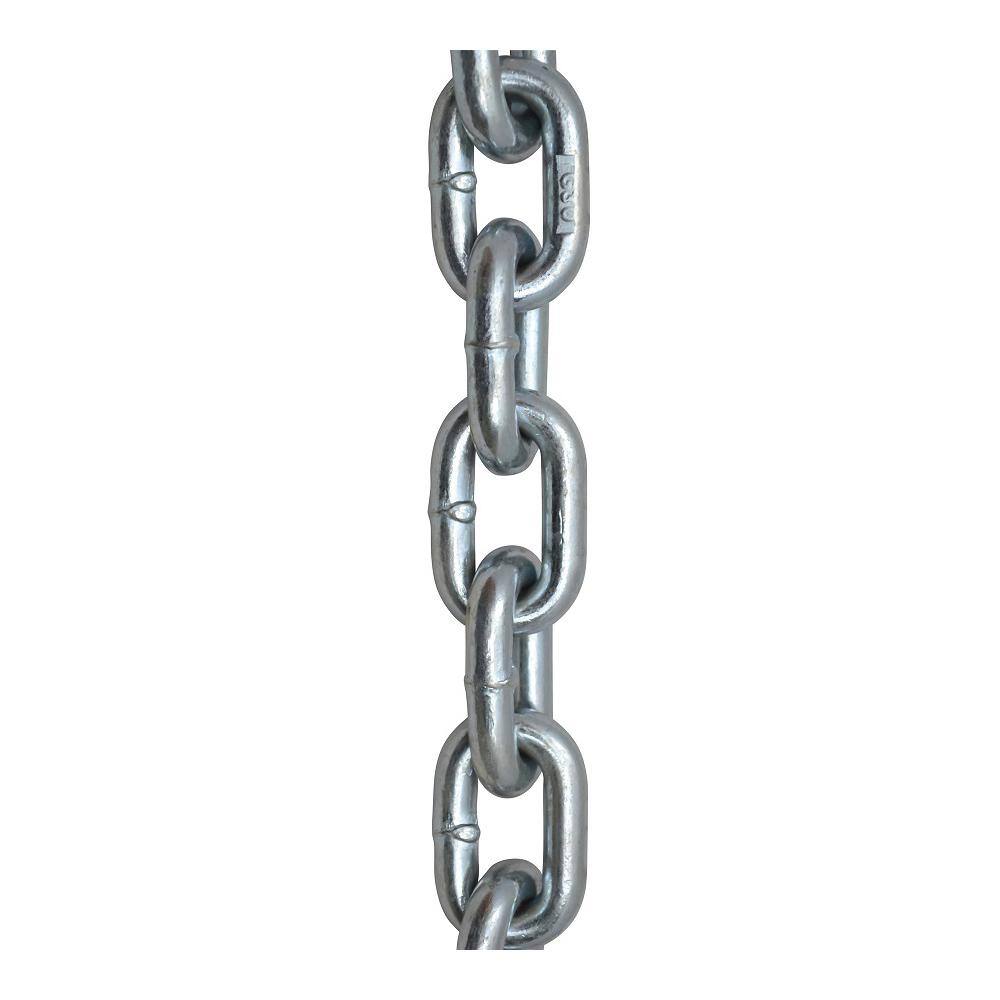

KingChain 530512 1/8 in. x 100 ft. Grade 30 Proof Coil Chain in Zinc Plated Reeled

KingChain 530512 1/8 in. x 100 ft. Grade 30 Proof Coil Chain in Zinc Plated Reeled

Grade 30 chain is an excellent general purpose, low carbon utility chain. The chain is manufactured to NACM standards. Each link is proof tested 2 times and the break load is 4 times the Safe Workload (design factor 4:1). It is recommended for applications that do not require high strength-to-weight ratios. It is often used on farms, in industry and at home for general purpose applications, such as pulling stumps, lashing cargo, truck tailgates and guard rails. Chain is zinc plated for a bright, attractive finish with moderate corrosion resistance. Do not use for overhead lifting. Never exceed the Safe Working Load (SWL).

• 1/8 in. Wire Diameter x 100 ft. L
• 400 lbs. (182 kg) safe work load (SWL)
• Break load is 4 times the safe work load (design factor 4:1)
• Zinc plated for moderate corrosion resistance
• Manufactured to NACM specifications
• Each link mechanically welded and proof-tested tow times

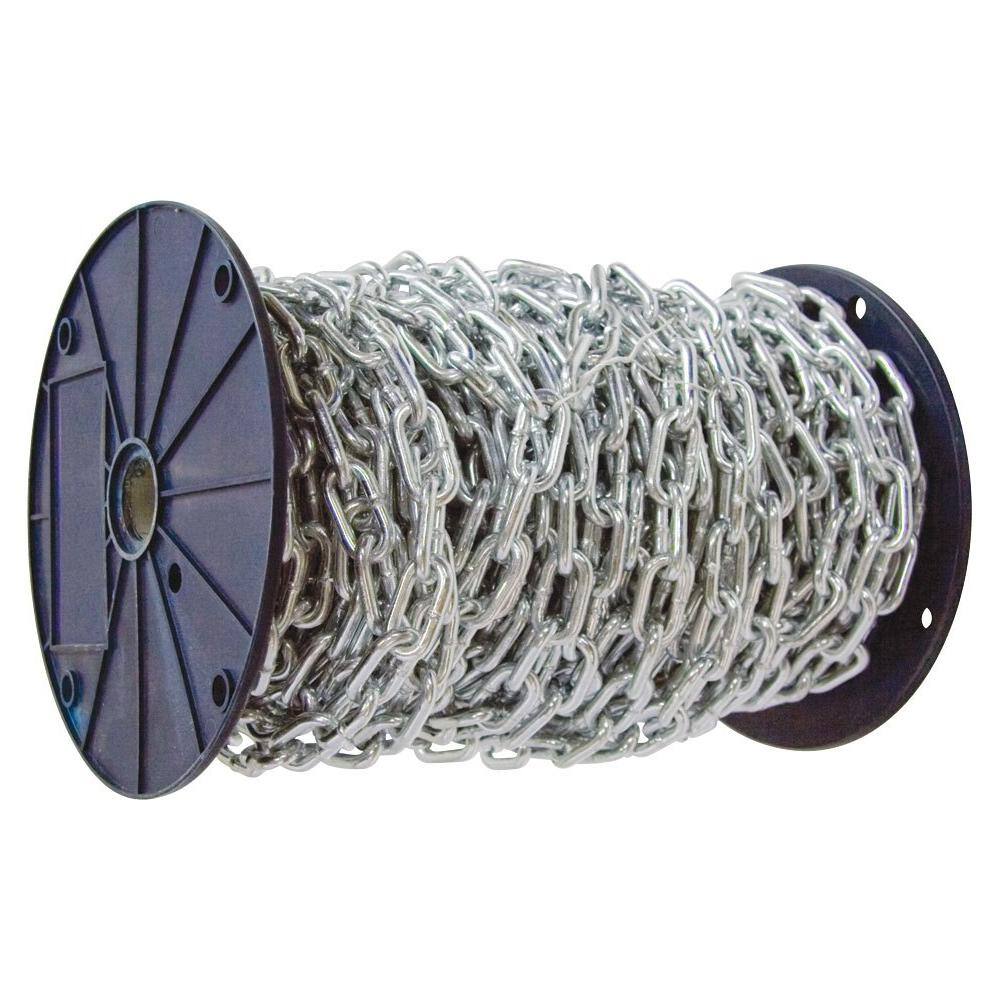

• Reeled (8 in. Dia reel)
