KingChain 503692 1/8 in. x 250 ft. Galvanized Aircraft Cable, 7×7 Construction – 340 lbs Safe Work Load – Reeled
Original price was: $42.02.$37.82Current price is: $37.82.
- Galvanized finish provides good corrosion and rust resistance
- Safe workload of 340 lbs
- 7×7 construction ensures durability
KingChain 503692 1/8 in. x 250 ft. Galvanized Aircraft Cable, 7×7 Construction – 340 lbs Safe Work Load – Reeled

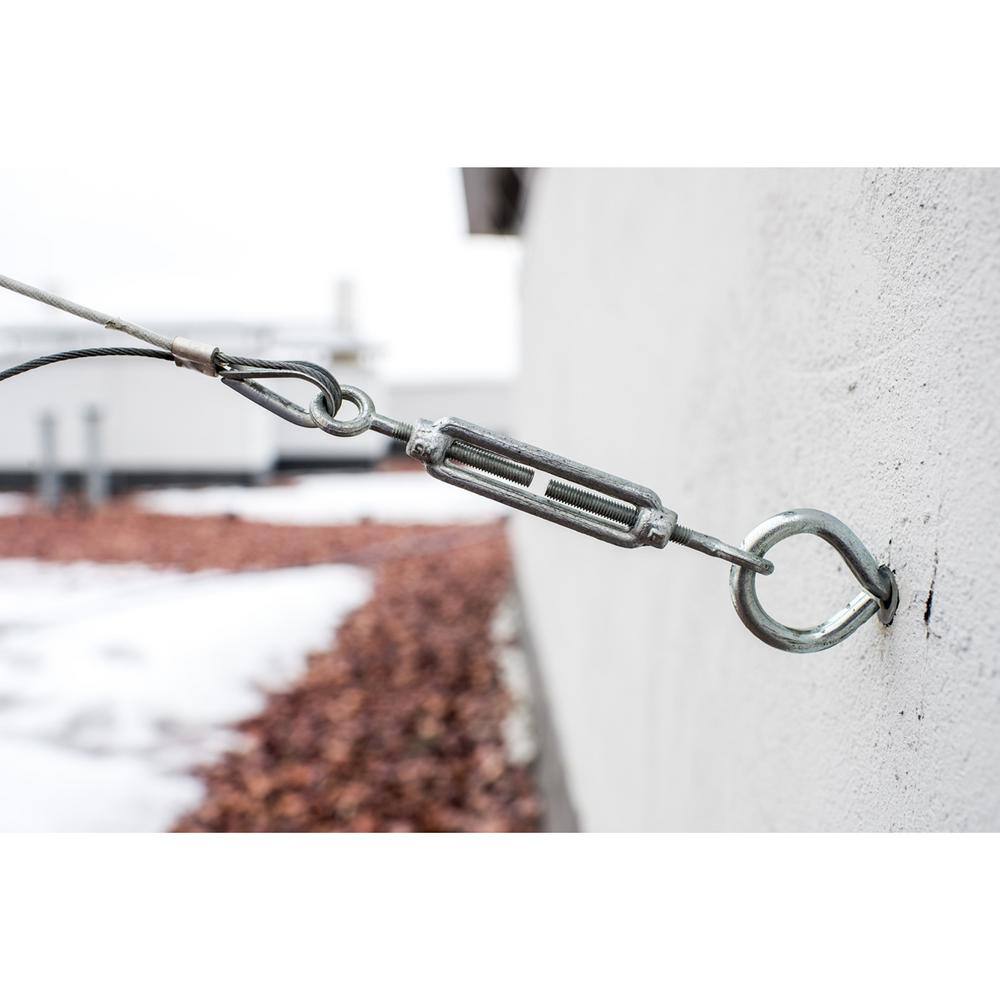

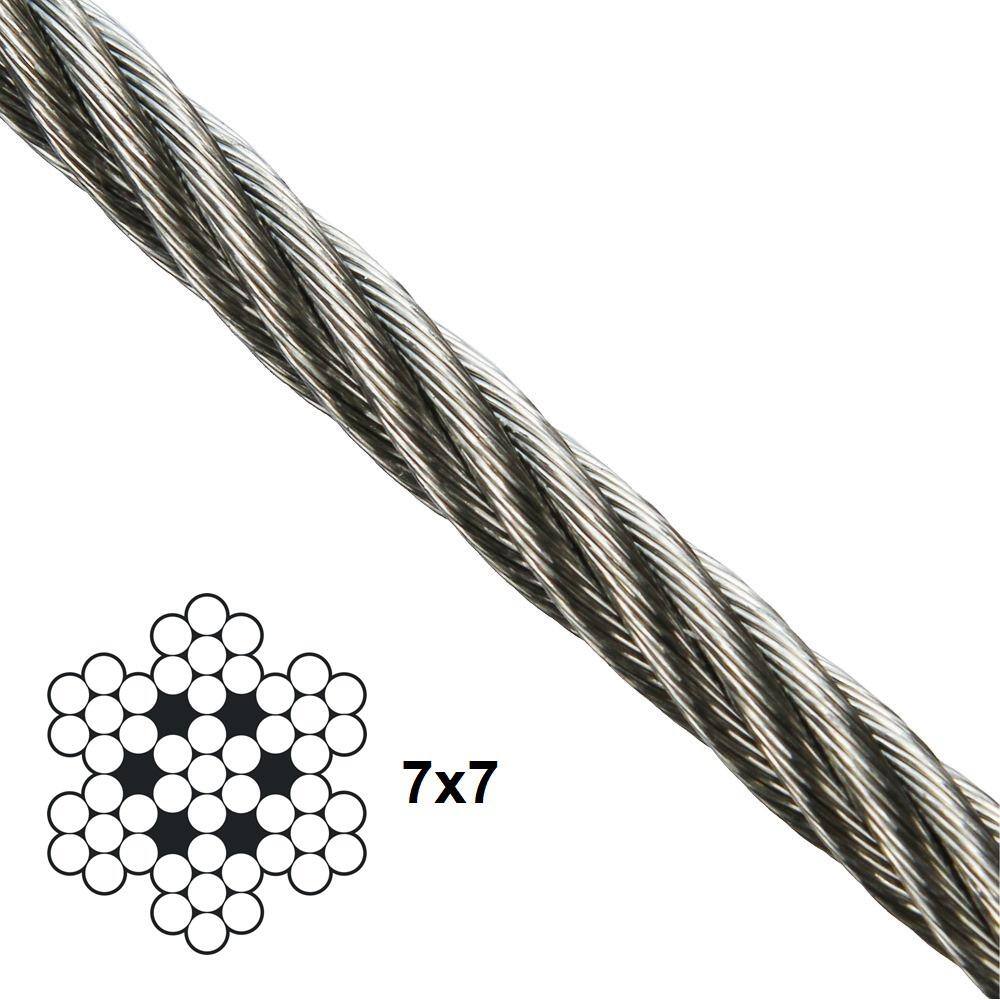

KingChain galvanized aircraft cables are used for many material handling applications and have typical home uses for garage door cables, winch lines, tie-downs, dog runs, hanging signs, and guy wires for flagpoles. KingChain aircraft cable is made in accordance with US Federal Specification RR-W-410D. The cable is hot-dipped galvanized for long lasting durability and moderate corrosion resistance. The 7×7 construction consists of 7 individual wires laid in a spiral around a center King wire to form a strand. Seven strands are then wound together to form a cable. This construction provides good strength, good flexibility and good abrasion resistance. This cable has a Safe Working Load (SWL) of 340 lbs. (154 kg). Its breaking strength is 5 times the SWL (design factor 5:1). Any breaking strength ratings are listed for comparison purposes only. Actual operating loads may vary but should not exceed the recommended design factor of 20% of the products breaking strength. Not intended for aircraft use.
- 1/8 in. cable diameter, 7×7 construction
- 250 ft. Length
- 340 lbs. (154 kg) safe work load (SWL)
- Uncoated, high-strength cable
- Galvanized finish provides good corrosion and rust resistance
- Good strength, flexibility and abrasion resistance

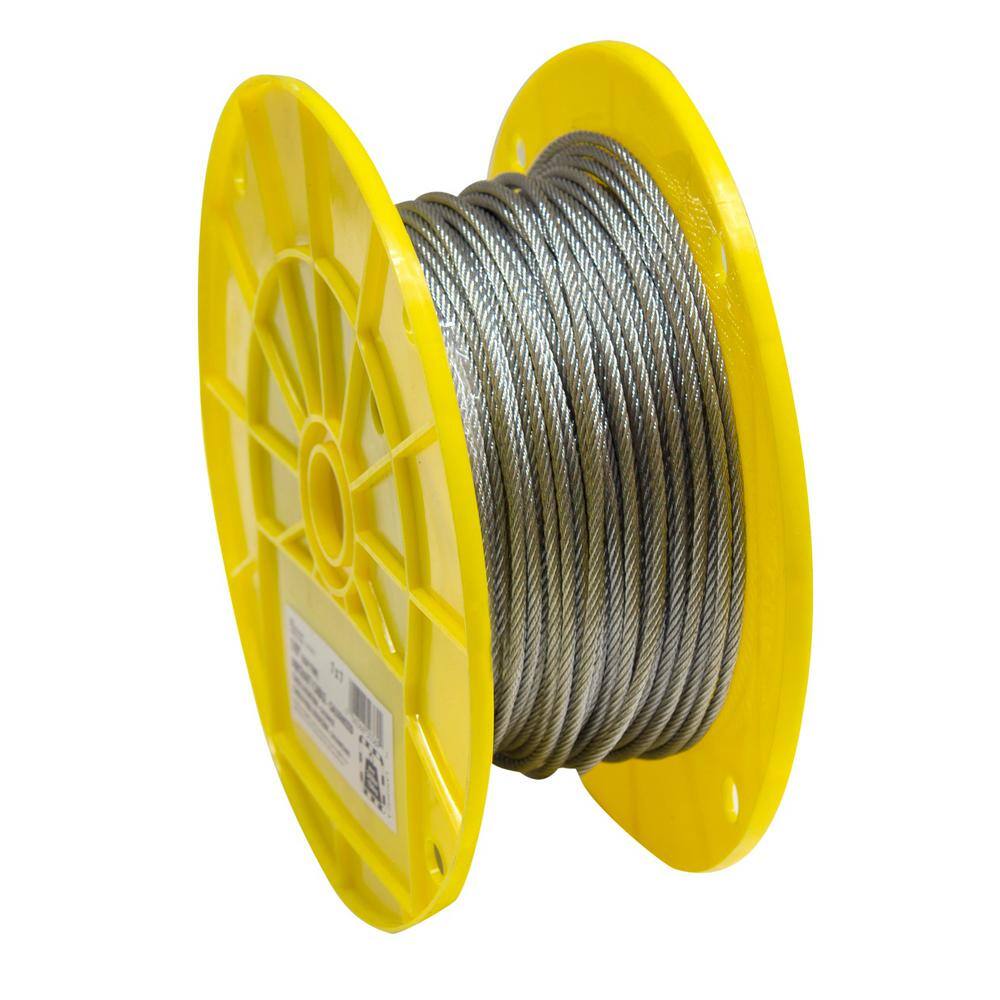

- Reeled (8 in. diameter reel)
Dimensions
| Product Depth (in.) | 8 in | Product Height (in.) | 3.25 in |
|---|---|---|---|
| Product Length (ft.) | 250 ft | Product Width (in.) | 8 in |
| Rope Diameter (in.) | 1/8 inch |
Details
| Coating Material | Not Coated | Color Family | Metallics |
|---|---|---|---|
| Fastener Type | Wire Rope | Features | Abrasion Resistant |
| Finish Family | Metallic | Gauge | 0.125 |
| Hardware Color Family | Metallic | Material | Galvanized Steel |
| Package Quantity | 1 | Product Weight (lb.) | 7.35 lb |
| Rope Configuration | Twisted | ||
| Strand Construction | 7×7 | Working Load Limit (lbs.) | 340 |
