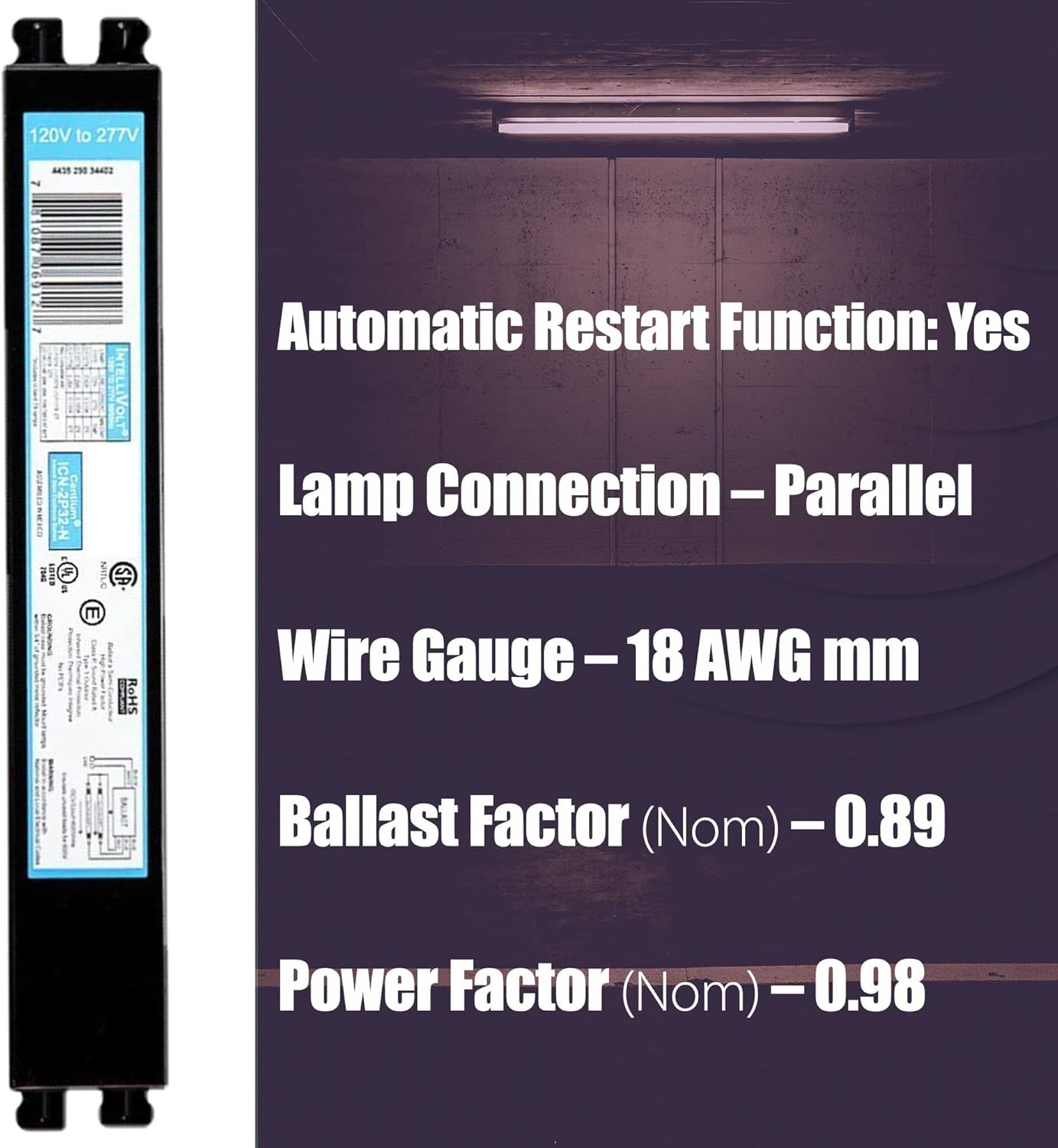

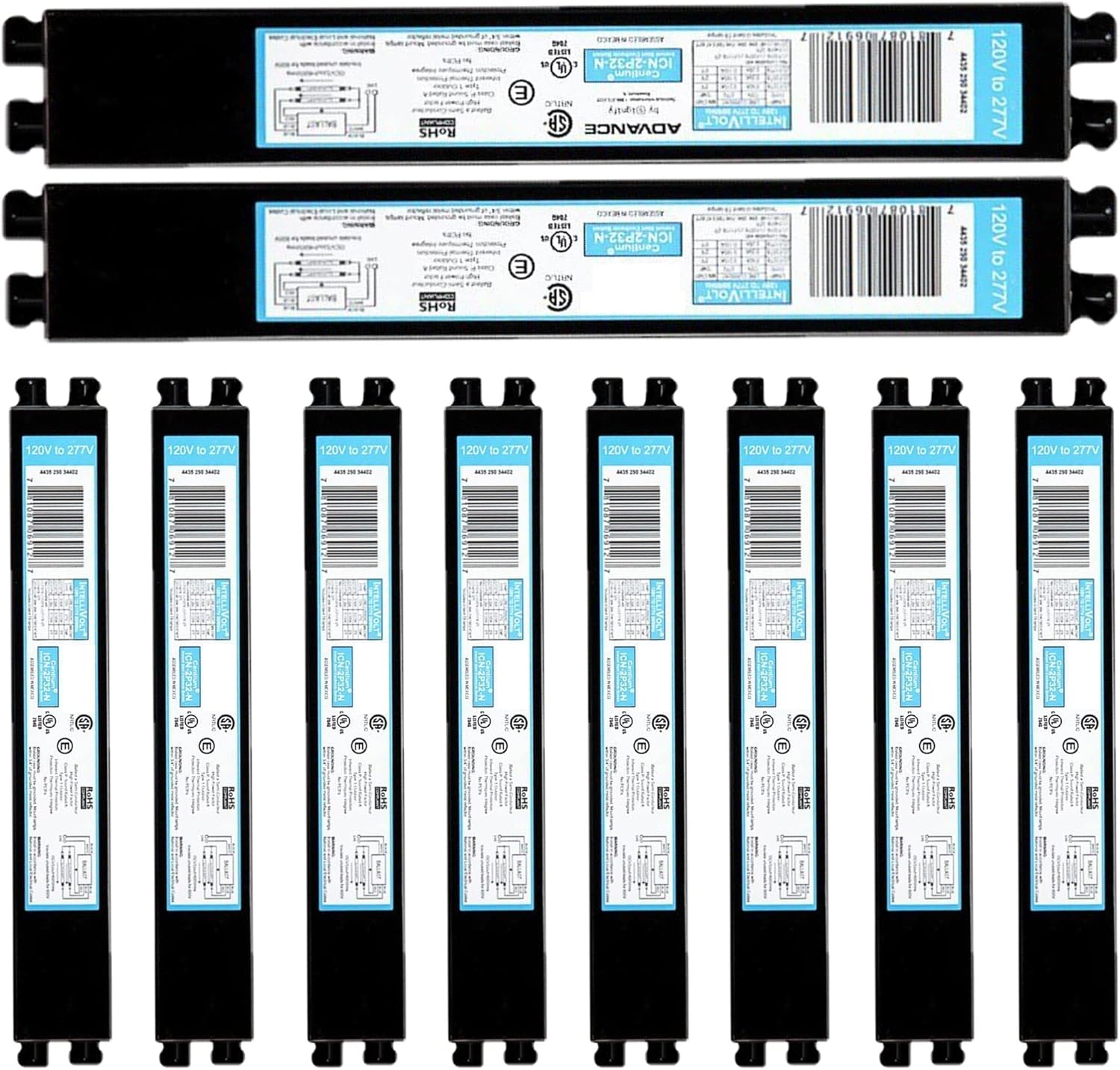

ICN2P32N, 120-277V, 50-60Hz Input Frequency, Solid Wire Type, Instant Start Centium Electronic Fluorescent Ballast for 2 F32T8 Lamp Type, Indoor/Outdoor Use with Automatic Restart Ballast Box, 10 Pack

ICN2P32N, 120-277V, 50-60Hz Input Frequency, Solid Wire Type, Instant Start Centium Electronic Fluorescent Ballast for 2 F32T8 Lamp Type, Indoor/Outdoor Use with Automatic Restart Ballast Box, 10 Pack

• FEATURES: With its reliable and long-lasting energy efficient performance, the Ciata ICN2P32N Instant Start Centium Electronic Fluorescent Ballast is a perfect choice as an Electronic Ballast that regulates the current to the lamps and provides sufficient voltage to start the lamps. Featuring a starting method of Instant Start and Automatic Restart facility, the Ballast will be a premium addition to any Fluorescent F32T8 Lamp type fixture.
• GENERAL INFO AND DIMENSIONS: Designed for 1/2 Piece/Unit T8 Fluorescent Lamp piece per unit, the Ciata Ballast features a T-Case Maximum Temperature (Nom) of 70°C. The Instant Start Centium Electronic Fluorescent Ball features a Sound Rating of A category. Housing dimensions of the Electronic Ballast constitute the following 9.5-inch x 1.3-inch x 1.0 inch and constitute a Lamp Rated Watts of 32 W respectively.

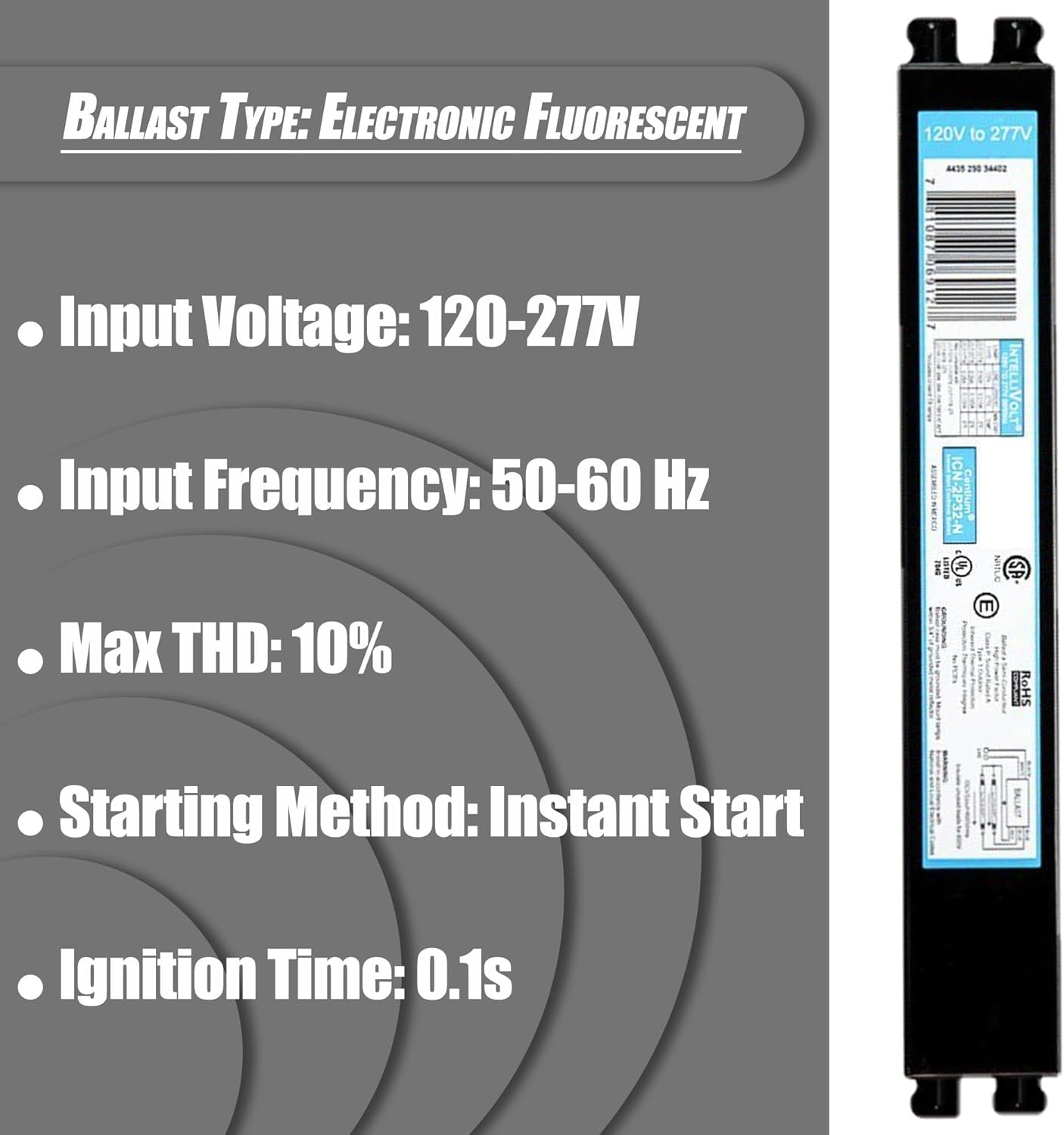

• ELECTRICAL AND OPERATING DETAILS: Constituting an Input Voltage of 120 to 277 V and Input Frequency of 50 to 60 Hz, the Ciata Ballast has a Max THD of 10% and has got an Ignition Time (Nom) of 0.1s. Other specifications constitute the following – Lamp Current Crest Factor (Nom): 1.7, Ballast Factor (Nom): 0.89, Power Factor (Nom): 0.98, Input Power (Nom): 56-56W and with a Minimum Operating Input Current of 0.22 A and Maximum Operating Input Current of 0.49 A respectively.
• PREMIUM QUALITY: The Ciata Instant Start Centium Electronic Fluorescent Ballast Housing Material is made of high-quality Metal that ensures lifetime durability and high quality for the product. The product meets strict high-quality requirements to be safe and reliable and is approved for Indoor/Outdoor location use. The Electronic Ballast is suitable for Outdoor area use.
• WIRING SPECIFICATIONS: Wiring specifications of the product constitute a Wire Gauge (Nom) of 18AWG mm and Solid Wire Type. The Electronic Ballast does not have both Color Input and Output Terminal along with Tandem Wiring and Through Wiring Configuration feature in the standard product. The Lamp connection of the ballast is of Parallel type and features a Wire Strip length of 0.50/0.375mm. The Remote Wiring Configuration feature is allowed in the Ballast which allows the ease of operation.
