-10%

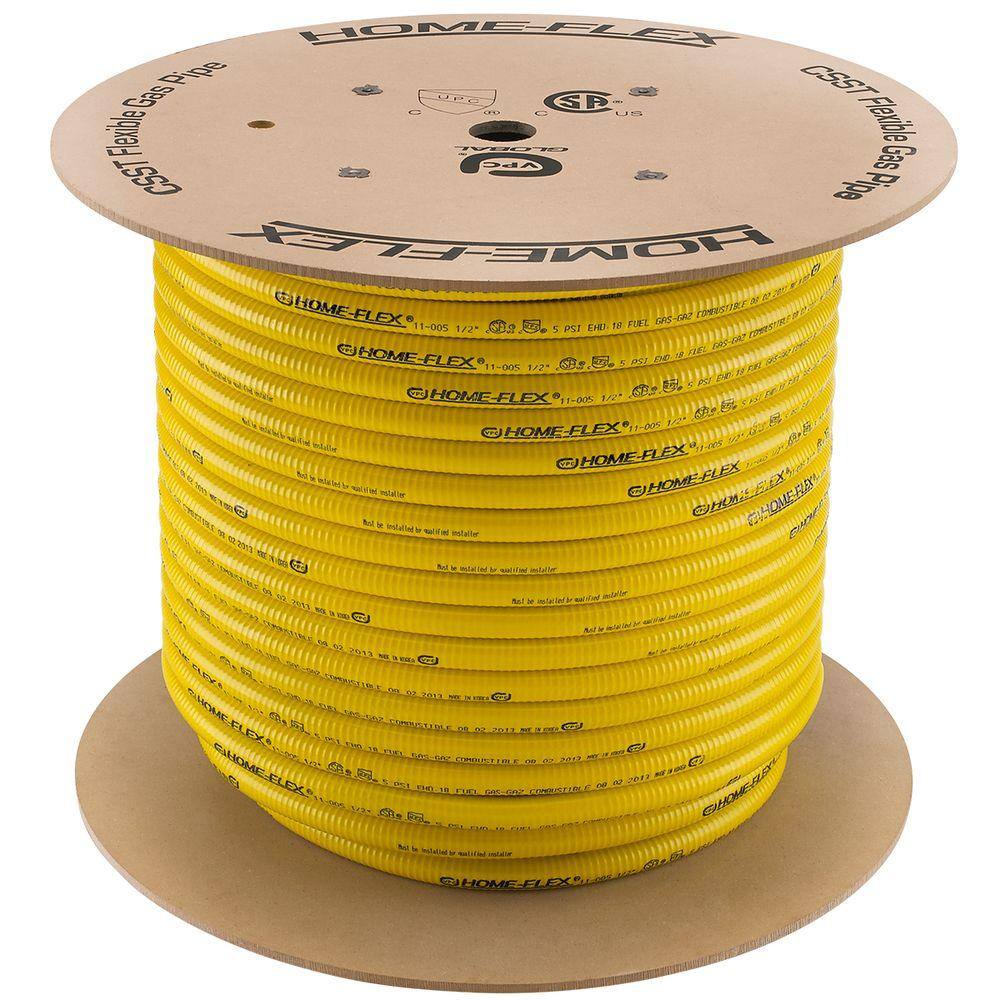

HOME-FLEX 11-005250 1/2 in. CSST x 250 ft. Corrugated Stainless Steel Tubing
Original price was: $396.63.$356.97Current price is: $356.97.
- For use with Natural Gas and Liquid Propane applications
- Material is cleaner and easier to handle than black steel pipe
- Installers should be certified to install HOME-FLEX CSST
HOME-FLEX 11-005250 1/2 in. CSST x 250 ft. Corrugated Stainless Steel Tubing
HOME-FLEX Corrugated Stainless Steel Tubing or CSST is great for installation of gas appliances. CSST easily snakes into attic and basements areas, around corners and bends, and through walls. Much easier to work than steel pipe, uses fewer fittings, and weighs a lot less too. Certification through manufacturer is recommended before installing CSST.
- Saves time – 60% time savings vs. steel pipe fitting
- Cleaner and easier to handle than black steel pipe
- Bends around corners eliminating need for additional joints and fittings

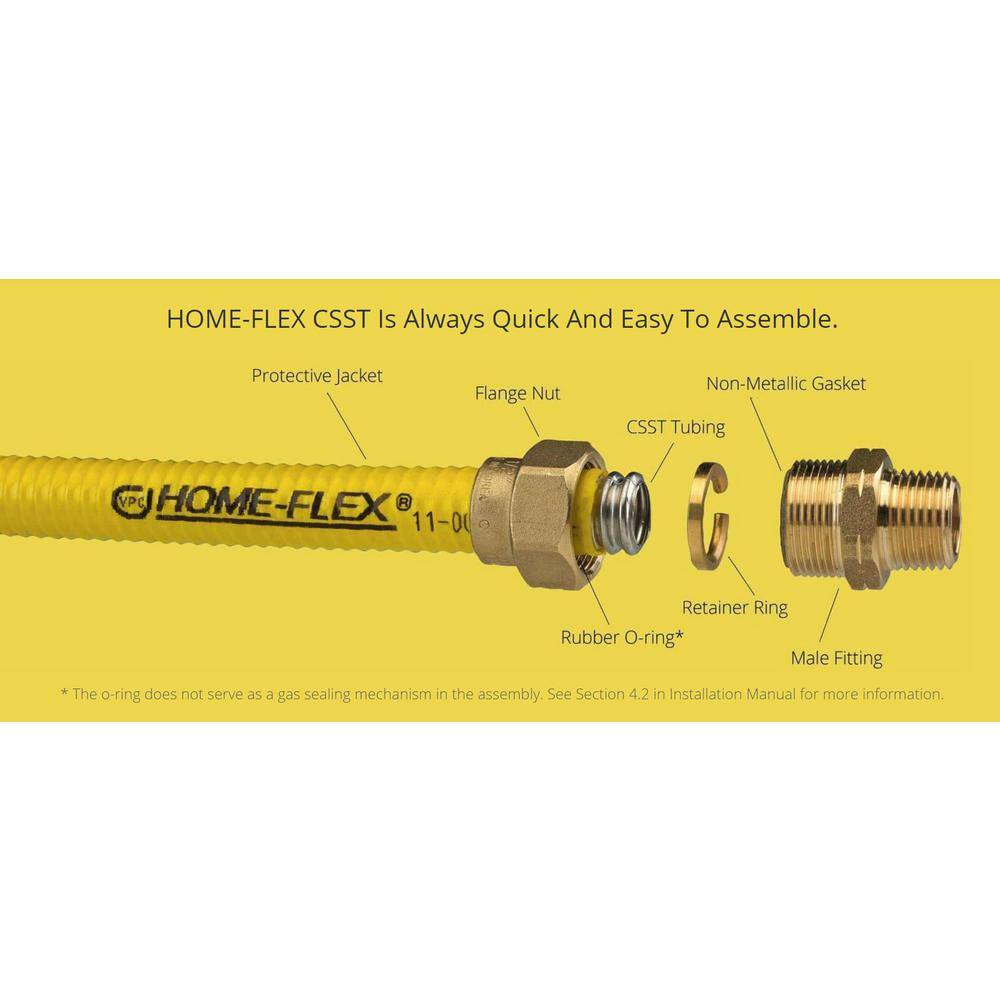

- Use coordinating HOME-FLEX CSST fittings
- Great for seismic areas – ridged pipe often leaks after even small tremors
- CSA and IAPMO certified
- Generally for indoor use only but can be used outdoors in specific instances. Should never be used for direct burial. Consult the Home Flex CSST Design & Installation Manual at Homeflex.com prior to purchase.
- Not to be used with Home Flex UNDERGROUND fittings.
- CSST tubing operating pressure: 25psi (max 125psi). Operating temperature range: -20f to +200f. Stainless steel melting temperature: 2400f.
- HOME-FLEX Corrugated Stainless Steel Tubing (CSST) flexible gas piping material must be installed by a qualified installer who has been certified in the use of the HOME-FLEX gas piping system. Certification can be completed by reading the System Design and Installation Manual and registering with Valencia Pipe Company to obtain a qualified installer card. Register at homeflex.com; “Get Certified” option.
- Some areas of the United States do not allow installation of CSST for fuel gas piping systems. It is the installer’s responsibility to check and understand all codes governing the location of installation prior to installing HOME-FLEX CSST. See specifics in the HOME-FLEX System Design & Installation Manual available for viewing or download at homeflex.com.
- CSST is generally for indoor use; however, it can be used outdoors and/or underground with very specific parameters. Please see the HomeFlex Design & Installation Manual on this site and/or at homeflex.com for details. If considering an outside underground installation, we suggest you check out Home Flex UNDERGROUND products.
Dimensions
| Actual inside diameter (in.) | .551 | Actual outside diameter (in.) | .76 |
|---|---|---|---|
| Nominal Inside Pipe Diameter (In.) | 1/2″ | Pipe Wall Thickness (In.) | .01 |
| Product Length (ft.) | 250 ft |
Details
| Application | Natural Gas, Propane | Color Family | Yellow |
|---|---|---|---|
| Color/Finish | Yellow | Connectivity | Threaded |
| Material | Stainless Steel | Maximum Flow Rate (gallons per minute) | 0 |
| Maximum working pressure (psi) | 25 | Maximum Working Temperature (F) | 200 |
| Minimum working temperature (F) | -20 | Pack Size | 1 |
| Pipe Features | Flexible | Pipe or Fitting Product Type | Pipe & Tubing |
| Product Weight (lb.) | 36 lb |
