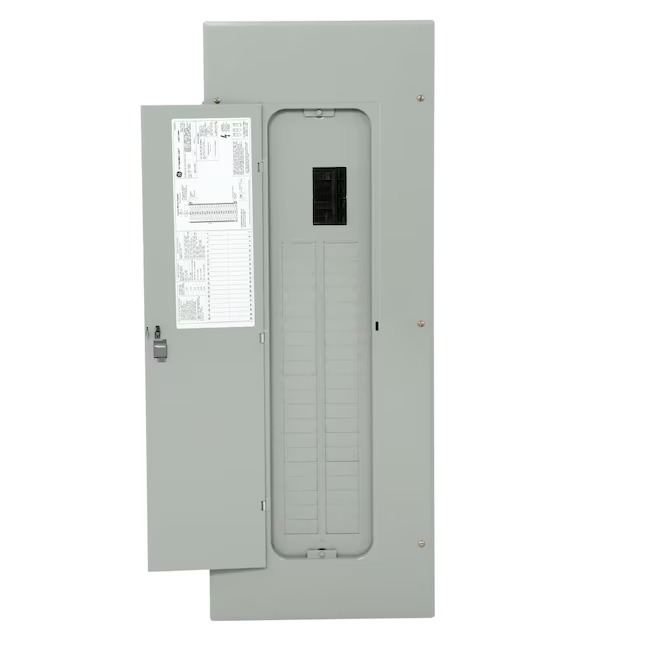

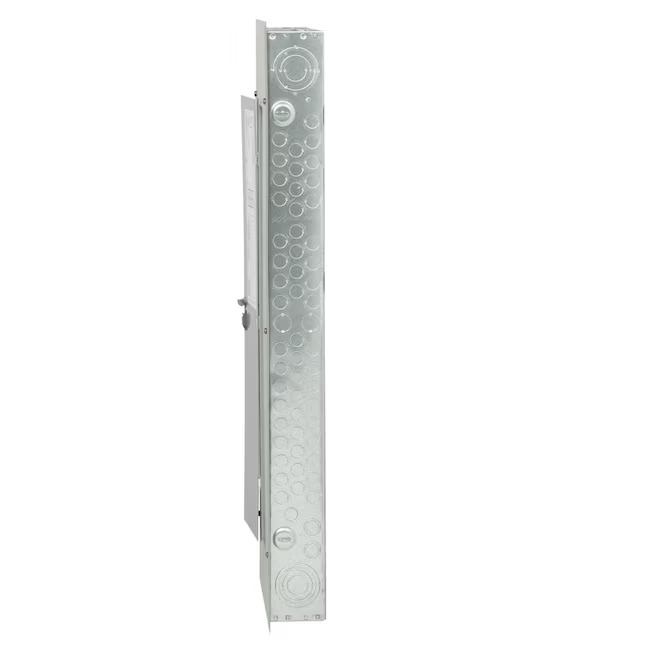

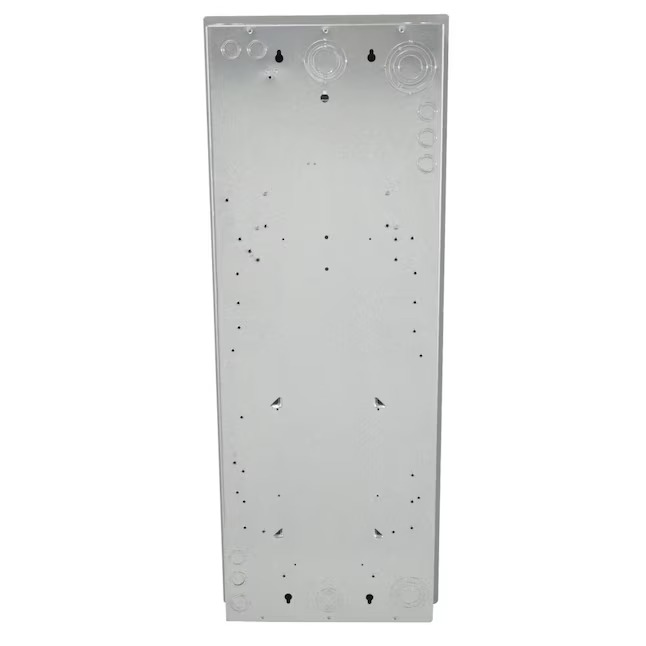

GE TM4020C80K PowerMark Gold 200 -Amp 40 -Spaces 80 -Circuit Indoor Main breaker Load Center (Value Pack)
The GE 200 Amp 40-Space 80-Circuit Main Breaker Indoor Load Center Contractor Kit is pre-packaged with a selection of circuit breakers. The UL-listed load center has holes rated 100% split neutral on each side that are compatible with #14-4 wire. The breaker box is a single-phase, 3-wire unit with a factory-installed main breaker. The center is designed and built for faster installation and a more dependable performance. This unit is compatible with DFs, GFCIs, AFCIs and standard circuit breakers.
- Indoor NEMA 1 Enclosure (combination surface/flush)
 - Main Breaker is Factory Installed
 - Includes 4 select Circuit Breakers
 - Features a copper bus for increased conductivity
 - Galvanized box for rust resistance with a self-adjusting dead-front cover
 - Features full-length neutral bars for faster and easier wiring
 - Compatible with GE THQL, THQP, GFCI and AFCI circuit breakers

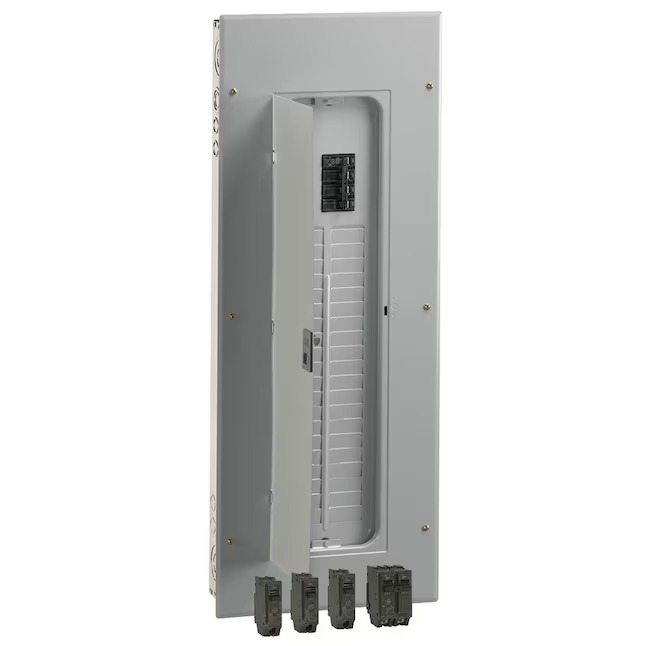

 - Kit includes a 200 Amp indoor main breaker circuit breaker panel and 3 THQL1120 20 Amp single-pole circuit breakers and 1 THQL2130 30 Amp double-pole circuit breaker
 - ANSI certified and UL Listed

| Â General | |||
|---|---|---|---|
| Manufacturer Color/Finish | Gray | Type | Main breaker |
| Series Name | PowerMark Gold | ||
| Â Dimensions | |||
| Depth (Inches) | 3.75 | Width (Inches) | 14.38 |
| Height (Inches) | 39.31 | ||
| Â Features | |||
| Amperage | 200 | Orientation | Over/Under |
| Buss Bar Construction | Copper | Paintable | Yes |
| Circuits | 80 | Phase Type | Single phase (120/240) |
| Cover Included | Yes | Plug-On Neutral | No |
| Feed-Through Lugs | Yes | Usage | Service entrance |
| Ground Bar Installed | No | Use Location | Indoor |
| Mounting Type | Surface | Value Pack | Yes |
| Number of Spaces | 40 | Value Pack Contents | Kit includes a 200 Amp indoor main breaker circuit breaker panen and 3 THQL1120 20 Amp single-pole circuit breakers and 1 THQL2130 30 Amp double-pole circuit breaker |
| Â Compatibility | |||
| Brand/Model Compatibility | Compatible with GE THQL, THQP, GFCI and AFCI circuit breakers |
