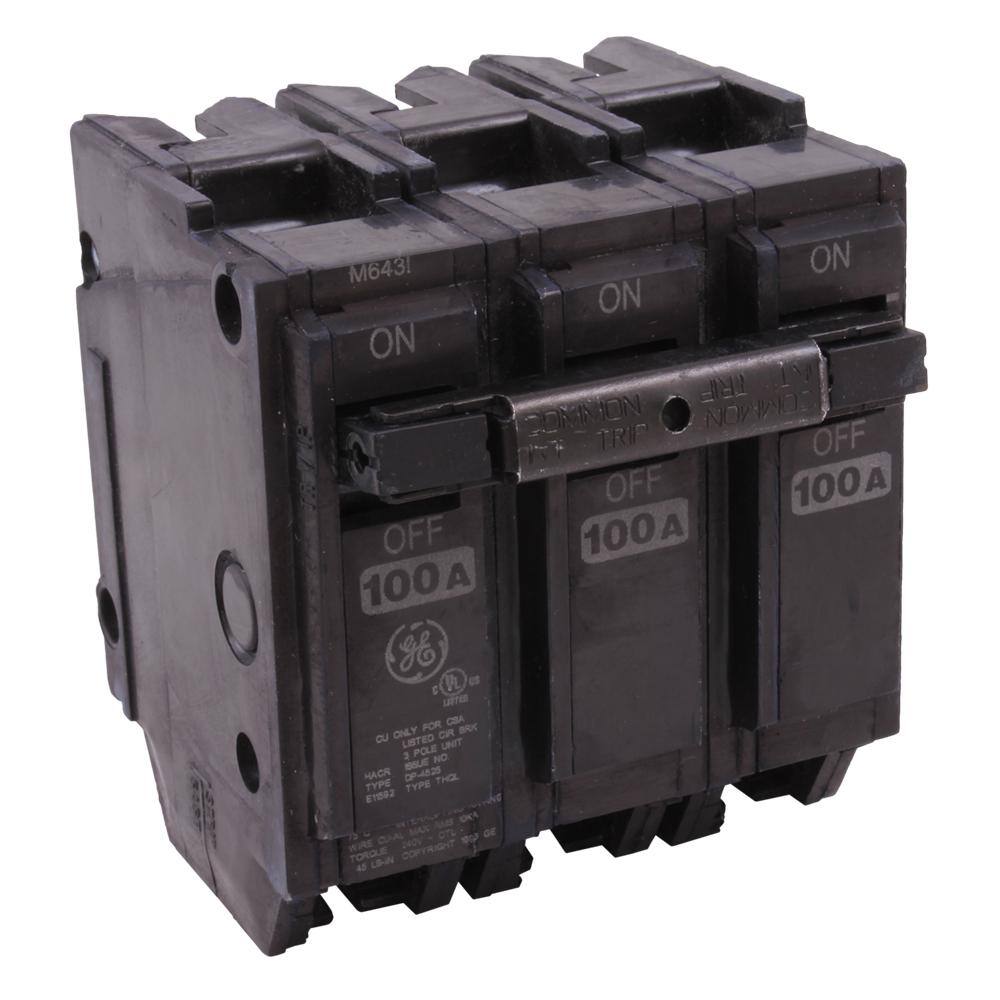

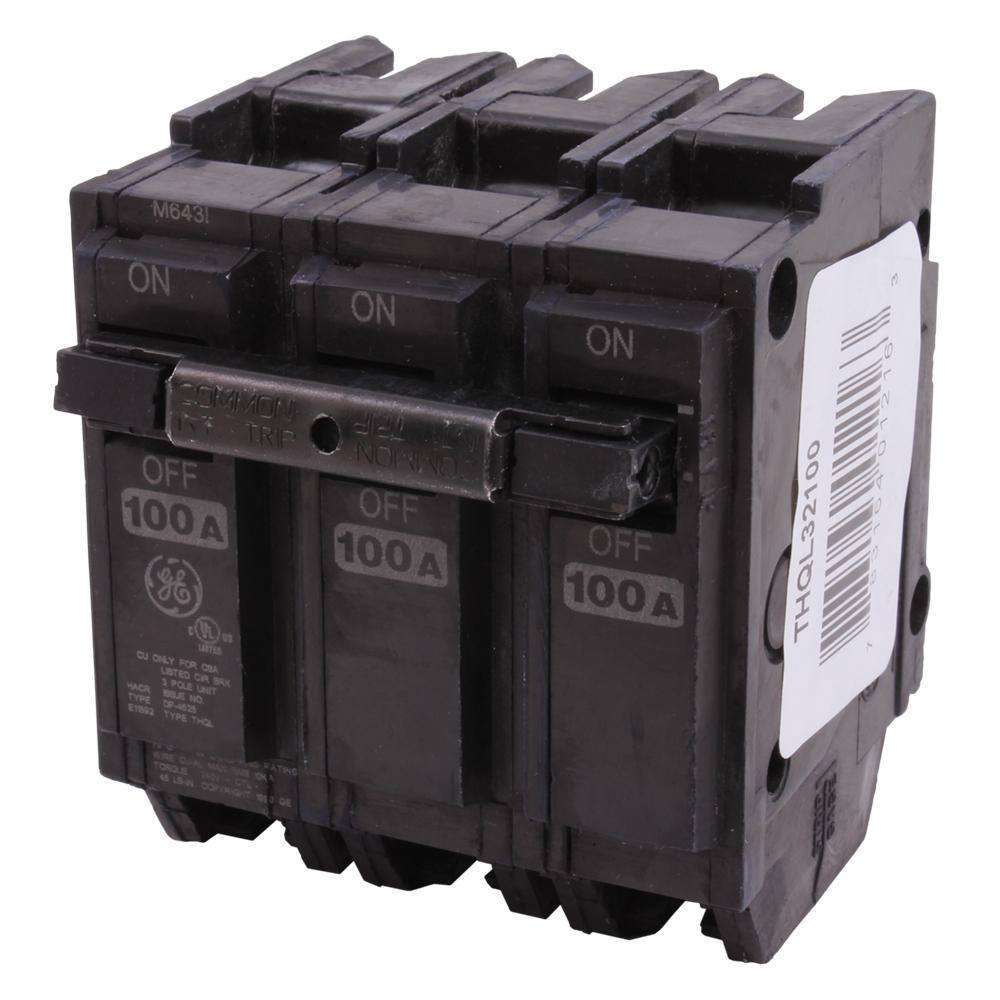

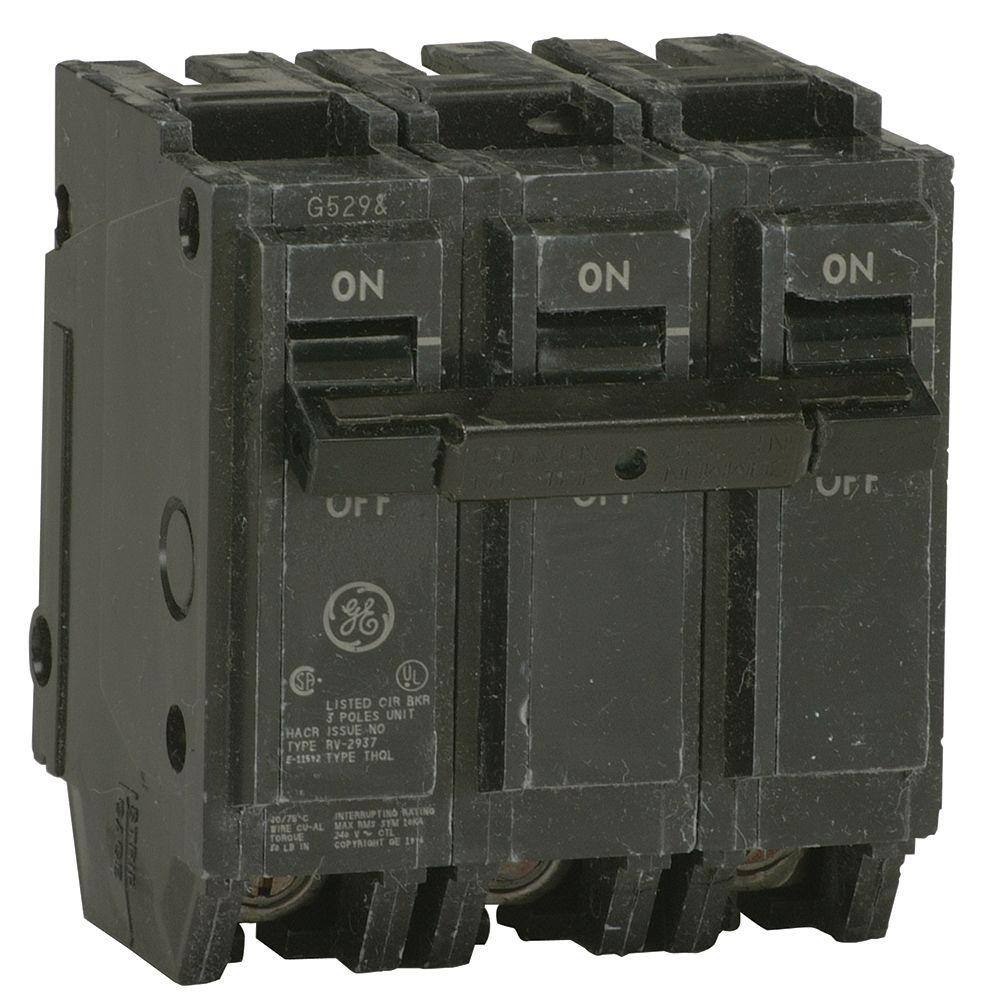

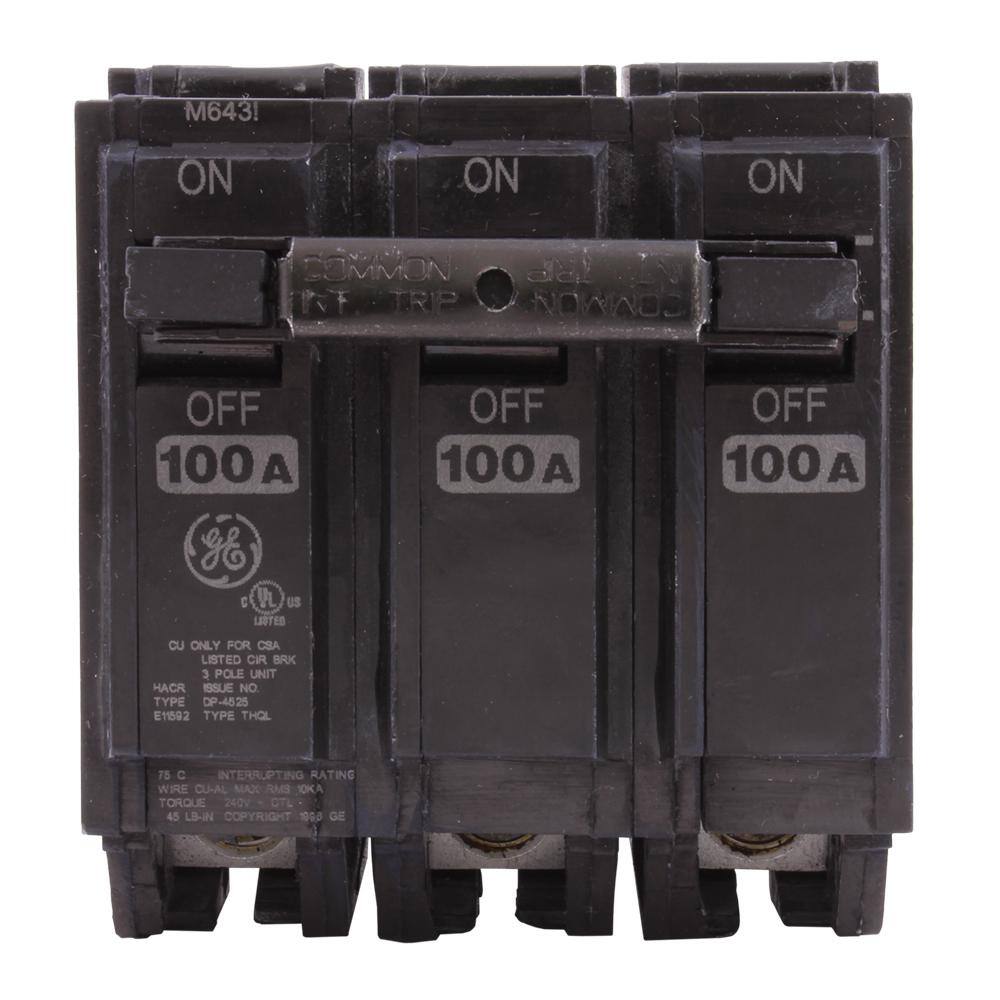

GE THQL32100 Q-Line 100 Amp 3 in. 3-Pole Circuit Breaker
The GE Q-Line 100 Amp 3 in. Triple-Pole Circuit Breaker has a case made of heat-resistant thermoset for stability and structural integrity. The unit has a tin-plated copper stab to create a reliable, permanent and corrosion-resistant connection. The circuit breaker has a dedicated calibration screw which is cemented to prevent shifting. The attached screw creates a stable calibration for optimum performance.

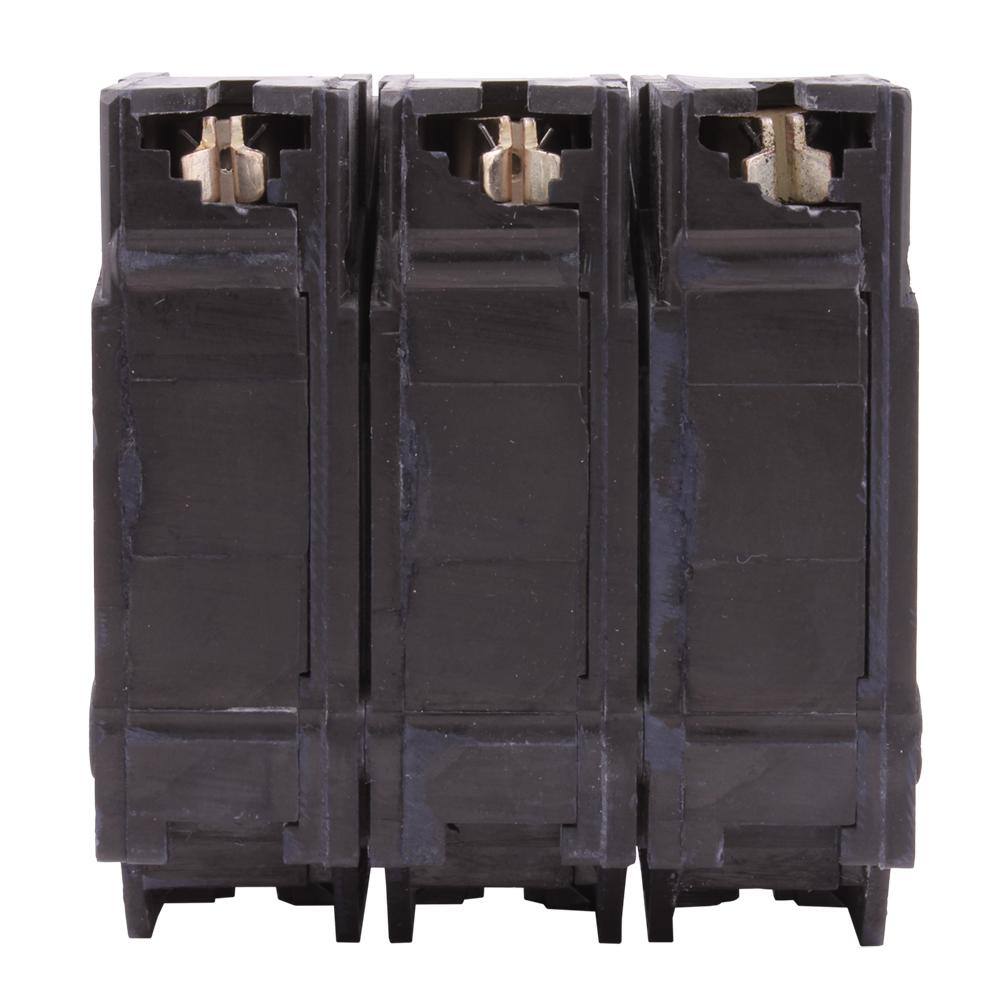

- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connection
- Box-type terminals
- Calibration screw is cemented to prevent shifting
- Case is made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
- Meets NEMA standards
- ANSI certified and CSA and UL listed
Dimensions
| Product Depth (in.) | 3 in | Product Height (in.) | 3 in |
|---|---|---|---|
| Product Width (in.) | 3.375 in |
Details
| AIC Rating | 10000 | Breaker Type | Main Breaker |
|---|---|---|---|
| Connection Type | Non-Neutral | Interruption Type | Standard Trip |
| Maximum Amperage (A) | 100 A | Mounting Type | Plug-On |
| Number of Poles | Triple | Pack Size | 1 |
| Product Weight (lb.) | 1.072 lb | ||
| Series Type | Not Specified | Trip Unit | Thermal Magnetic |
| Voltage (V) | 240 V |
