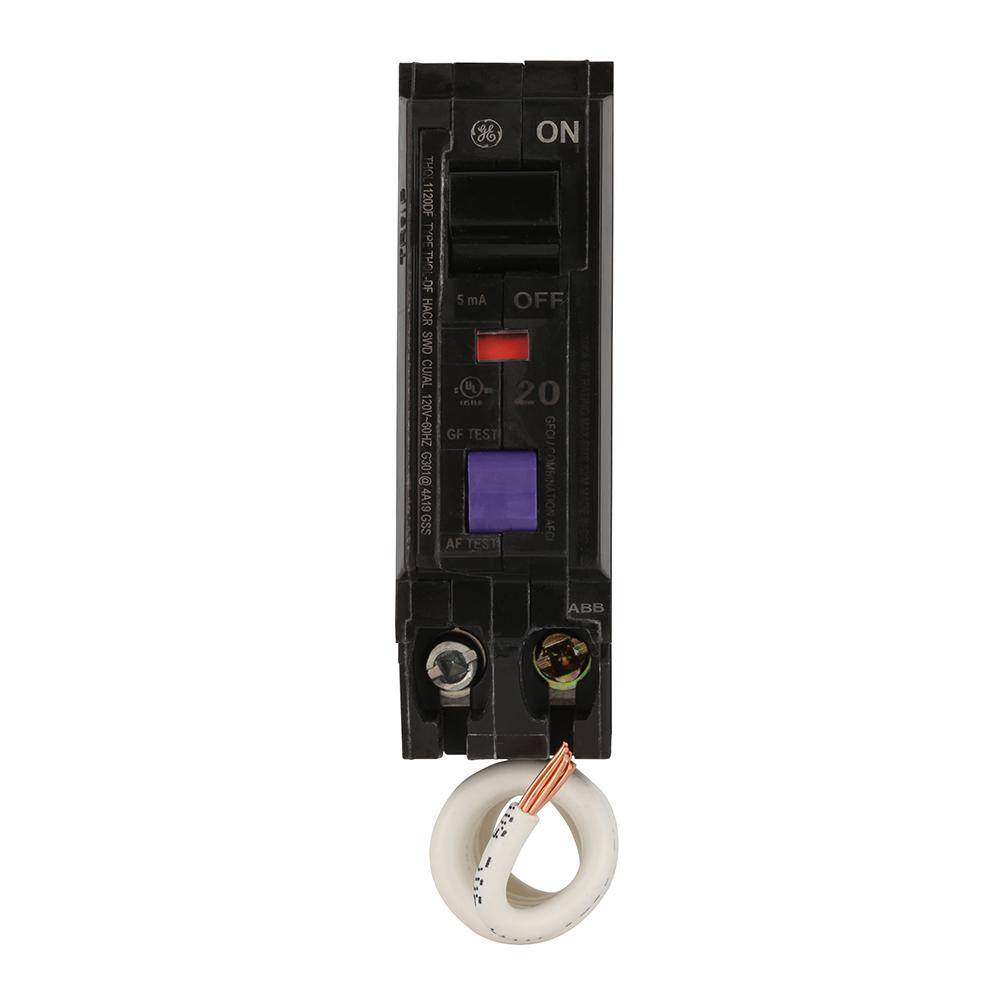

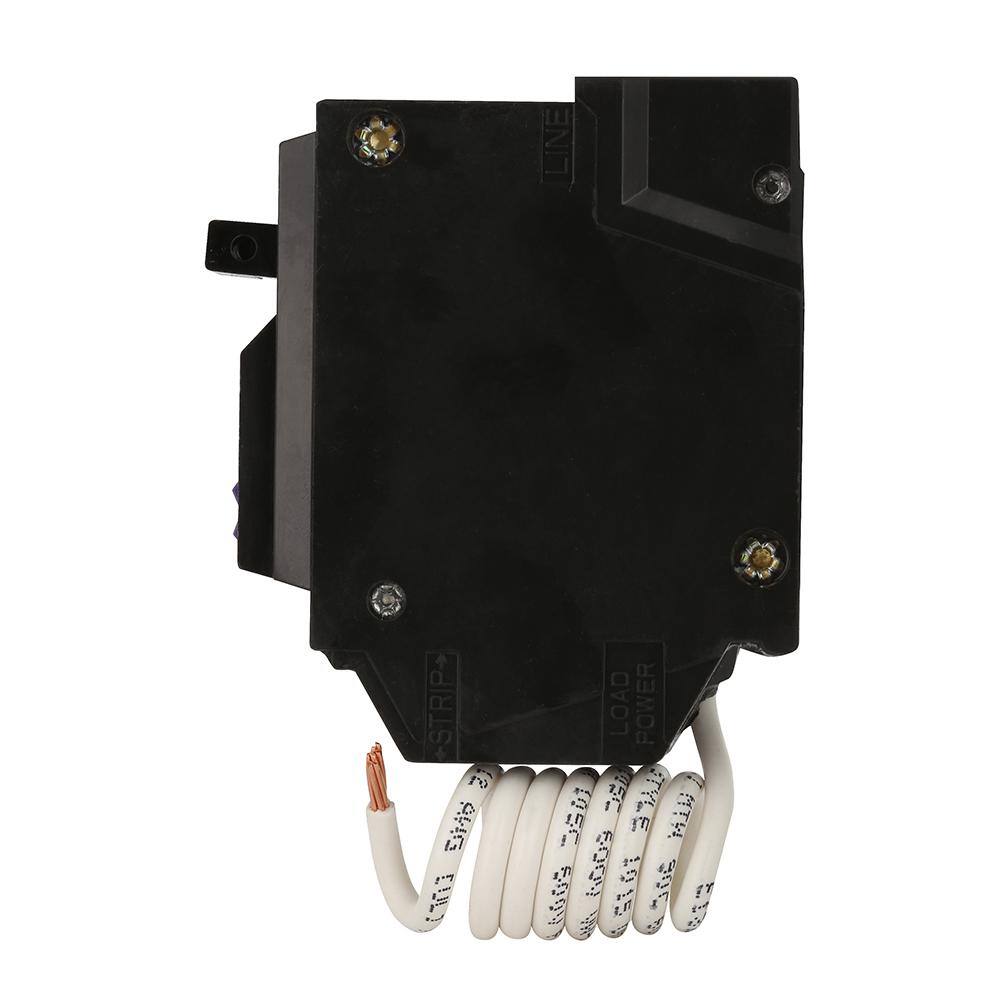

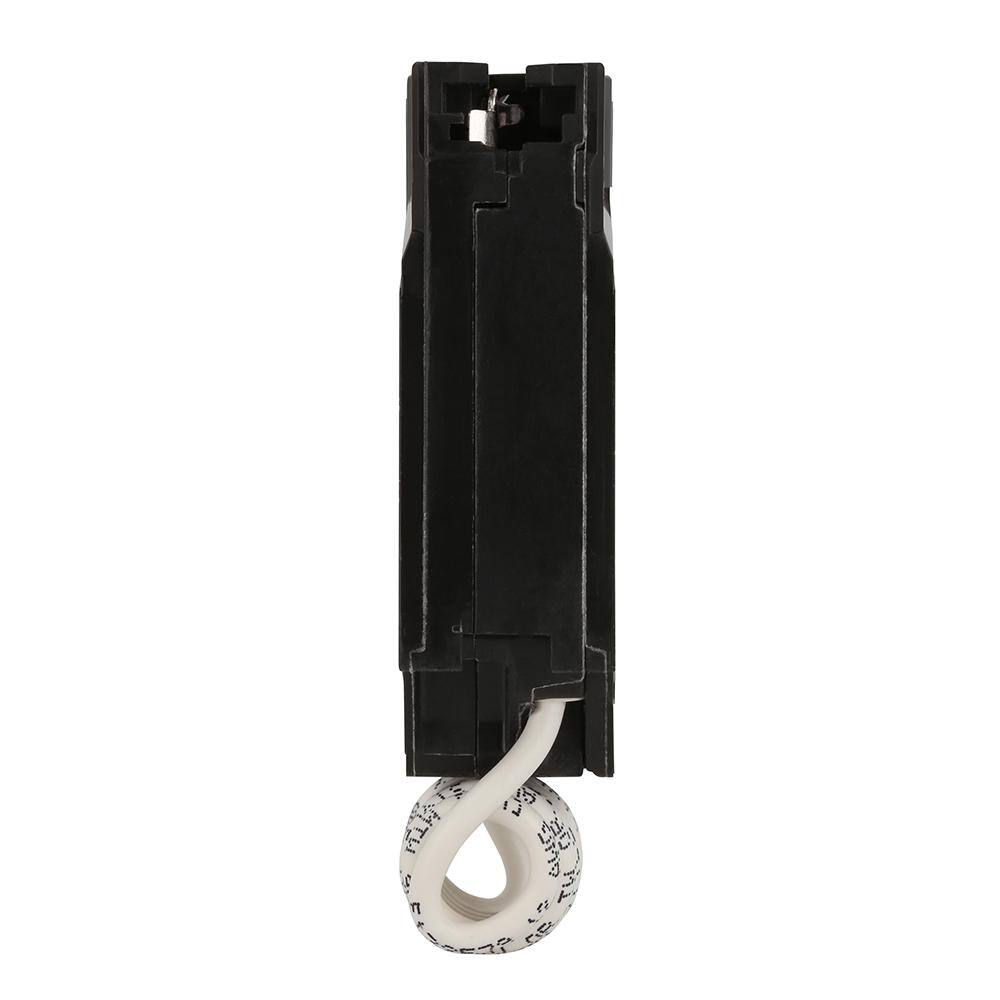

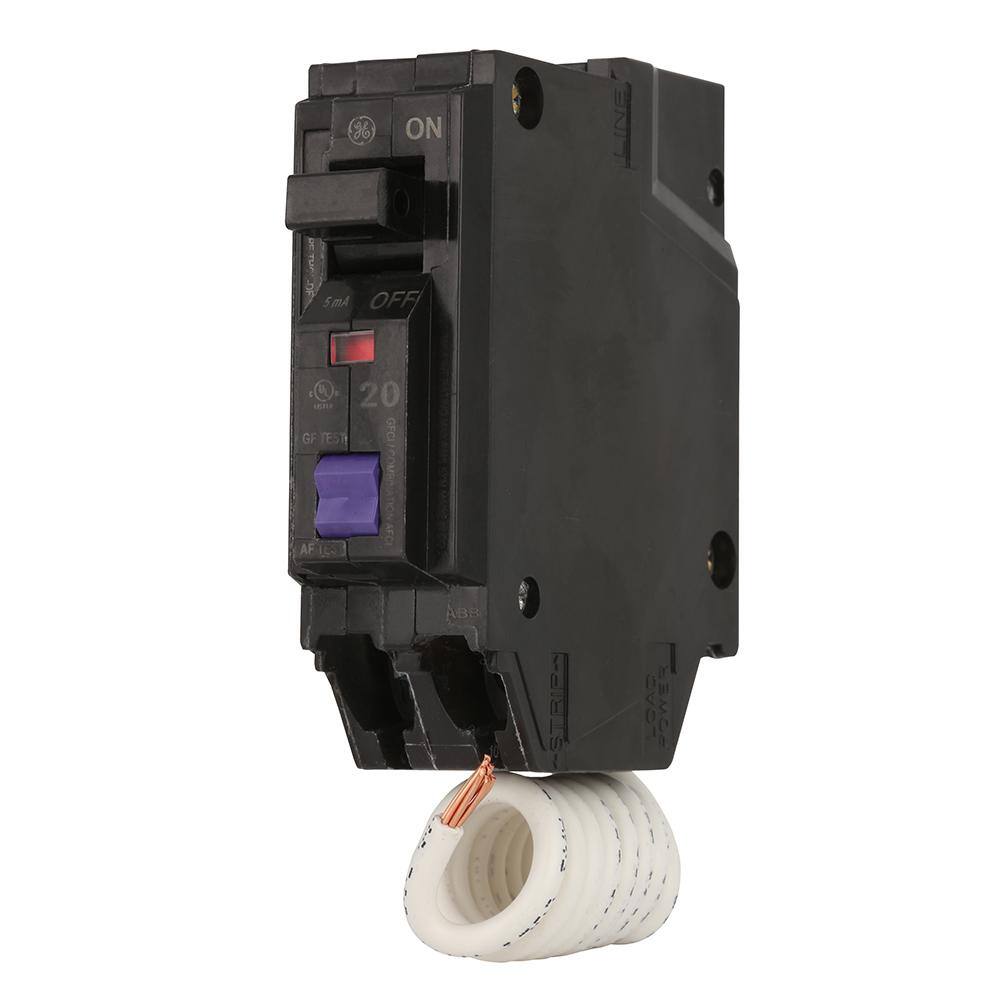

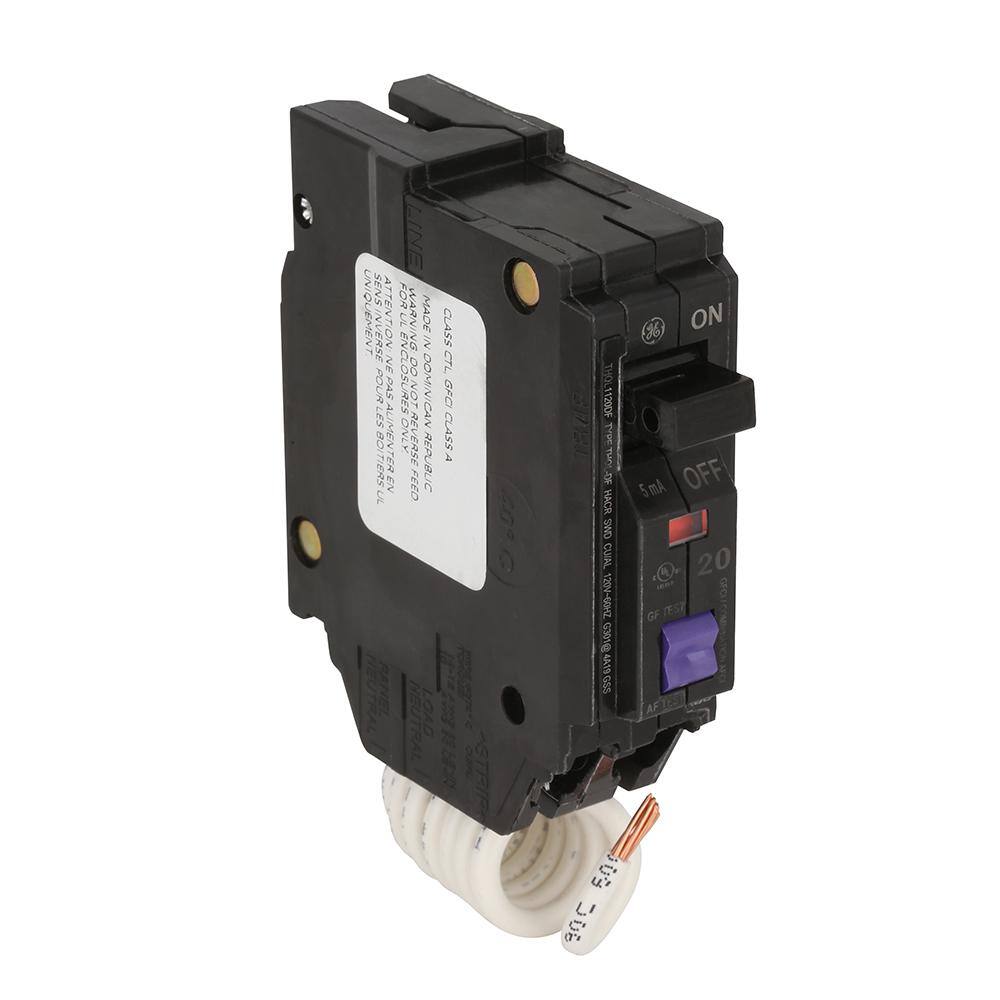

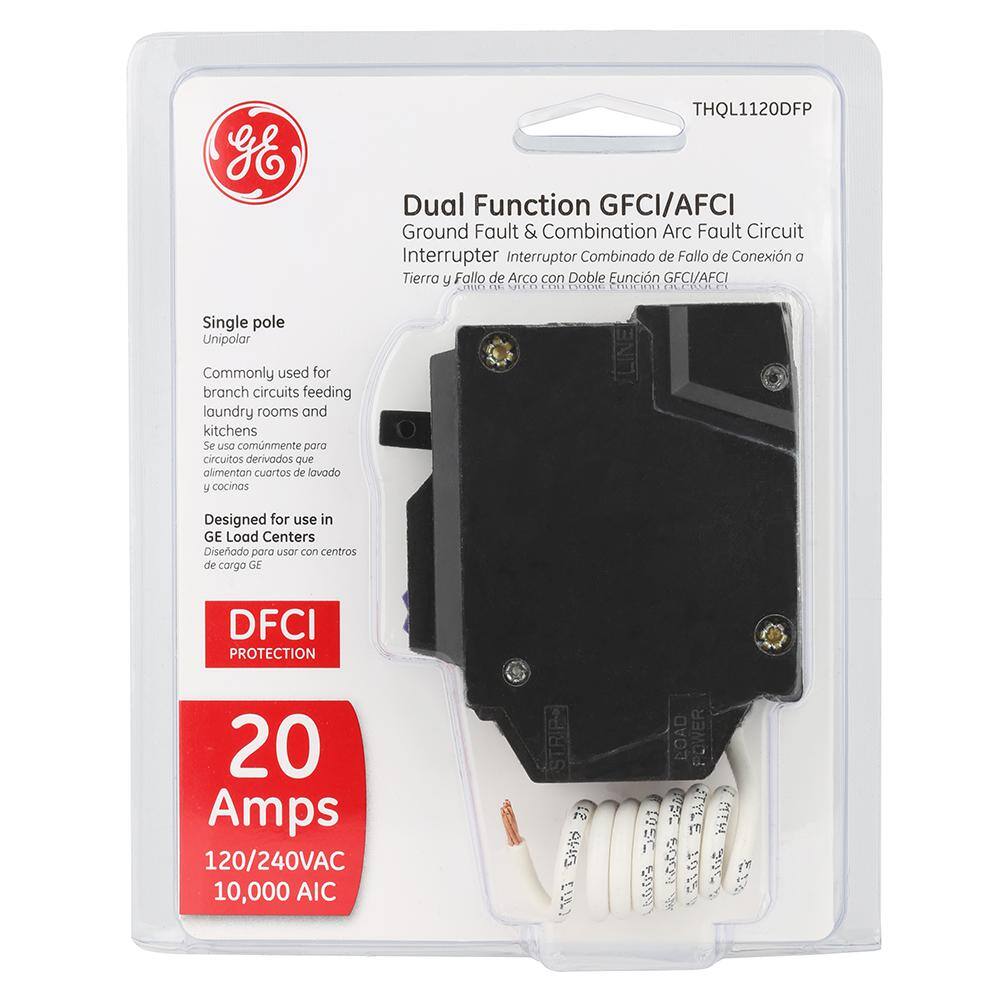

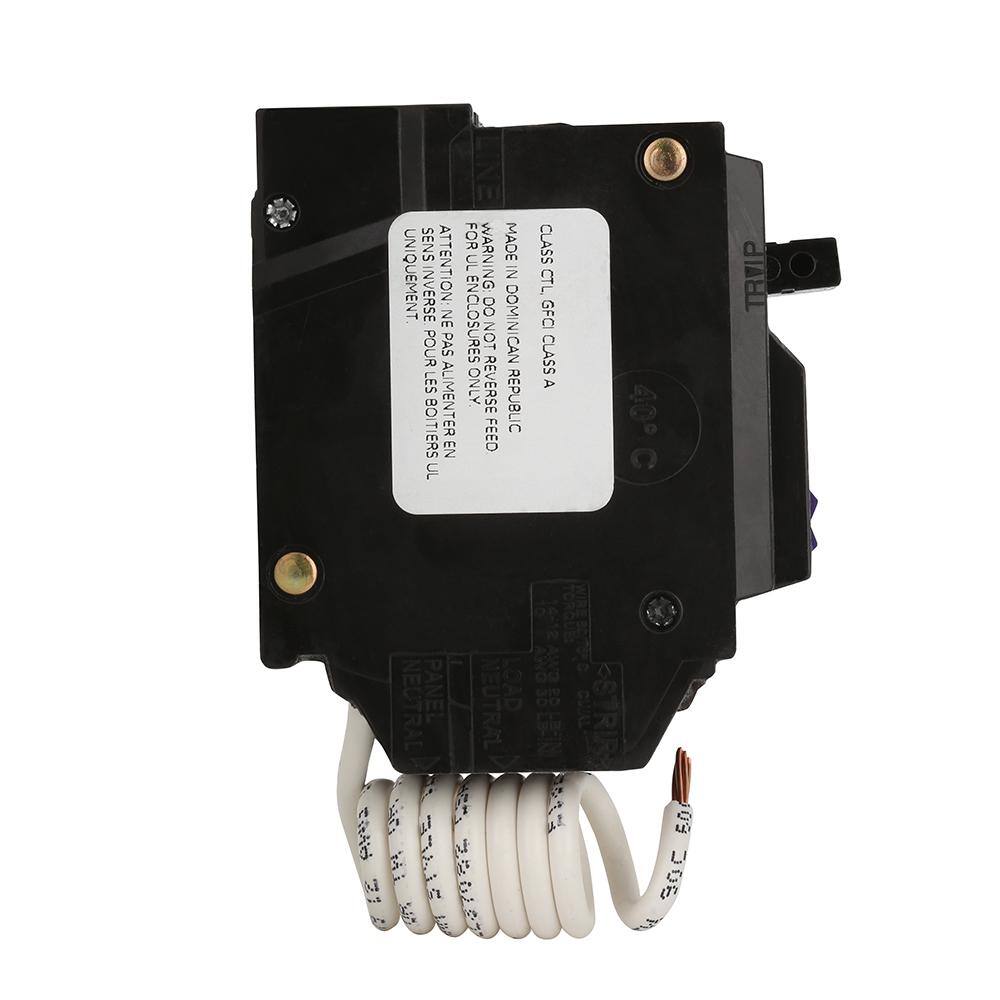

GE THQL1120DFP Q-Line 20 Amp 1-Pole Dual Function Arc Fault/GFCI Breaker
Original price was: $68.97.$62.07Current price is: $62.07.
- Provides ground fault and arc fault circuit protection
- LED blinks on trip to show the last known trip condition
- Built in test features
GE THQL1120DFP Q-Line 20 Amp 1-Pole Dual Function Arc Fault/GFCI Breaker
The 2014 NEC has mandated Ground Fault and Arc Fault circuit protection on many 15 Amp and 20 Amp kitchen and laundry circuits. General Electric offers both Ground Fault and Combination Arc Fault (GFCI and CAFCI) protection in a simple to apply and cost effective solution. GFCI protection guards against ground fault as an effective means of preventing electrical shocks. GFCI circuit breakers accomplish this by detecting when current is “leaking” somewhere outside its intended path. If your body provides path to ground for this “leakage” you could be burned, shocked or even electrocuted. CAFCI protection guards against damage or fires which can result from arcing and sparking that can arise from deteriorated wires, poor connections and breaches in wire insulation. With more than 67,000 home fires claiming more than 485 lives and injuring 2,300 victims annually, the added safety provided by CAFCI protection is an important step forward in reducing this risk.
- GE DFCI has important features for assisting you or your electrician in troubleshooting a trip, should the DFCI trip, the orange LED will blink to indicate the last known trip condition
- Indicates the last known trip condition by illuminating LED appearing for 5 seconds each time the DFCI is turned on for up to 30 days
- Unit’s last known trip condition can be cleared by performing a series of functions provided in the instructions
- DFCI has a self-test feature that meets a June 2015 requirement from UL on all ground fault circuit breakers
- Must be used with a dedicated neutral can’t be used with a shared neutral
Dimensions
| Product Depth (in.) | 6.57 in | Product Height (in.) | 1.32 in |
|---|---|---|---|
| Product Width (in.) | 6.63 in |
Details
| AIC Rating | 10000 | Breaker Type | Standard |
|---|---|---|---|
| Connection Type | Pigtail | Interruption Type | AFCI/GFCI |
| Maximum Amperage (A) | 20 A | Mounting Type | Plug-On |
| Number of Poles | Single | Number of Spaces | 1 |
| Pack Size | 1 | Product Weight (lb.) | 0.56 lb |
| Series Type | Not Specified | ||
| Trip Unit | Electronic | Voltage (V) | 120 V |
Warranty / Certifications
| Certifications and Listings | UL Listed | Manufacturer Warranty | One year warranty from first use |
|---|
