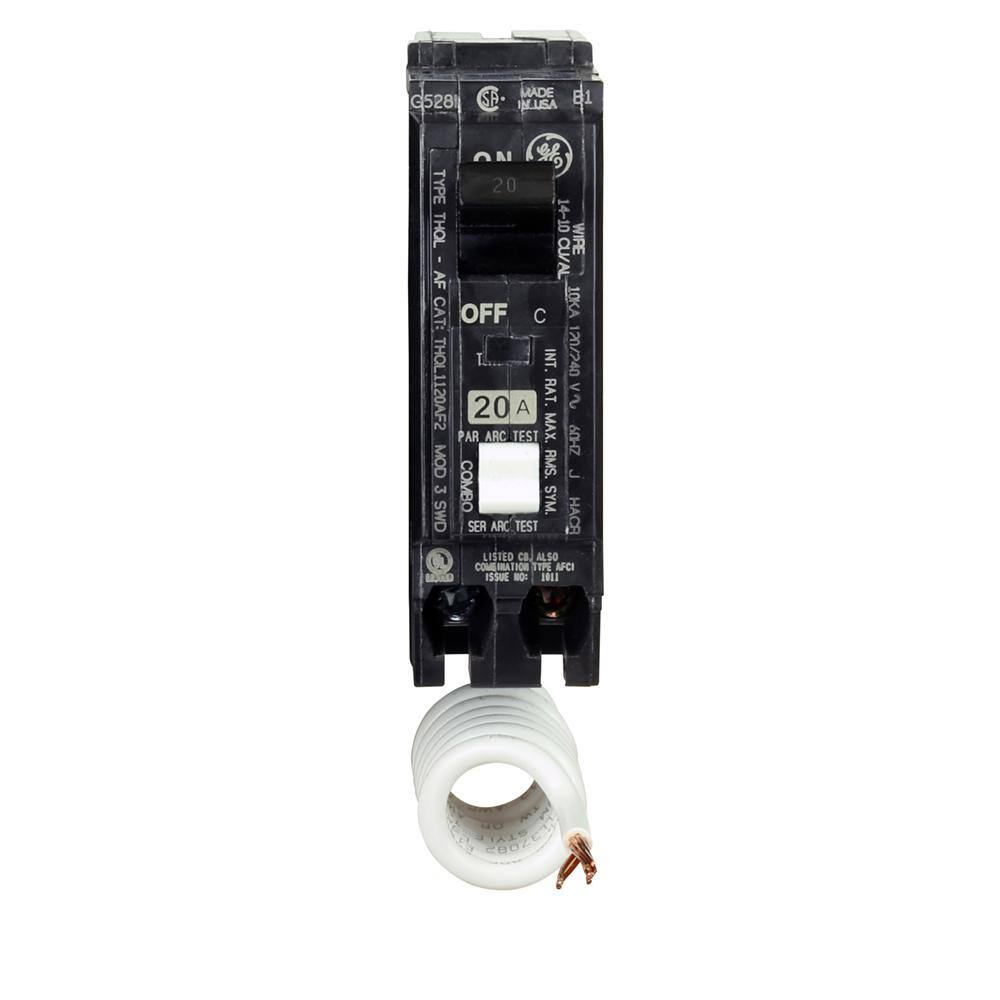

GE THQL1120AFP2 Q-Line 20 Amp 1 in. Single Pole Arc Fault Combination Circuit Breaker
Original price was: $49.40.$44.46Current price is: $44.46.
- GE residential electrical products is switching to ABB
- Provides arc fault protection
- 14-8 Cu/12-8 Al wire range
GE THQL1120AFP2 Q-Line 20 Amp 1 in. Single Pole Arc Fault Combination Circuit Breaker
The GE Q-Line 20 Amp 1 in. Single-Pole Arc Fault Combination Circuit Breaker detects arc faults in both parallel and series wiring. The circuit breaker has a dedicated calibration screw which is cemented to prevent shifting. The attached screw creates a stable calibration for optimum performance. The unit has a tin-plated copper stab to create a reliable, permanent and corrosion-resistant connection. The breaker case is made of heat-resistant thermoset for stability and structural integrity.
- Use to detect and mitigate arc faults in both parallel and series wiring
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connection
- Box type terminals
- Calibration screw is cemented to prevent shifting
- Case is made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
- Meets NEMA standards
- ANSI certified and CSA and UL listed
Dimensions
| Product Depth (in.) | 4.5 in | Product Height (in.) | 3 in |
|---|---|---|---|
| Product Width (in.) | 1 in |
Details
| AIC Rating | 10000 | Breaker Type | Standard |
|---|---|---|---|
| Connection Type | Pigtail | Interruption Type | AFCI |
| Maximum Amperage (A) | 20 A | Mounting Type | Plug-On |
| Number of Poles | Single | Number of Spaces | 1 |
| Pack Size | 1 | Product Weight (lb.) | .479 lb |
| Series Type | Not Specified | ||
| Trip Unit | Electronic | Voltage (V) | 120 V |
From the Manufacturer
