GE THQL1115AFP2 Q-Line 15 Amp Single-Pole Arc Fault Combination Circuit Breaker
Original price was: $62.97.$56.67Current price is: $56.67.
- GE residential electrical products is switching to ABB
- Provides arc fault protection
- 14-8 Cu/12-8 Al wire range

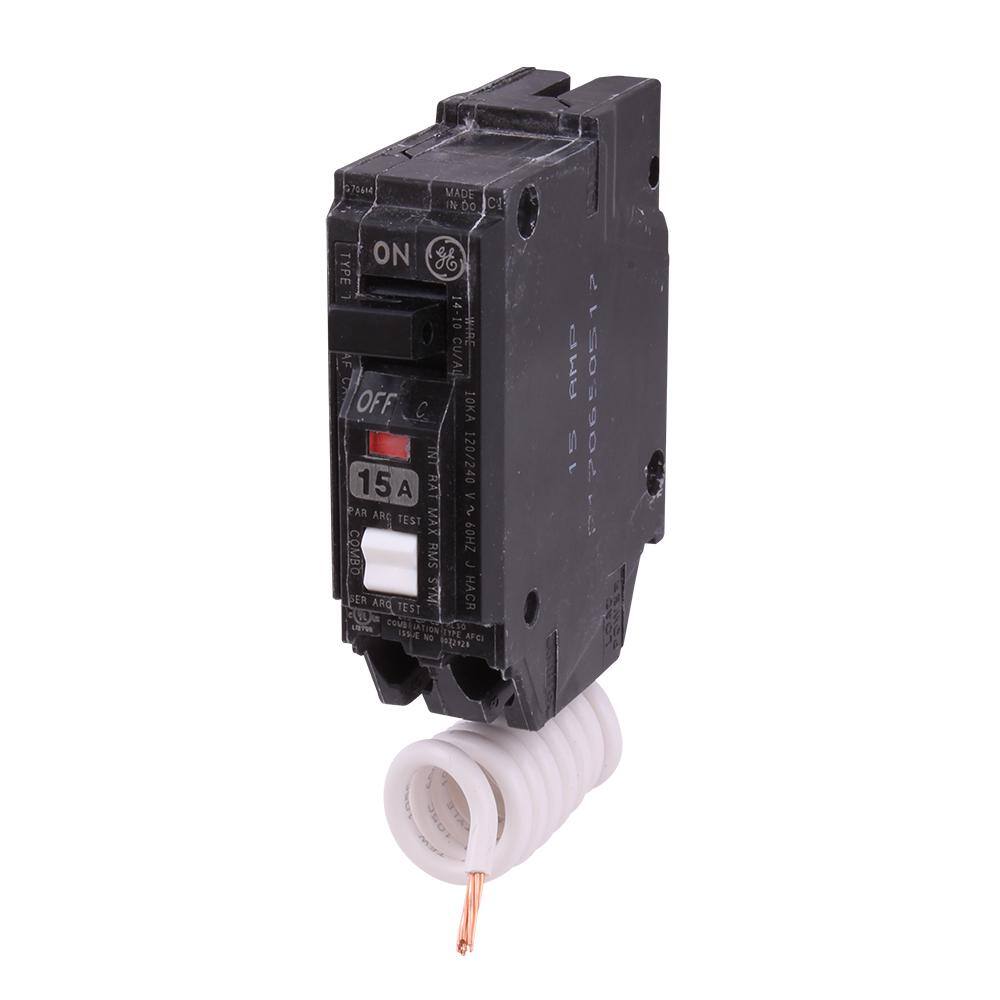

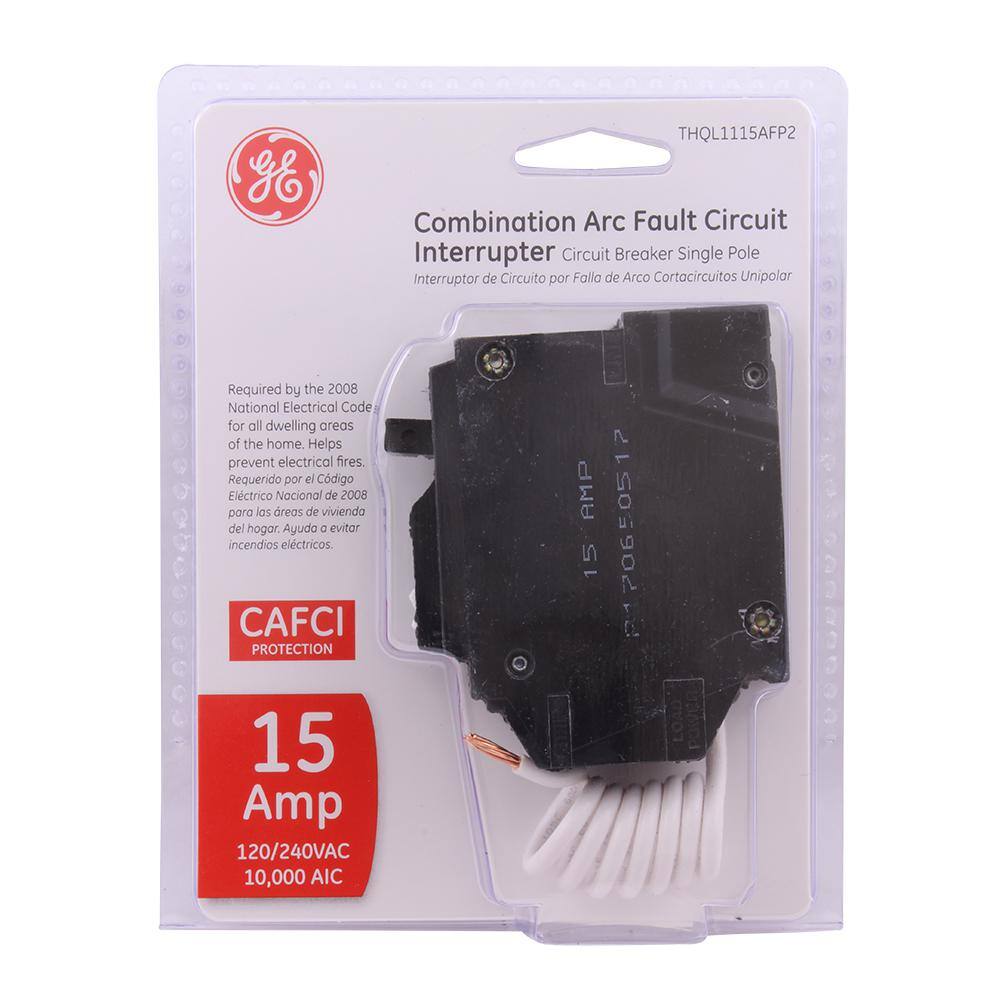

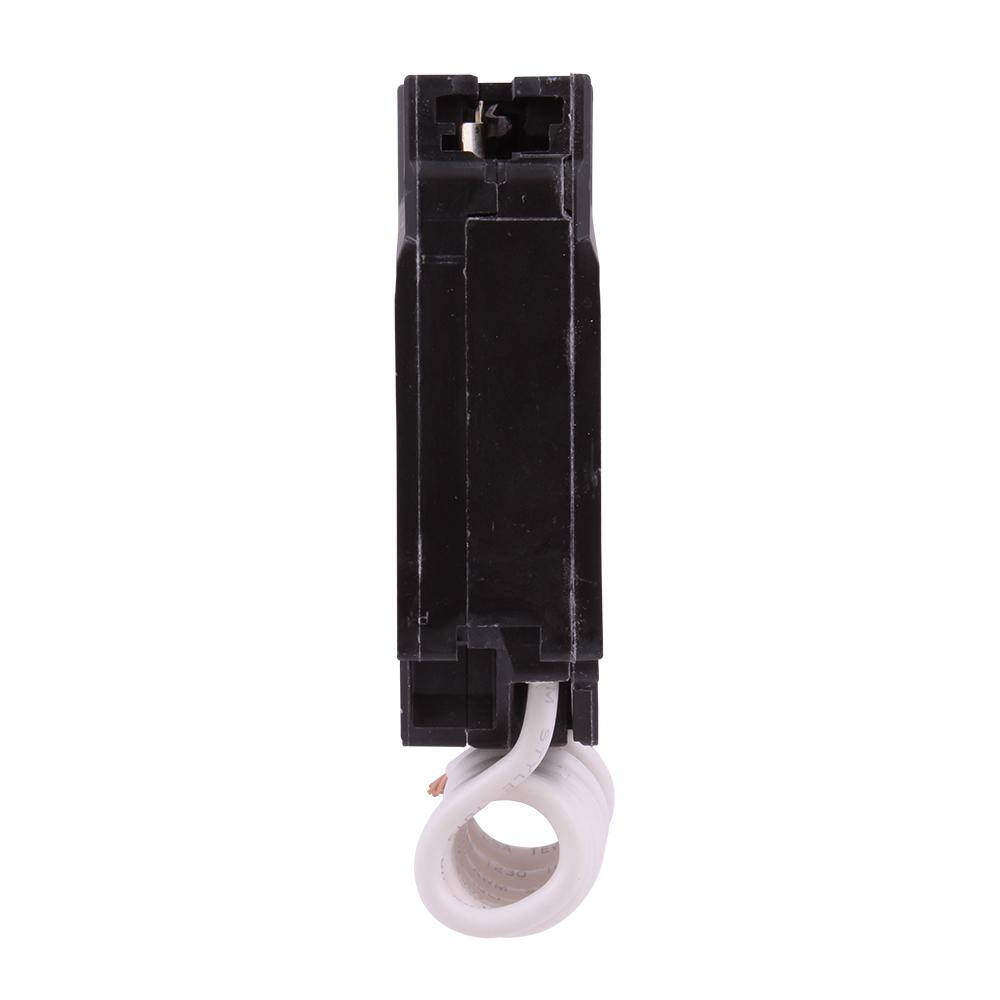

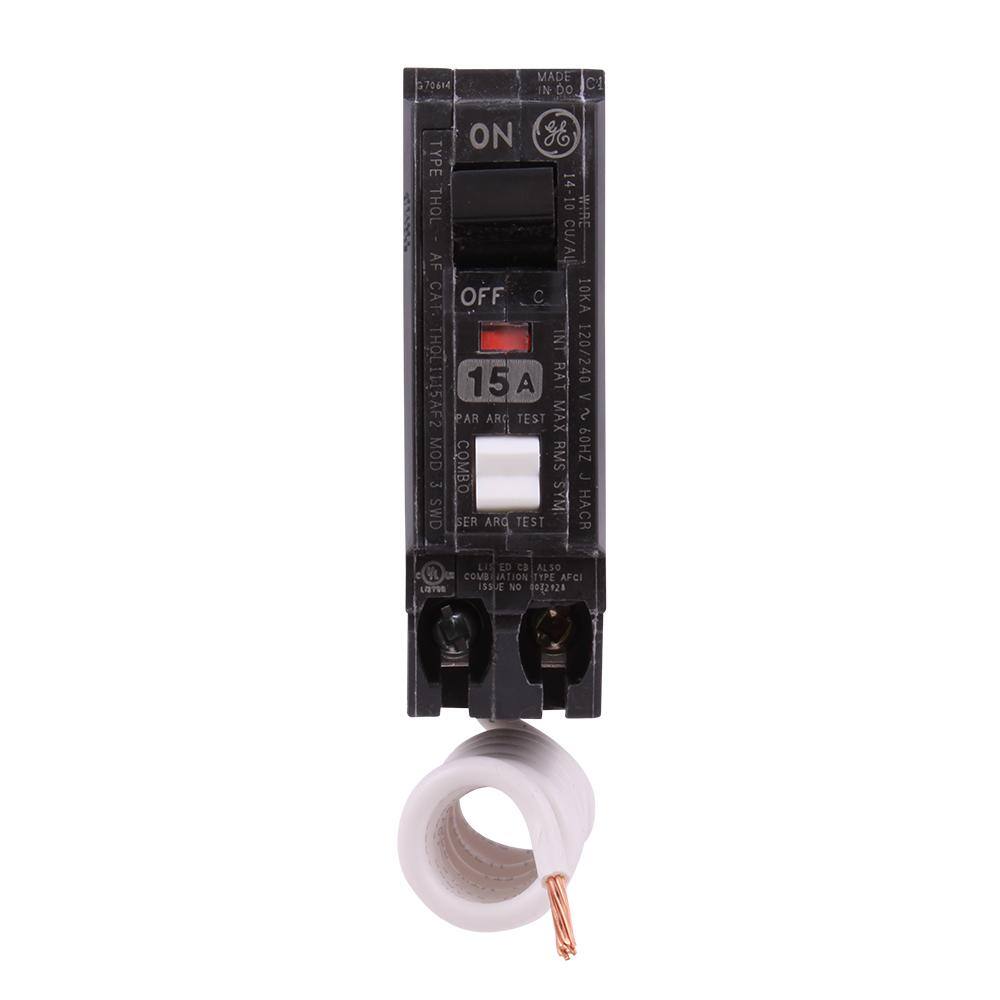

GE THQL1115AFP2 Q-Line 15 Amp Single-Pole Arc Fault Combination Circuit Breaker
The GE Q-Line 15 Amp 1 in. Frame Single-Pole Arc Fault Combination Circuit Breaker detects arc faults in both parallel and series wiring. The circuit breaker has a tin-plated copper stab to create a reliable, permanent and corrosion-resistant connection. The unit has a dedicated calibration screw which is cemented to prevent shifting. The attached screw creates a stable calibration for optimum performance. The breaker case is made of heat-resistant thermoset for stability and structural integrity.
- Use to detect and mitigate arc faults in both parallel and series wiring
- Tin-plated copper stabs create a reliable, permanent and corrosion-resistant connection
- Box-type terminals
- Calibration screw is cemented to prevent shifting
- Breaker case is made of heat-resistant thermoset for stability and structural integrity
- Trips to the center position
- Meets NEMA standards
- ANSI certified and CSA- and UL listed
Dimensions
| Product Depth (in.) | 6.45 in | Product Height (in.) | 1.3 in |
|---|---|---|---|
| Product Width (in.) | 4.15 in |
Details
| AIC Rating | 10000 | Breaker Type | Standard |
|---|---|---|---|
| Connection Type | Pigtail | Interruption Type | AFCI |
| Maximum Amperage (A) | 15 A | Mounting Type | Plug-On |
| Number of Poles | Single | Number of Spaces | 1 |
| Pack Size | 1 | Product Weight (lb.) | 0.45 lb |
| Series Type | Not Specified | ||
| Trip Unit | Electronic | Voltage (V) | 120 V |
