Eaton MBT48B200BTSBL Type BR 200 -Amp 4 -Spaces 8 -Circuit Outdoor Main breaker meter combo Load Center
Original price was: $229.00.$206.10Current price is: $206.10.
- Type BR 200 amp meter breaker panel 4 spaces and 8 circuits
- Panel contains a provision and bracket to insert a barrel lock in order to reduce theft of electrical power (barrel lock is not provided)
- Contains a CSR2200 main breaker
Eaton MBT48B200BTSBL Type BR 200 -Amp 4 -Spaces 8 -Circuit Outdoor Main breaker meter combo Load Center

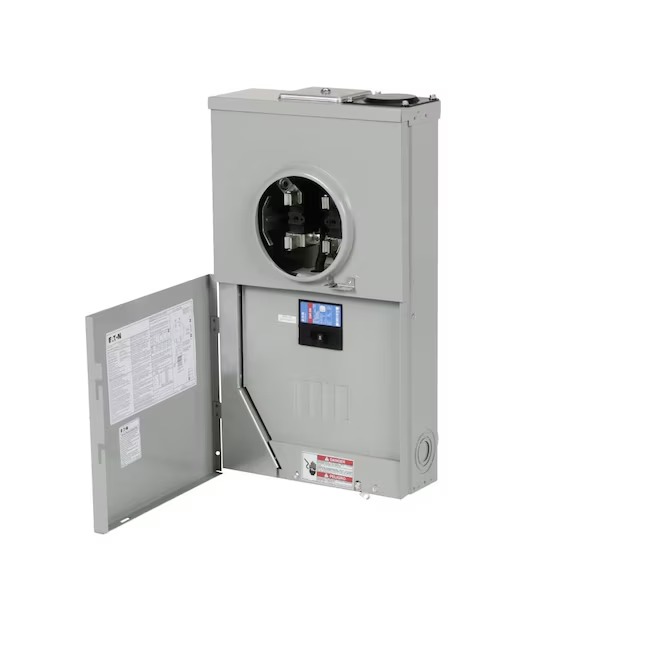

Eaton’s meter breakers combine a single meter socket and a main circuit breaker and/or loadcenter into one enclosure. Certain utilities will specify a meter breaker instead of a meter socket and loadcenter. The meter breaker is used where electricity enters a home or dwelling. The utility attaches a meter in the socket to measure power consumption. The loadcenter portion is used to distribute the power throughout the home using various circuits. Eaton offers a variety of designs to meet local utility specifications. UL listed.
- Type BR 200 amp meter breaker panel 4 spaces and 8 circuits
- Panel contains a provision and bracket to insert a barrel lock in order to reduce theft of electrical power (barrel lock is not provided)
- Contains a CSR2200 main breaker
- Main breaker rated 22 kAIC
- Accepts type BR breakers only
- Bottom and top breaker feed
- Barrel lock is not included
- This is a Non-EUSERC panel
| Â General | |||
|---|---|---|---|
| Manufacturer Color/Finish | Gray | Type | Main breaker meter combo |
| Series Name | Type BR | ||
| Â Dimensions | |||
| Depth (Inches) | 6.75 | Width (Inches) | 15 |
| Height (Inches) | 27.25 | ||
| Â Features | |||
| Amperage | 200 | Orientation | Over/Under |
| Buss Bar Construction | Aluminum | Paintable | Yes |
| Circuits | 8 | Phase Type | Single phase (120/240) |
| Cover Included | Yes | Plug-On Neutral | No |
| Feed-Through Lugs | Yes | Usage | Service entrance |
| Ground Bar Installed | Yes | Use Location | Outdoor |
| Mounting Type | Surface | Value Pack | No |
| Number of Spaces | 4 | ||
| Â Compatibility | |||
| Brand/Model Compatibility | Fits most |
