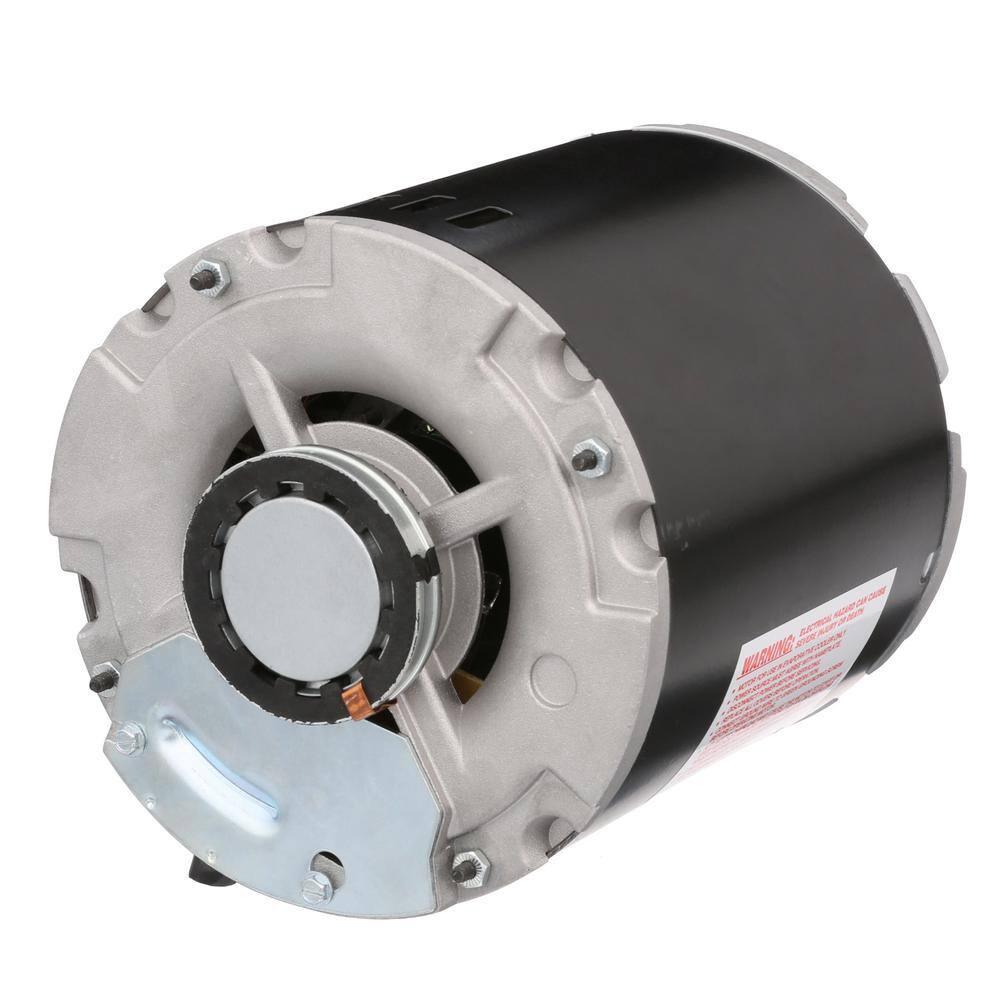

DIAL 2569 2-Speed 3/4 HP Evaporative Cooler Motor Kit
Original price was: $166.13.$149.52Current price is: $149.52.
- Use in a new cooler or as a replacement motor for a current unit
- Thermal overload feature protects unit from overheating
- Corrosion-resistant steel design holds up to the elements
DIAL 2569 2-Speed 3/4 HP Evaporative Cooler Motor Kit

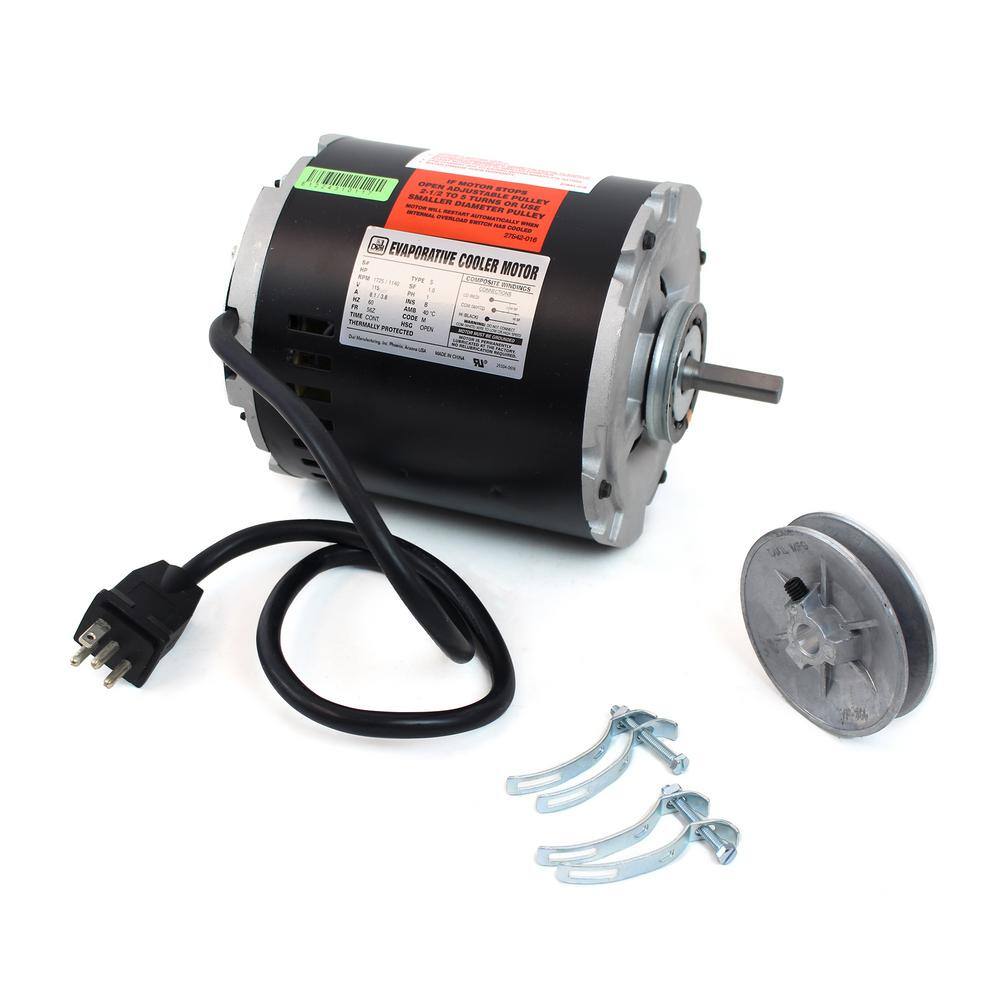

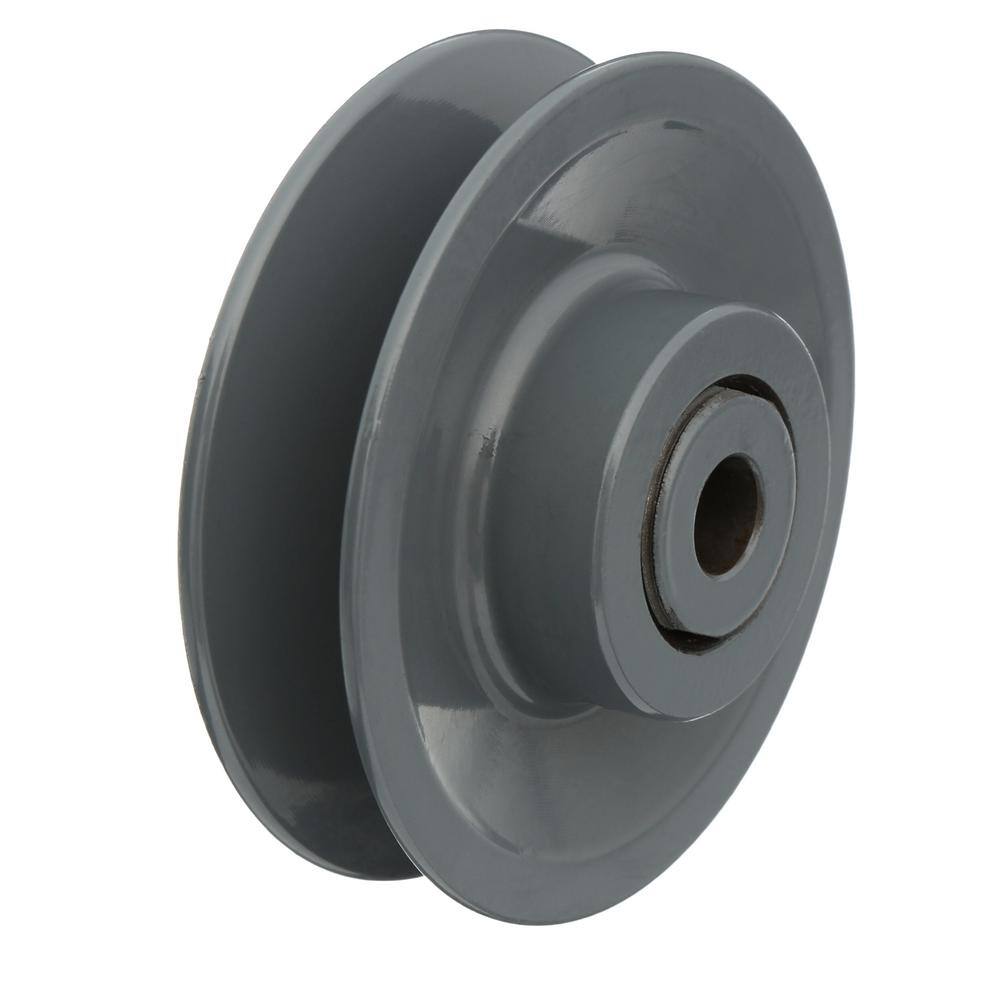

The 3/4 HP Motor Kit contains the following components: 115-Volt 3/4 HP, 2-speed evaporative cooler motor; 3-3/4 in. x 1/2 in. adjustable, cast iron motor pulley; 2 motor clamps; 36 in. motor cord. The Dial 1/2 HP Evaporative Cooler Motor is built for reliable performance in 115-Volt evaporative coolers. It can be used in a new cooler or as a replacement motor for an existing unit. When selecting the HP for an evaporative cooler motor, always follow the cooler manufacturer’s recommendation.
- 2 speeds (1140 and 1725 RPM) allow you to control the comfort level
- 115-volt 3/4 HP motor provides reliable power for cost-efficient cooling

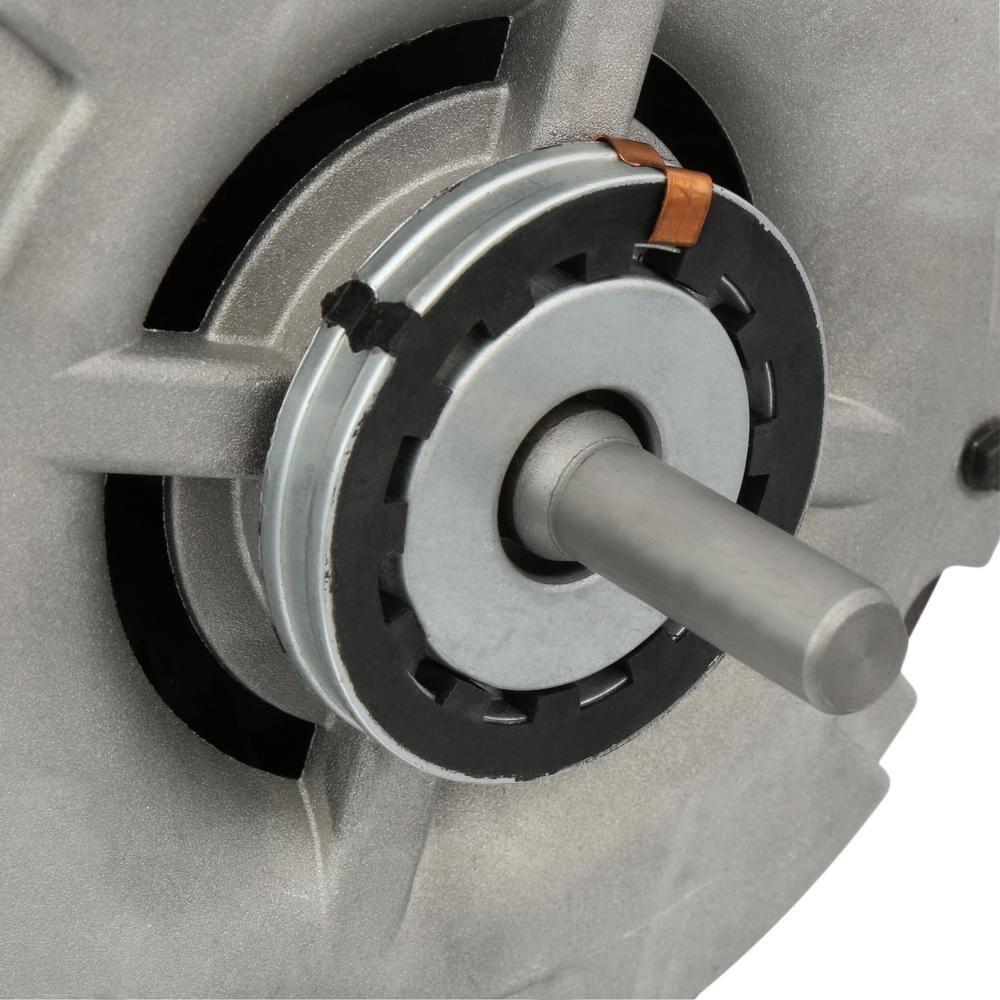

- Resilient end rings ensure a secure fit into the cooler’s mounting bracket
- Can be automatically controlled with a cooler thermostat or with manual wall switch (both sold separately)
- Permanently lubricated ball bearings ensure against over-oiling
- Motor terminals are easily accessible for connecting the motor cord
- Corrosion-resistant steel construction for durability and long life
- Automatic thermal overload feature protects against overheating
- UL-recognized components for safety
- 1-year warranty
Dimensions
| Product Depth (in.) | 9.25 in | Product Height (in.) | 6.25 in |
|---|---|---|---|
| Product Width (in.) | 6.25 in | Ring diameter (in.) | 2.5 |
| Shaft diameter (in.) | .5 | Shaft Length (in.) | 1.675 |
Details
| Amperage (amps) | 10.5 | Horsepower (hp) | .75 hp |
|---|---|---|---|
| Material | Metal | Number of Speed Settings | 2 |
| Pack Size | 1 | Part/Accessory Type | Motor |
| Product Weight (lb.) | 21.9 lb | ||
| Voltage (volts) | 115 |
Additional Resources
From the Manufacturer
