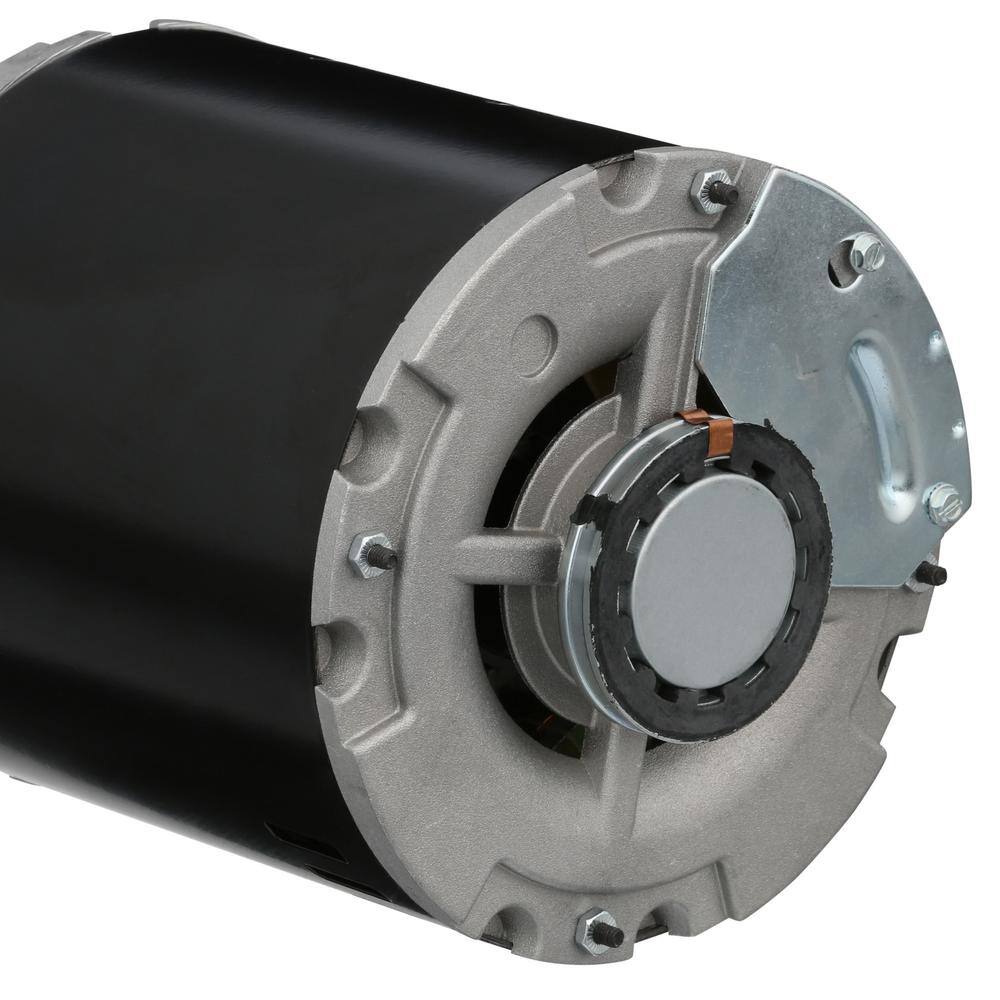

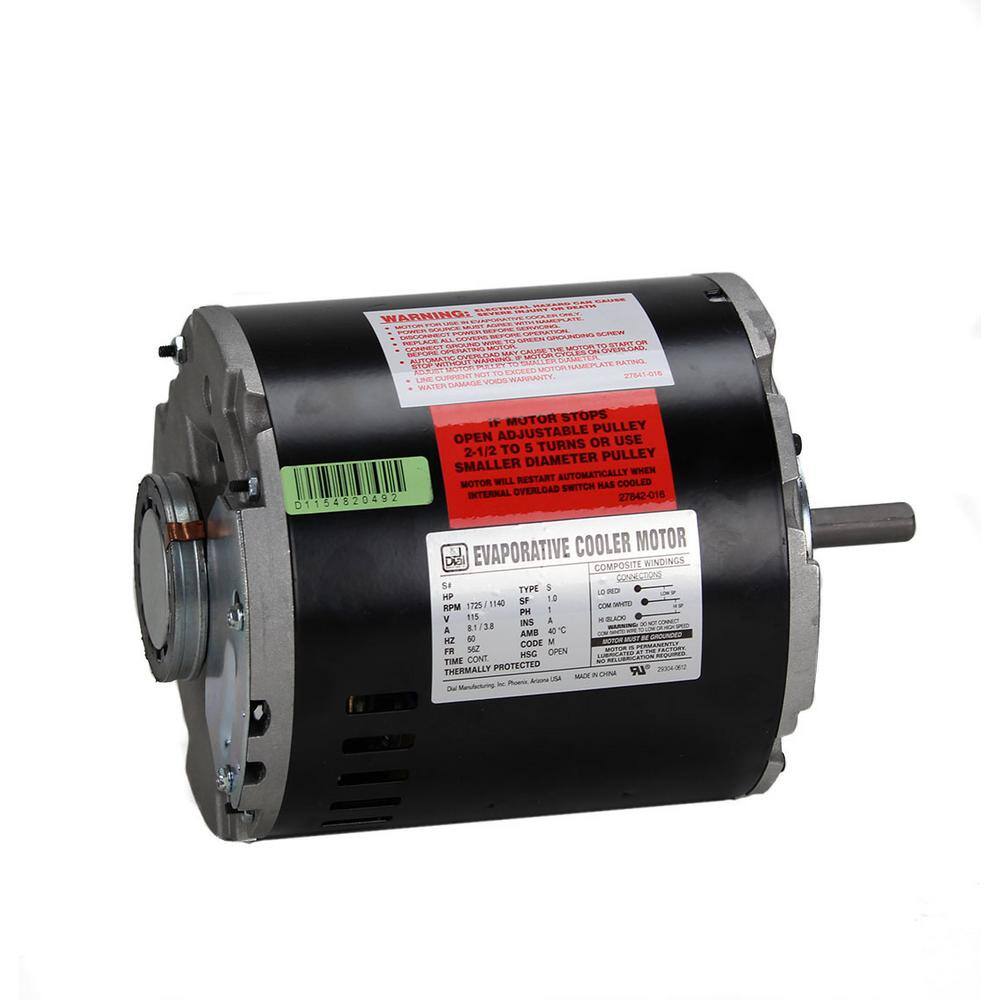

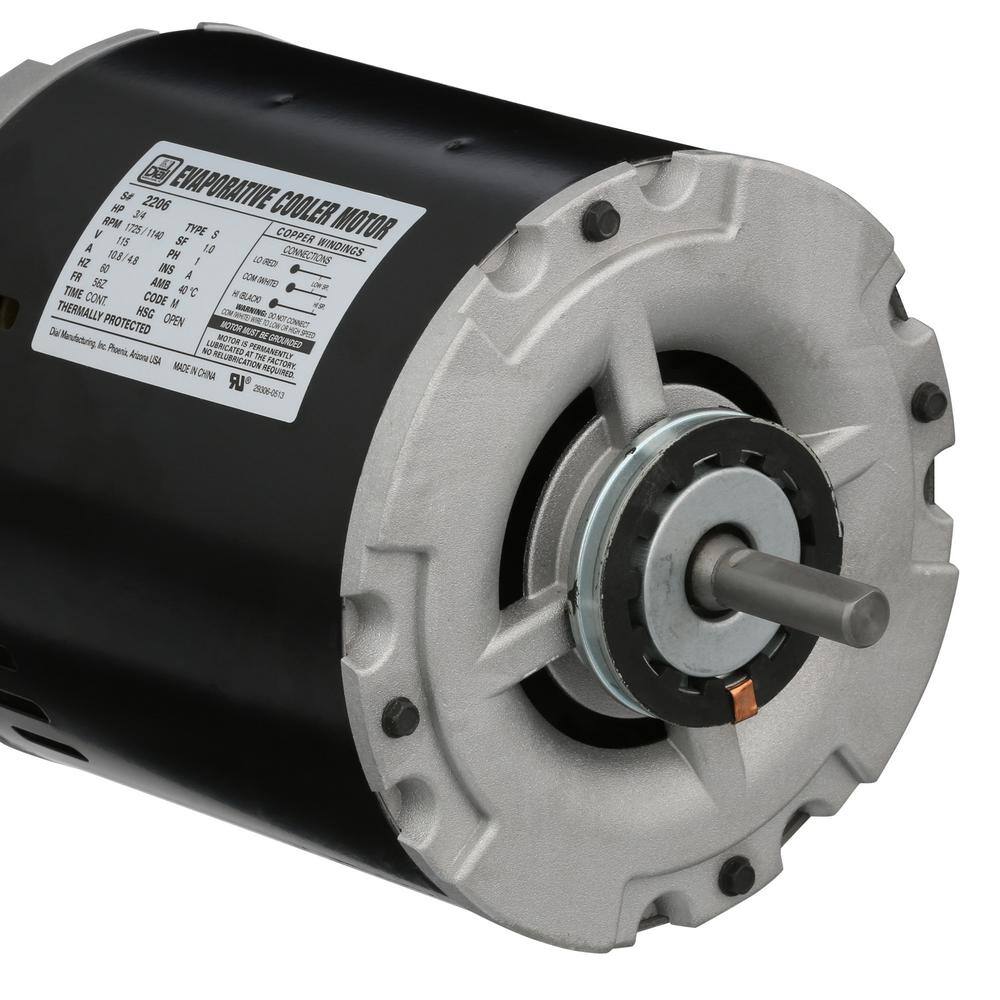

DIAL 2206 2-Speed 3/4 HP Evaporative Cooler Motor
Stay cool on a hot day with this evaporative cooler motor. Designed as a replacement motor for a new or existing unit, it offers a two-speed design that allows you to control the cooling level. A thermal overload feature helps to prevent overheating. Steel construction makes it built to last.
- 2 speeds (1140 and 1725 RPM) allow you to control the comfort level
- 115V 3/4 HP motor provides reliable power for cost-efficient cooling

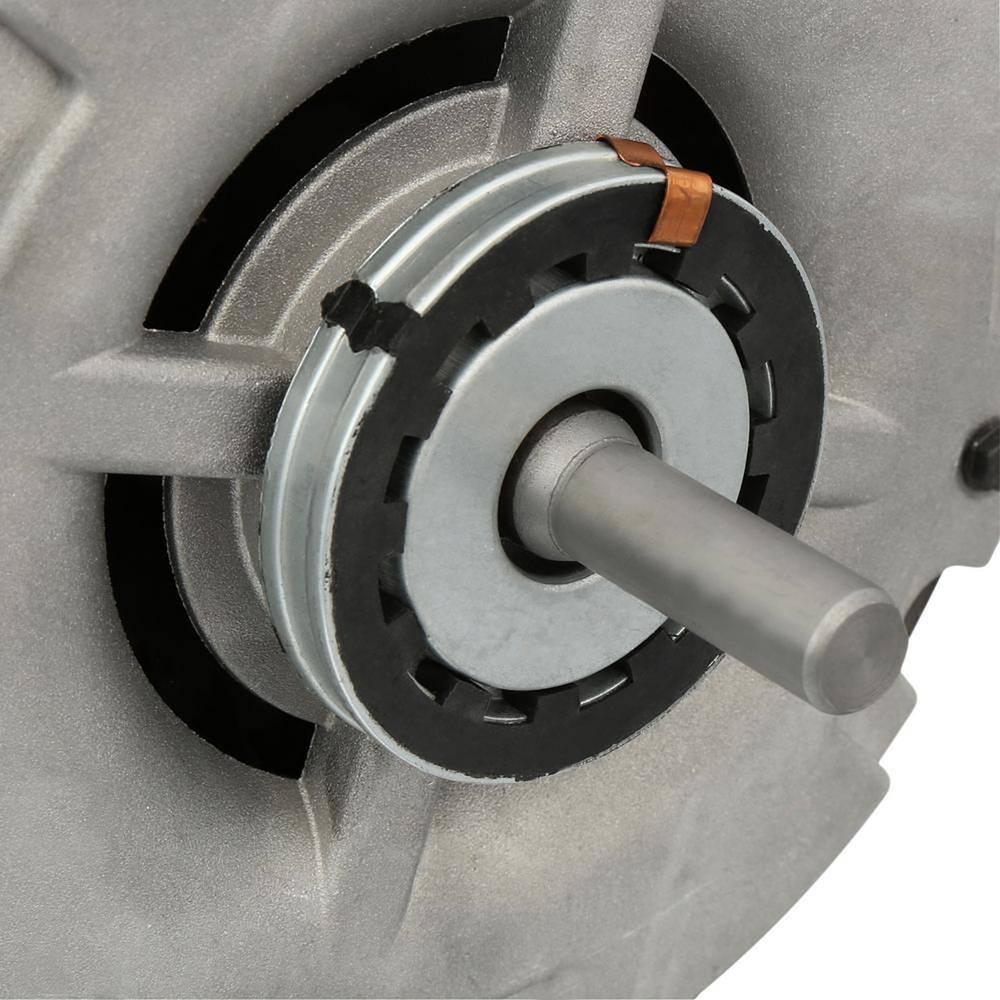

- Resilient end rings ensure a secure fit into the cooler’s mounting bracket
- Can be automatically controlled with a cooler thermostat or with manual wall switch (both sold separately)
- Permanently lubricated ball bearings ensure against over-oiling
- Motor terminals are easily accessible for connecting the motor cord
- Corrosion-resistant steel construction for durability and long life
- Automatic thermal overload feature protects against overheating
- UL-recognized components for safety
- Includes one-year warranty
Dimensions
| Product Depth (in.) | 9.25 in | Product Height (in.) | 6.25 in |
|---|---|---|---|
| Product Width (in.) | 6.25 in | Ring diameter (in.) | 2.5 |
| Shaft diameter (in.) | .5 | Shaft Length (in.) | 1.675 |
Details
| Amperage (amps) | 10.5 | Horsepower (hp) | .75 hp |
|---|---|---|---|
| Material | Metal | Number of Speed Settings | 2 |
| Pack Size | 1 | Part/Accessory Type | Motor |
| Product Weight (lb.) | 21 lb | ||
| Voltage (volts) | 115 |
