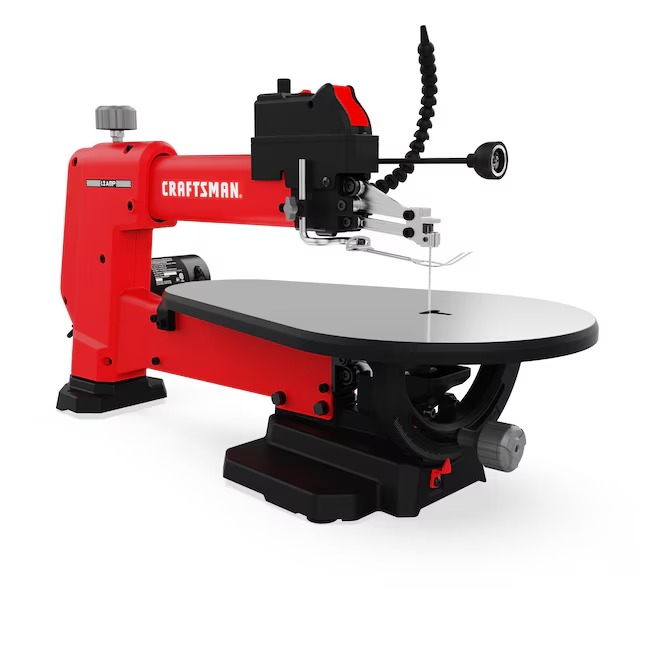

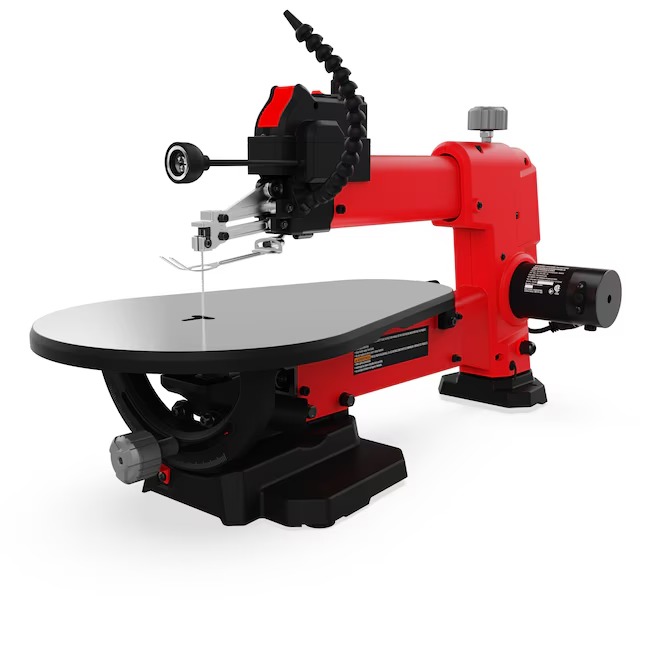

CRAFTSMAN 18-in 1.3-Amp Variable Corded Scroll Saw (CMXESAX69434604)
- 400-1600 SPM variable speed helps with intricate cuts in wood, metal or other materials
- Large Die-cast aluminum dual-tilt table allows up to 15 degress L and 45 degrees R bevel cuts “
- Quick tool-free blade changes and cam action for easy blade tension adjustment
- 18inch max cutting capacity with a 2 1/4inch max cutting depth
- Upper arm control for quick and easy blade changes
- 1.5 inch dust port can be hooked up to dust collection system for cleaner work space
- Uses standard 5inch pinned end blades for clean cuts and ease of installation

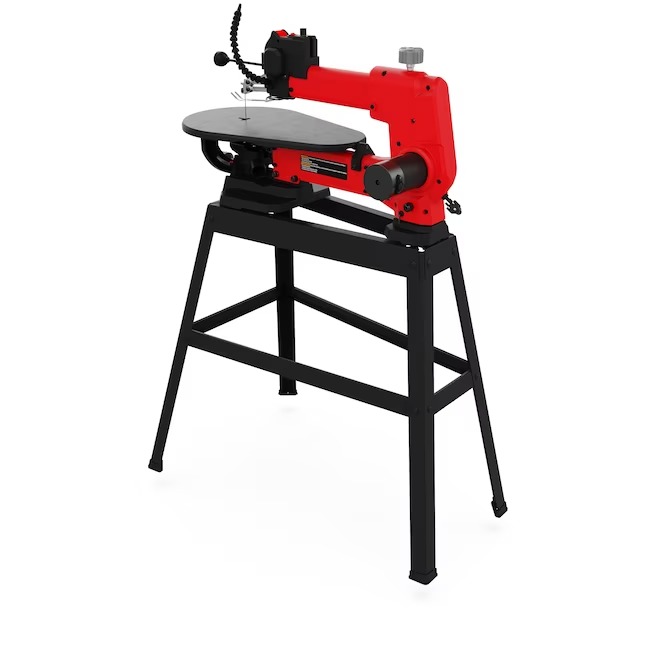

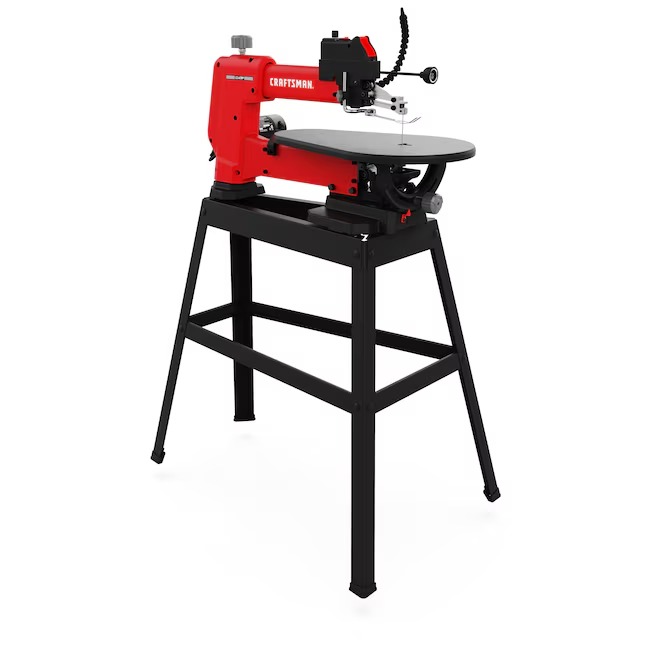

- Steel stand provides stability during operation
- Includes: Saw, Stand, Blade, Manual
| General | |||
|---|---|---|---|
| Color/Finish Family | Red |
| Dimensions | |||
|---|---|---|---|
| Depth (Inches) | 35.31 | Maximum Metal Cutting Capacity (Inches) | 0 |
| Dust Chute Diameter(OD) (Inches) | 1.5 | Maximum Throat Width/Depth (Inches) | 18 |
| Height (Inches) | 46.18 | Maximum Wood Cutting Capacity (Inches) | 2.25 |
| Length (Inches) | 35.31 | Stroke Length (Inches) | 0.75 |
| Maximum Depth of 45 Degree Cut (Inches) | 1.5 | Weight (lbs.) | 49.7 |
| Maximum Depth of 90 Degree Cut (Inches) | 2.25 | Width (Inches) | 22.95 |
| Features | |||
|---|---|---|---|
| Adjustable Shoe | No | Dust Collection | No |
| Amperage | 1.3 | Guide(s) | yes |
| Blade Included | Yes | Hold Down Foot Included | No |
| Blade Type | Straight | Keyed/Keyless | Keyless |
| Built-In Light | Yes | Package Contents | Scroll saw assembly, stand, blade, hex key |
| Chuck Key Storage | No | Speed Range High (SPM) | 1600 |
| Chuck Type | Keyless | Speed Range Low (SPM) | 400 |
| Cordless | No | Table Tilt Range Left (Degrees) | 15 |
| Dust Blower | No | Table Tilt Range Right (Degrees) | 45 |
| Dust Chute | Yes | Variable Speed | Yes |
| Warranty | ||
|---|---|---|
| Warranty | 10-year |
