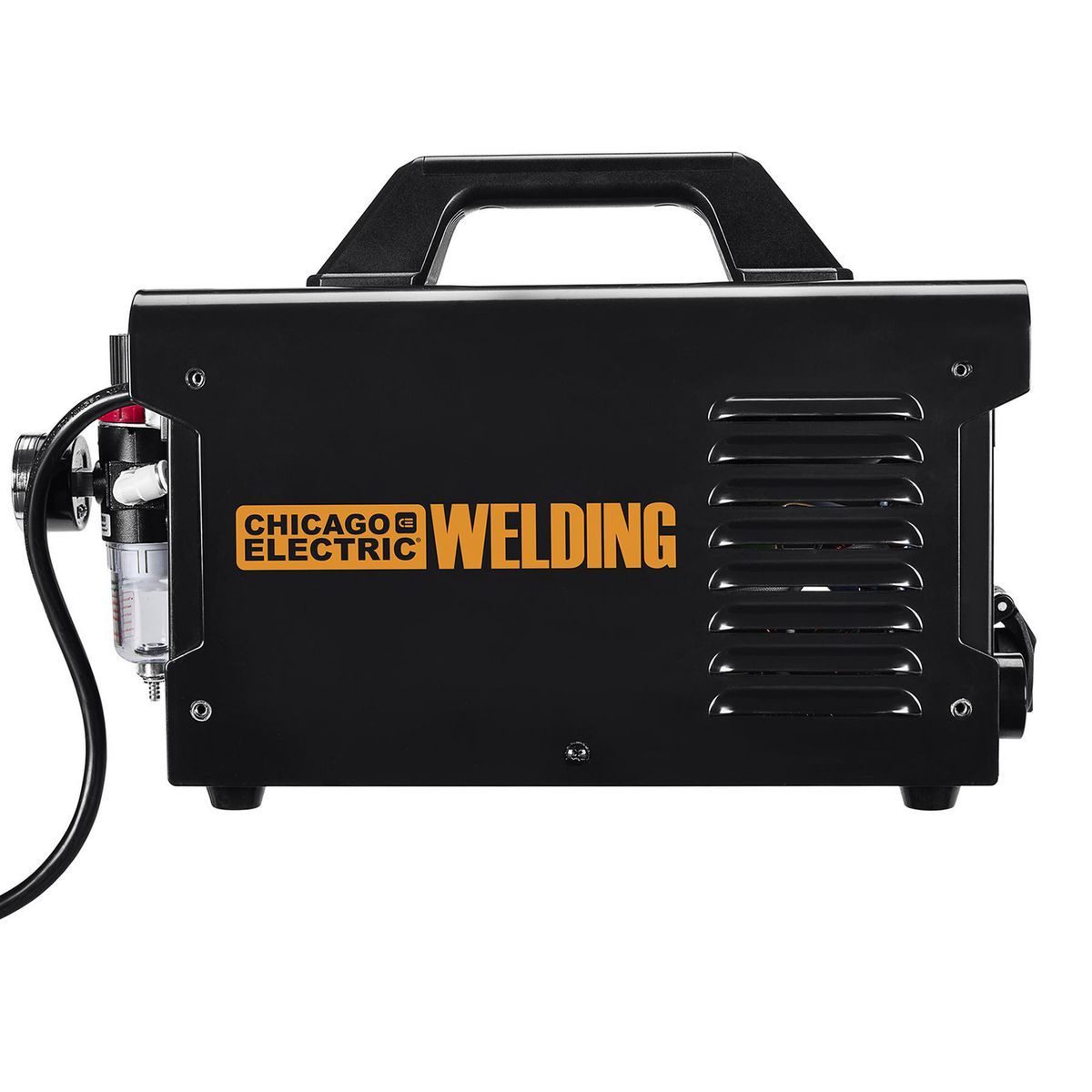

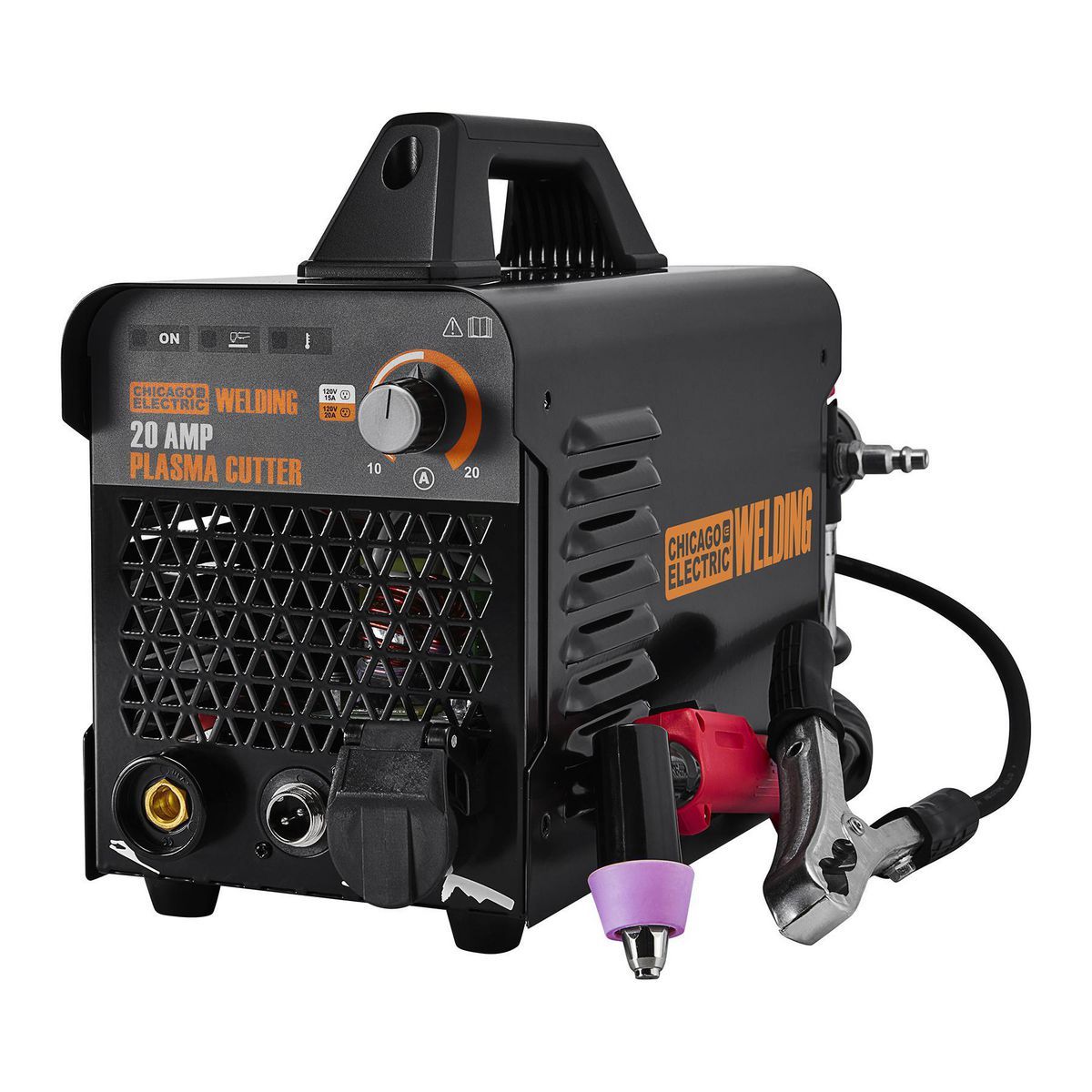

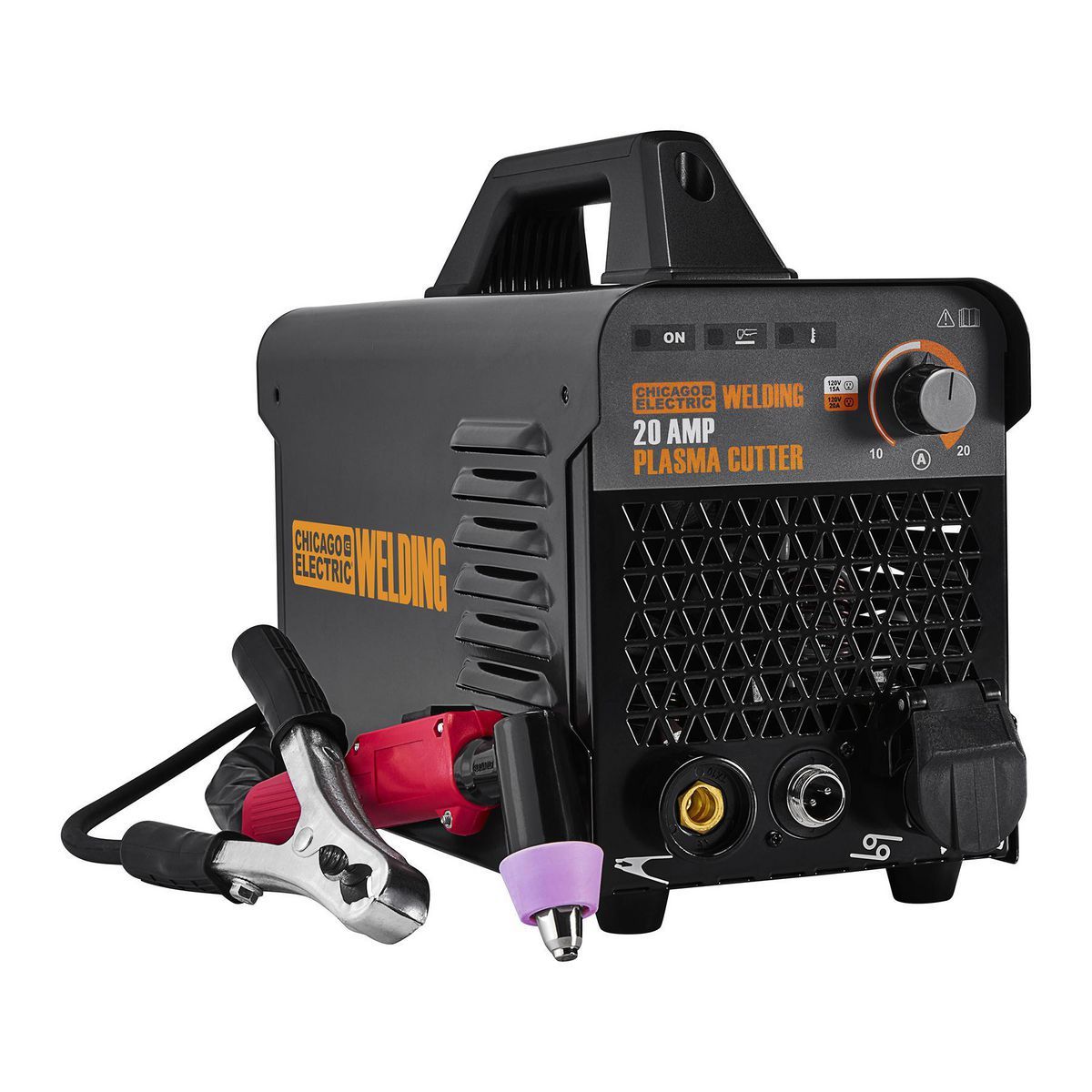

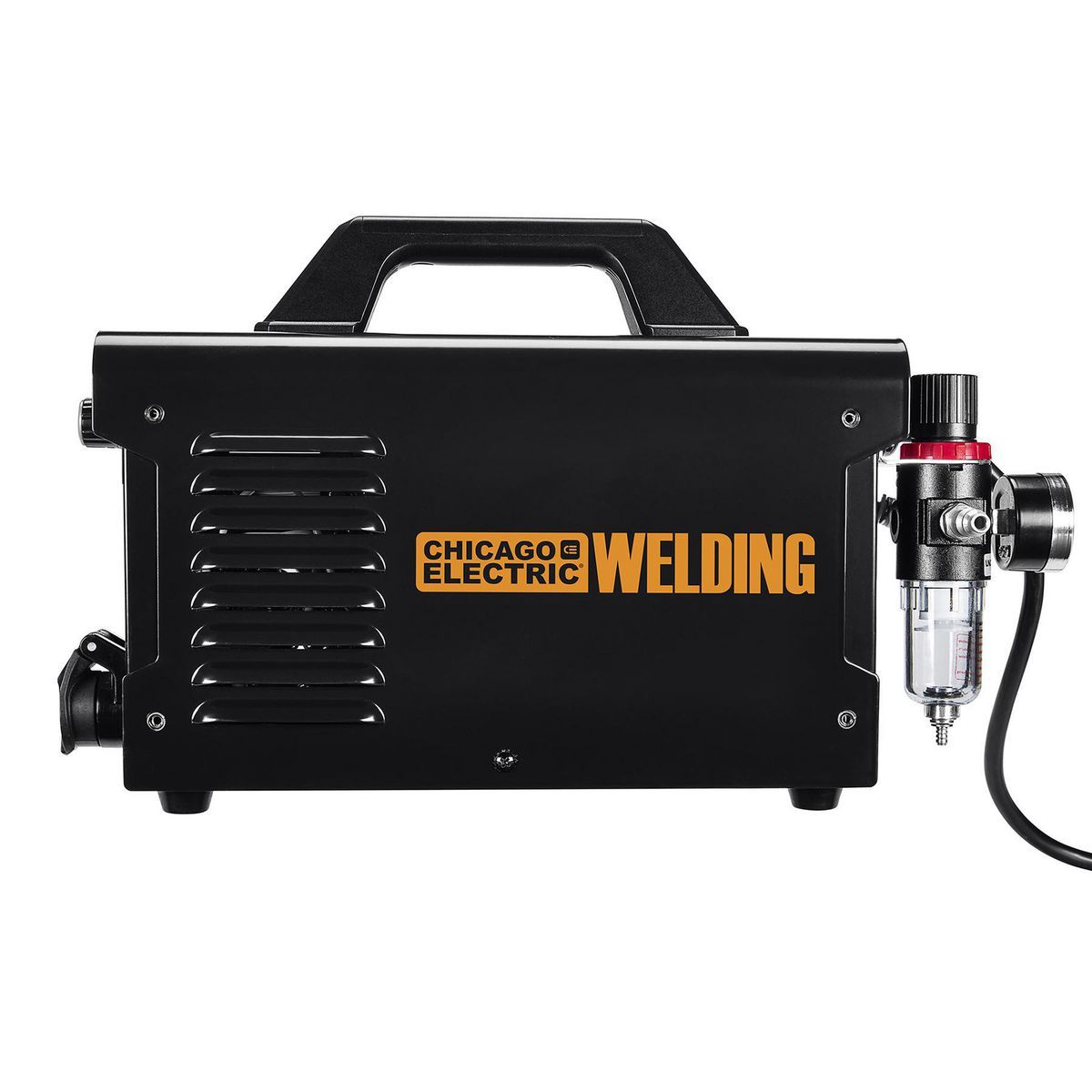

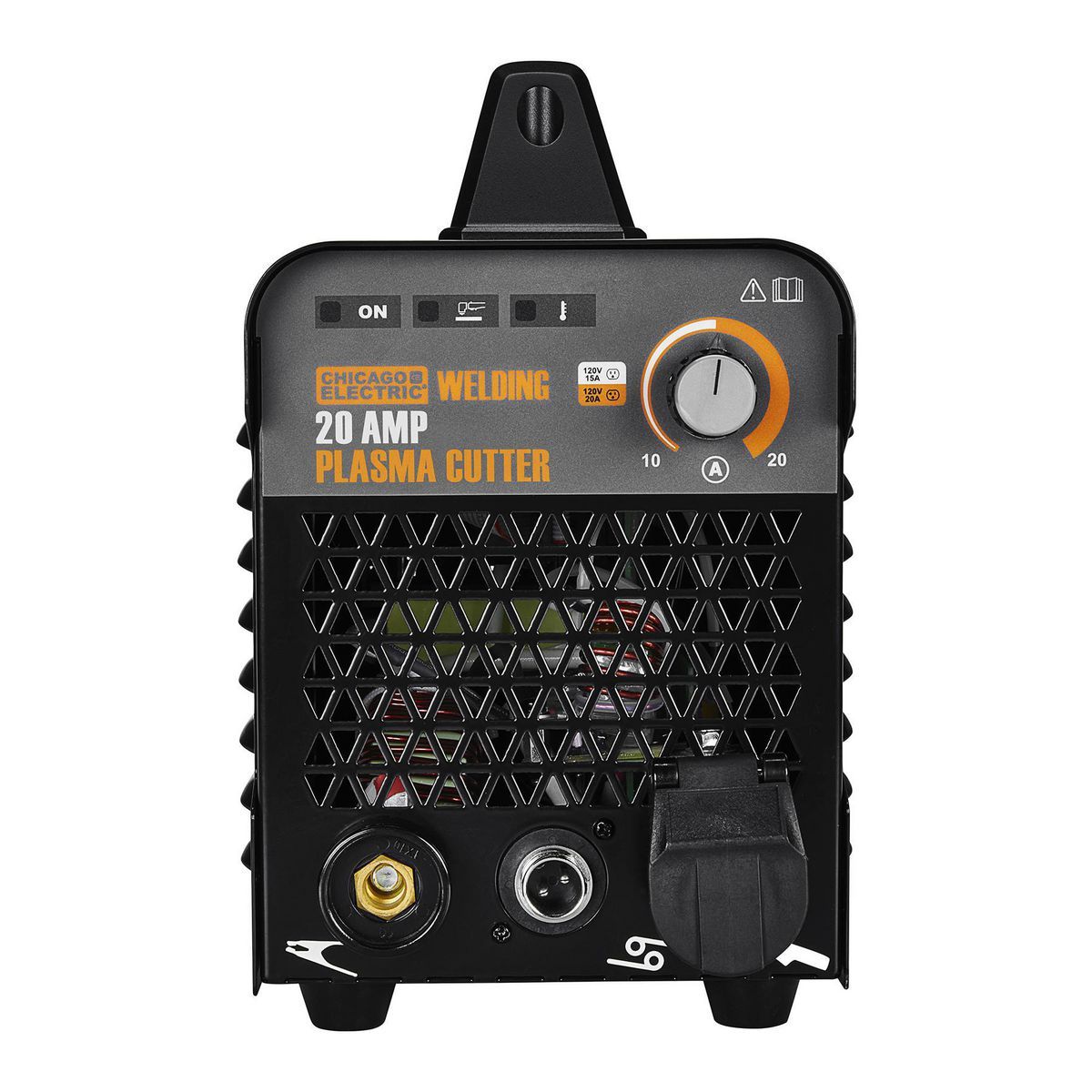

CHICAGO ELECTRIC 20 Amp Plasma Cutter

CHICAGO ELECTRIC 20 Amp Plasma Cutter

The inverter technology in this CHICAGO ELECTRIC™ Plasma Cutter makes it powerful enough for most jobs, yet at just 11.6 lb. it is lightweight and portable. Ideal for cutting cast iron, steel, stainless steel, copper, brass, aluminum, titanium, and magnesium alloys.

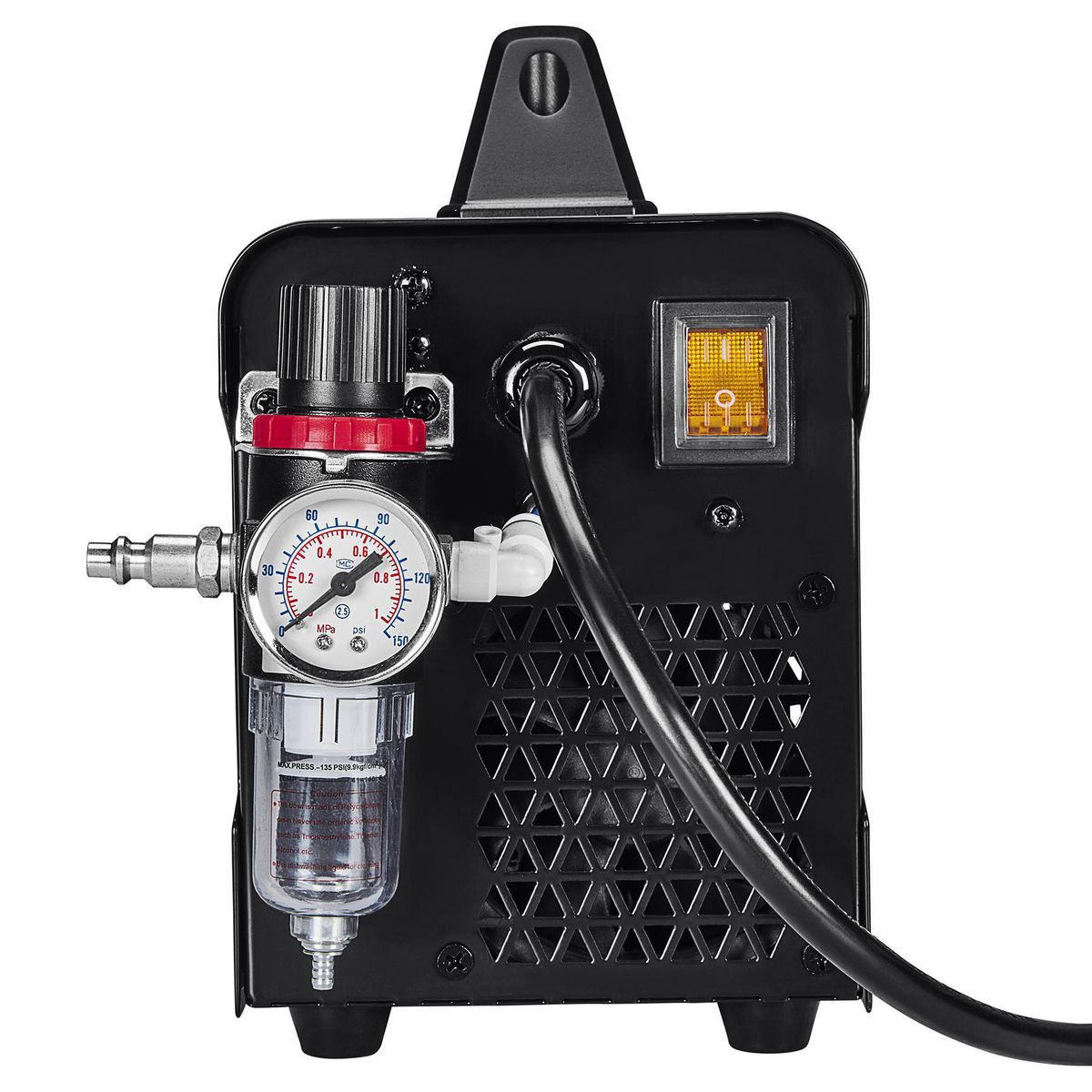

• Built-in air regulator for consistent performance and longer consumable life
• High-frequency arc striking for easy start
• Thermal overload protection indicator
• Variable output from 10-20 amps for a wide variety of materials
• Torch is protected with a safety guard

Specifications

• SKU(s); 58605
• Brand: CHICAGO ELECTRIC
• Flow Rate: 5 CFM @ 70-110 PSI
• Accessories Included: Ground clamp, plasma torch, 10 ft. ground cable, 13 ft. torch cable, (3) nozzles, (3) electrodes, (1) 20A to 15A plug adapter
• Application: cast iron, steel, stainless steel, copper, brass, aluminum, titanium, and magnesium alloys
• Cutting Capacity: 1/4 in. clean cut, 5/16 in. severance cut
• Display Type: Analog
• Duty Cycle: 20A @ 35%; 16A: @ 60%; 12A @ 100%
• Maximum Amperage Output: 10-20 amps
• Product Weight: 11.6 lb.
• Shipping Weight: 18.44 lb.
• Working Pressure: 70-110 PSI
• Input Voltage: 120V
