Cadet RMC151W 120-volt 500/1000/1500-watt Register In-wall Fan-forced Electric Heater in White

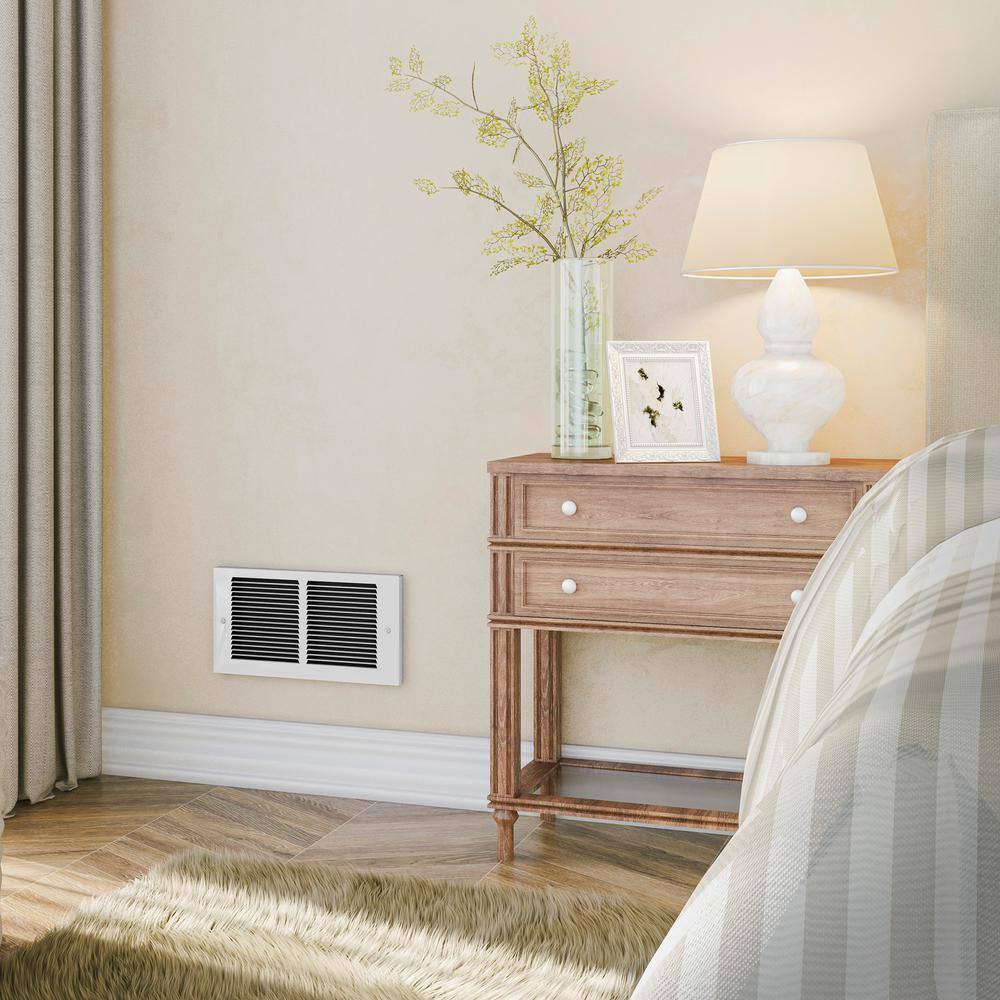

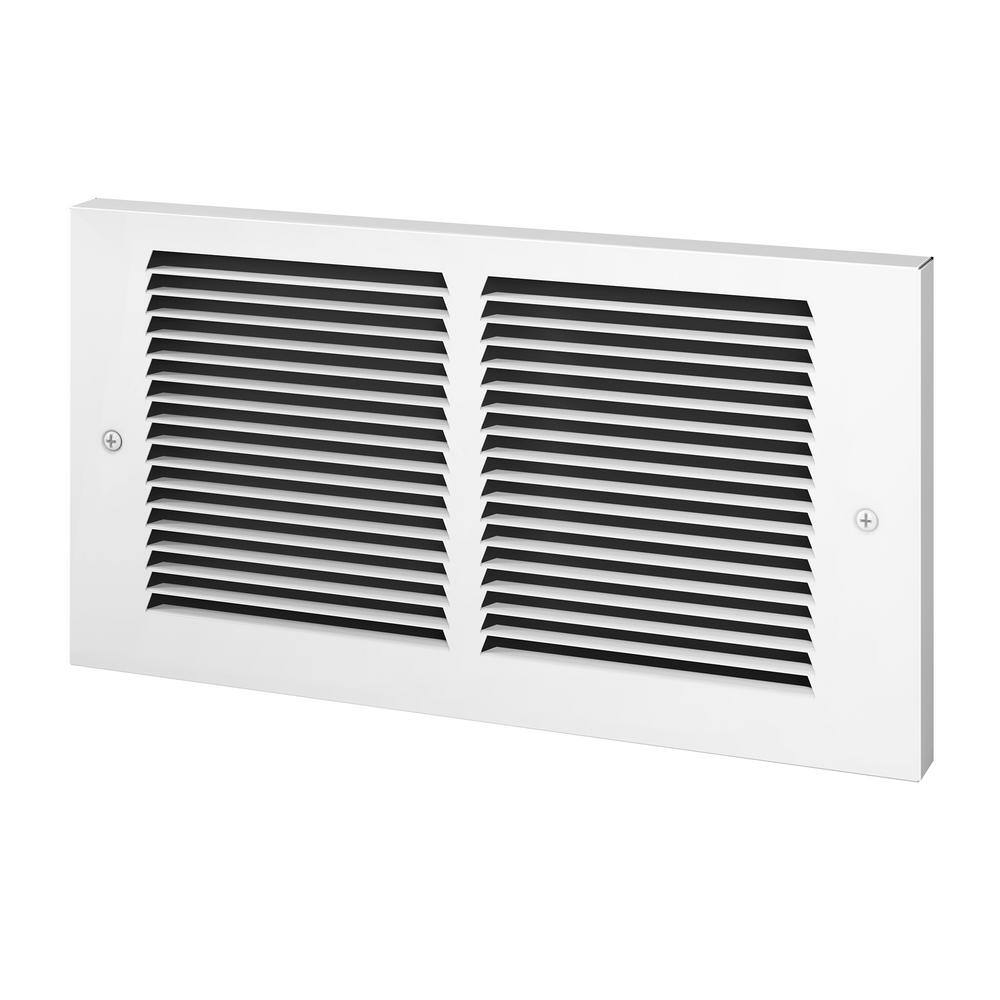

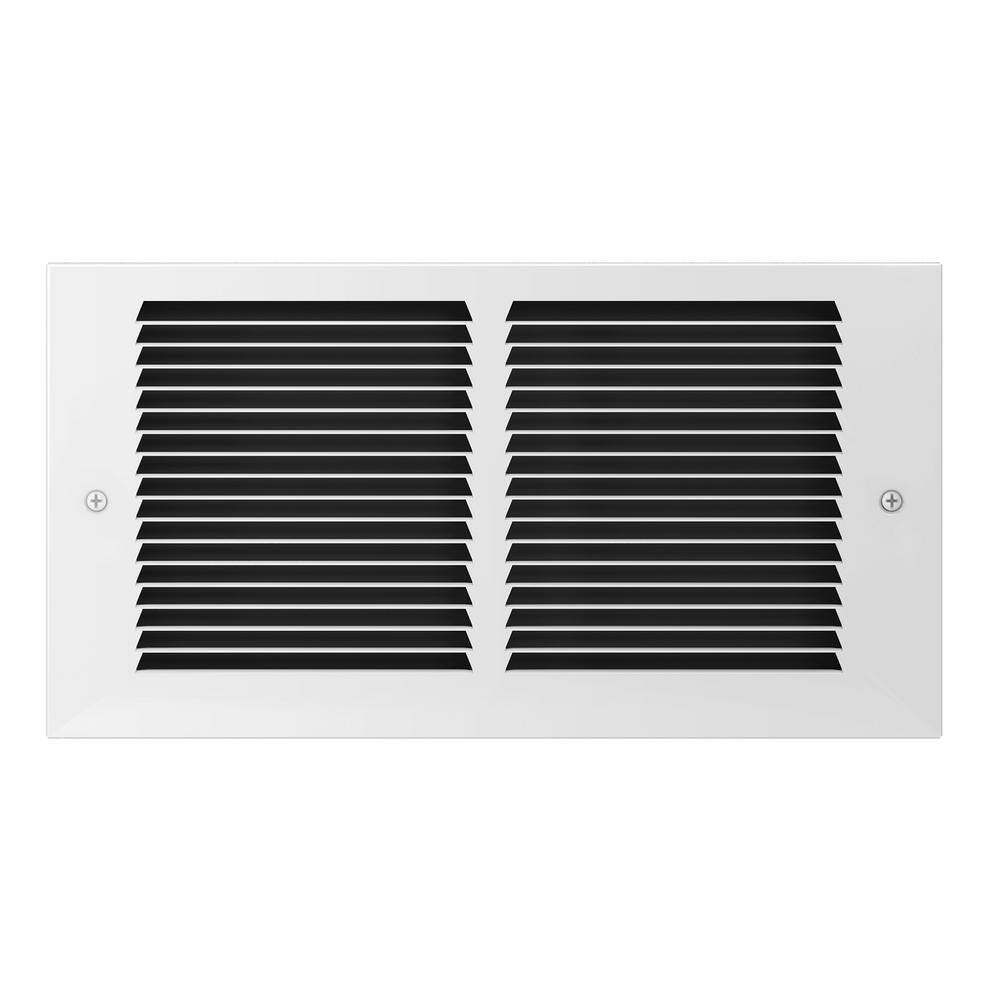

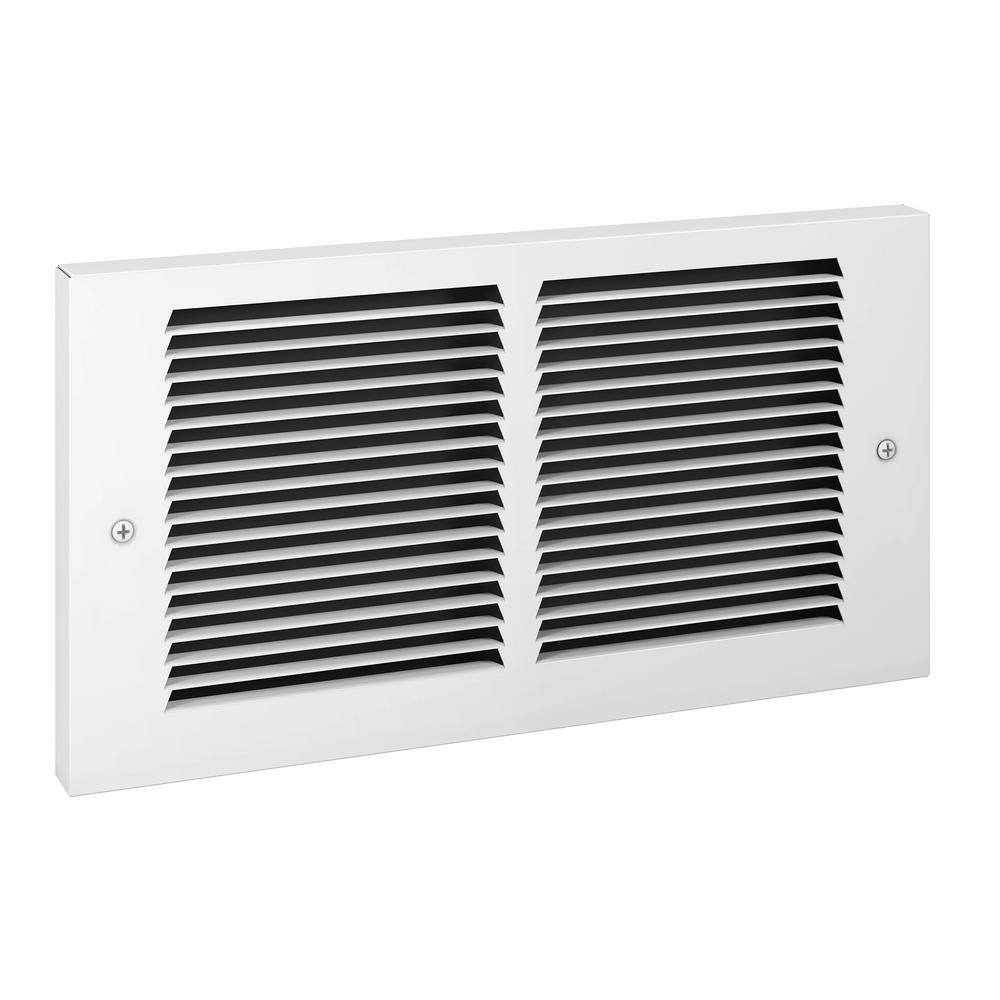

Safe, durable and powerful, the Register fan-forced electric heater provides excellent warm air flow, quickly warming up to 175 sq. ft. The horizontal, register-style grille blends seamlessly into any room decor with quiet operation and outstanding warm air circulation at any heat setting. A durable design similar to most central system vents make it a perfect fit in many rooms. This product is a complete unit with wall can, heater and a white grille with multi-watt options. A line voltage wall or built-in thermostat is needed for control.
- Requires 120-Volt wiring (single breaker). Before you purchase, confirm you have 120-Volt power supply (check your breaker, use a voltmeter, or refer to your old heater’s label if replacing)
- Multi-Watt options with 120-Volt wiring: 1,500-Watt output (12.5 Amps, 5,120 BTUs); 1,000-Watt output (8.3 Amps, 3,415 BTUs); 500-Watt output (4.2 Amps, 1,710 BTUs)

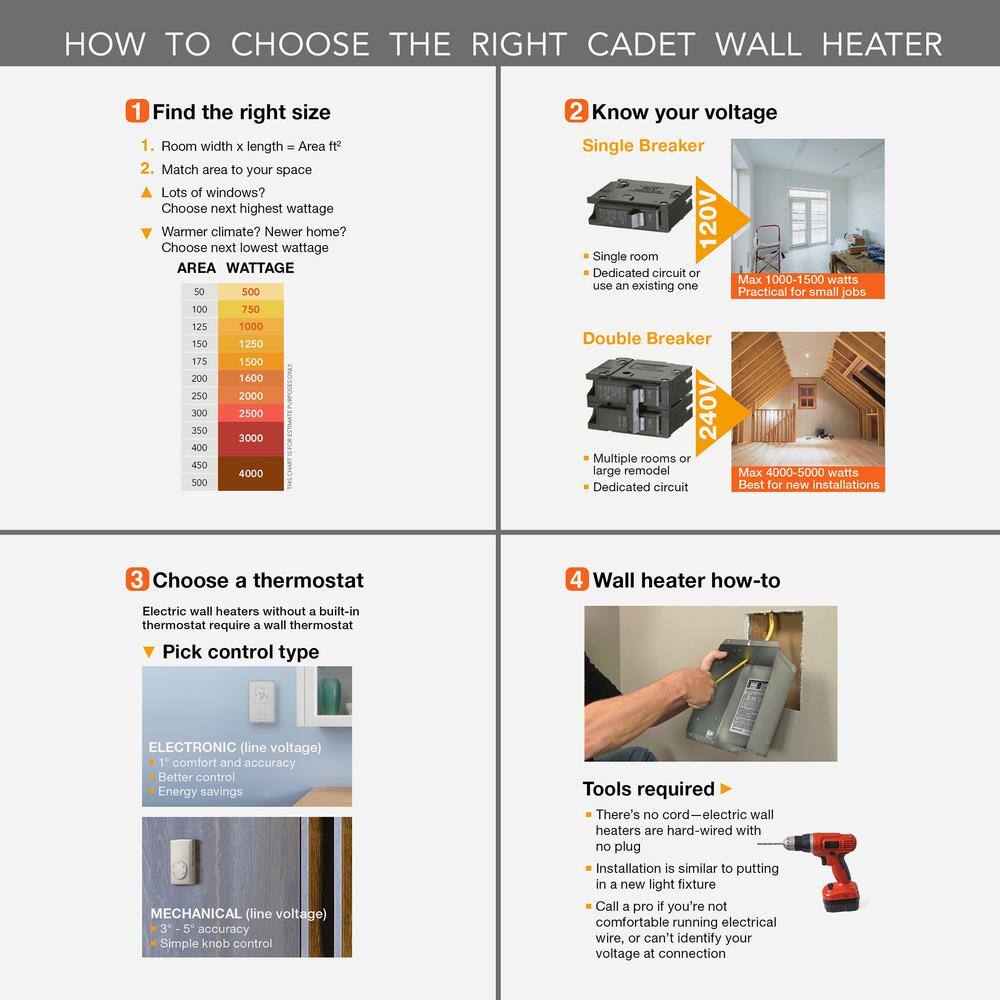

- Choose the correct heater size for your space. Simply match your area to the corresponding wattage (see chart below)
- Effectively warms small to medium sized rooms. Wire the wattage output to suit your area requirements
- Fast and simple installation with one-screw mounting into existing recessed wall can

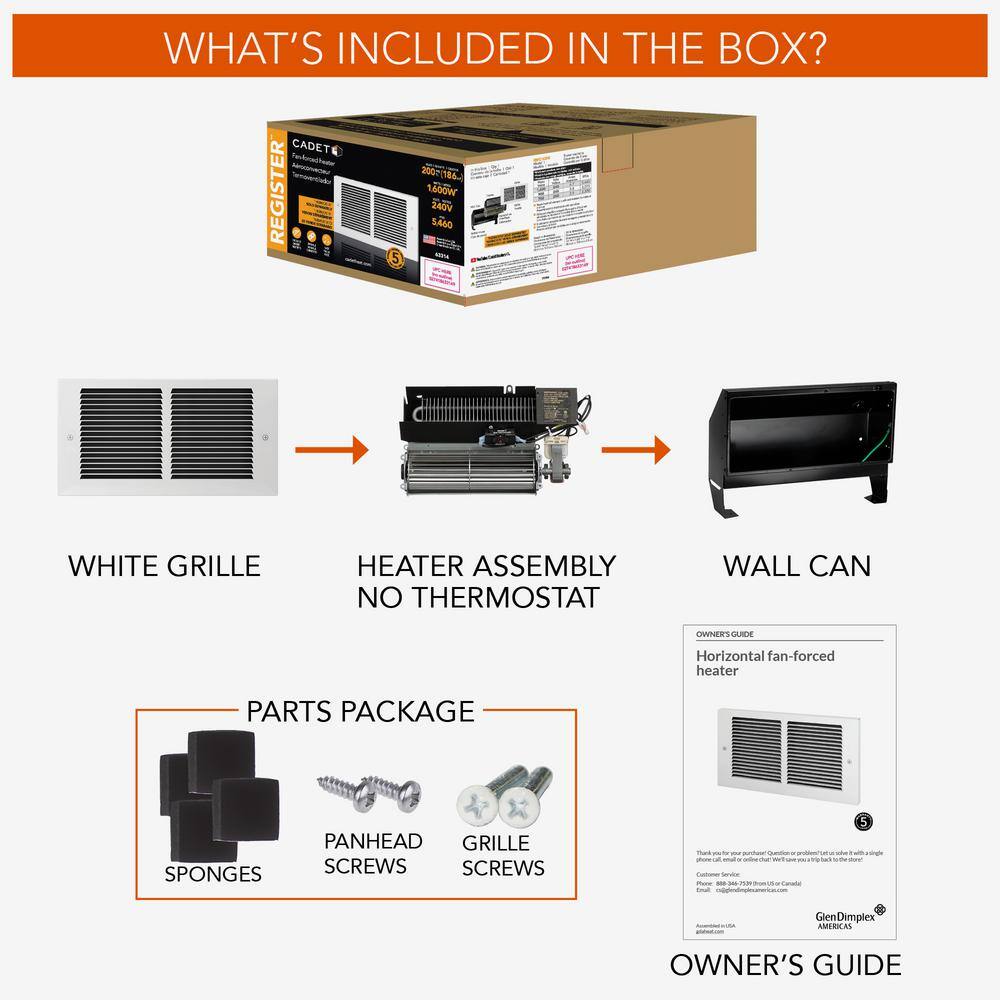

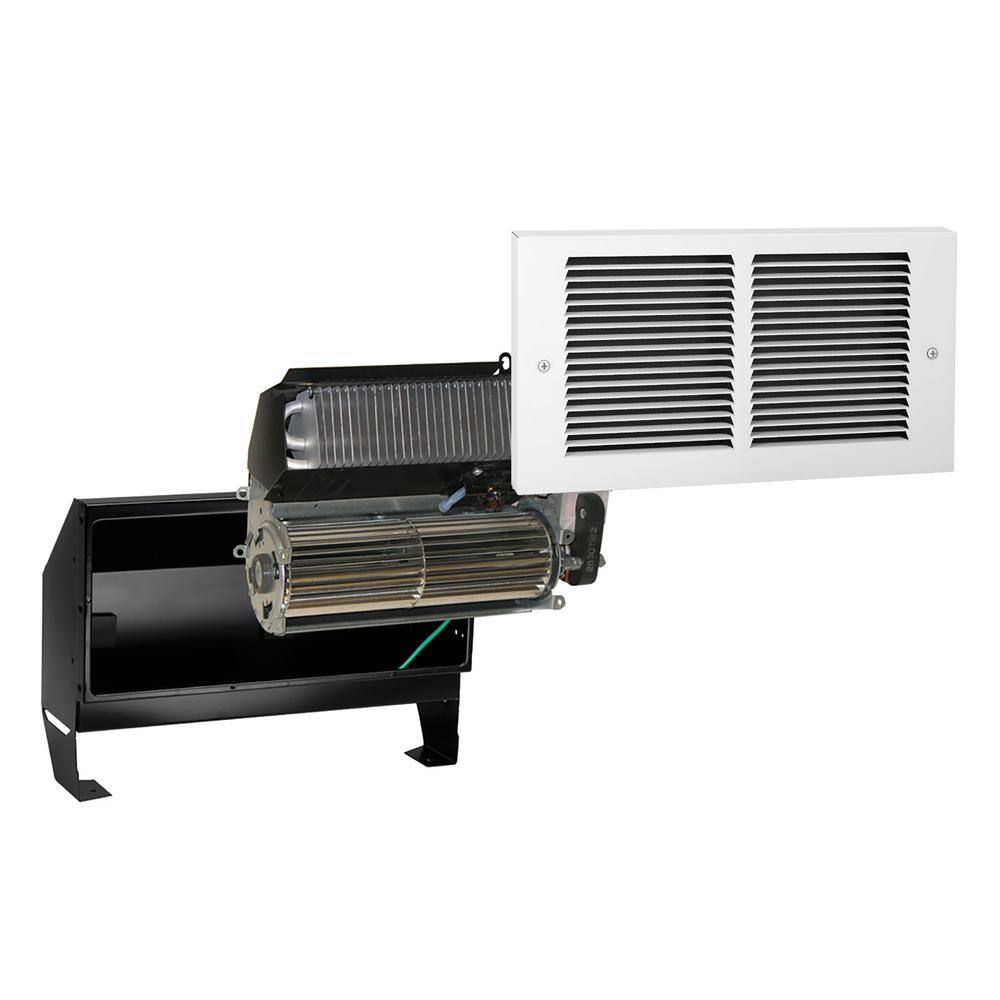

- A complete unit including wall can, heater and white grille; requires thermostat (sold separately)
- Thermostat required for operation; choose a line voltage electronic or programmable wall thermostat or RMT2 built-in thermostat kit (sold separately)

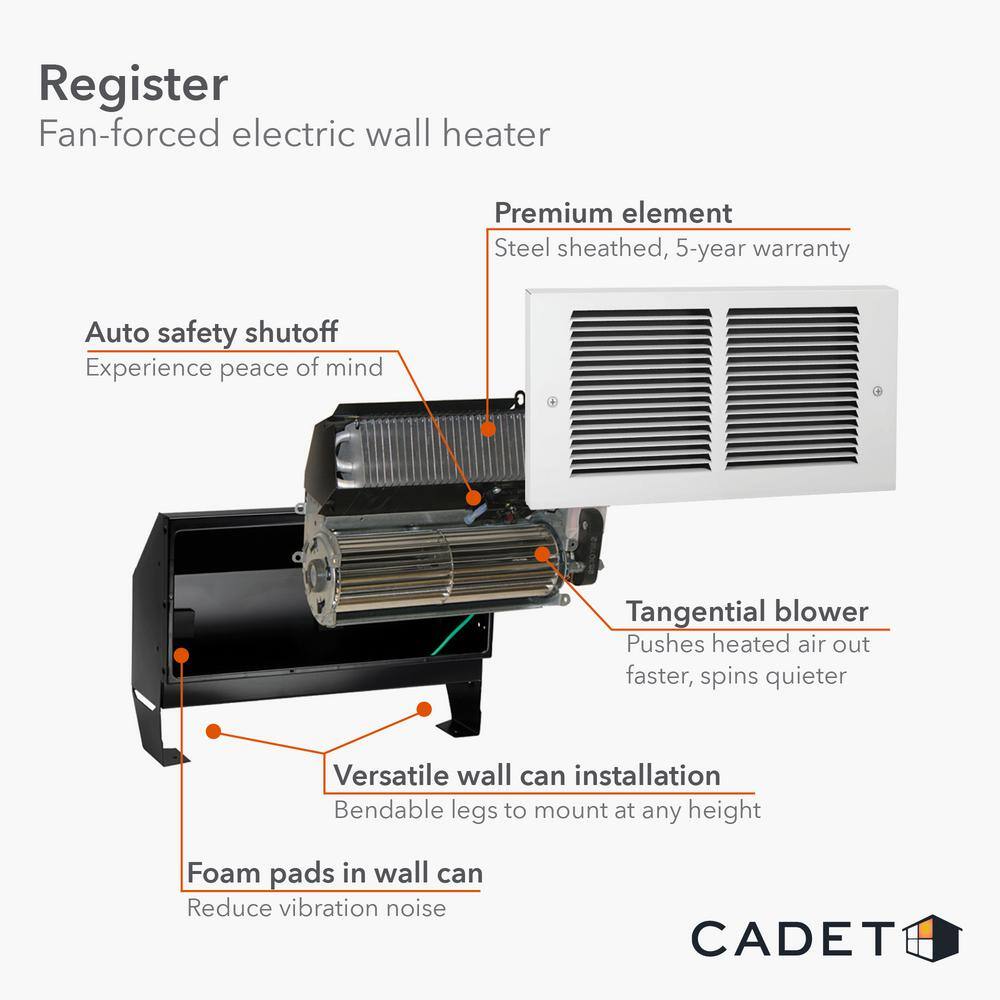

- Heating element and blower made from heavy duty gauge steel
- 3 different wattage settings to select from at installation
- A high-temperature safety device switches heater off if normal operating temperatures are exceeded
- UL listed in the US for safety compliance with a 5-year limited warranty

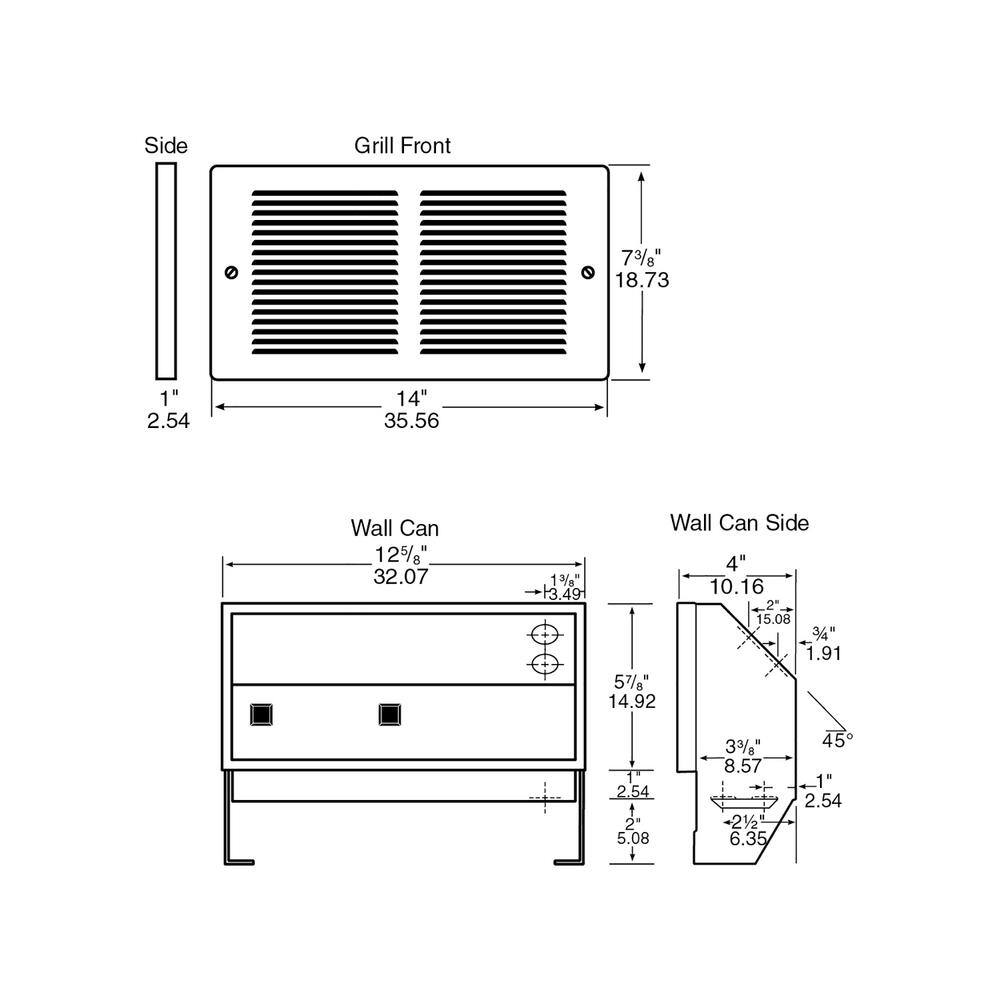

Dimensions
Product Depth (in.) | 4 in | Product Height (in.) | 7.4 in |
---|---|---|---|
Product Width (in.) | 14 in |
Details
Accessories Included | Yes | ACLI Safety Plug | Yes |
---|---|---|---|
Amperage (A) | 12.5 A | Anti-freeze setting | Yes |
Area Heated (sq. ft.) | 175 sq ft | Automatic shutoff | Yes |
Color | White | Color Family | Whites |
Fuel Type | Electric | Heat rating (BTU/hour) | 5120 Btu/h |
Heater Controls | Electronic | Heater Type | Fan Heaters |
Heating Product Type | Electric Wall Heater | Heating Technology Type | Forced Air |
Indoor/Outdoor | Indoor | Installation | Recessed |
Number of Heat Settings | 1 Heat and 1 Fan | Oscillation | No |
Pack Size | 1 | Product Weight (lb.) | 9 lb |
Remote Control | No | ||
Room Size (sq. ft.) | 250-350 | Thermostat | No |
Timer Included | No | Voltage (V) | 120 V |
Wattage (W) | 1500 W |
Warranty / Certifications
Certifications and Listings | UL Listed | Manufacturer Warranty | 5-Year Warranty |
---|
