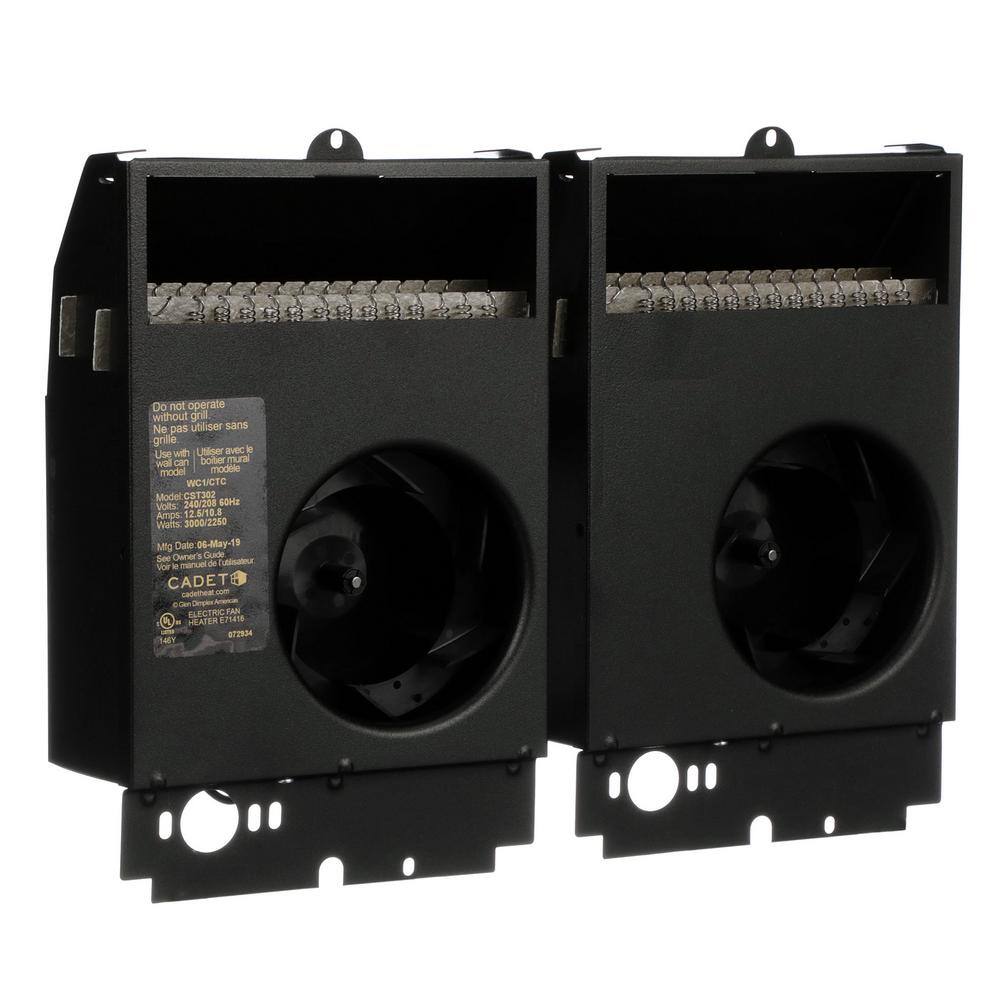

Cadet CST302 240/208-volt 3,000/2,250-watt Com-Pak Twin In-wall Fan-forced Replacement Electric Heater Assembly

Cadet CST302 240/208-volt 3,000/2,250-watt Com-Pak Twin In-wall Fan-forced Replacement Electric Heater Assembly

An ideal choice for heating larger rooms with just one heater–two heaters behind a single grille quickly heat a large area and help eliminate drafts and cold spots in your open areas, such as a foyer. The Com-Pak Twin fan-forced in-wall electric heater features a recess-mount design that requires minimal wall space – ideal for renovations or new construction. A simple and affordable way to add extra warmth to any living space, this product is an interior replacement heater assembly only. A full heater unit requires a wall can, grille and thermostat (sold separately).

• Hard-wired 3,000-Watt heater requires 240-Volt or 208-Volt wiring (double breaker). Before you purchase, confirm your power supply voltage (check your breaker, use a voltmeter, or refer to your old heater’s label if replacing).

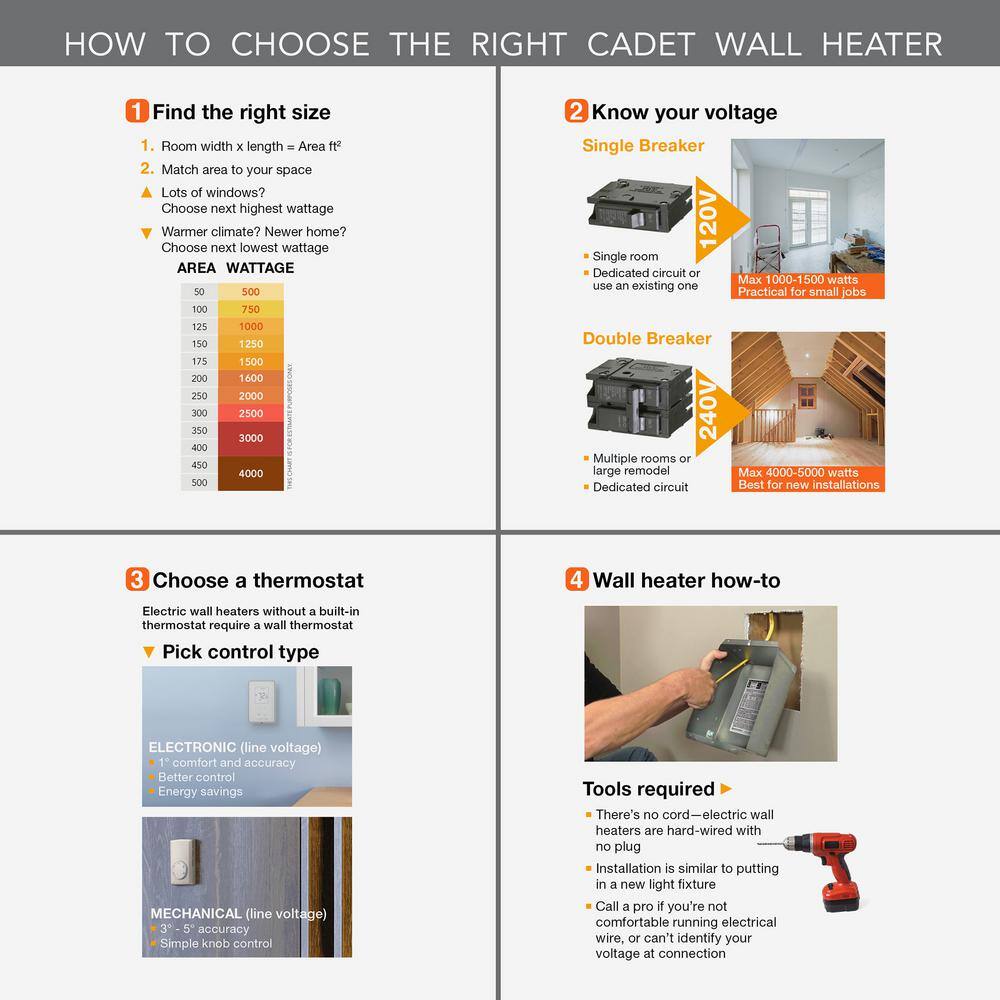

• Choose the correct heater size for your space. Simply match your area to the corresponding wattage (see chart below)

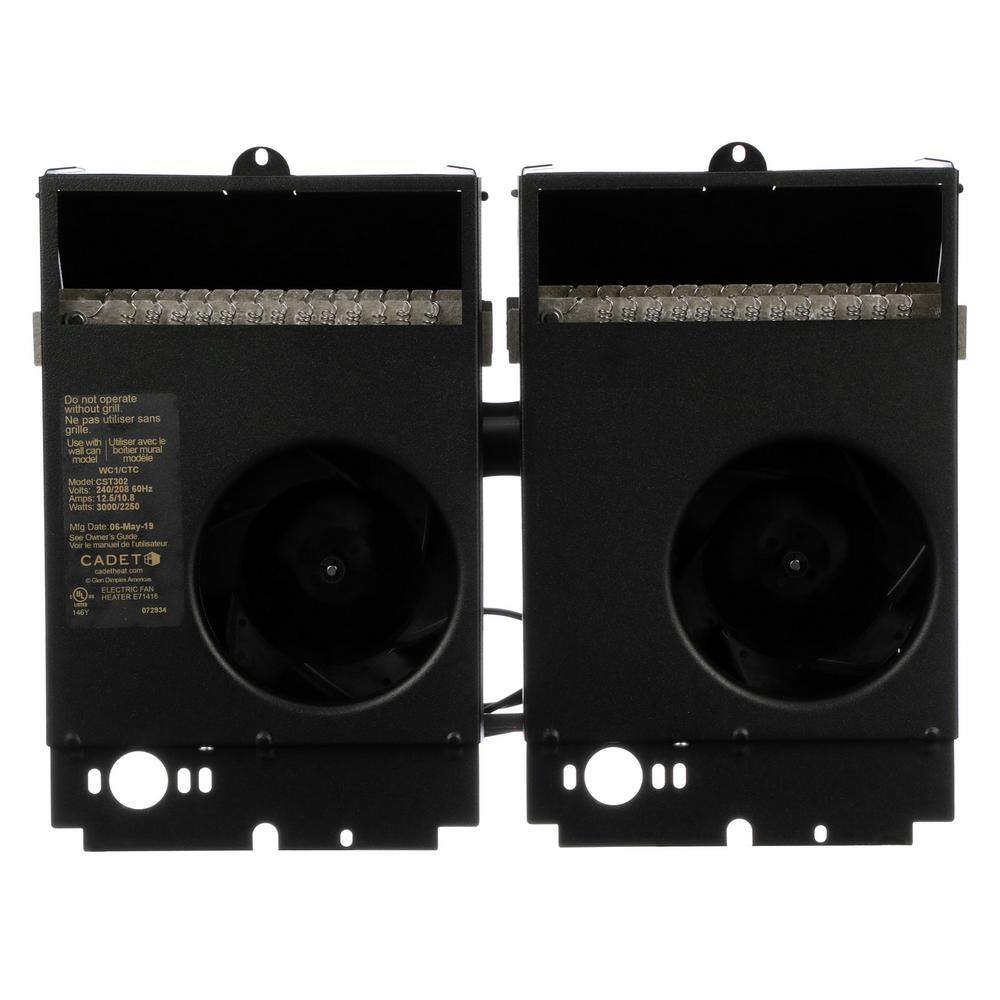

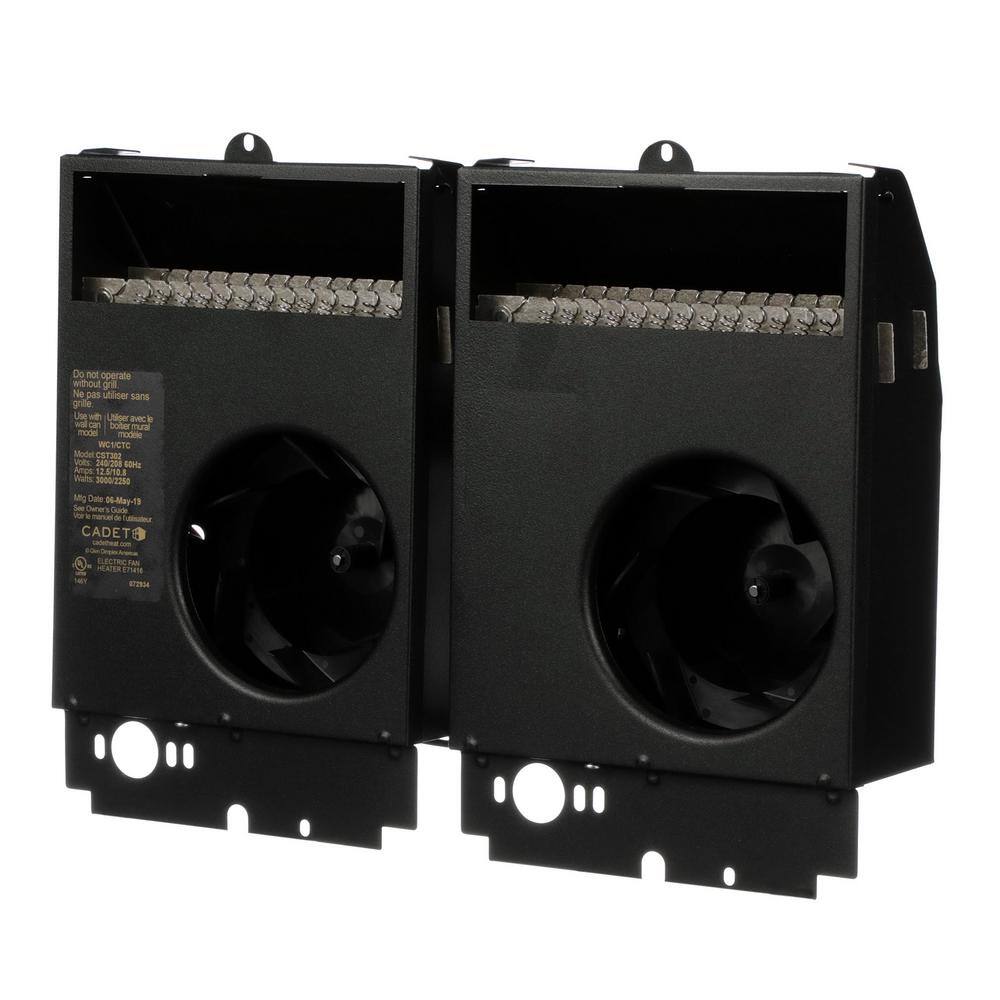

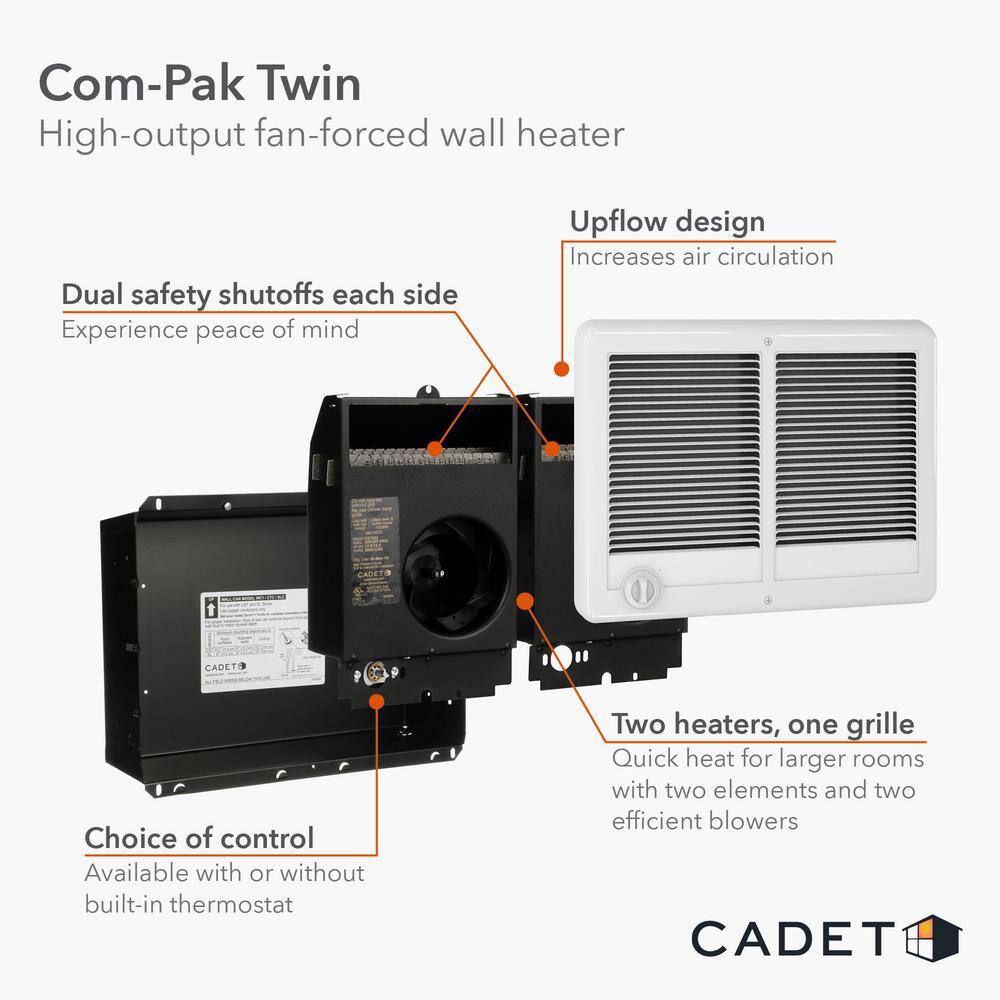

• Two fans and two fast-heating coil elements quickly warm a space up to 400 sq. ft.
• 3,000-Watt output with 240-Volt wiring (12.5 Amps, 10,240 BTUs) or 2,250-Watt output with 208-Volt wiring (10.8 Amps, 7,680 BTUs)

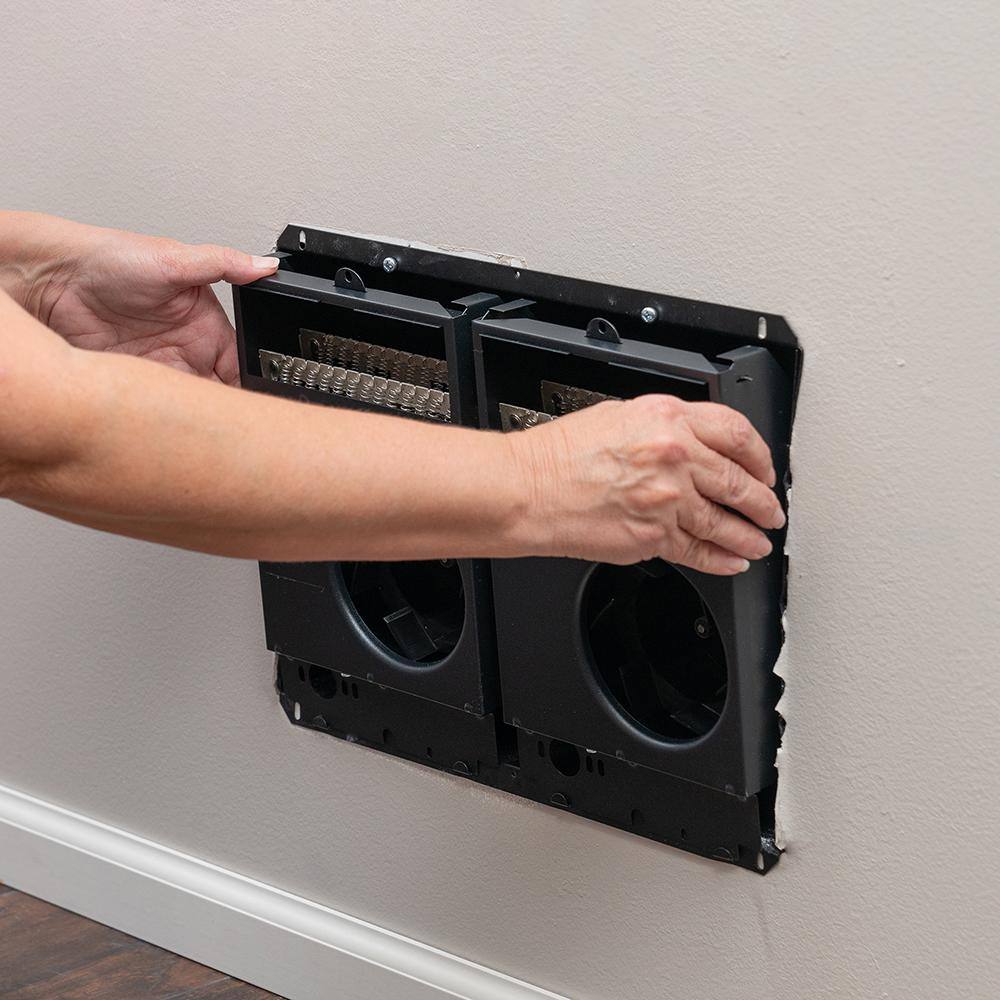

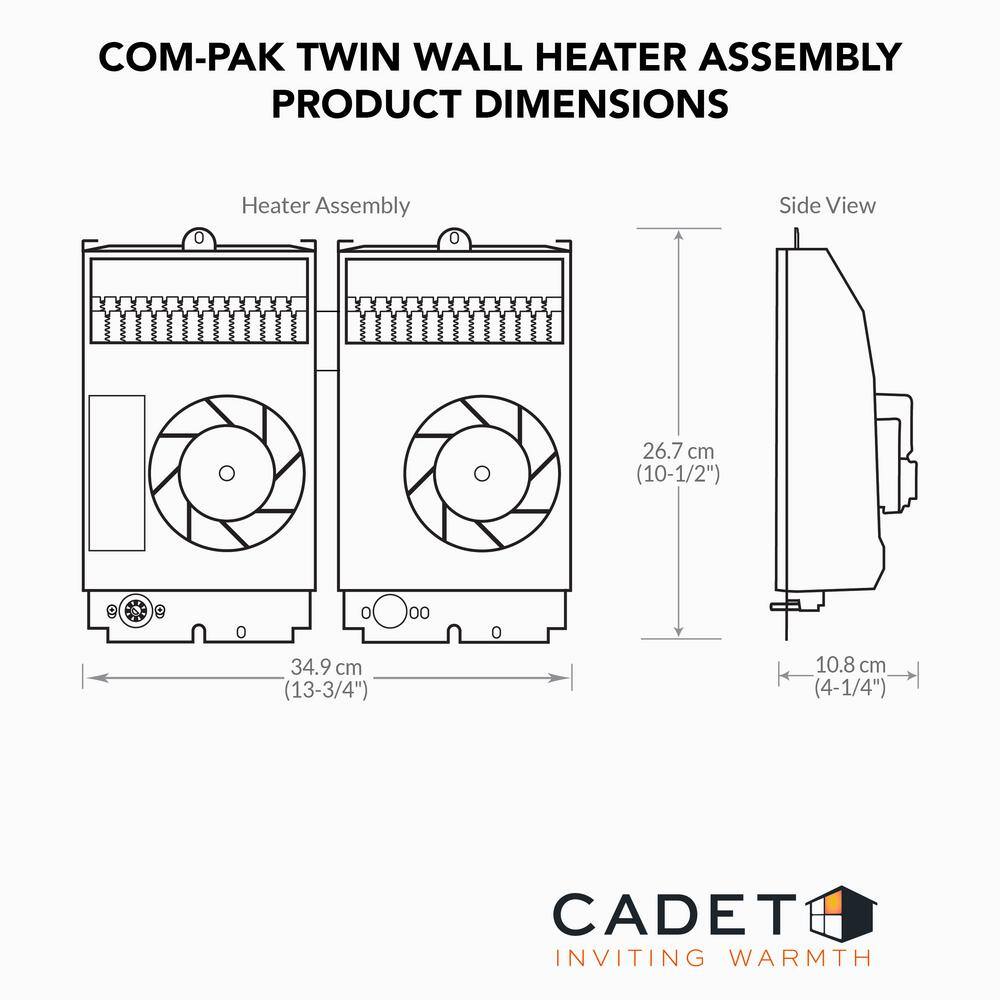

• Space-saving, recess-mount design for larger rooms. Rough-in dimensions: 14.5 in. W x 10.125 in. H x 4 in. D
• An interior replacement heater assembly only. A full heater unit requires a wall can, grille and thermostat (sold separately).
• A high-temperature safety device switches heater off if normal operating temperatures are exceeded

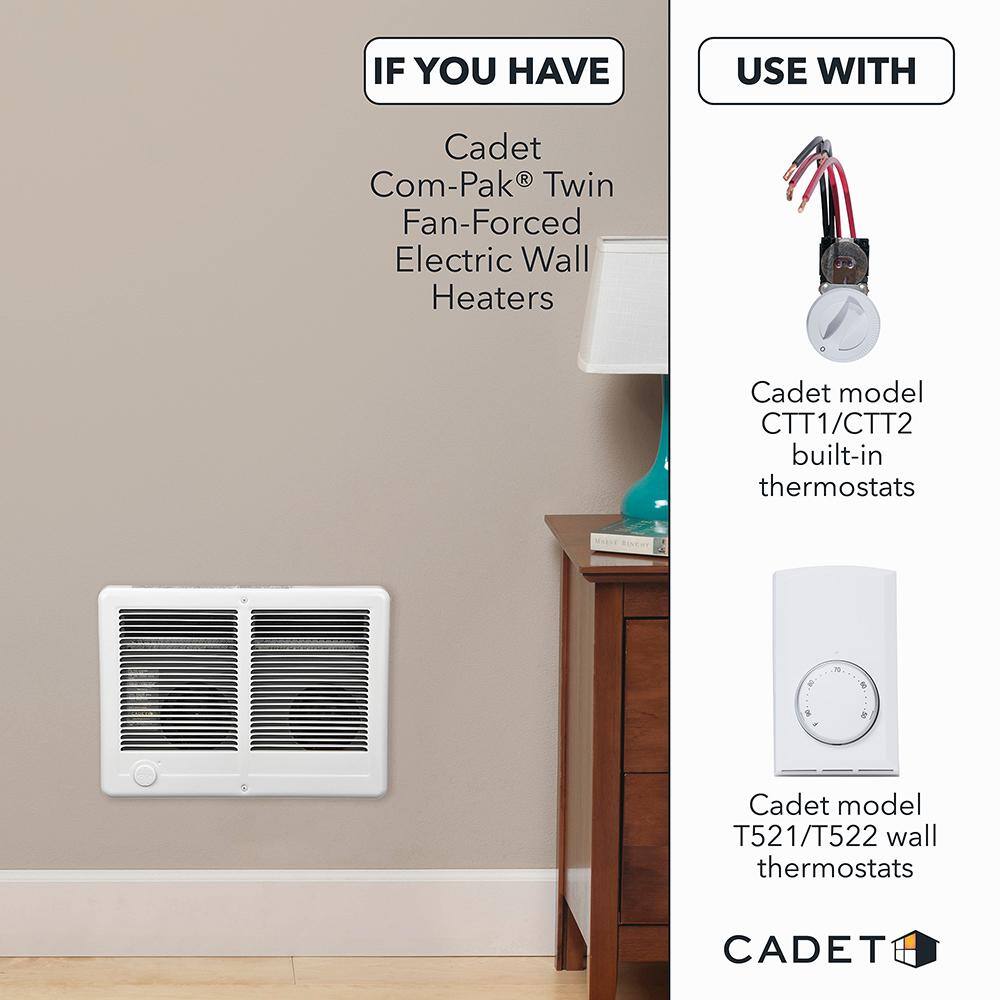

• A wall or built-in thermostat is required for control
• Grill and wall can required for new installations (not included)
• UL listed in the US and Canada for safety compliance
• 2-year limited warranty
