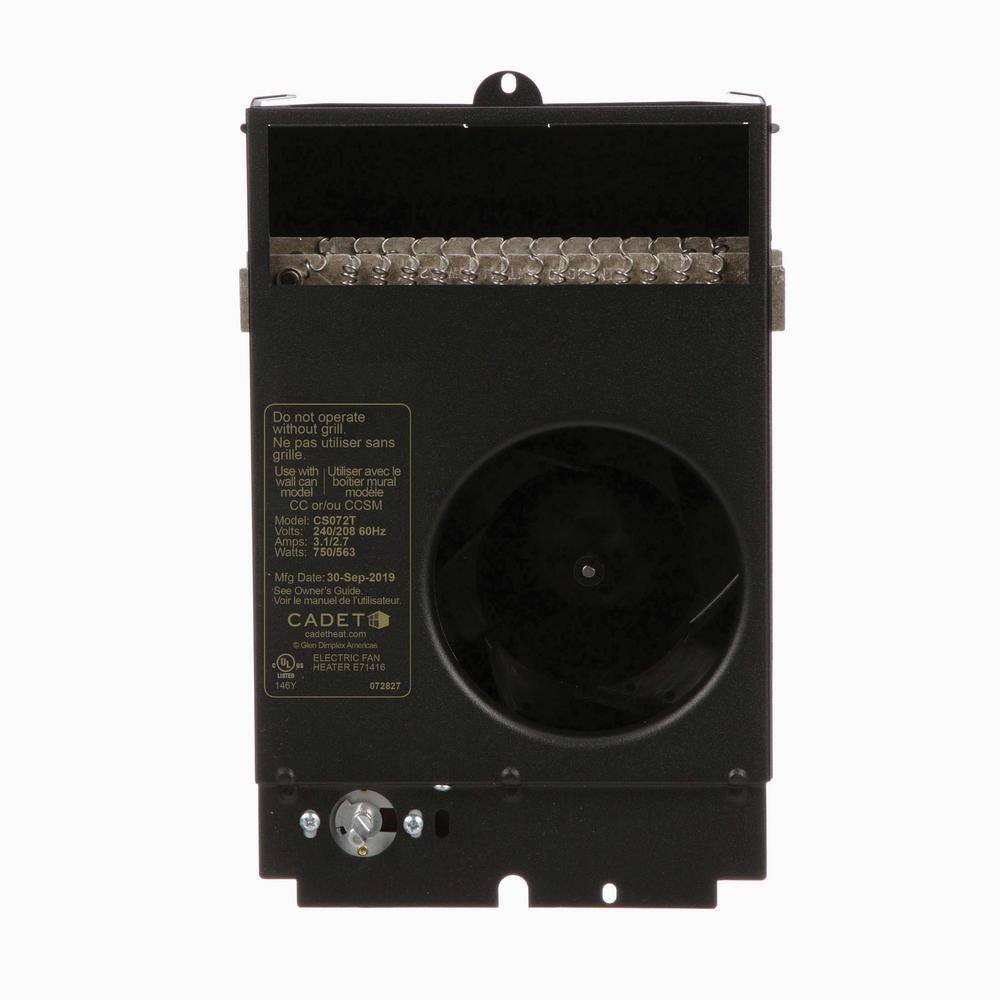

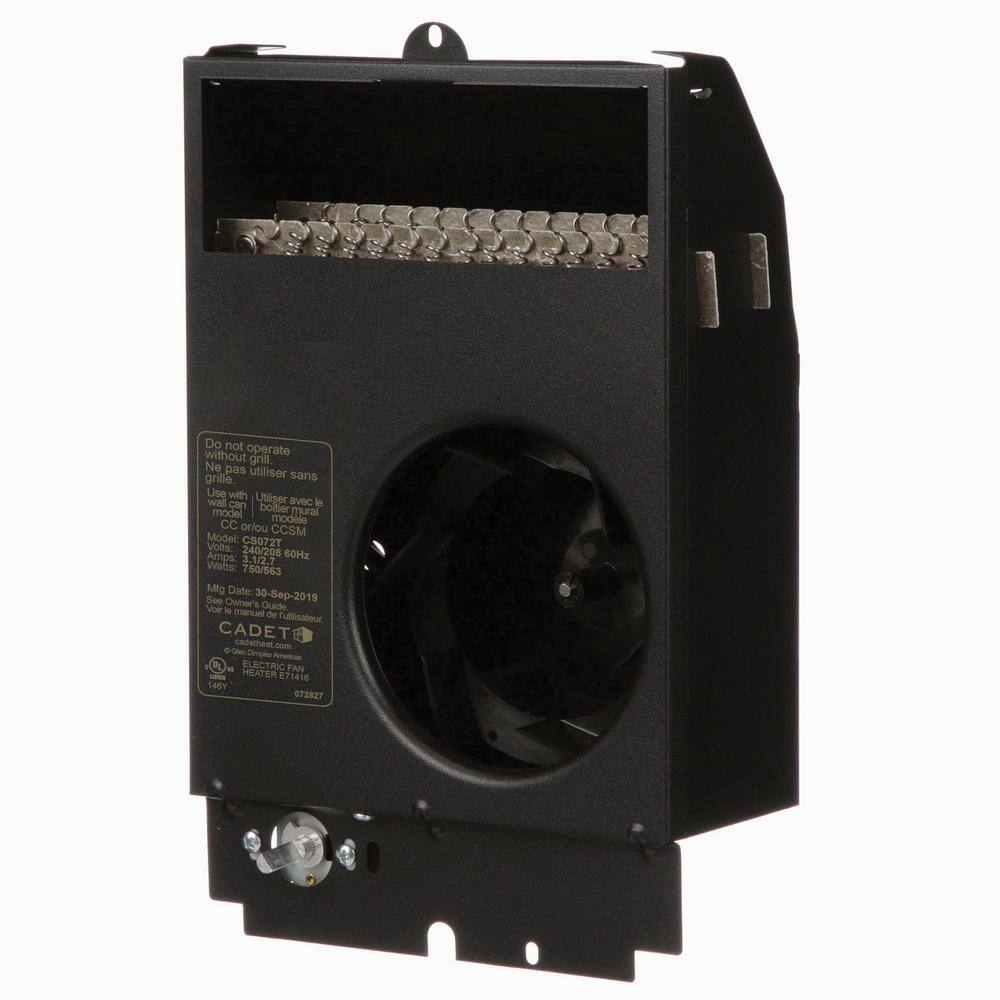

Cadet CS072T 240/208-volt 750/563-watt Com-Pak In-wall Fan-forced Replacement Electric Heater Assembly with Thermostat
A simple and affordable way to add extra warmth to any living space. The Com-Pak fan-forced in-wall electric heater features a compact size and recess-mount design that requires minimal wall space – ideal for renovations or new construction. This hard-wired electric heater provides quick and efficient heat, yet is quiet enough for any room. This product is an interior replacement heater assembly only. A full heater unit requires a wall can and grille sold separately. Built-in thermostat included.
- Hard-wired 750-Watt heater requires 240-Volt or 208-Volt wiring (double breaker). Before you purchase, confirm your power supply voltage (check your breaker, use a voltmeter, or refer to your old heater’s label if replacing).

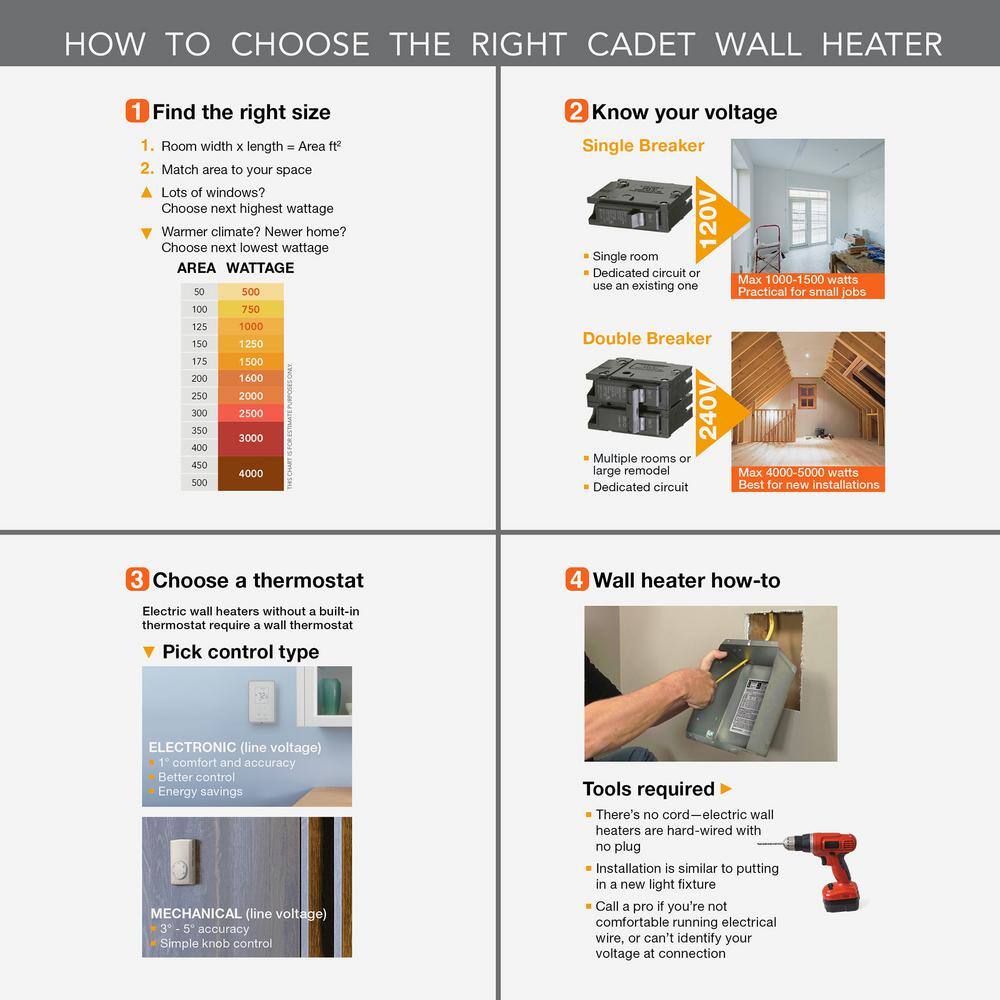

- Choose the correct heater size for your space. Simply match your area to the corresponding wattage (see chart below)
- Quiet fan and fast-heating coil element quickly warm a space up to 100 sq. ft.
- 750-Watt output with 240-Volt wiring (3.1 Amps, 2,560 BTUs) or 563-Watt output with 208-Volt wiring (2.7 Amps, 1,925 BTUs)
- Space-saving, recess-mount design. Rough-in dimensions: 8 in. W x 10.125 in. H x 4 in. D
- An interior replacement heater assembly only with a built-in thermostat. A full heater unit requires a wall can and grille (sold separately).
- A high-temperature safety device switches heater off if normal operating temperatures are exceeded
- Thermostat temperature range is 40°F – 85°F
- UL listed in the US and Canada for safety compliance
- 2-year limited warranty
Dimensions
| Product Depth (in.) | 4 in | Product Height (in.) | 10 in |
|---|---|---|---|
| Product Width (in.) | 8 in |
Details
| Accessories Included | No | ACLI Safety Plug | No |
|---|---|---|---|
| Amperage (A) | 3.13 A | Anti-freeze setting | No |
| Area Heated (sq. ft.) | 100 | Automatic shutoff | Yes |
| Color | Black | Color Family | Blacks |
| Fuel Type | Electric | Heat rating (BTU/hour) | 2559 Btu/h |
| Heater Controls | Dial | Heater Type | Unvented |
| Heating Product Type | Electric Wall Heater | Heating Technology Type | Forced Air |
| Indoor/Outdoor | Indoor | Installation | Recessed/Surface Mounted |
| Number of Heat Settings | Variable | Oscillation | No |
| Pack Size | 1 | Product Weight (lb.) | 4 lb |
| Remote Control | No | ||
| Room Size (sq. ft.) | Less than 50Greater than 100050-150150-250250-350350-500500-1000 | Thermostat | Yes |
| Timer Included | No | Voltage (V) | 240/208 V |
| Wattage (W) | 750/563 W |
