Advanced Drainage Systems X2-1200100 1 in. x 100 ft. IPS 200 PSI NSF Poly Pipe
Original price was: $174.00.$156.60Current price is: $156.60.
- 1 in. x 100 ft. potable grade black poly pipe
- Extreme flexibility allows for convenient positioning of pipe
- SIDR 9 wall thickness
Advanced Drainage Systems X2-1200100 1 in. x 100 ft. IPS 200 PSI NSF Poly Pipe

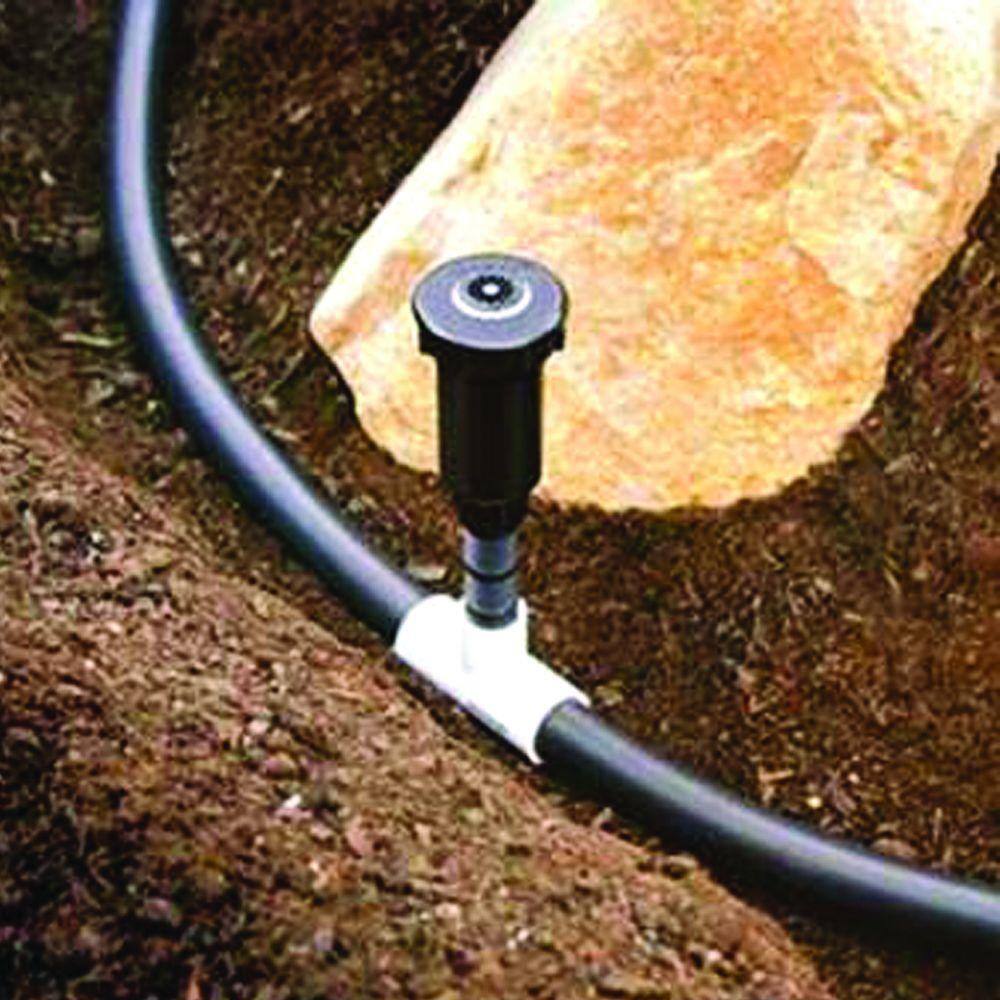

Advanced Drainage Systems, Inc. (ADS) 1 in. x 100 ft. IPS 200 psi NSF Poly Pipe is a leader in today’s water service and irrigation markets. Its flexibility and durability distinguish it from the competition and make it ideal for a variety of applications. This potable water service pipe is NSF 14/61 rated and is the right product for your irrigation or well water service project.
- Pipe material shall be HDPE conforming to the minimum requirements of cell classification 345464C as defined and described in ASTM D3350, except that carbon black content should not exceed 3-1/2 percent, the resin shall have a material designation code of PE3608
- Polyethylene construction
- Strong, Durable construction helps withstand weather and human elements, and does not become brittle over time
- Compliant with NSF 14/61 specifications

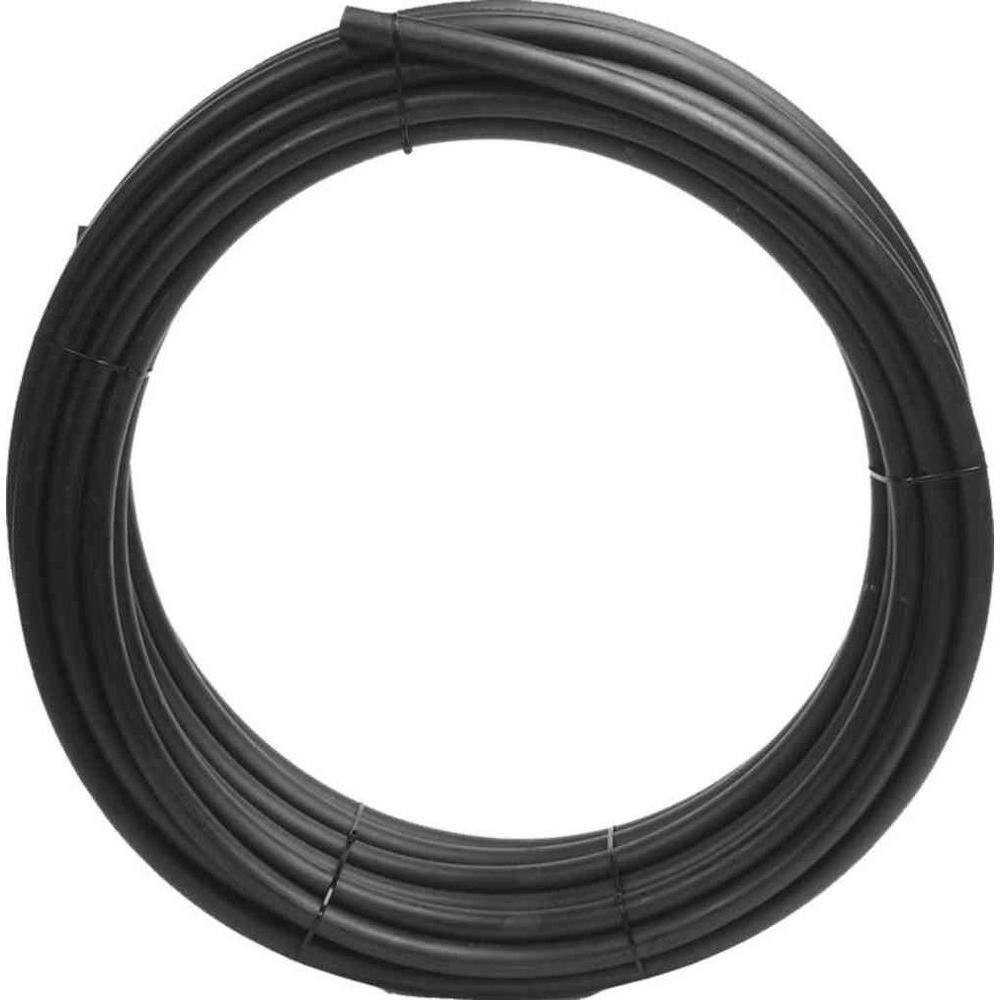

- 100 ft. coil handles large jobs and helps minimize needed joints
- Strong to withstand harsh 200 PSI maximum working pressure conditions
- Flexible construction installs with ease in uneven terrain
- Black in color
- Underground use
- Resistant to rot, corrosion, chemical damage, damage from vibrations, surface loads and pressure surges
- Note: product may vary by store

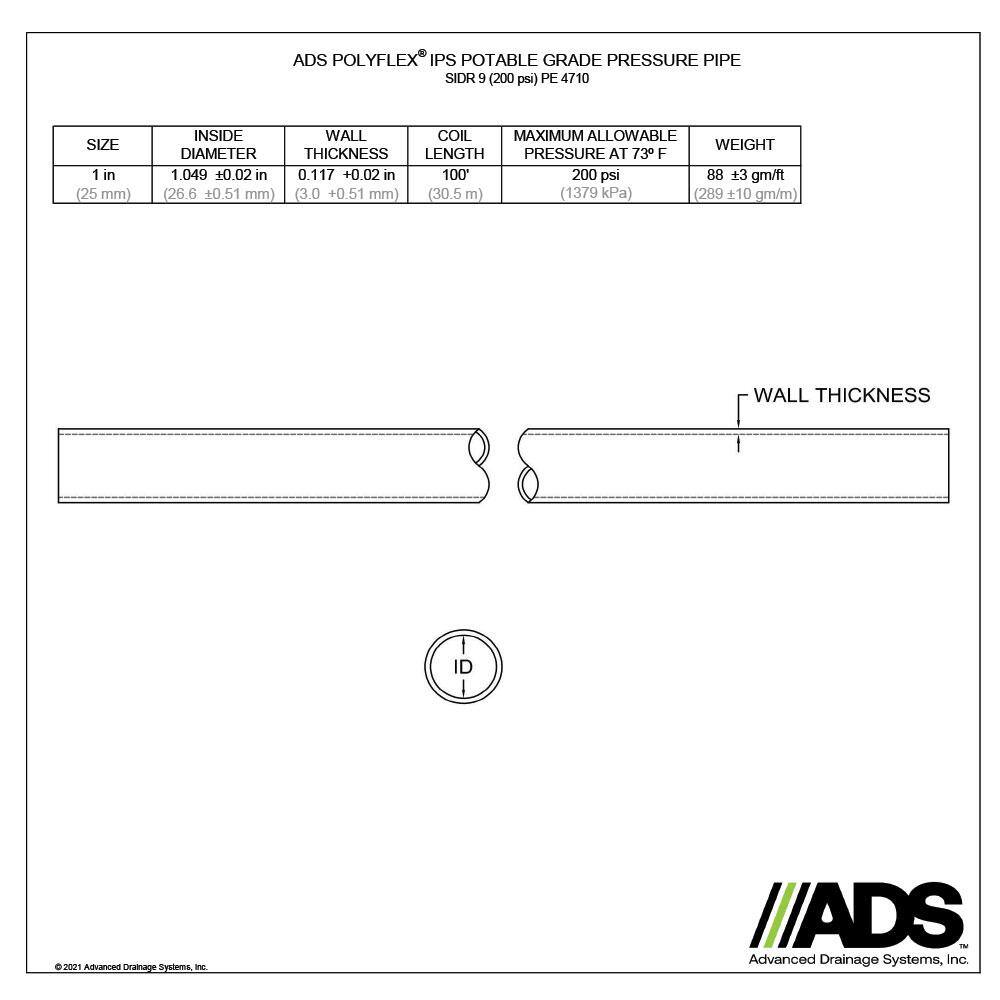

Dimensions
| Actual inside diameter (in.) | 1.049 | Actual outside diameter (in.) | 1.119 |
|---|---|---|---|
| Nominal Inside Pipe Diameter (In.) | 1″ | Pipe Wall Thickness (In.) | 0.08 |
| Product Length (ft.) | 100 ft |
Details
| Application | Potable Water | Color Family | Black |
|---|---|---|---|
| Color/Finish | Black | Connectivity | Barb |
| Material | Polyethylene | Maximum Flow Rate (gallons per minute) | 0 |
| Maximum working pressure (psi) | 200.0 | Maximum Working Temperature (F) | 80 |
| Minimum working temperature (F) | -50 | Pack Size | 1 |
| Pipe Features | Flexible | Pipe or Fitting Product Type | Pipe & Tubing |
| Product Weight (lb.) | 25.6 lb |
